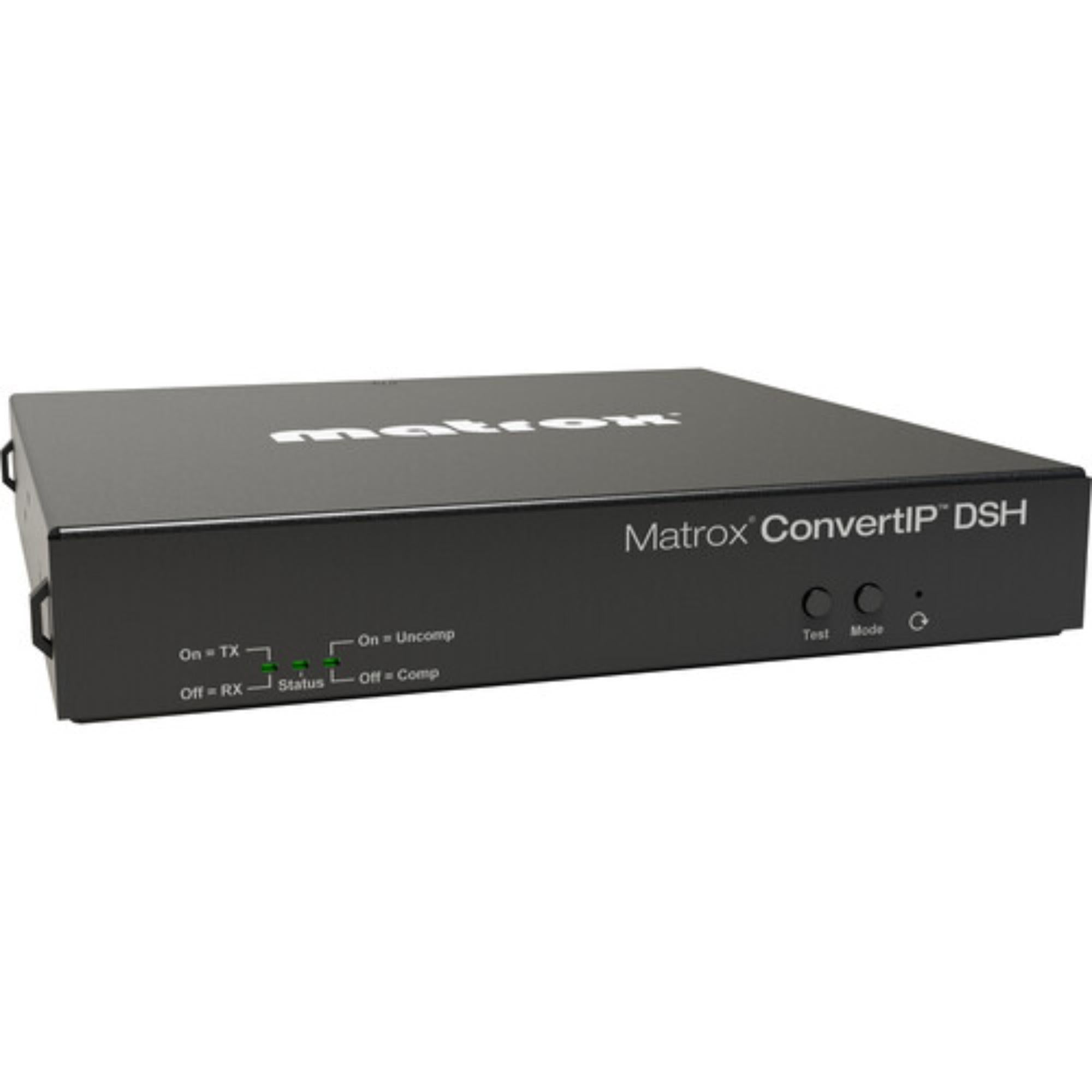

Matrox ConvertIP DSH

Matrox ConvertIP DSH is a compact HDMI-to-IP transmitter and receiver designed for ST 2110 and IPMX installations. The same appliance can sit on either side of the signal path, taking HDMI into the network in transmit mode or converting an incoming IP stream back to HDMI at the destination.

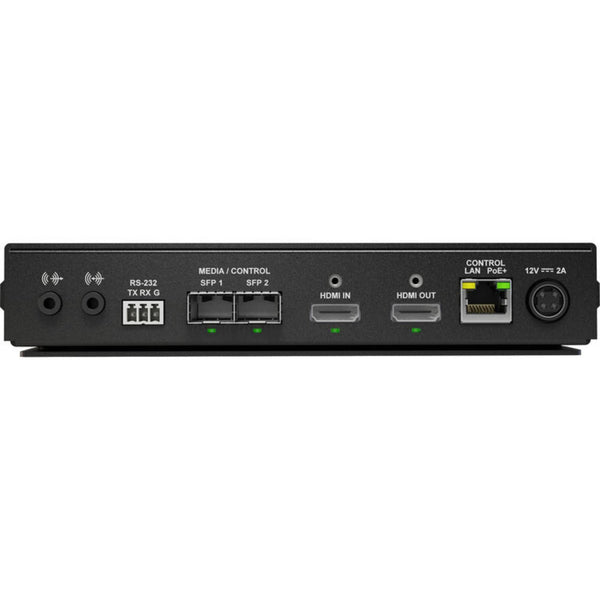

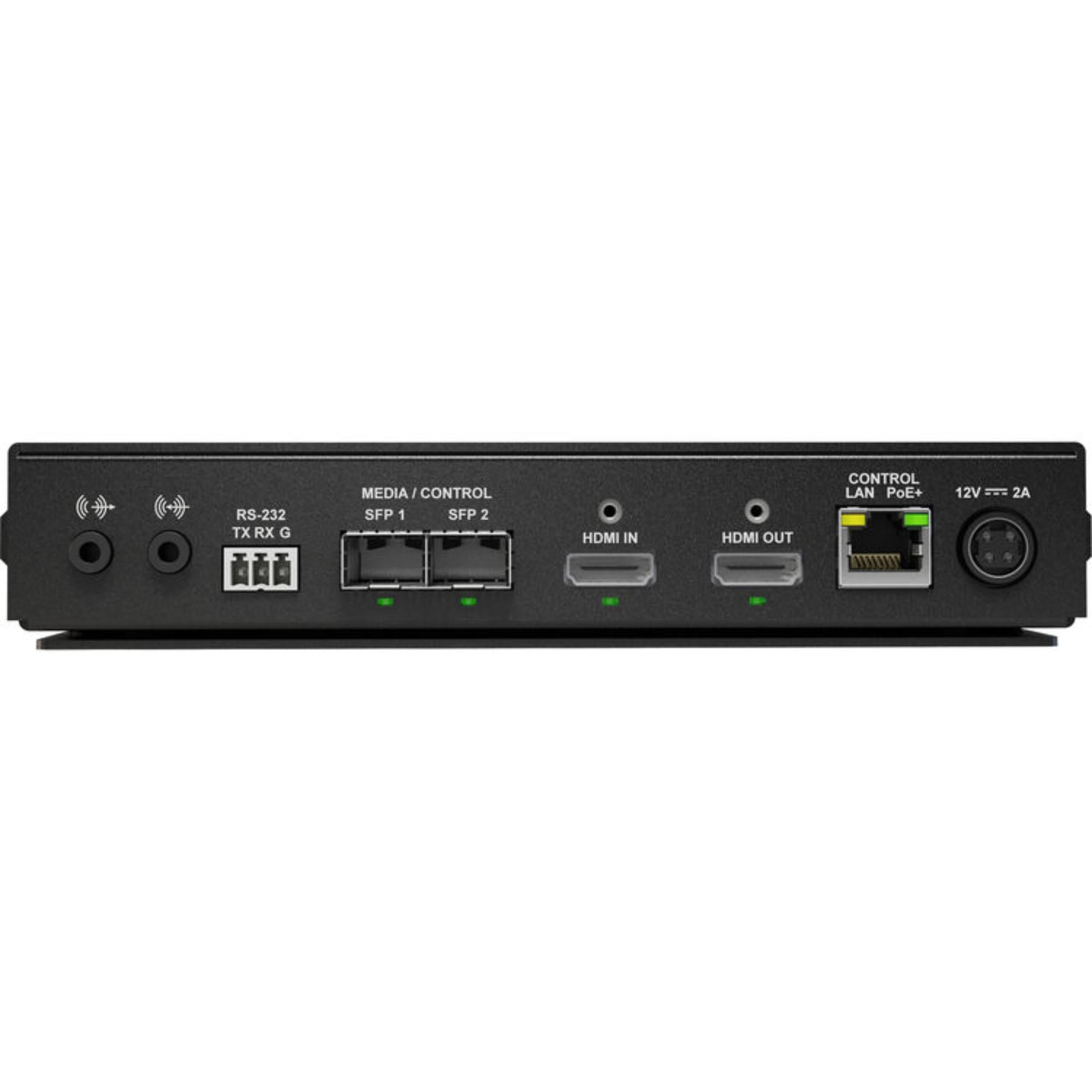

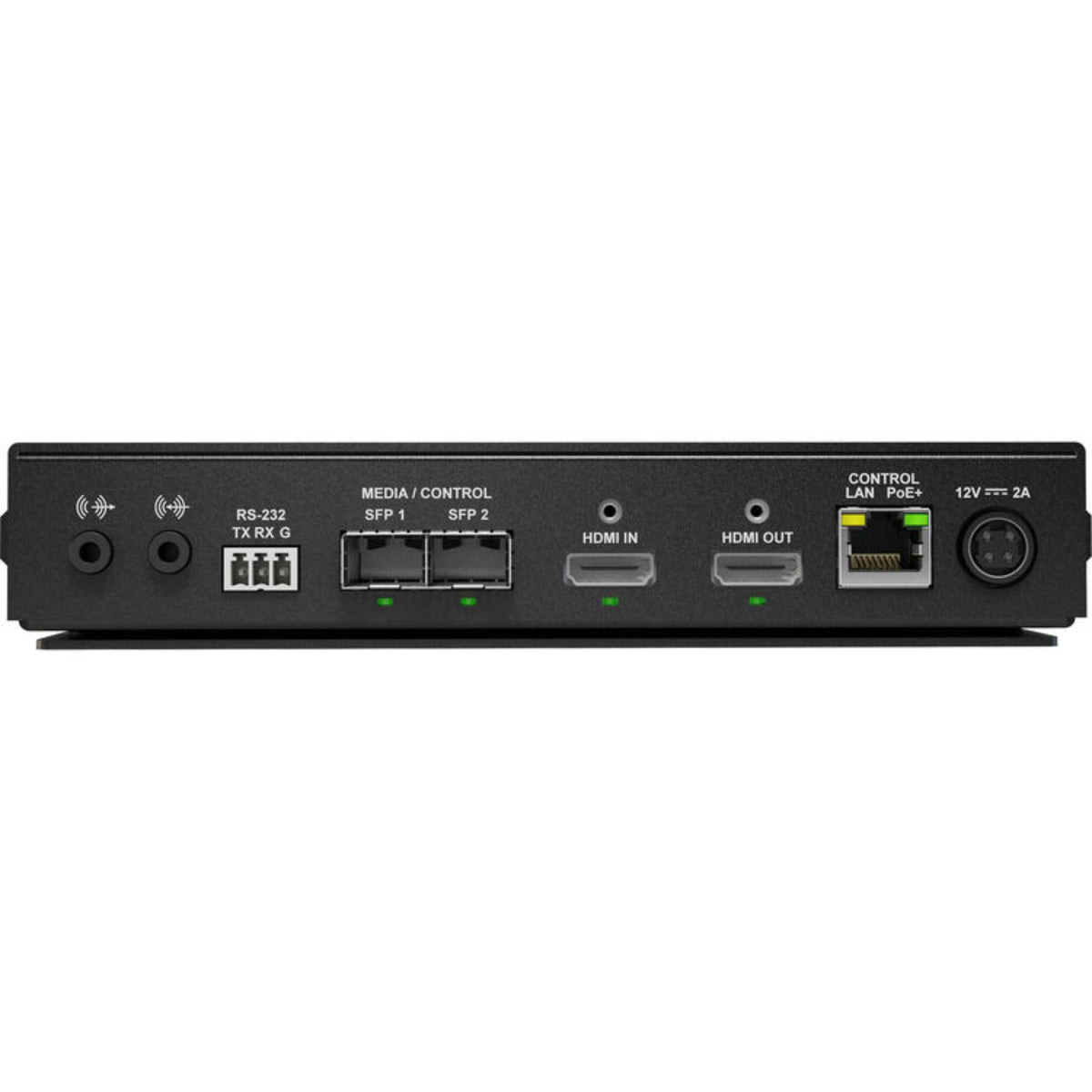

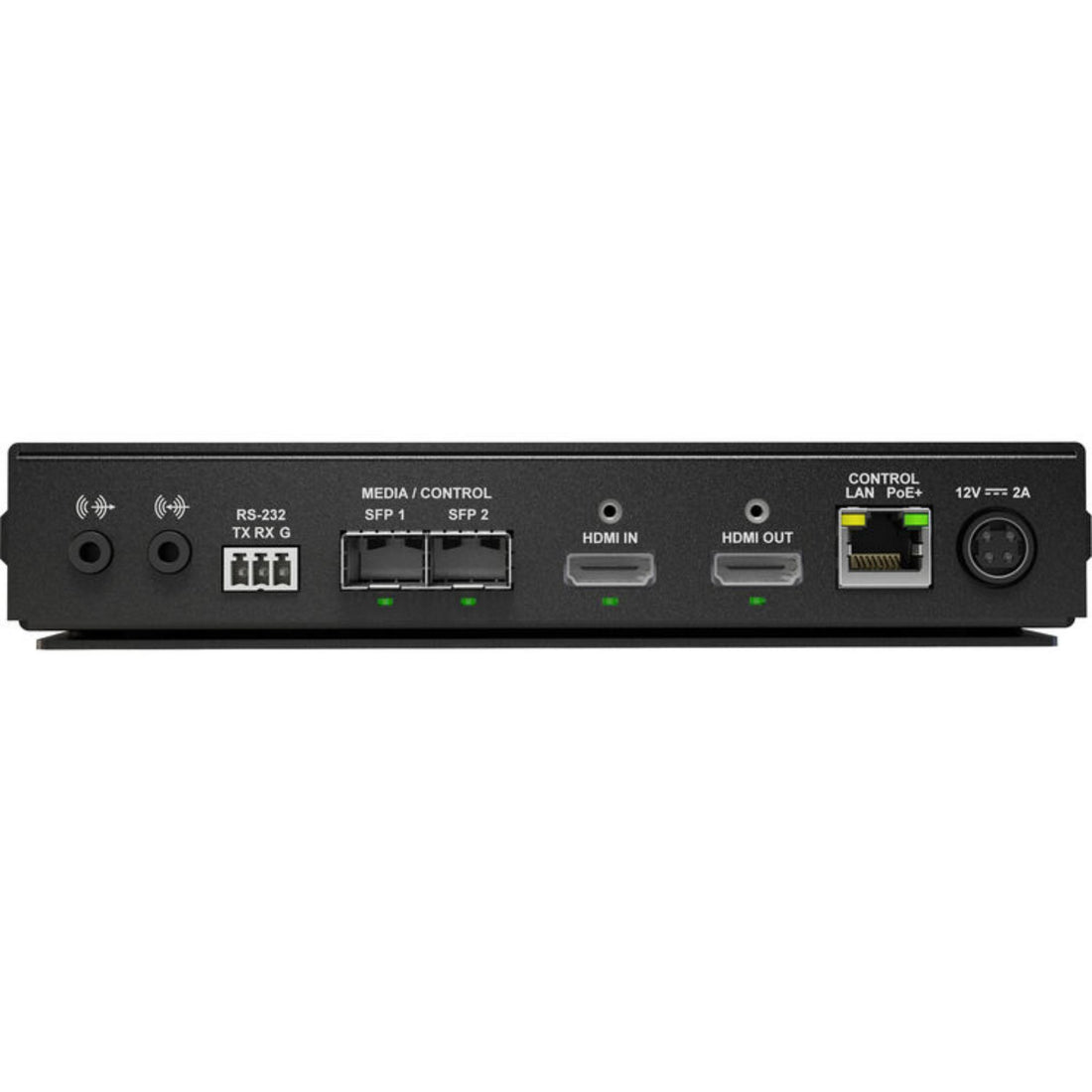

Two SFP28 cages carry the media side at 10 or 25 GbE, while a separate RJ45 interface handles management and PoE+. The unit supports uncompressed ST 2110 transport, the included Colibri codec, and an optional JPEG XS license when a compressed ST 2110-22 workflow is required.

Highlights

• HDMI-to-IP or IP-to-HDMI operation – one appliance can be configured as a transmitter or receiver
• Dual SFP28 connectivity – supports 10 GbE and 25 GbE media transport
• Up to 4Kp60 – handles desktop and professional video resolutions up to 4096 × 2160p60
• Zero-latency HDMI passthrough – provides direct HDMI loop-out while operating in transmit mode
• ST 2110 and IPMX ready – fits standards-based professional IP media environments
• Fanless operation – keeps the unit quiet for studios, control rooms, and monitor-mounted installations

Quick Specs & Uses

• Product type: Dual-channel HDMI-to-IP transmitter / receiver
• Operating modes: Transmit or receive
• Video input: 1 x HDMI
• Video output: 1 x HDMI; zero-latency passthrough in transmit mode
• Maximum video resolution: 4096 × 2160p60
• Desktop resolution support: Most standard desktop GPU resolutions up to 4Kp60
• Color formats: YCbCr 4:2:0 8-bit / 10-bit; YCbCr 4:2:2 10-bit; RGB 4:4:4 8-bit
• Dynamic range: SDR / HDR
• Embedded audio: Up to 8 channels over HDMI
• Analog audio input: 1 x 3.5 mm unbalanced stereo, line level
• Network media interfaces: 2 x SFP28 cages
• 10 GbE support: IEEE 802.3ae, 10GBASE-SR / LR
• 25 GbE support: IEEE 802.3by / 802.3cc, 25GBASE-SR / CR / CR-S / LR
• Management network: 1 x RJ45, 100 / 1000 Mbps with PoE+
• LAN redundancy: LAN2 reserved for redundancy mode
• RS-232: Supported
• Control: Matrox ConvertIP Command Center and Matrox ConvertIP Manager
• Video scaling: High-quality multi-tap 10-bit up/down scaler
• Video deinterlacing: Supported
• Color-space conversion: Supported
• HDCP support: Yes
• Uncompressed video: HD 3 Gbps and 4K 12 Gbps
• Included codec: Colibri
• Colibri formats: 4:2:2 10-bit YUV and 4:4:4 8-bit RGB, 100 to 2000 Mbps
• Default compressed bitrate: 200 Mbps for HD; 820 Mbps for 4K
• Optional codec: JPEG XS for SMPTE ST 2110-22
• Audio format: Uncompressed PCM, approximately 1 Mbps per channel
• Processing latency: Less than 1/4 frame, under 4 ms
• Supported protocols: SMPTE ST 2110 (-10, -20, -21, -22, -30), SMPTE 2059 (-1, -2), IPMX
• Redundancy: SMPTE ST 2022-7
• Discovery and control: AMWA NMOS IS-04 and IS-05
• IP addressing: IPv4, IPv6, DHCP or static IP
• PoE+: IEEE 802.3at Type 2
• Cooling: Fanless
• Device power: 12 VDC, maximum 18 W
• Optional external PSU: 100 to 240 VAC, 50 / 60 Hz, DIN 4 locking output
• Dimensions: 181 × 191 × 36 mm (7.13 × 7.53 × 1.42 in)
• Weight: 0.755 kg (1.66 lb)
• Operating temperature: 0 to 45°C
• Storage temperature: -40 to 70°C

Why It Helps

ConvertIP DSH is useful when HDMI equipment needs to move into a professional IP media environment without adding separate transmitter and receiver models. The same hardware can be placed at either end of the connection, which simplifies spares and makes system design a little easier.

The media and management paths are kept separate. The two SFP28 cages handle high-bandwidth ST 2110 traffic, while the dedicated RJ45 interface is available for control and PoE+. ST 2022-7 support also gives engineers a redundant network option when the application needs a more resilient signal path.

Video processing is already inside the appliance. Scaling, deinterlacing, color-space conversion, HDMI audio, and low-latency processing can all be handled in the box, so fewer additional processors are needed between the source, network, and display.

System Characteristics

• Bidirectional HDMI/IP architecture lets one hardware platform serve transmit and receive positions
• ST 2110 media transport supports uncompressed professional video over managed IP networks
• Compressed workflow options include Colibri and optional JPEG XS for reducing network bandwidth
• ST 2022-7 redundancy supports dual-path media protection for higher-availability installations
• NMOS discovery and routing provides standards-based device registration and control
• Fanless compact hardware works well behind monitors, in racks, and in noise-sensitive production areas

What's In The Box

• 1 x Matrox ConvertIP DSH
