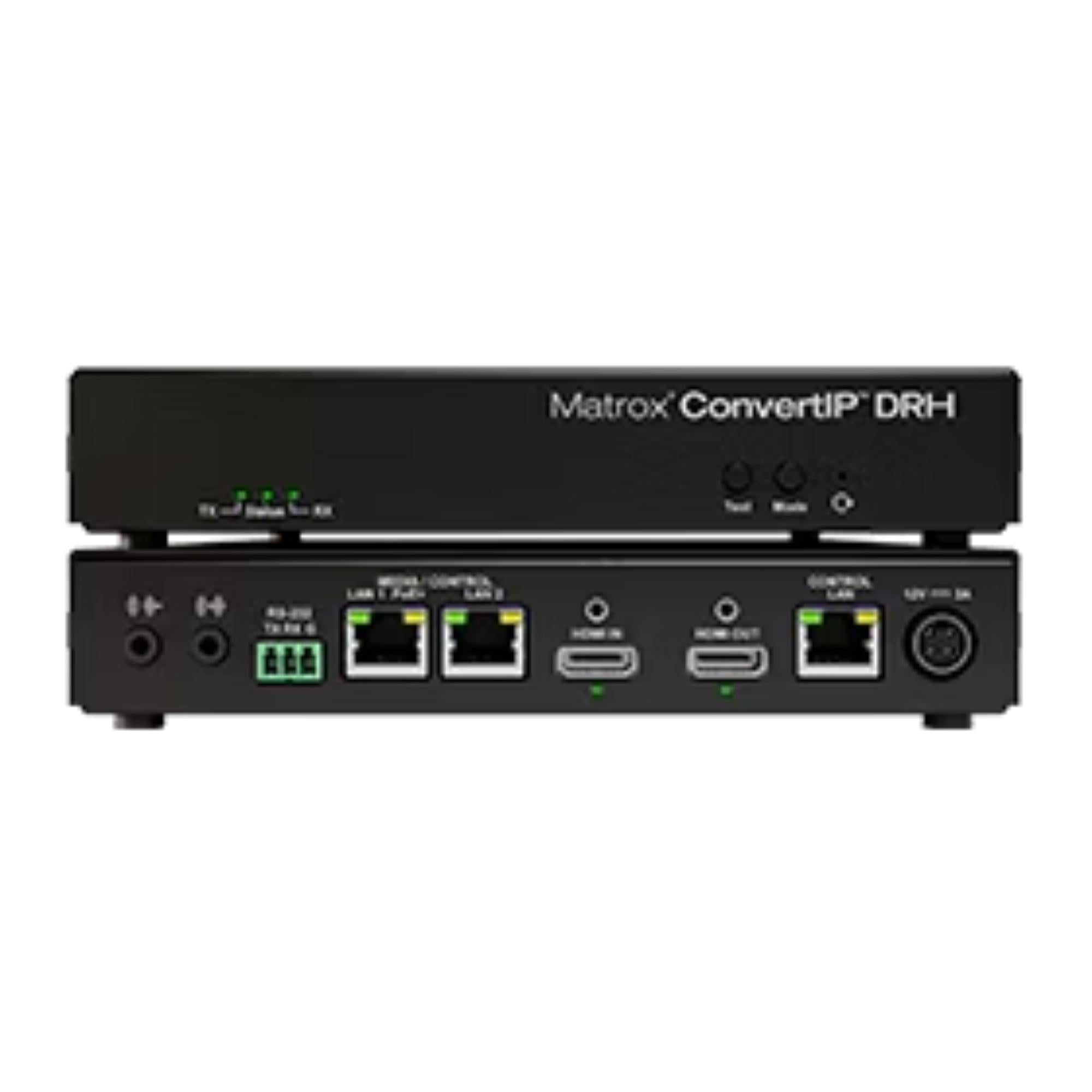

Matrox ConvertIP DRH

Matrox ConvertIP DRH is a compact HDMI-to-IP transmitter and receiver built for ST 2110 and IPMX environments that run over RJ45 Ethernet. The same unit can be placed at either end of the workflow, sending HDMI into the network or receiving an IP stream and returning it to HDMI.

Three RJ45 ports keep the network side organized. LAN 1 carries media and control with PoE+ over 1 or 2.5 GbE, LAN 2 provides a second media and control path for redundancy, and a separate management port handles control traffic. The unit also provides zero-latency HDMI loop-out in transmit mode and runs without a fan.

Highlights

• HDMI-to-IP or IP-to-HDMI operation – one appliance can work as a transmitter or receiver
• Three RJ45 network ports – separates primary media, redundant media, and management traffic
• 1 / 2.5 GbE media transport – carries media and control over standard RJ45 infrastructure
• Up to 4Kp60 – supports video resolutions up to 4096 × 2160p60
• Zero-latency HDMI passthrough – keeps a local HDMI output available while transmitting
• Fanless design – suited to quiet control rooms, studios, and monitor-mounted installations

Quick Specs & Uses

• Product type: Dual-channel RJ45 HDMI-to-IP transmitter / receiver
• Operating modes: Transmit or receive
• Video input: 1 x HDMI
• Video output: 1 x HDMI, zero-latency passthrough in transmit mode
• Maximum video resolution: 4096 × 2160p60
• Desktop resolution support: Standard desktop GPU resolutions up to 4Kp60
• Color formats: YCbCr 4:2:0 8-bit / 10-bit; YCbCr 4:2:2 10-bit; RGB 4:4:4 8-bit
• Dynamic range: SDR / HDR
• Embedded audio: Up to 8 channels over HDMI
• Analog audio input: 1 x 3.5 mm unbalanced stereo, line level
• Network ports: 3 x RJ45
• LAN 1: Media and control, 1 / 2.5 GbE, PoE+
• LAN 2: Redundant media and control, 1 / 2.5 GbE
• Control LAN: Dedicated management, 100 / 1000 Mbps
• RS-232: Supported
• Control: Matrox ConvertIP Command Center; Matrox ConvertIP Manager
• Video scaling: High-quality multi-tap 10-bit up/down scaler
• Video deinterlacing: Supported
• Color-space conversion: Supported
• HDCP support: Yes
• Included codec: Colibri
• Colibri formats: 4:2:2 10-bit YUV and 4:4:4 8-bit RGB, 100 to 2000 Mbps
• Default compressed bitrate: 200 Mbps for HD; 820 Mbps for 4K
• Optional codec: JPEG XS for SMPTE ST 2110-22
• Audio format: Uncompressed PCM, approximately 1 Mbps per channel
• Processing latency: Less than 1/4 frame, under 4 ms
• Supported protocols: SMPTE ST 2110 (-10, -22, -30), SMPTE 2059 (-1, -2), IPMX
• Redundancy: SMPTE ST 2022-7
• Discovery and control: AMWA NMOS IS-04 and IS-05
• Command and control: HTTPS over TCP
• IP addressing: IPv4, IPv6, DHCP or static IP
• PoE+: IEEE 802.3at Type 2
• Cooling: Fanless
• Device power: 12 VDC, maximum 18 W
• Optional external PSU: 100 to 240 VAC, 50 / 60 Hz, DIN 4 locking output
• Dimensions: 181 × 191 × 36 mm (7.13 × 7.53 × 1.42 in)
• Weight: 0.635 kg (1.40 lb)
• Operating temperature: 0 to 45°C
• Storage temperature: -40 to 70°C

Why It Helps

The DRH is useful when an HDMI source needs to join an IP production network without moving the workflow onto SFP-based infrastructure. Its RJ45 design keeps the media path on familiar copper Ethernet while still supporting ST 2110 and IPMX operation.

The three-port layout also makes system design easier to follow. Primary media traffic can stay on LAN 1, a second path can be reserved for ST 2022-7 redundancy, and management stays on its own control interface. That separation is useful in installations where media and control traffic are intentionally kept apart.

The box handles more than simple transport. Scaling, deinterlacing, color conversion, HDMI audio, and local passthrough are built in, which can reduce the number of extra processing devices needed between the source and the network.

System Characteristics

• Bidirectional HDMI/IP workflow allows one hardware platform to serve either end of the link
• RJ45-based media transport supports professional IP video without requiring SFP optics
• ST 2022-7 redundancy provides a second media path for higher-availability installations
• NMOS discovery and control supports standards-based registration and routing
• Compressed transport options include Colibri and optional JPEG XS
• Fanless compact hardware works well behind displays, in racks, or in acoustically sensitive rooms

What's In The Box

• 1 x Matrox ConvertIP DRH
