Product Highlights
- Two HDMI inputs up to 1080p60
- USB 3.0 driver-free video capture
- Picture-in-picture and side-by-side video mixing
- AirPlay, Google Cast, Miracast sharing

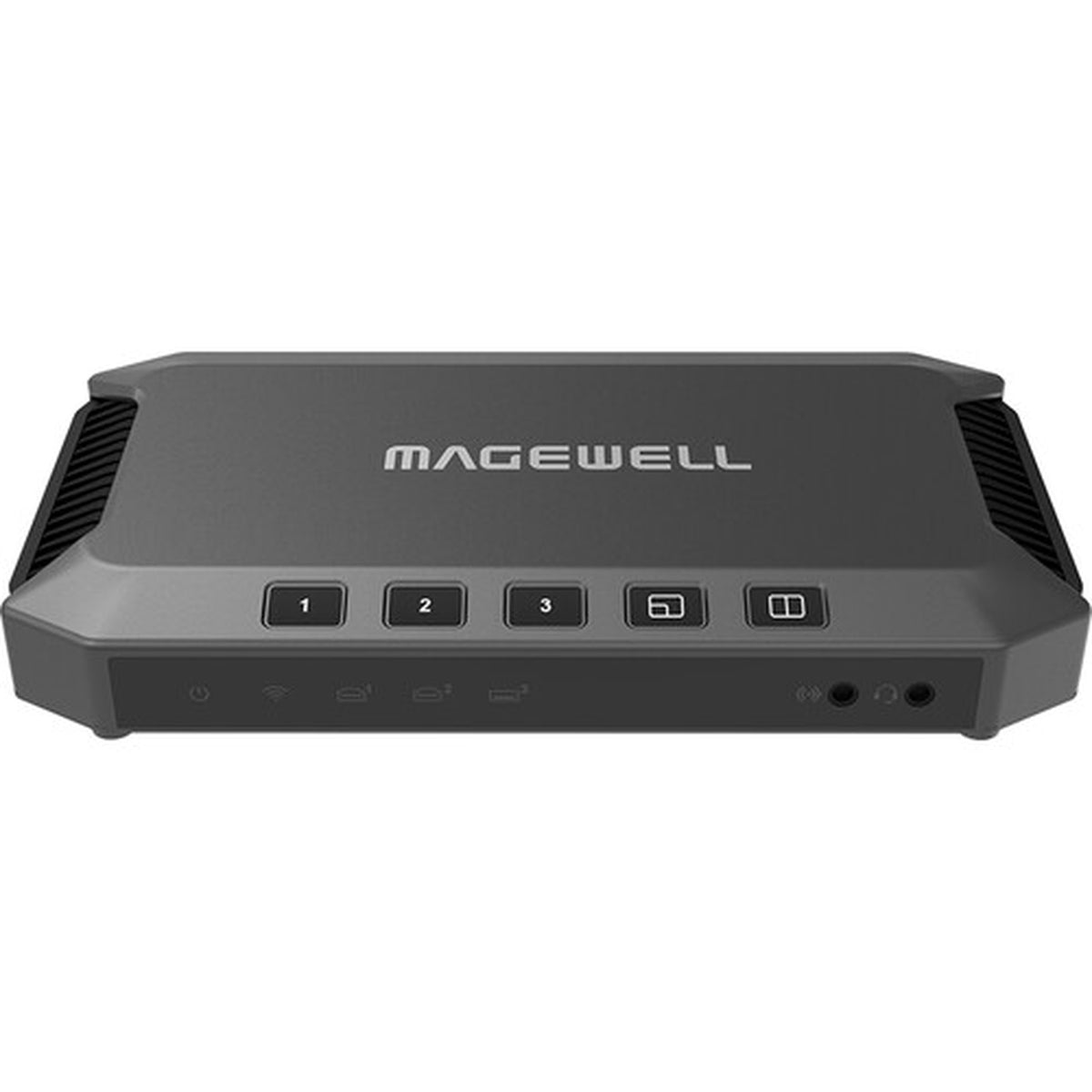

Magewell USB Fusion Dual HDMI 1080p60 USB Video Capture Device
- SKU:
- MAG-35060
- MPN:
- 35060
Ships in 2-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The Magewell USB Fusion HDMI & USB Video Capture Device is a multi-input USB video capture and presentation system designed for live classes, webinars, video conferencing, and professional streaming. It accepts two HDMI sources and one USB webcam source at up to 1080p60, then switches or combines them into picture-in-picture or side-by-side presentations. Its USB 3.0 Type-C program output appears to compatible applications as a standard UVC/UAC capture device, while a separate HDMI output provides a local display option.
The Magewell USB Fusion (manufacturer SKU 350600000, part number 35060; Coremicro SKU MAG-35060) is a multi-input HDMI and USB video capture and presentation device available from Coremicro, an authorized Magewell dealer in Union City, California. It supports two HDMI 1.4a inputs at up to 2048 x 1080p60, a USB 3.0 webcam input, UVC/UAC output up to 1920 x 1080p60, AirPlay, Google Cast, Miracast, and recording to 128 GB of built-in storage. It is compatible with supported Windows, macOS, and Linux capture workflows, including Zoom and Microsoft Teams. Coremicro listed a retail price of $1,375 on October 11, 2026; manufacturer MSRP was not independently verified. Magewell specifies a two-year limited hardware warranty, subject to its warranty terms.
Dual HDMI Capture with Picture-in-Picture Mixing

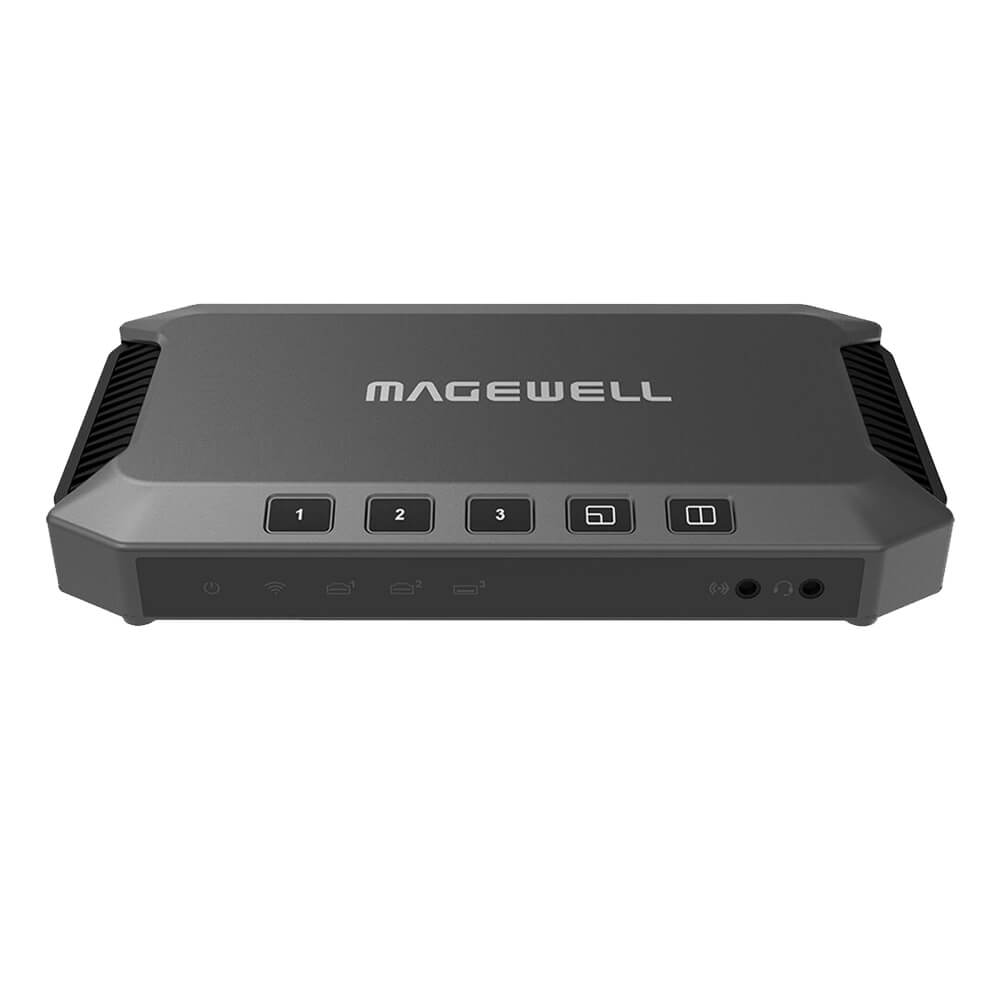

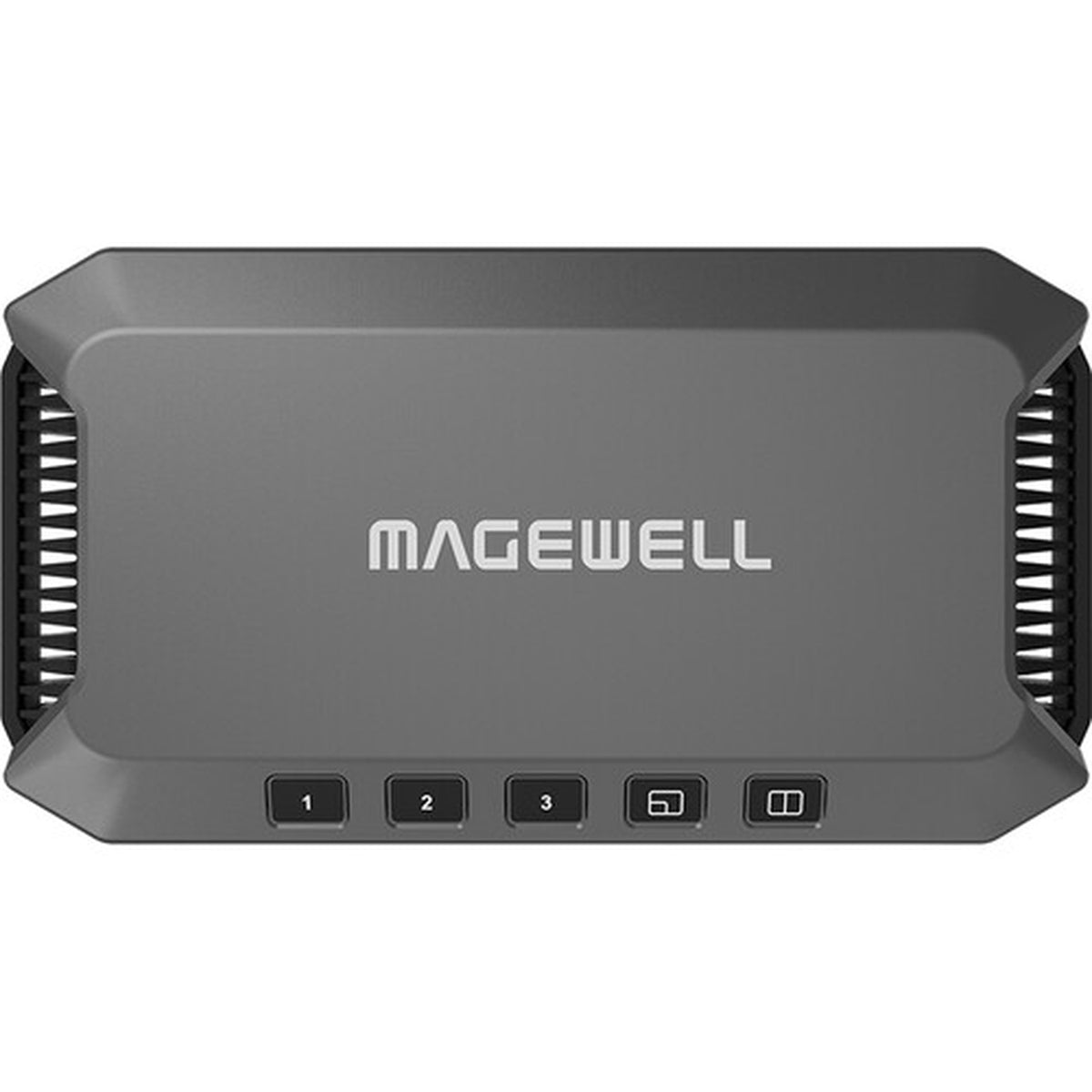

The dual HDMI USB capture workflow accepts two HDMI 1.4a feeds plus a USB webcam input, each supporting up to 1080p60-class video. USB Fusion can switch between sources or combine two sources in picture-in-picture and side-by-side scenes. On-device buttons provide direct switching, while the companion app offers additional scene-control options.
Presentation Playlists, Annotation and Telestration
The USB Fusion tablet app lets presenters prepare media playlists and incorporate videos, images, PDFs, and other supported content. Annotation tools can mark up presentation material or draw directly over live video, with notes available for export. This helps instructors and event hosts create engaging presentations without building every effect inside meeting software.
Driver-Free USB Capture for Meeting Software
The UVC/UAC-compliant USB 3.0 Type-C output presents the finished video and audio mix to compatible Windows, macOS, and Linux applications without a proprietary capture driver. USB output resolutions include 1920 x 1080, 1280 x 720, and 640 x 480, with frame rates up to 60 fps. Magewell identifies Zoom, Microsoft Teams, Google Meet, and other compatible conferencing tools as supported software environments.
Web-Based Device Control and RTMP Streaming
The browser-based control interface lets administrators configure the USB video mixer, manage presentation assets, and set recording parameters. The Web UI also provides RTMP stream setup for network delivery, with supported output modes up to 1080p60. HTTP-based APIs are available for custom integration into managed AV systems.
Centralized Management with Magewell Control Hub
Magewell Control Hub supports centralized management of registered USB Fusion devices across compatible network deployments. Administrators can also use the device's own Web UI for local configuration and maintenance. For institutions with several rooms, this provides a more manageable alternative to configuring every unit solely through its physical controls.
Multi-Source Video Presentations for Online Teaching
In a remote classroom, USB Fusion can show an instructor camera alongside slides, document visuals, or other supported content. Educators can switch scenes, annotate material, and record a session to the device's 128 GB internal storage. Wireless casting with AirPlay, Google Cast, and Miracast provides additional options for sharing a compatible screen.
Live Inputs

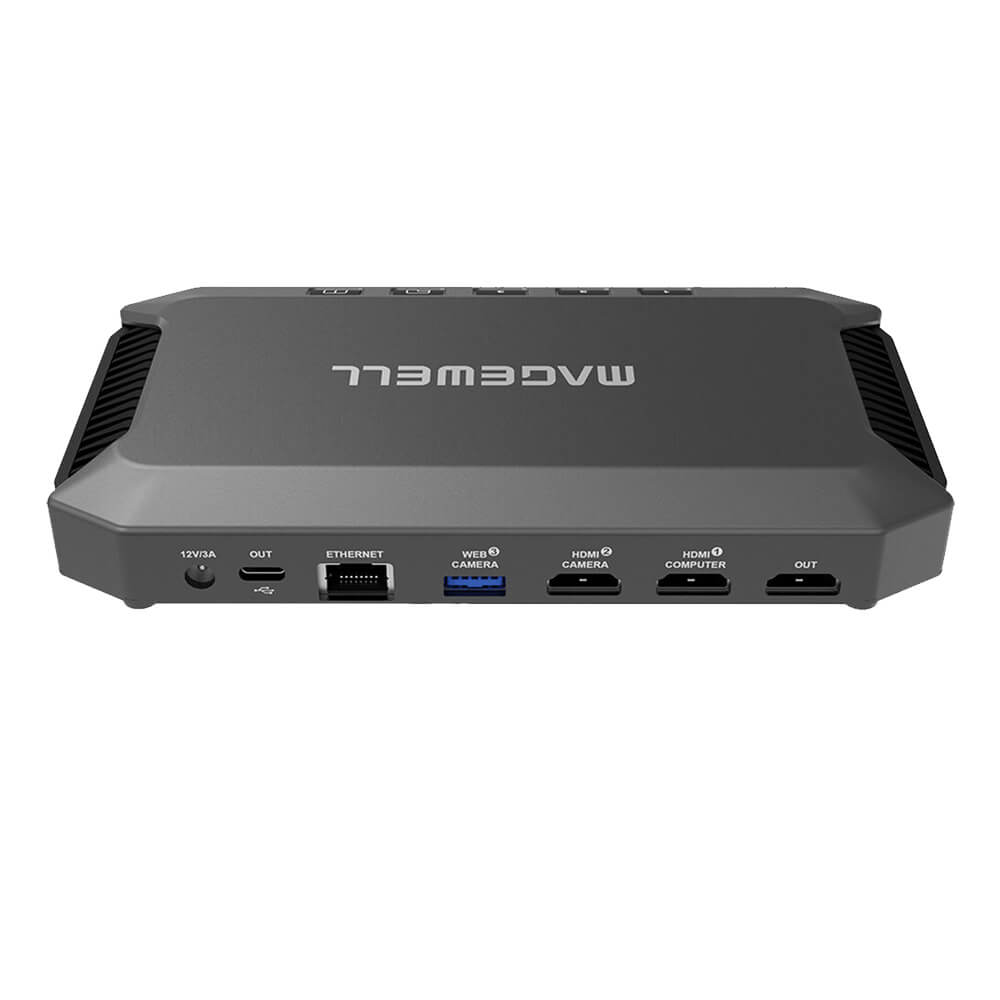

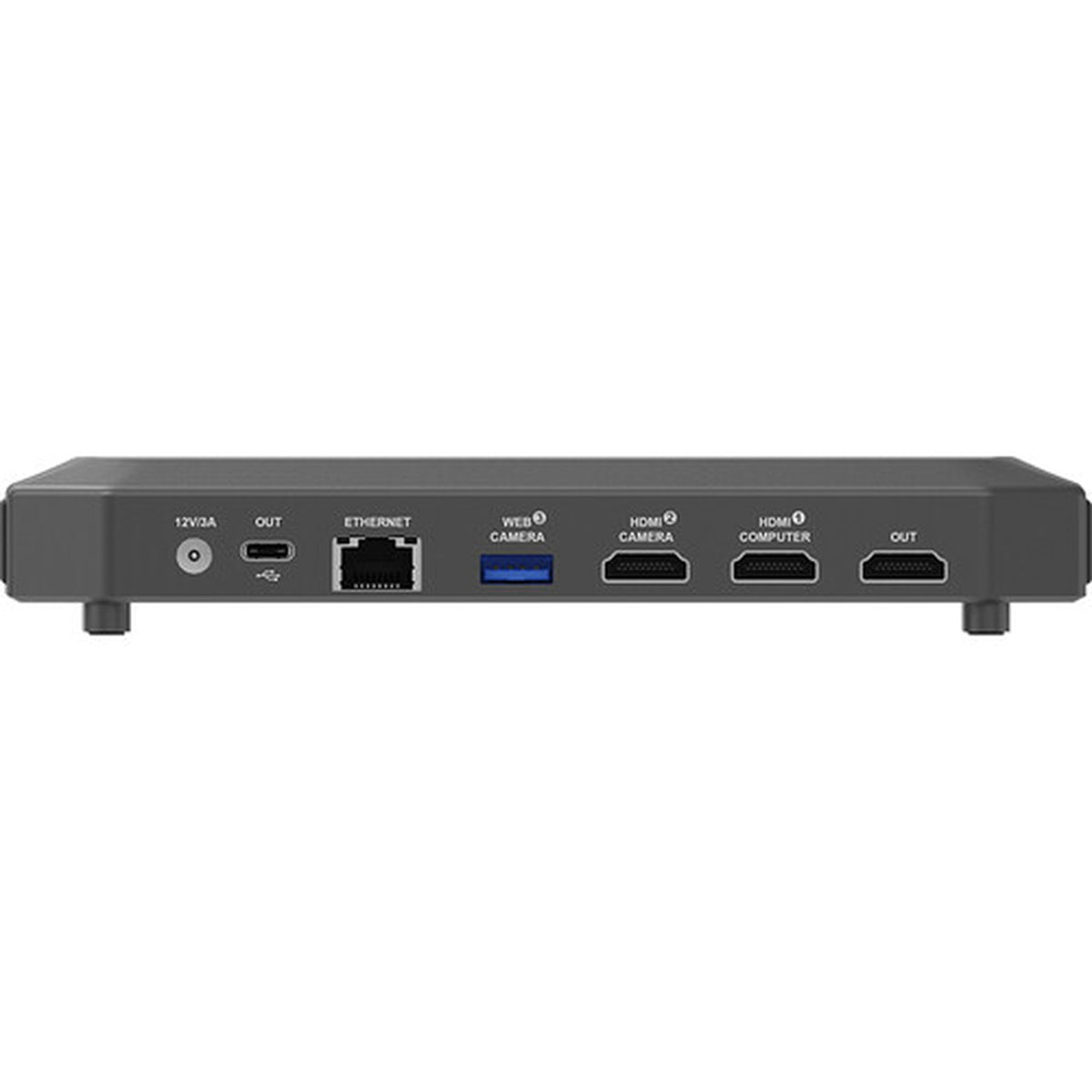

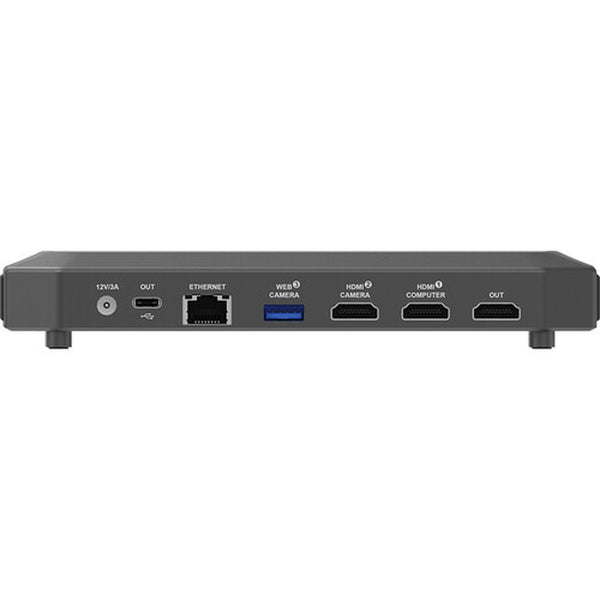

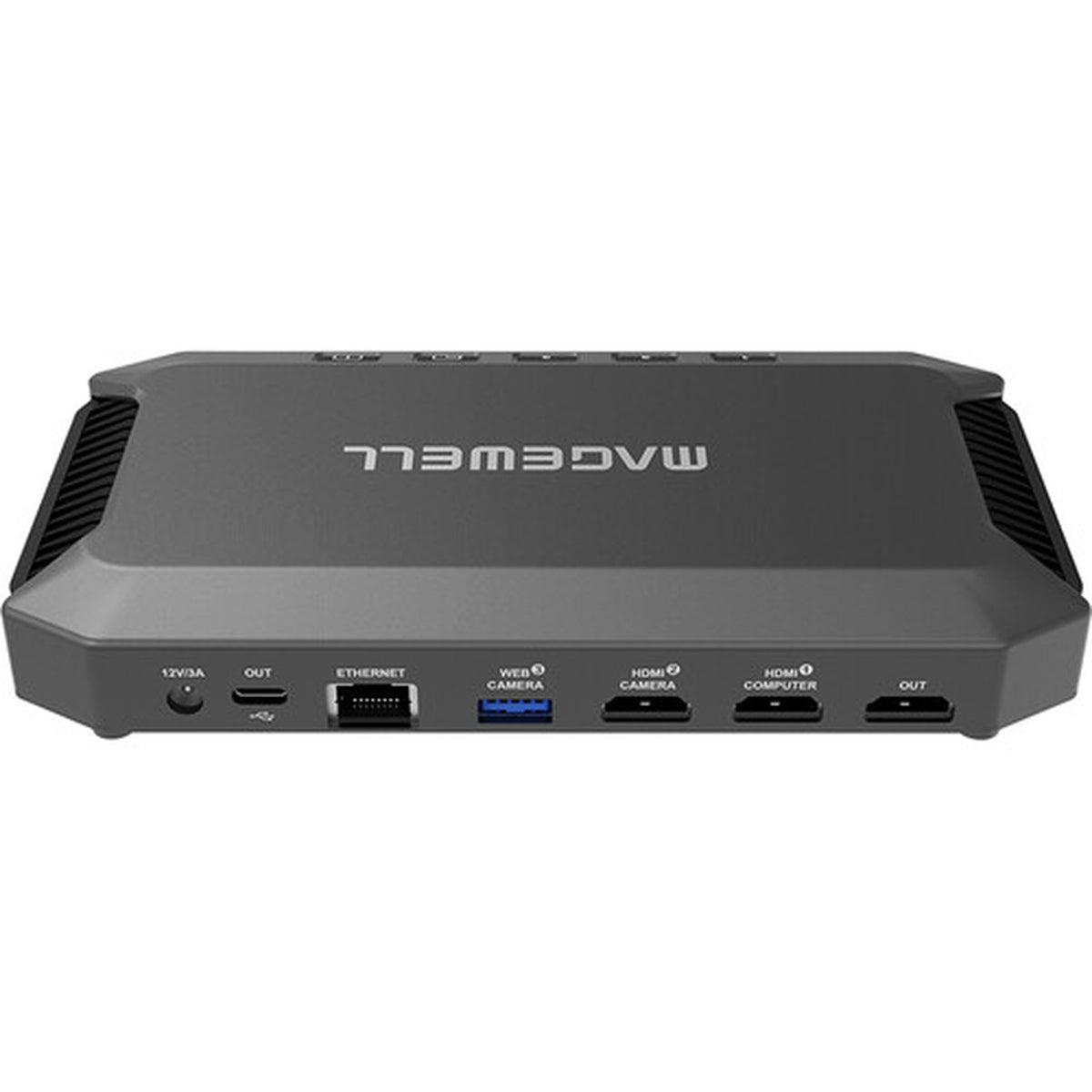

2 x HDMI 1.4a Type-A inputs; 1 x USB 3.0 Type-A webcam input
Program Outputs
1 x USB 3.0 Type-C UVC/UAC output; 1 x HDMI 1.4a Type-A output
Networking and Audio

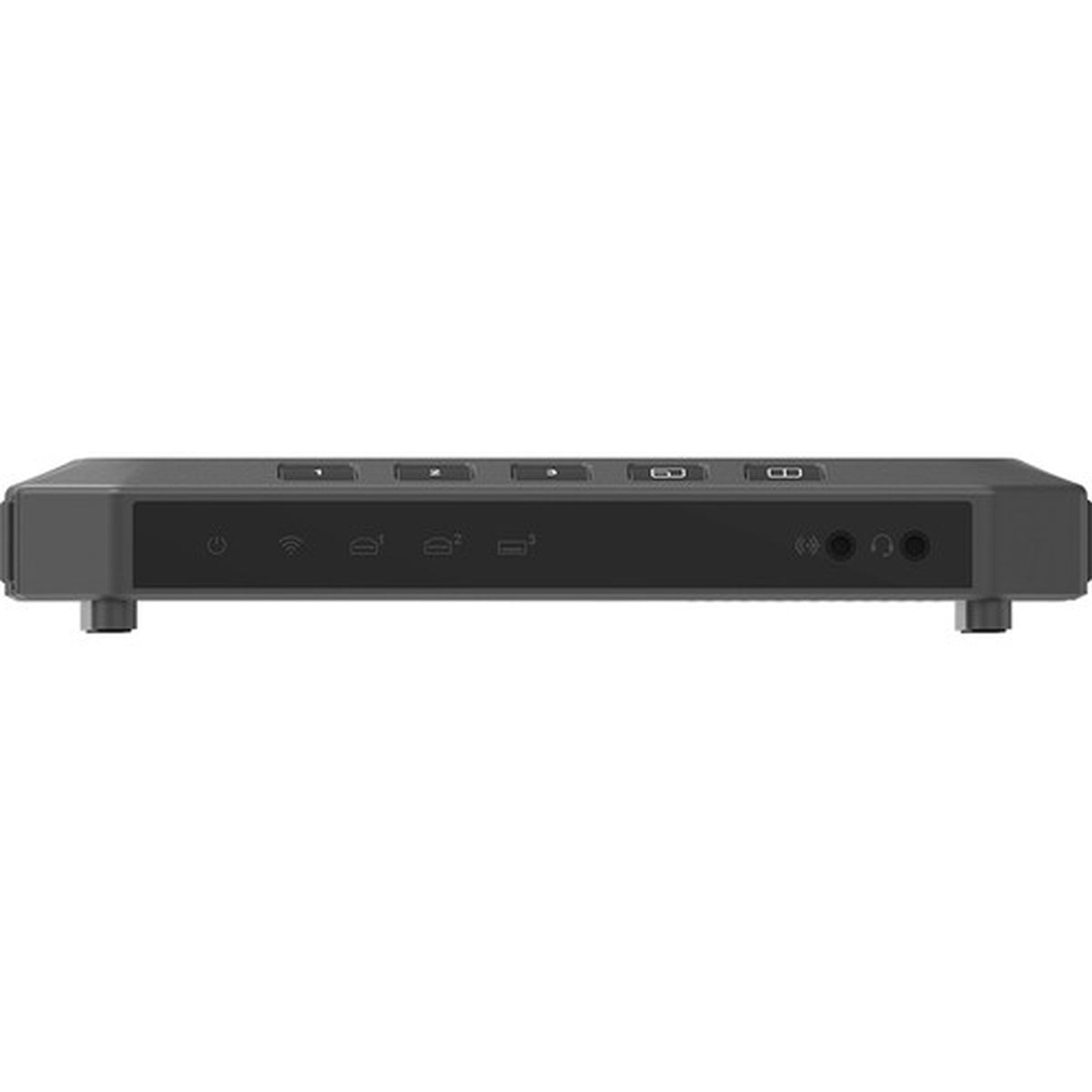

Gigabit Ethernet; 5 GHz Wi-Fi; 3.5 mm line-in and headset jacks
Live and Hybrid Classes
Combine an instructor camera with teaching materials, then provide a single USB webcam feed to an online classroom. Record the presentation for later access.
Webinars and Remote Training
Switch between a presenter camera and a guest or document camera. Add PiP layouts and annotations before the program reaches compatible conferencing software.
Live Streaming and Recording
Mix camera and media sources for a live program, capture the result over USB or stream with supported RTMP settings, and store recordings locally.
Teachers and Lecturers
Present slides and live camera video together during remote lessons.
Webinar Hosts
Prepare reusable scenes, media assets, and branded presentations.
Corporate AV Teams
Bring several local sources into one USB conferencing input.
AV Integrators
Manage devices via browser controls, API, and Control Hub.
Live Stream Producers
Switch HDMI sources and produce a composed 1080p program.
Hybrid Event Teams
Supply a local display and a USB feed for remote participants.
Magewell Manufacturer Warranty
Magewell specifies a two-year limited hardware warranty for USB Fusion, with coverage starting from eligible proof of purchase and subject to its published conditions. Magewell lists a separate one-year warranty for the included power adapter. Contact Coremicro for assistance with product and warranty questions.
| Specification | Detail |
|---|---|
| Product / Manufacturer SKU | USB Fusion / 350600000; part number 35060 |
| Coremicro SKU | MAG-35060 |
| HDMI Video Inputs | 2 x HDMI 1.4a Type-A, up to 2048 x 1080p60 |
| USB Webcam Input | 1 x USB 3.0 Type-A; up to 1080p60-class USB camera input |
| Wireless Screencast | AirPlay, Google Cast, Miracast; up to four casting sources in a screencast layout |
| USB Program Output | 1 x USB 3.0 Type-C; UVC/UAC; up to 1920 x 1080 at 60 fps |
| HDMI Output | 1 x HDMI 1.4a Type-A; selectable input or program view |
| Video Composition | Source switching, picture-in-picture, side-by-side, crop, scale, rotate |
| RTMP Streaming | 1920 x 1080 or 1280 x 720; up to 60 fps; up to 20 Mb/s |
| Recording | Manual or scheduled recording; H.264 recording; MP4/MOV options through Web UI |
| Built-In Storage | 128 GB |
| Imported Media | MOV, MP4, MKV; JPEG, PNG, BMP; PDF; supported web pages and audio files |
| Audio Input | 3.5 mm line-in; 3.5 mm CTIA headset; HDMI-embedded and supported USB audio |
| Audio Output | 2-channel audio via USB, HDMI, headset, or RTMP |
| Ethernet | 1 x RJ45 Gigabit Ethernet (10/100/1000 Mbps) |
| Wi-Fi | 5 GHz 802.11 a/ac/ax; Station / Access Point modes |
| Management | USB Fusion App, Web UI, HTTP API, Magewell Control Hub |
| Compatible Software | Zoom, Microsoft Teams, Google Meet, and other compatible UVC/UAC applications |
| Compatible Systems | Supported Windows, macOS, and Linux systems |
| Power | 12V DC; maximum specified full-load power consumption 17.5 W |
| Dimensions | 186 x 101.2 x 30 mm |
| Included Accessories | Power adapter and USB 3.0 cable |
| Limited Hardware Warranty | 2 years for USB Fusion; separate accessory warranty terms apply |
What video inputs does Magewell USB Fusion support?
Magewell USB Fusion supports two HDMI 1.4a video inputs at up to 2048 x 1080p60 and one USB 3.0 webcam input. It can also incorporate compatible wireless screencasts and imported media into presentations.
How does USB Fusion combine multiple video sources?
USB Fusion can switch between input sources or combine two sources as picture-in-picture or side-by-side video. Users can operate scenes with the device buttons, companion tablet app, or supported control interfaces.
Does Magewell USB Fusion work with Zoom and Microsoft Teams?
Magewell USB Fusion supports Zoom and Microsoft Teams through its standard UVC/UAC USB output, subject to compatible system and application settings. Magewell also lists Google Meet among compatible applications.
Can Magewell USB Fusion record presentations without a computer?
Magewell USB Fusion supports local recording to its built-in 128 GB storage, with manual and scheduled recording options. Recording settings can be managed using the Web UI or supported companion-app controls.
Which wireless screen-sharing options does USB Fusion offer?
USB Fusion supports AirPlay, Google Cast, and Miracast for compatible source devices. The manufacturer lists support for up to four simultaneous casting devices within a wireless screencast scene.
How does USB Fusion differ from Magewell USB Capture HDMI Gen 2?
USB Fusion is a multi-input presentation mixer with two HDMI inputs, a USB webcam input, scene compositing, and recording tools. Magewell USB Capture HDMI Gen 2 is a single-HDMI-input USB capture device without the integrated multi-source production workflow described for USB Fusion.
Is Coremicro an authorized Magewell dealer?
Coremicro identifies itself as an authorized Magewell dealer in Union City, California. Magewell USB Fusion purchases are subject to Magewell's applicable two-year limited hardware warranty and the manufacturer's coverage terms.
Build a Better Multi-Source Presentation Workflow
Coremicro is an authorized Magewell dealer. Contact the team to confirm HDMI source compatibility, USB conferencing requirements, wireless casting, and recording options for the Magewell USB Fusion video capture device.
Talk to a SpecialistSpecifications
Magewell USB Fusion Dual HDMI 1080p60 USB Video Capture Device Specifications
Reviews
What's included
Included on Magewell USB Fusion Dual HDMI 1080p60 USB Video Capture Device
