Product Highlights
- 4K30 6G-SDI USB capture
- SDI input and loop-through
- 1080p90 high-frame-rate capture
- Line In and Line Out

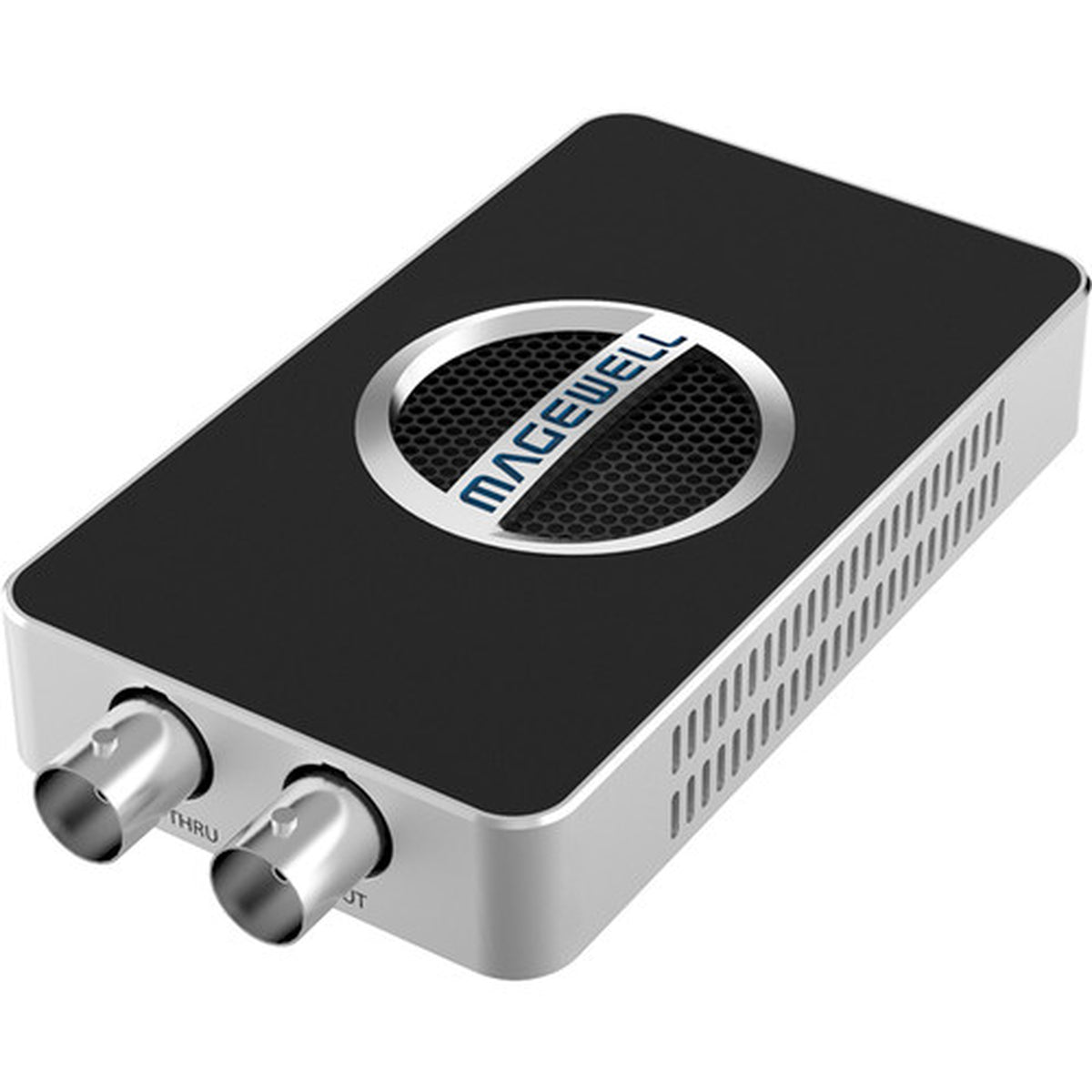

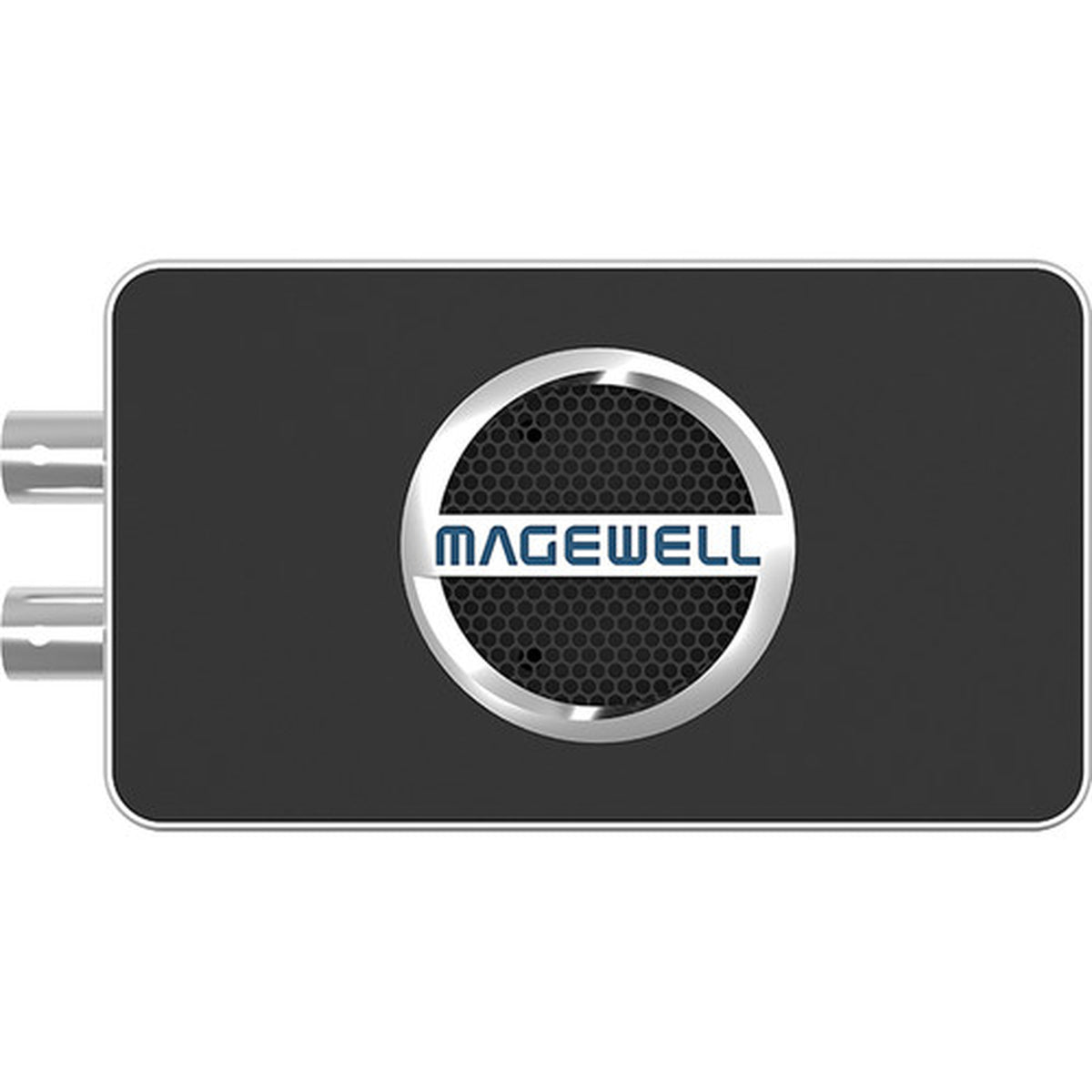

Magewell USB Capture SDI 4K Plus 4K30 6G-SDI USB Capture Device
- SKU:
- MAG-32100
- MPN:
- 32100
Ships in 2-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The Magewell USB Capture SDI 4K Plus is a one-channel 4K SDI capture device designed for broadcast, live production, streaming, recording, and professional video workflows. It accepts and loops through SD, HD, 3G, 2K, and 6G-SDI sources, with 6G-SDI supporting video up to 4096×2160 30fps 4:2:2 10-bit. Native 4K USB capture, high-frame-rate HD modes, analog audio connectivity, and hardware video processing provide flexible integration with production computers.
Native 4K30 SDI USB Capture
Capture video at resolutions up to 4096×2160 through the USB interface. Explicit 4K output modes include 4096×2160 and 3840×2160 at frame rates up to 30fps for professional recording, streaming, ingest, and production workflows.

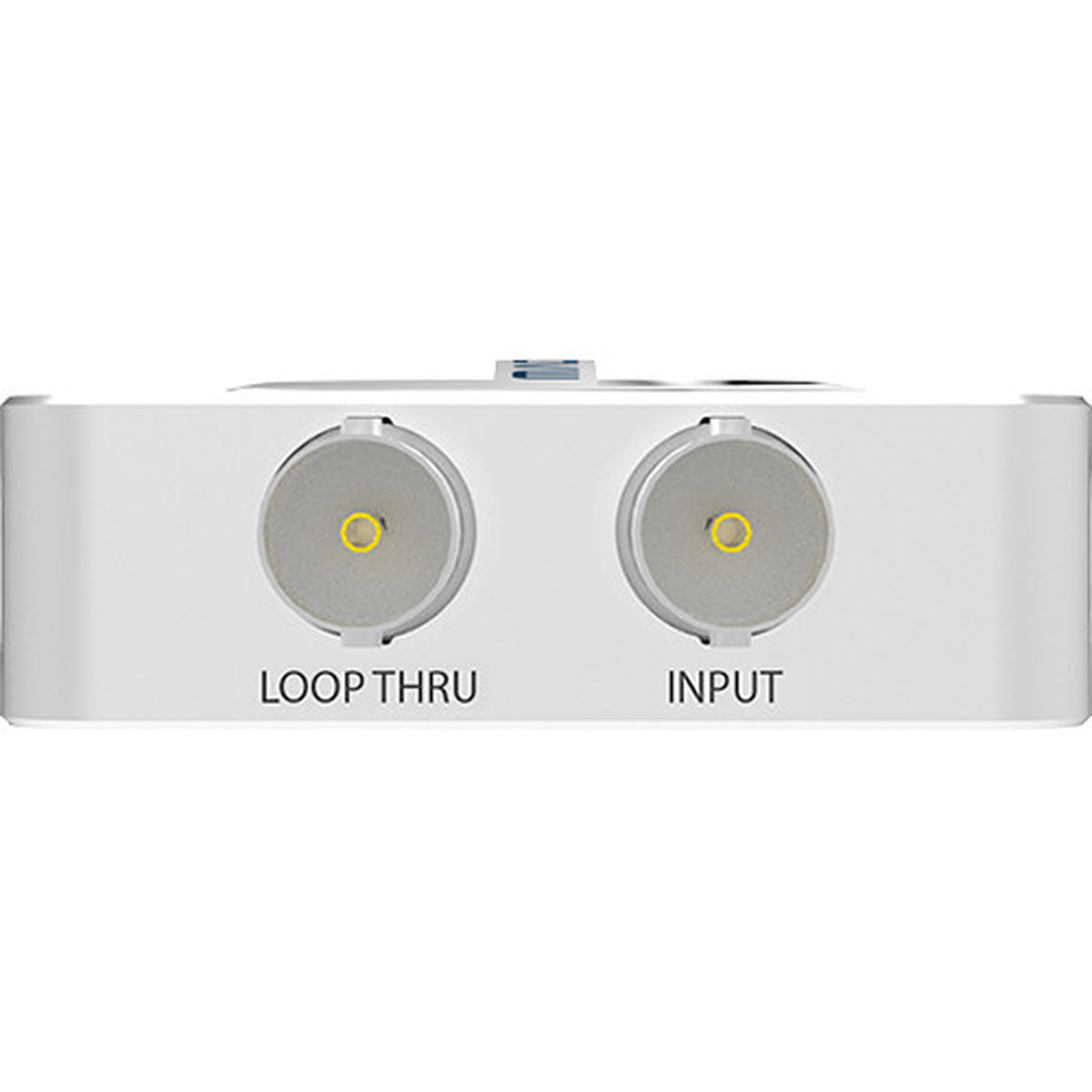

6G-SDI Input and Loop-Through
Professional BNC connectivity supports SD, HD, 3G, and 6G-SDI standards with a dedicated loop-through output. Maximum 6G 4K input and loop-through is 4096×2160 30fps 4:2:2 10-bit.
1080p90 High-Frame-Rate Capture
For motion-intensive workflows, explicit output modes include 1920×1080 and 1280×720 at frame rates up to 90fps. Magewell also specifies overall capture capability up to 120fps depending on resolution and available USB bandwidth.
High-Bandwidth Hardware Video Processing
An approximately 640M-pixel-per-second processing pipeline handles cropping, up and down scaling, deinterlacing, aspect-ratio conversion, color-format conversion, frame-rate conversion, flipping, and mirroring in hardware.

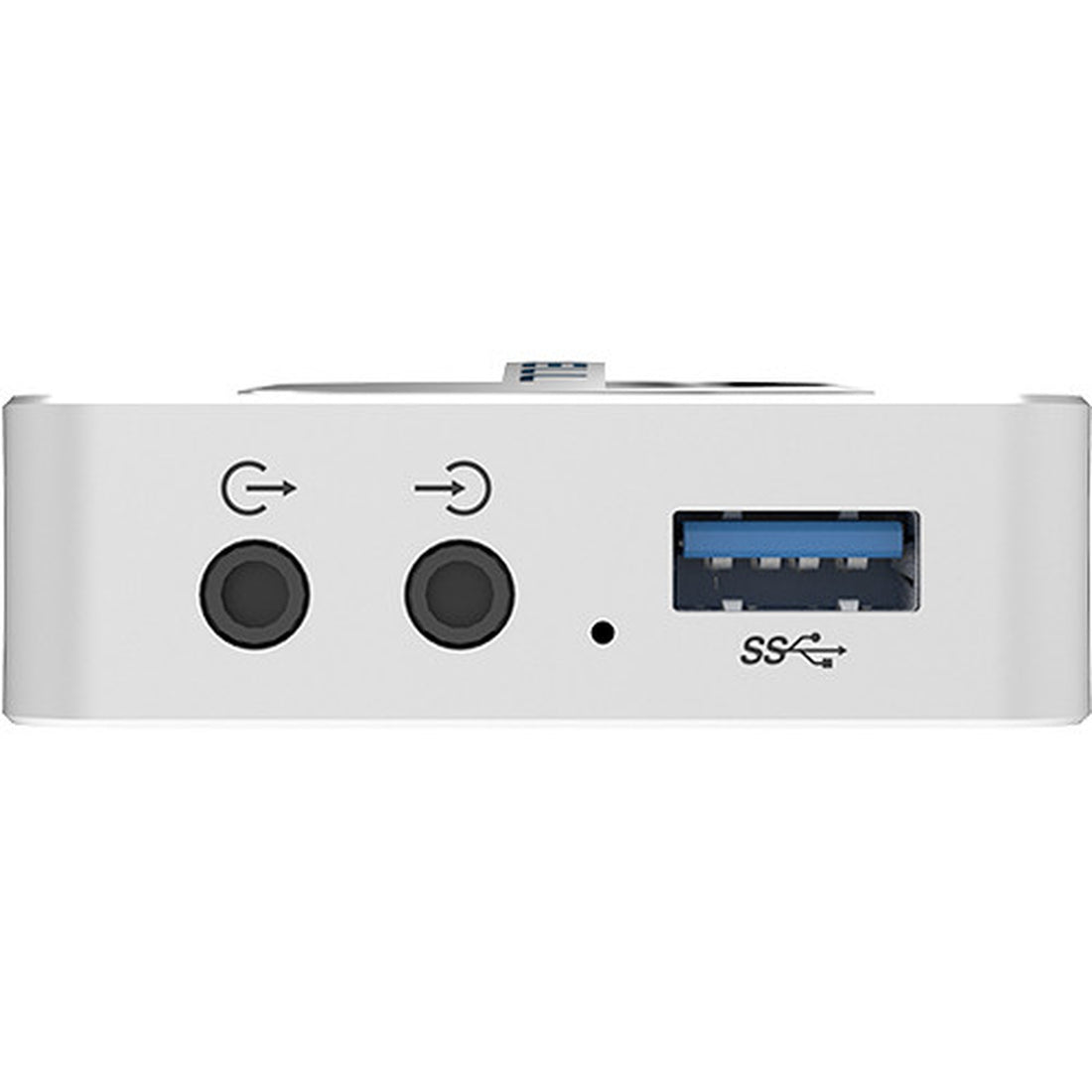

Embedded and Analog Audio Support
SDI input supports up to eight channels of embedded audio. A 3.5 mm Line In provides analog audio input, while the Line Out connection can extract audio from the SDI source. USB capture supports up to two audio channels at 48 kHz.
Broad Software and OS Compatibility
Use the device with Windows, Linux, macOS, and Chrome OS. Magewell lists OBS Studio, Zoom Rooms, Microsoft Teams, VLC, XSplit, QuickTime Player, and other compatible capture and streaming applications.
SDI Input
SD · HD · 3G · 6G-SDI
SDI Loop-Through
Up to 4096×2160 30fps
Analog Audio
3.5 mm Line In · Line Out
Host Interface
USB 3.0 · USB 2.0 Compatible
OBS Studio XSplit and VLC
Magewell lists OBS Studio, XSplit, and VLC among compatible applications. Professional SDI cameras, switchers, routers, and production feeds can be brought into software-based streaming, recording, monitoring, and live production workflows.
Zoom Rooms and Microsoft Teams
Zoom Rooms and Microsoft Teams are included in Magewell's compatibility list. SDI cameras and other professional video sources can therefore be integrated into supported conferencing, collaboration, training, and presentation environments.
USB Capture Utility and MWCapture SDK
Magewell USB Capture Utility provides access to capture parameters, firmware maintenance, and troubleshooting information. The MWCapture SDK adds signal-status extraction, capture configuration, and real-time audio and video functions for custom software integrations.
Broadcast Production Teams
Capture professional 4K SDI camera and production feeds directly into computer-based workflows.
Live Streaming Teams
Bring high-resolution SDI sources into compatible streaming software while retaining loop-through.
Live Event Production
Capture SDI feeds from cameras, switchers, routers, and other professional production equipment.
Sports and Esports Production
Use higher-frame-rate HD capture modes for fast-motion production and analysis workflows.
Education and Lecture Capture
Capture professional SDI cameras and presentation feeds for recording, streaming, and remote learning.
AV and Broadcast Integrators
Deploy compact 4K SDI capture with loop-through, audio extraction, and hardware processing.
Magewell Support
Magewell specifies a three-year manufacturer warranty for USB Capture SDI 4K Plus hardware. Coremicro can help confirm SDI formats, 4K capture requirements, cable distance, USB bandwidth, embedded and analog audio configuration, software compatibility, and loop-through requirements before deployment.
| Specification | Detail |
|---|---|
| Product | USB Capture SDI 4K Plus |
| Part Number | 32100 |
| SKU | 321000000 |
| Capture Channels | 1 video channel |
| Primary Function | 4K SDI video and audio capture over USB with SDI loop-through |
| SDI Input | SD / HD / 3G / 6G-SDI via BNC |
| SDI Loop-Through | SD / HD / 3G / 6G-SDI via BNC |
| Maximum Input / Loop-Through | 4096×2160 30fps 4:2:2 10-bit |
| SDI Standards | ST 259 · ST 292 · ST 425 3Ga · ST 425 3Gb-DL · ST 425 3Gb-DS · ST 2081 6G 4K |
| Input Color Formats | RGB / YUV 4:4:4 10 / 12-bit · YUV 4:2:2 8 / 10 / 12-bit · RGBA / YUVA 4:4:4:4 10-bit |
| SDI Embedded Audio Input | Up to 8 channels |
| Analog Audio Input | 3.5 mm Line In |
| Analog Audio Output | 3.5 mm Line Out for SDI audio extraction |
| 3G-SDI Cable Distance | Up to approximately 150 m |
| 6G-SDI Cable Distance | Up to approximately 75 m |
| Video Processing Bandwidth | Approximately 640M pixels per second |
| Maximum Capture Resolution | 4096×2160 |
| Maximum Stated Capture Frame Rate | Up to 120fps depending on resolution, USB bandwidth, and internal working frequency |
| 4096×2160 / 3840×2160 Capture | 23.98 · 24 · 25 · 29.97 · 30fps |
| 2560×1440 Capture | 60fps |
| 1920×1080 Capture | 23.98 · 24 · 25 · 29.97 · 30 · 50 · 59.94 · 60 · 90fps |
| 1280×720 Capture | 23.98 · 24 · 25 · 29.97 · 30 · 50 · 59.94 · 60 · 90fps |
| PAL Capture Output | 720×576p25 |
| NTSC Capture Output | 720×480p30 |
| Capture Pixel Formats | NV12 · I420 · YUYV · UYVY · RGB24 · RGB32 |
| Video Processing | Cropping · Up/down scaling · Deinterlacing · Aspect-ratio conversion · Color-format conversion · Frame-rate conversion · Flip · Mirror |
| USB Capture Audio | Up to 2 channels at 48 kHz |
| Host Interface | USB 3.0 |
| USB Compatibility | USB 2.0 · USB 3.1 Gen 1 |
| Compatible Operating Systems | Windows · Linux · macOS · Chrome OS |
| Windows APIs | DirectShow · Wave API · DirectSound · WASAPI |
| Linux APIs | V4L2 · ALSA |
| macOS APIs | AVCaptureSession · AudioUnit |
| Compatible Software | Zoom Rooms · Microsoft Teams · Skype for Business · GoToMeeting · GStreamer · VLC · OBS Studio · XSplit · QuickTime Player |
| Included Utility | Magewell USB Capture Utility |
| SDK | Magewell MWCapture SDK |
| Input Detection | Automatic input signal format detection |
| Continuous Operation | Designed for continuous 24×7 operation |
| Status Indicator | LED indicators show input lock and device operating status |
| Dimensions | 110.7 × 56.8 × 17 mm |
| Maximum Current | Approximately 0.86 A at 5 V |
| Maximum Power Consumption | Approximately 4.3 W |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | −20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Manufacturer Warranty | 3 years |
| Included Device | USB Capture SDI 4K Plus |
| Included USB Cable | 1 × USB 3.0 cable · 63 cm |
What does the Magewell USB Capture SDI 4K Plus do?
The device captures one professional SDI source into a computer through USB while simultaneously providing SDI loop-through. It supports broadcast, streaming, recording, sports, live production, and professional AV workflows.
Can USB Capture SDI 4K Plus capture native 4K video?
Yes. Magewell explicitly lists 4096×2160 and 3840×2160 capture modes at frame rates up to 30fps. The device therefore provides native 4K USB capture rather than only accepting a 4K input signal.
What is the maximum 6G-SDI input and loop-through format?
The maximum specified 6G-SDI input and loop-through format is 4096×2160 30fps 4:2:2 10-bit. The device also supports SD, HD, and 3G-SDI standards through its BNC connections.
Does USB Capture SDI 4K Plus support high-frame-rate capture?
Yes. Explicit output modes include 1920×1080 and 1280×720 at frame rates up to 90fps. Magewell also specifies overall capture capability up to 120fps, depending on resolution and available USB bandwidth.
How far can SDI signals run to the capture device?
Magewell specifies SDI transmission distances up to approximately 150 meters for 3G-SDI and 75 meters for 6G-SDI. Actual cable performance can depend on cable type, signal format, installation quality, and system conditions.
How many audio channels does USB Capture SDI 4K Plus support?
The SDI input supports up to eight channels of embedded audio. USB capture supports up to two audio channels at 48 kHz, while the device also provides analog Line In and SDI audio extraction through Line Out.
What warranty does USB Capture SDI 4K Plus include?
Magewell specifies a three-year manufacturer warranty for this device. Coremicro can help confirm SDI formats, cable distance, USB bandwidth, software compatibility, and audio requirements before deployment.
Capture Professional 4K SDI Video over USB
Buy Magewell USB Capture SDI 4K Plus from Coremicro, an authorized Magewell dealer supporting professional 4K capture, broadcast production, live streaming, sports, recording, and AV integration. Contact our team for pricing and availability or to confirm SDI formats, cable distance, USB bandwidth, software compatibility, loop-through, and audio requirements before ordering.
