Product Highlights
- 4K30 USB video capture
- 4K60 HDMI input loop-through
- HDMI 2.0 professional connectivity
- Microphone input headphone monitoring

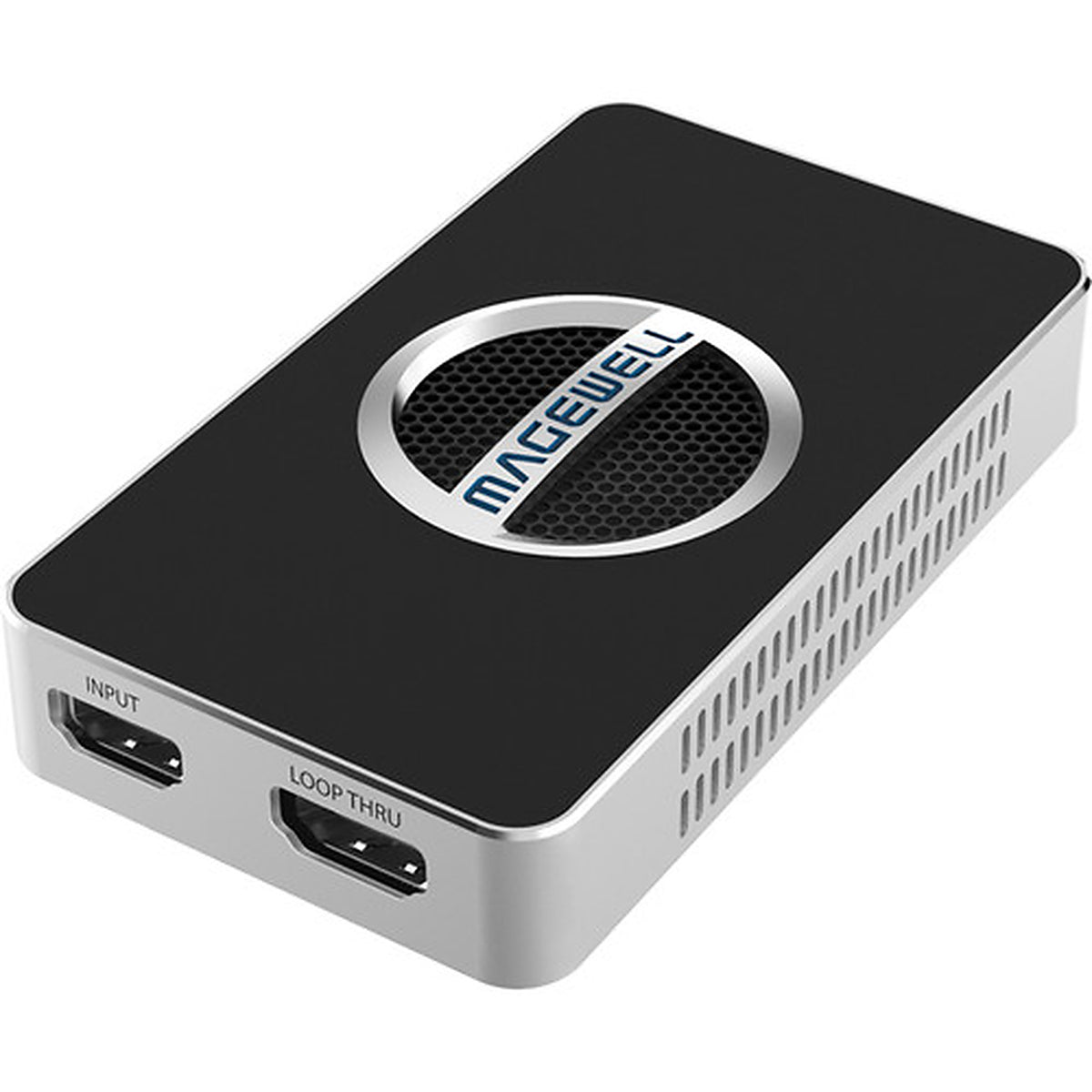

Magewell USB Capture HDMI 4K Plus 4K30 HDMI USB Capture Device
- SKU:
- MAG-32090
- MPN:
- 32090
Product Inquiry Form
Description
Product Overview
The Magewell USB Capture HDMI 4K Plus is a one-channel 4K capture device for bringing high-resolution HDMI cameras, computers, game consoles, and production sources into professional software workflows over USB. It accepts and loops through HDMI signals up to 4096×2160 60fps 4:4:4, while USB capture supports 4K output formats up to 30fps. HDMI loop-through, hardware video processing, microphone input, headphone monitoring, and broad software compatibility make it a versatile solution for streaming, recording, conferencing, and production.
Native 4K30 USB Video Capture
Capture video at resolutions up to 4096×2160 through the USB interface. Explicit 4K output modes support 4096×2160 and 3840×2160 at frame rates up to 30fps for detailed recording, streaming, and production workflows.

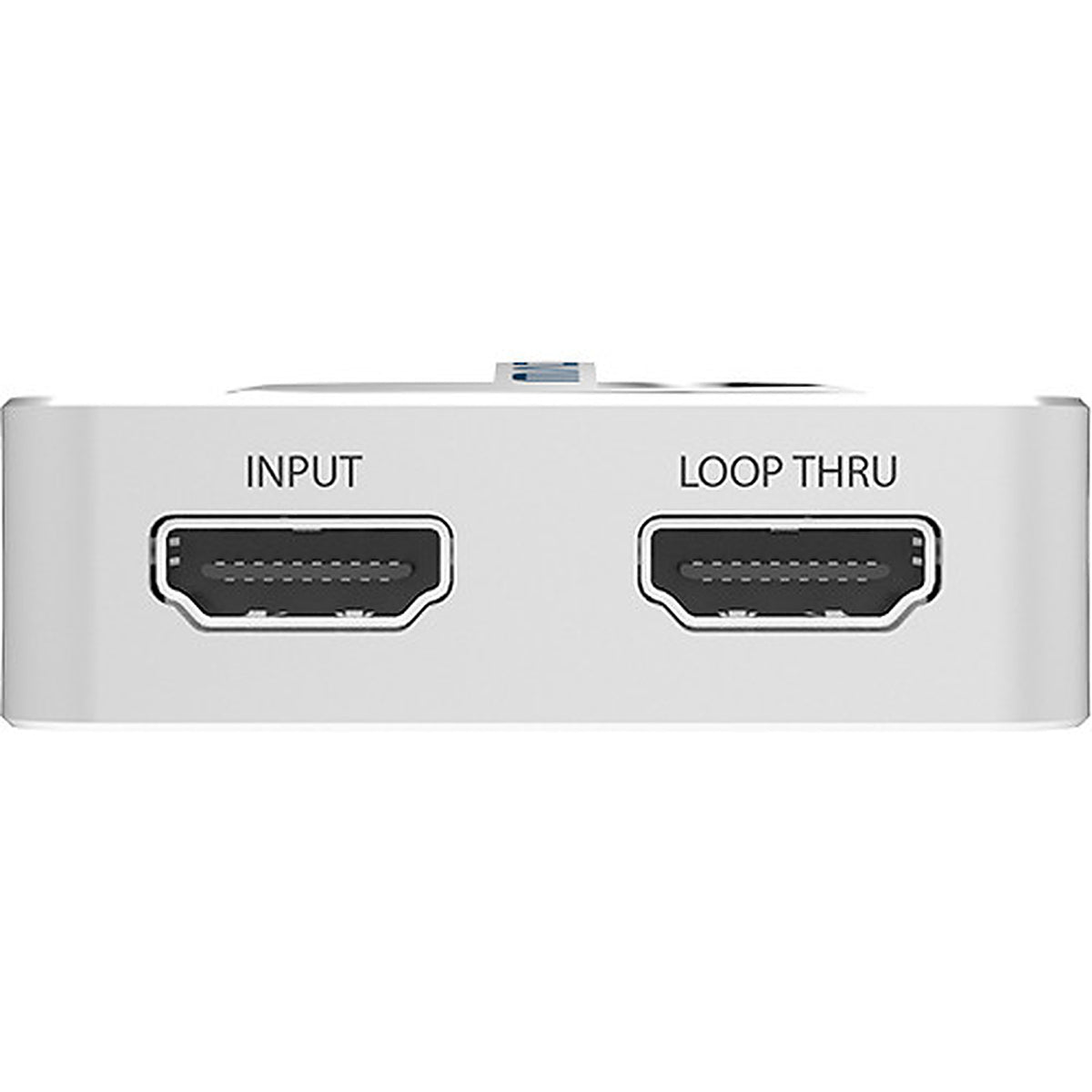

4K60 4:4:4 HDMI Loop-Through
HDMI input and loop-through support video up to 4096×2160 60fps 4:4:4. This allows a high-resolution source to remain available to a local display or downstream HDMI equipment while capture takes place over USB.
1440p60 High-Resolution Capture
In addition to 4K capture, the device explicitly supports 2560×1440 at 60fps. It also captures 2560×1080, 1920×1080, and 1280×720 formats at frame rates up to 60fps.
High-Bandwidth Hardware Video Processing
The integrated processing pipeline provides approximately 640M pixels per second of processing bandwidth. Hardware functions include cropping, scaling, deinterlacing, aspect-ratio conversion, color conversion, frame-rate conversion, flipping, and mirroring.

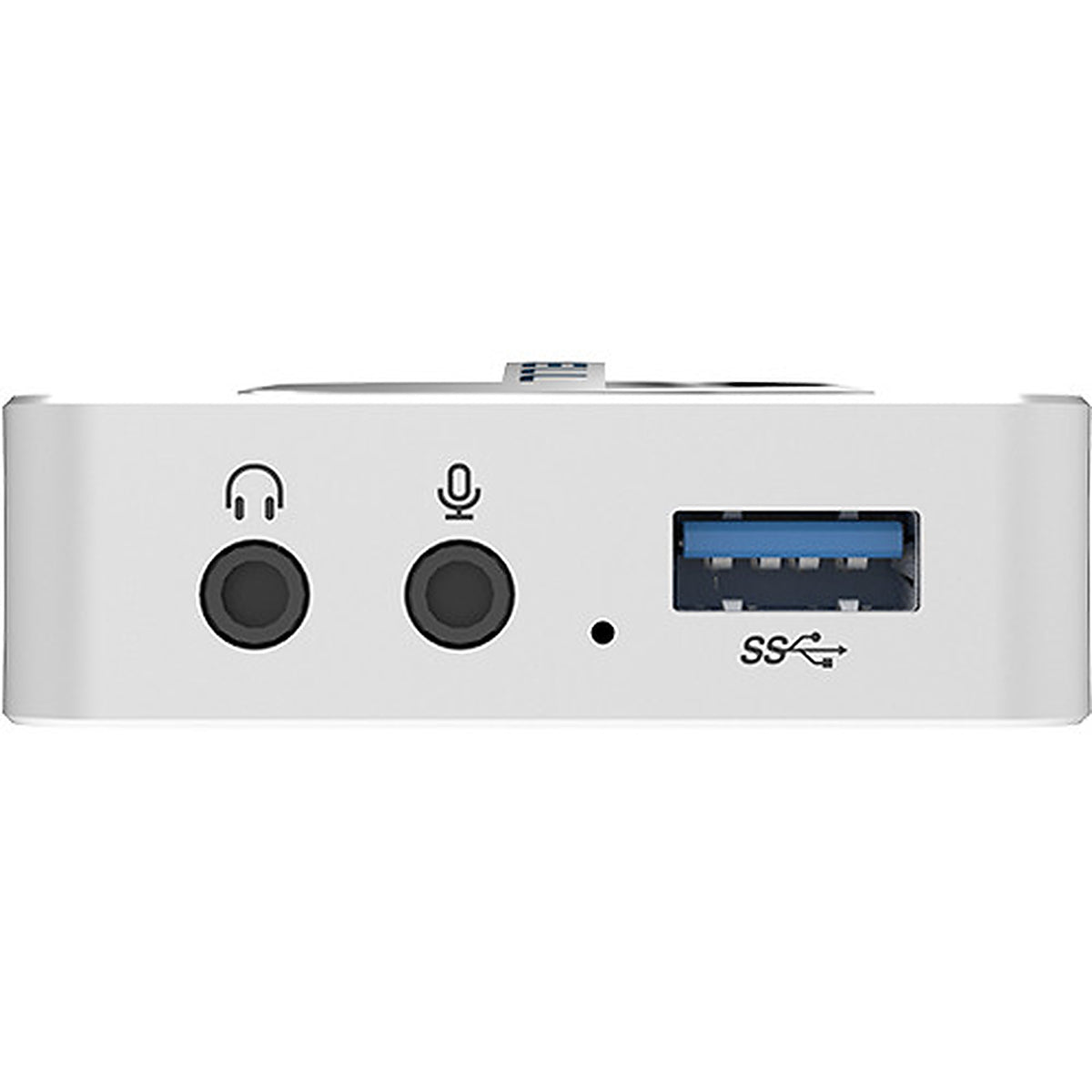

Microphone Input and Headphone Monitoring
A 3.5 mm microphone interface supports analog audio capture, while the headphone output can reproduce audio from the HDMI source or the connected computer. HDMI input also supports multichannel embedded audio.
Broad Software and OS Compatibility
Use the capture device with Windows, Linux, macOS, and Chrome OS. Magewell lists OBS Studio, Zoom Rooms, Microsoft Teams, VLC, XSplit, QuickTime Player, and other compatible video applications.
HDMI Input
HDMI 2.0 · DVI-D Compatible
HDMI Loop-Through
Up to 4096×2160 60fps 4:4:4
Audio
HDMI Embedded · Microphone · Headphone
Host Interface
USB 3.0 · USB 2.0 Compatible
OBS Studio XSplit and VLC
Magewell lists OBS Studio, XSplit, and VLC among compatible applications. HDMI cameras, computers, and other supported sources can be integrated into software-based streaming, recording, monitoring, and production workflows.
Zoom Rooms and Microsoft Teams
Zoom Rooms and Microsoft Teams are included in Magewell's compatibility list. Professional HDMI cameras and presentation sources can therefore be used with supported conferencing and collaboration environments.
USB Capture Utility and MWCapture SDK
USB Capture Utility provides access to capture parameters, firmware maintenance, and troubleshooting information. The MWCapture SDK supports signal-status extraction, capture configuration, and real-time audio and video functions for custom integrations.
Live Streaming Teams
Capture high-resolution HDMI cameras and production sources into compatible streaming software.
Gaming and Content Creators
Capture console or computer video while preserving the HDMI source through loop-through.
Live Production Teams
Add external 4K HDMI capture to software-based production systems without installing a PCIe card.
Corporate Conferencing
Bring professional HDMI cameras and presentation systems into compatible collaboration software.
Education and Lecture Capture
Record or stream lectures, presentations, demonstrations, and other high-resolution HDMI sources.
AV Integrators
Deploy compact 4K capture with HDMI loop-through, hardware processing, and USB connectivity.
Magewell Support
Magewell specifies a three-year manufacturer warranty for USB Capture HDMI 4K Plus hardware. Coremicro can help confirm HDMI formats, 4K capture requirements, USB bandwidth, microphone and headphone configuration, software compatibility, and loop-through requirements before deployment.
| Specification | Detail |
|---|---|
| Product | USB Capture HDMI 4K Plus |
| Part Number | 32090 |
| SKU | 320900000 |
| Capture Channels | 1 video channel |
| Primary Function | 4K HDMI video and audio capture over USB with HDMI loop-through |
| HDMI Input | 1 × HDMI input with embedded audio |
| HDMI Loop-Through | 1 × HDMI output |
| HDMI Interface | HDMI 2.0 · DVI-D compatible |
| HDMI Receiver | 600 MHz |
| Maximum Input / Loop-Through | 4096×2160 60fps 4:4:4 |
| Additional Input / Loop-Through Mode | 2560×1440p144 supported |
| Input Color Formats | RGB / YUV 4:4:4 8 / 10 / 12-bit · YUV 4:2:0 8 / 10 / 12-bit · YUV 4:2:2 12-bit |
| EDID | Customizable |
| HDMI Embedded Audio Input | Up to 8 channels · 24-bit · 192 kHz |
| Microphone Input | 3.5 mm audio interface |
| Headphone Output | 3.5 mm output for HDMI-source or host-computer audio |
| Video Processing Bandwidth | Approximately 640M pixels per second |
| Maximum Capture Resolution | 4096×2160 |
| Maximum Stated Capture Frame Rate | Up to 120fps depending on capture resolution, USB bandwidth, and internal working frequency |
| 4096×2160 / 3840×2160 Capture | 23.98 · 24 · 25 · 29.97 · 30fps |
| 2560×1440 Capture | 60fps |
| 2560×1080 Capture | 23.98 · 24 · 25 · 29.97 · 30 · 50 · 59.94 · 60fps |
| 1920×1080 Capture | 23.98 · 24 · 25 · 29.97 · 30 · 50 · 59.94 · 60fps |
| 1280×720 Capture | 23.98 · 24 · 25 · 29.97 · 30 · 50 · 59.94 · 60fps |
| PAL Capture Output | 720×576p25 |
| NTSC Capture Output | 720×480p30 |
| Capture Pixel Formats | NV12 · I420 · YUY2 · UYVY · RGB24 · RGB32 |
| Video Processing | Cropping · Up/down scaling · Deinterlacing · Aspect-ratio conversion · Color-format conversion · Frame-rate conversion · Flip · Mirror |
| Captured Audio | Up to 2-channel IEC60958 audio streams |
| Host Interface | USB 3.0 |
| USB Compatibility | USB 2.0 · USB 3.1 Gen 1 |
| Compatible Operating Systems | Windows · Linux · macOS · Chrome OS |
| Windows APIs | DirectShow · Wave API · DirectSound · WASAPI |
| Linux APIs | V4L2 · ALSA |
| macOS APIs | AVCaptureSession · AudioUnit |
| Compatible Software | Zoom Rooms · Microsoft Teams · Skype for Business · Google Hangouts · GoToMeeting · GStreamer · VLC · OBS Studio · XSplit · QuickTime Player |
| Included Utility | Magewell USB Capture Utility |
| SDK | Magewell MWCapture SDK |
| Input Detection | Automatic input signal format detection |
| Continuous Operation | Designed for continuous 24×7 operation |
| Status Indicator | LED indicators show device and input-signal status |
| Dimensions | 98.1 × 56.8 × 17 mm |
| Maximum Current | Approximately 1.4 A at 5 V |
| Maximum Power Consumption | Approximately 7 W |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | −20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Manufacturer Warranty | 3 years |
| Included Device | USB Capture HDMI 4K Plus |
| Included USB Cable | 1 × USB 3.0 cable · 63 cm |
What does the Magewell USB Capture HDMI 4K Plus do?
The device captures one HDMI source into a computer through USB while simultaneously providing HDMI loop-through. It supports professional streaming, recording, conferencing, gaming, and software-based production workflows.
Can USB Capture HDMI 4K Plus capture 4K video?
Yes. The detailed Magewell specification lists 4096×2160 and 3840×2160 USB capture at frame rates up to 30fps. It is therefore a native 4K capture device rather than only a 4K input device.
Does USB Capture HDMI 4K Plus capture 4K60 over USB?
The HDMI input and loop-through support up to 4096×2160 60fps 4:4:4, but the explicitly listed 4K USB capture modes run up to 30fps. The 4K60 capability applies to the incoming and loop-through HDMI signal.
What is the maximum HDMI input and loop-through format?
Magewell specifies a maximum HDMI input and loop-through format of 4096×2160 60fps 4:4:4. The interface uses HDMI 2.0 and is also compatible with DVI-D sources.
Does the device support microphone input and headphone monitoring?
Yes. The device provides a 3.5 mm microphone interface for analog audio capture and a headphone output. The headphone connection can output audio from either the HDMI source or the connected host computer.
Which applications work with USB Capture HDMI 4K Plus?
Magewell lists OBS Studio, Zoom Rooms, Microsoft Teams, VLC, XSplit, QuickTime Player, and other compatible applications. Standard capture APIs are also supported on Windows, Linux, and macOS.
What warranty does USB Capture HDMI 4K Plus include?
Magewell specifies a three-year manufacturer warranty for this device. Coremicro can help confirm HDMI formats, capture resolutions, software compatibility, USB bandwidth, and audio requirements before deployment.
Capture Professional 4K HDMI Video over USB
Buy Magewell USB Capture HDMI 4K Plus from Coremicro, an authorized Magewell dealer supporting professional capture, live streaming, content creation, conferencing, gaming, and production workflows. Contact our team for pricing and availability or to confirm HDMI formats, 4K capture requirements, USB compatibility, loop-through, software, and audio configuration before ordering.
