Product Highlights
- 1080p60 DVI USB capture
- HDMI VGA Component input support
- Up to 120fps capture
- Line In and Line Out

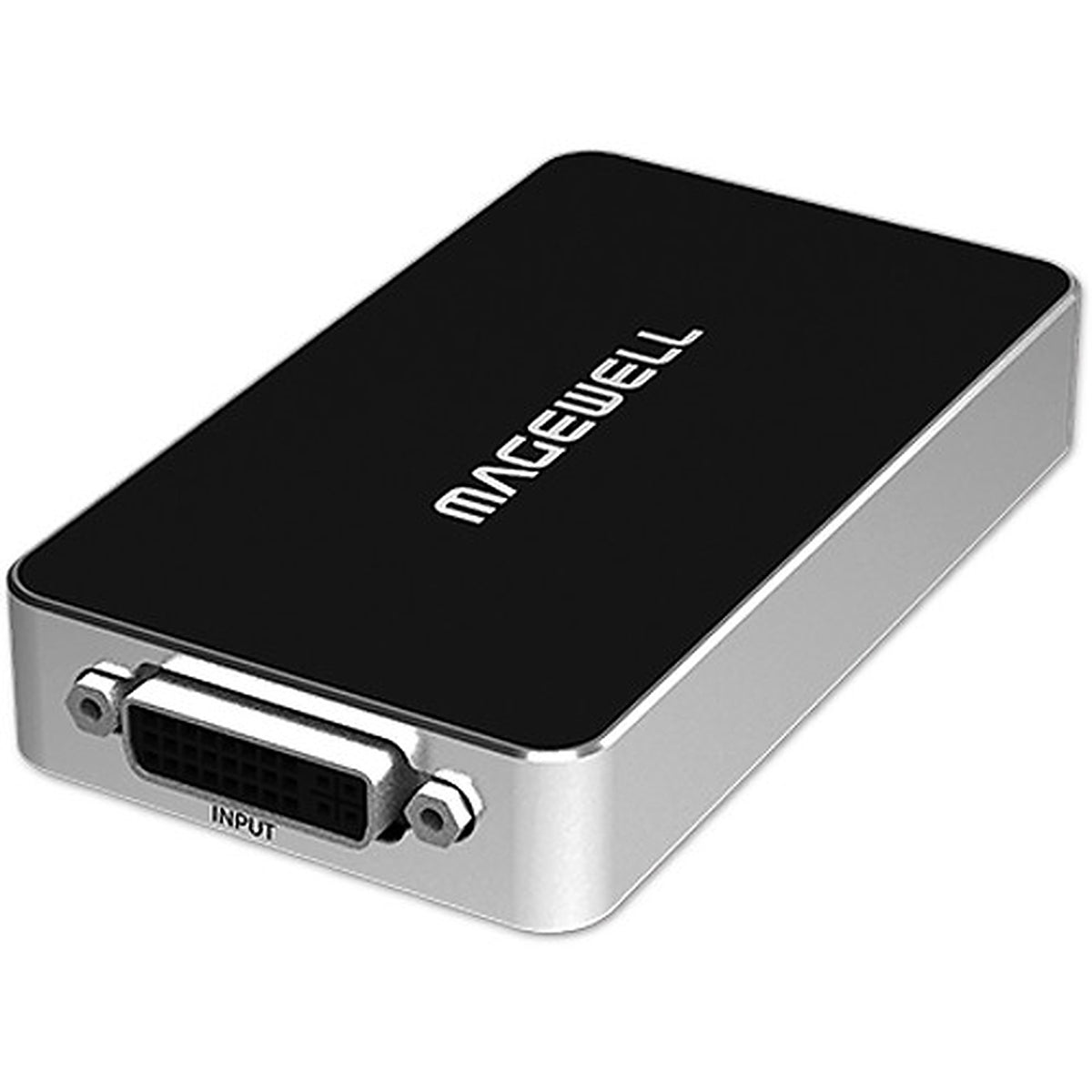

Magewell USB Capture DVI Plus 1080p60 DVI HDMI USB Capture Device
- SKU:
- MAG-32080
- MPN:
- 32080
Ships in 2-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The Magewell USB Capture DVI Plus is a one-channel HD USB capture device for DVI, HDMI, VGA, and Component video sources used in streaming, recording, conferencing, presentation, and professional production workflows. Its DVI-I architecture combines digital and analog source compatibility with hardware video processing and USB 3.0 connectivity. Analog audio input, HDMI embedded audio extraction, broad software support, and supplied breakout accessories make it a flexible external capture solution.
1080p60 DVI USB Capture
Capture professional HD computer and video sources through the DVI-I input and USB interface. Magewell's detailed specification lists a maximum digital input signal of 1920×1080p60 4:4:4, making the device well suited to HD production and presentation capture.

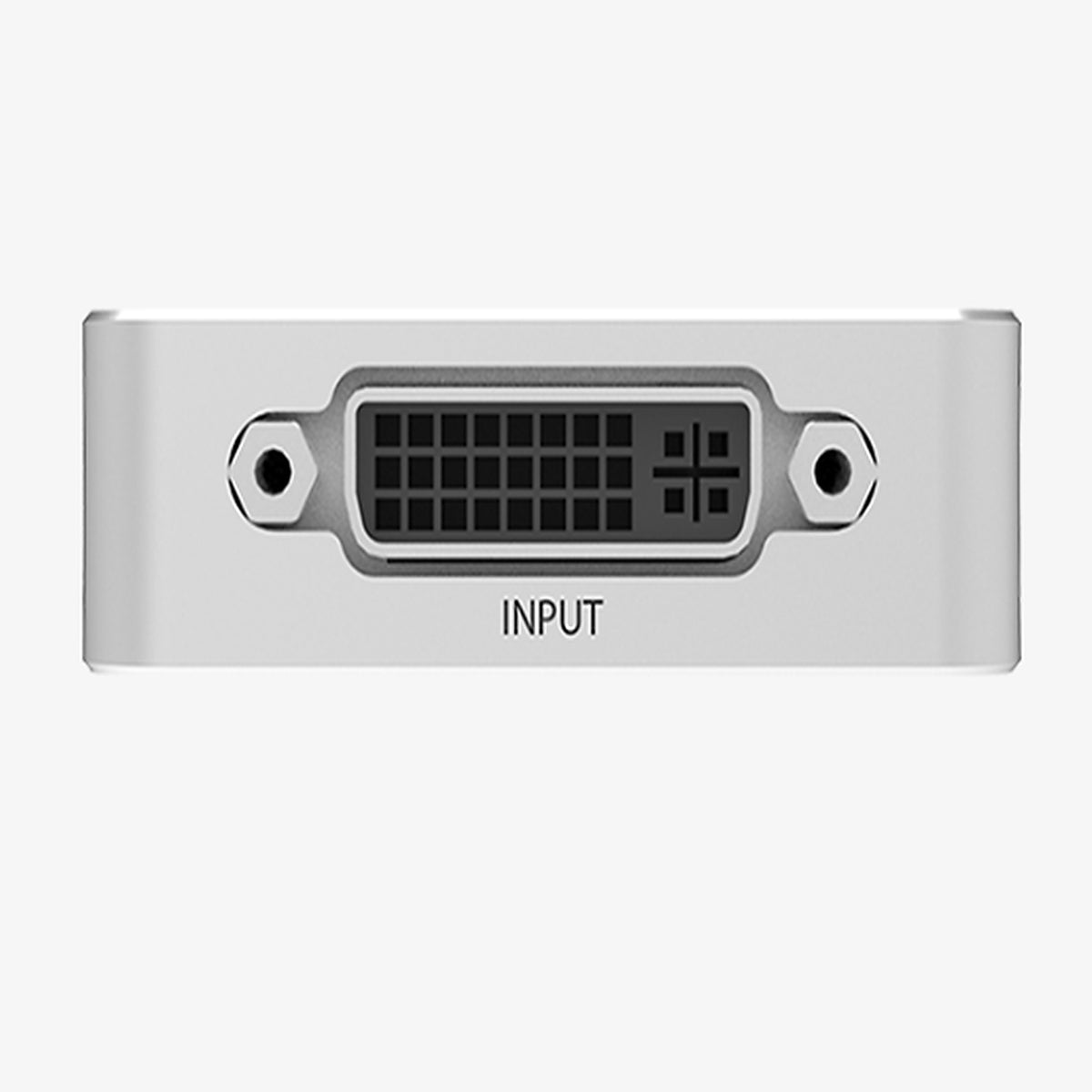

DVI HDMI VGA and Component Inputs
The DVI-I connection supports native DVI plus HDMI, VGA, and Component sources through the supplied breakout and adapter accessories. One compact device can therefore support both digital and analog video workflows.
High-Frame-Rate Capture Capability
Magewell specifies capture frame rates up to 120fps depending on resolution, available USB bandwidth, and internal processing limits. The current detailed specification explicitly lists standard 1920×1080 and 1280×720 outputs through 60fps.
Advanced Hardware Video Processing
Integrated processing supports cropping, deinterlacing, up and down scaling, aspect-ratio conversion, frame-rate conversion, color-format conversion, flipping, and mirroring before video reaches the host application.

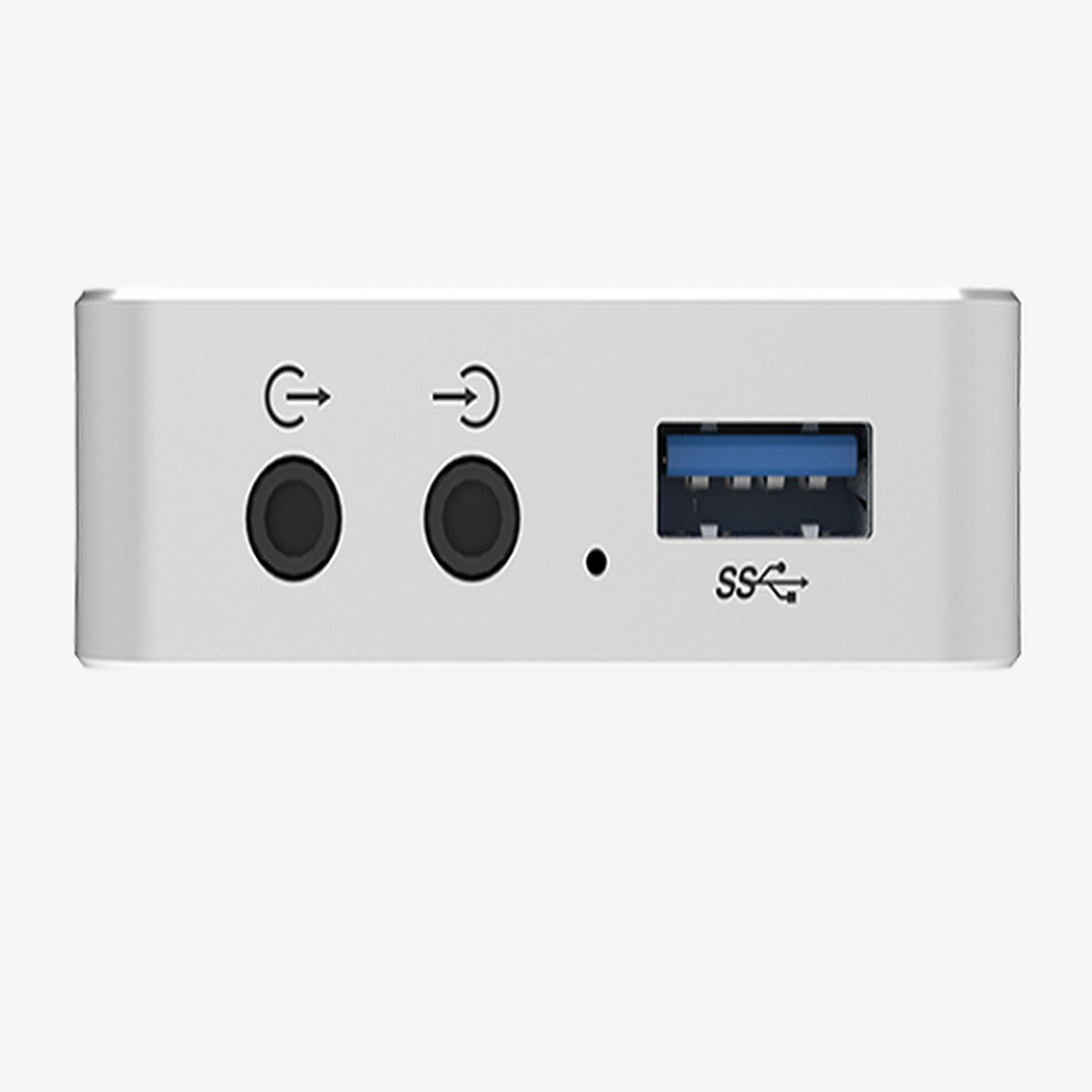

Analog and Embedded Audio Support
A 3.5 mm analog audio input supports external sound sources, while the Line Out connection can extract audio associated with an HDMI source. USB capture supports up to two channels of digital audio for compatible workflows.
Broad Software and OS Compatibility
Use the device with Windows, Linux, macOS, and Chrome OS. Magewell lists OBS Studio, Zoom Rooms, Microsoft Teams, VLC, XSplit, QuickTime Player, and other compatible capture and streaming applications.
Video Input
DVI-I · DVI 1.0
Additional Sources
HDMI · VGA · Component
Analog Audio
3.5 mm Input · Line Out
Host Interface
USB 3.0 · USB 2.0 Compatible
OBS Studio XSplit and VLC
Magewell lists OBS Studio, XSplit, and VLC among compatible applications. DVI, HDMI, VGA, and Component sources can be brought into compatible software for streaming, recording, monitoring, and production.
Zoom Rooms and Microsoft Teams
Zoom Rooms and Microsoft Teams are included in Magewell's compatibility list. Professional cameras, computers, and presentation sources can therefore be integrated into supported conferencing and collaboration workflows.
USB Capture Utility and MWCapture SDK
USB Capture Utility provides access to capture-related settings, firmware maintenance, and troubleshooting information. Magewell's MWCapture SDK supports signal-status extraction, capture configuration, and real-time audio and video functions for custom applications.
Presentation Capture Teams
Capture DVI, HDMI, VGA, and Component presentation sources into modern computer workflows.
Live Production Teams
Add external multi-format video capture to software-based production systems over USB.
Corporate Conferencing
Bring compatible cameras and presentation sources into meeting and collaboration software.
Education and Lecture Capture
Capture classroom computers, cameras, and legacy presentation equipment for recording or streaming.
AV Integrators
Support both digital and analog source formats with one compact external capture device.
Software Developers
Build custom video workflows using native platform APIs and the Magewell MWCapture SDK.
Magewell Support
Magewell specifies a three-year manufacturer warranty for USB Capture DVI Plus hardware. Coremicro can help confirm DVI, HDMI, VGA, and Component source compatibility, USB bandwidth, audio requirements, software support, and adapter requirements before deployment.
| Specification | Detail |
|---|---|
| Product | USB Capture DVI Plus |
| Part Number | 32080 |
| SKU | 320800000 |
| Capture Channels | 1 video channel |
| Primary Function | DVI, HDMI, VGA, and Component video capture over USB |
| Primary Video Interface | DVI-I |
| DVI Standard | DVI 1.0 |
| HDMI Support | HDMI 1.4a via supplied breakout cable |
| VGA Support | Via supplied DVI-to-VGA adapter |
| Component Support | Via supplied DVI-I breakout cable |
| Detailed-Spec Maximum Digital Input | 1920×1080p60 4:4:4 |
| HDMI Receiver | 225 MHz |
| Digital Input Color Formats | RGB / YUV 4:4:4 8 / 10 / 12-bit · YUY 4:2:2 12-bit |
| EDID | Customizable |
| VGA / Component Conversion | 12-bit ADC |
| VGA / Component Color Formats | RGB · YCbCr / YUV |
| Analog Sync Support | Separated sync · Composite sync · Sync-on-green · Sync-on-luminance |
| Supported Analog Timings | DMT · CEA · CVT · GTF · Custom CVT / GTF |
| Analog Pixel Rate | Up to 165 MHz with 1:1 sampling |
| Analog Audio Input | 3.5 mm analog audio input |
| Audio Output | 3.5 mm Line Out for HDMI-associated audio |
| Captured Audio | Up to 2-channel IEC60958 audio streams |
| Video Processing Bandwidth | Approximately 160M pixels per second |
| Configurable Capture Resolution | Up to 2048×2160 within processing and bandwidth limits |
| Maximum Capture Frame Rate | Up to 120fps depending on resolution, USB bandwidth, and internal working frequency |
| Standard 1080p Capture Output | 1920×1080p up to 60fps |
| Standard 720p Capture Output | 1280×720p up to 60fps |
| PAL Capture Output | 720×576p25 |
| NTSC Capture Output | 720×480p30 |
| Capture Pixel Formats | YUYV · UYVY · RGB24 · RGB32 |
| Video Processing | Cropping · Deinterlacing · Up/down scaling · Aspect-ratio conversion · Frame-rate conversion · Color-format conversion · Flip · Mirror |
| Host Interface | USB 3.0 |
| USB Compatibility | USB 2.0 · USB 3.1 Gen 1 |
| Compatible Operating Systems | Windows · Linux · macOS · Chrome OS |
| Windows APIs | DirectShow · Wave API · DirectSound · WASAPI |
| Linux APIs | V4L2 · ALSA |
| macOS APIs | AVCaptureSession · AudioUnit |
| Compatible Software | Zoom Rooms · Microsoft Teams · Skype for Business · Google Hangouts · GoToMeeting · GStreamer · VLC · OBS Studio · XSplit · QuickTime Player |
| Included Utility | USB Capture Utility |
| SDK | Magewell MWCapture SDK |
| Input Detection | Automatic input signal format detection |
| Continuous Operation | Designed for continuous 24×7 operation |
| Status Indicator | LED indicates input lock and device operating status |
| Dimensions | 101.5 × 56.8 × 17 mm |
| Maximum Current | Approximately 600 mA at 5 V |
| Maximum Power Consumption | Approximately 3 W |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | −20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Manufacturer Warranty | 3 years |
| Included Device | USB Capture DVI Plus |
| Included USB Cable | 1 × USB 3.0 cable · 63 cm |
| Included VGA Adapter | 1 × DVI-to-VGA connector |
| Included Breakout Cable | 1 × DVI-I to HDMI + Component breakout |
What does the Magewell USB Capture DVI Plus capture?
The device captures one DVI, HDMI, VGA, or Component video source into a computer over USB. DVI connects directly through DVI-I, while the other supported formats use the supplied adapter or breakout cable.
What is the maximum digital input signal?
Magewell's detailed technical specification lists a maximum digital input signal of 1920×1080p60 4:4:4. The product's capture processing pipeline separately supports configurable capture resolutions up to 2048×2160.
Is USB Capture DVI Plus a 4K capture device?
Magewell describes this model as a one-channel HD capture card. The detailed input specification is 1920×1080p60 4:4:4, so it should not be positioned as a native 4K capture device.
Can USB Capture DVI Plus capture VGA and Component video?
Yes. VGA connects through the included DVI-to-VGA adapter, while Component video uses the supplied DVI-I breakout cable. The analog input path supports RGB and YCbCr formats with a 12-bit ADC.
Does USB Capture DVI Plus support high-frame-rate capture?
Magewell specifies capture frame rates up to 120fps depending on resolution, USB bandwidth, and internal processing limits. The current detailed specification explicitly lists standard 1080p and 720p outputs through 60fps.
Which applications work with USB Capture DVI Plus?
Magewell lists OBS Studio, Zoom Rooms, Microsoft Teams, VLC, XSplit, QuickTime Player, and other compatible applications. Native capture APIs are also supported on Windows, Linux, and macOS.
What warranty does USB Capture DVI Plus include?
Magewell specifies a three-year manufacturer warranty for USB Capture DVI Plus. Coremicro can help confirm source formats, adapters, USB bandwidth, software compatibility, and audio requirements before deployment.
Capture DVI HDMI VGA and Component Video over USB
Buy Magewell USB Capture DVI Plus from Coremicro, an authorized Magewell dealer supporting professional capture, live production, streaming, presentation systems, conferencing, education, and AV integration. Contact our team for pricing and availability or to confirm source formats, adapters, USB compatibility, audio, and software requirements before ordering.
