Product Highlights
- 1080p60 multi-format USB capture
- SDI HDMI and legacy inputs
- USB 3.0 professional video capture
- OBS Zoom Teams compatible

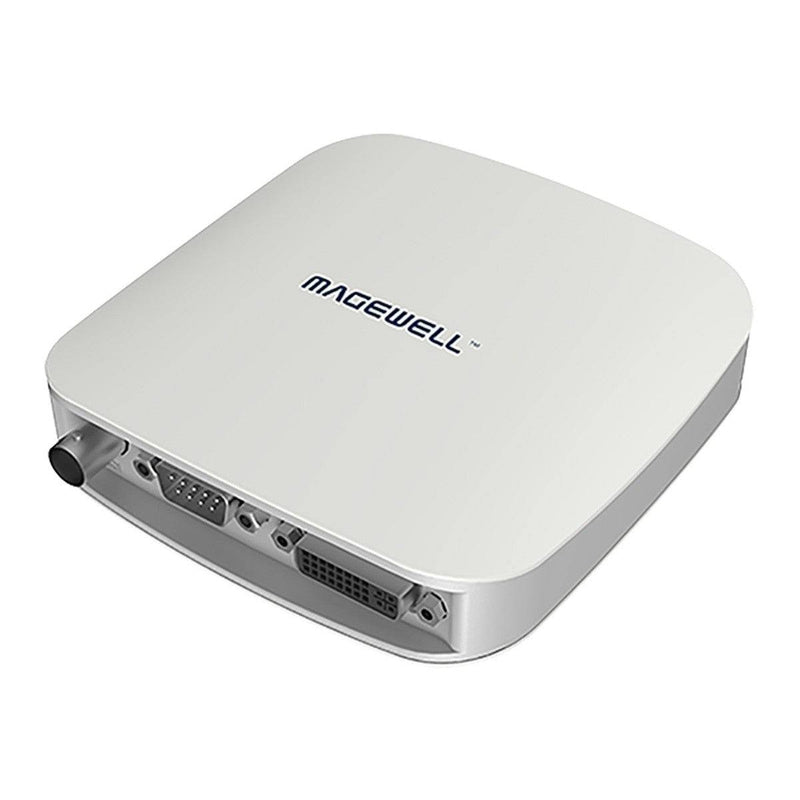

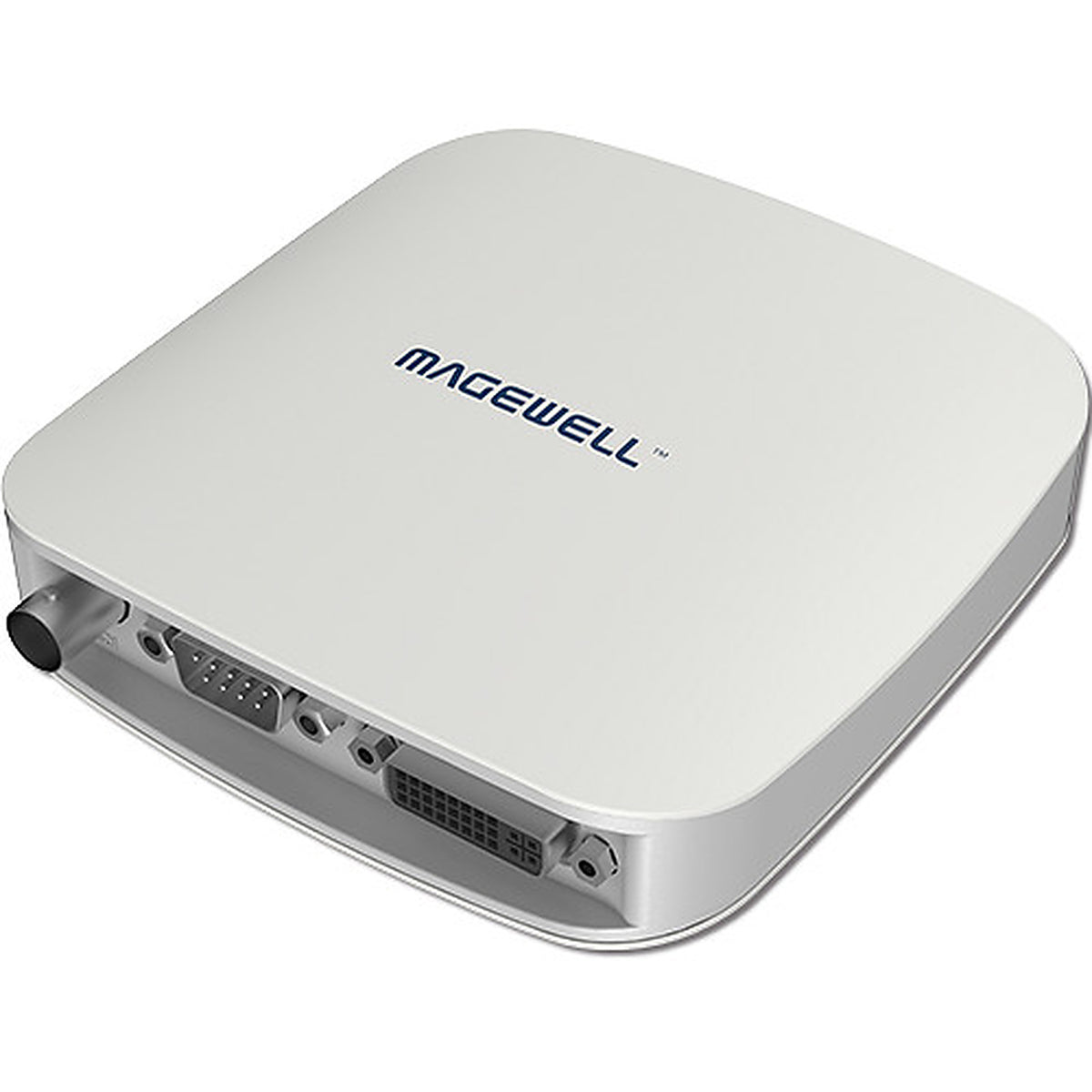

Magewell USB Capture AIO Multi-Format 1080p60 SDI HDMI Capture Device
- SKU:
- MAG-32110
- MPN:
- 32110
Ships in 2-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The Magewell USB Capture AIO is a one-channel multi-format capture device for bringing professional digital and legacy analog video sources into a computer over USB. It accepts SDI, HDMI, DVI, VGA, Component, Composite, and S-Video, with digital inputs supporting signals up to 2048×1080 60fps. Hardware processing, broad operating-system compatibility, and support for popular capture and conferencing applications make it a flexible choice for production, streaming, conferencing, archiving, and integration.
One-Channel Multi-Format Video Capture
Capture one video source at a time from a wide range of professional and legacy interfaces. SDI, HDMI, DVI, VGA, Component, Composite, and S-Video support makes the device useful when one workstation must handle many different source formats.
3G-SDI and HDMI Capture
Digital video support includes SD, HD, and 3G-SDI through BNC plus HDMI through the supplied DVI-I breakout connection. HDMI accepts up to 2048×1080 60fps 4:4:4, while SDI accepts up to 2048×1080 60fps 4:2:2 10-bit.
DVI VGA Component and Analog Video
DVI-I and DB9 connectivity expands capture beyond modern digital sources. Supplied adapters and breakout cables support DVI, VGA, Component, Composite, S-Video, and analog stereo audio for legacy media and specialized AV systems.
USB 3.0 Computer Connectivity
The USB 3.0 host interface carries captured video and audio directly to a computer and is also compatible with USB 2.0 and USB 3.1 Gen 1 hosts. The external design avoids the need to install an internal PCIe capture card.
Advanced Hardware Video Processing
The processing pipeline supports cropping, up and down scaling, deinterlacing, aspect-ratio conversion, color-format conversion, frame-rate conversion, image flipping, and mirroring. Custom capture resolutions are also supported.
Broad Software and OS Compatibility
Use the capture device with Windows, Linux, macOS, and Chrome OS environments. Magewell lists OBS Studio, Zoom Rooms, Microsoft Teams, VLC, XSplit, QuickTime Player, and other compatible capture applications among supported software.

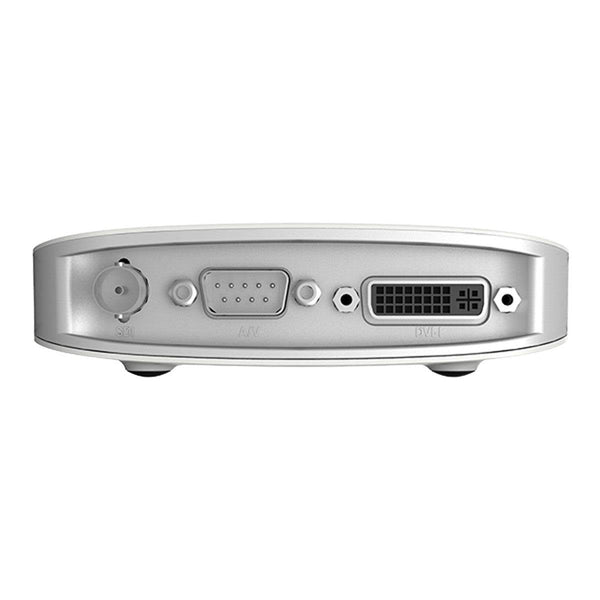

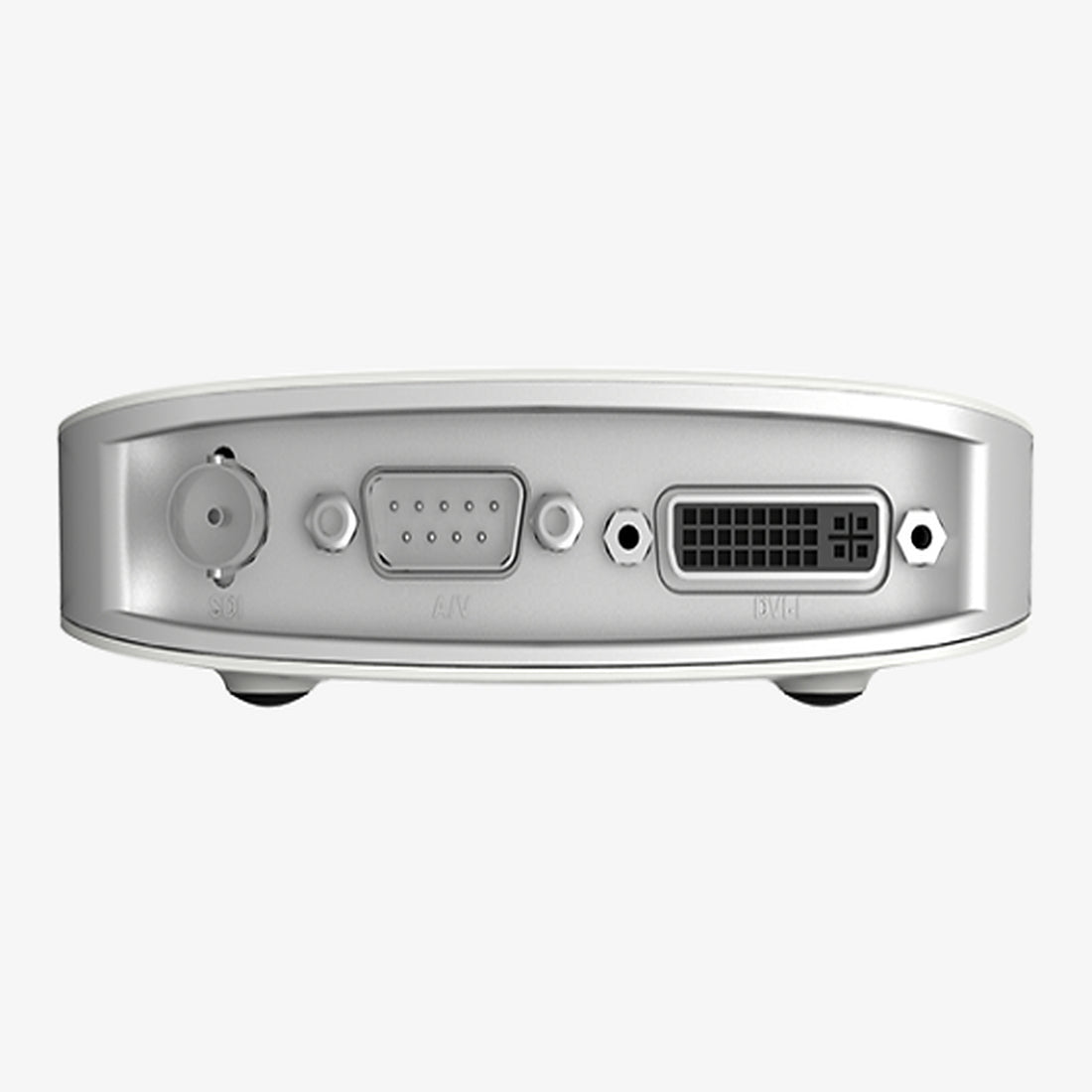

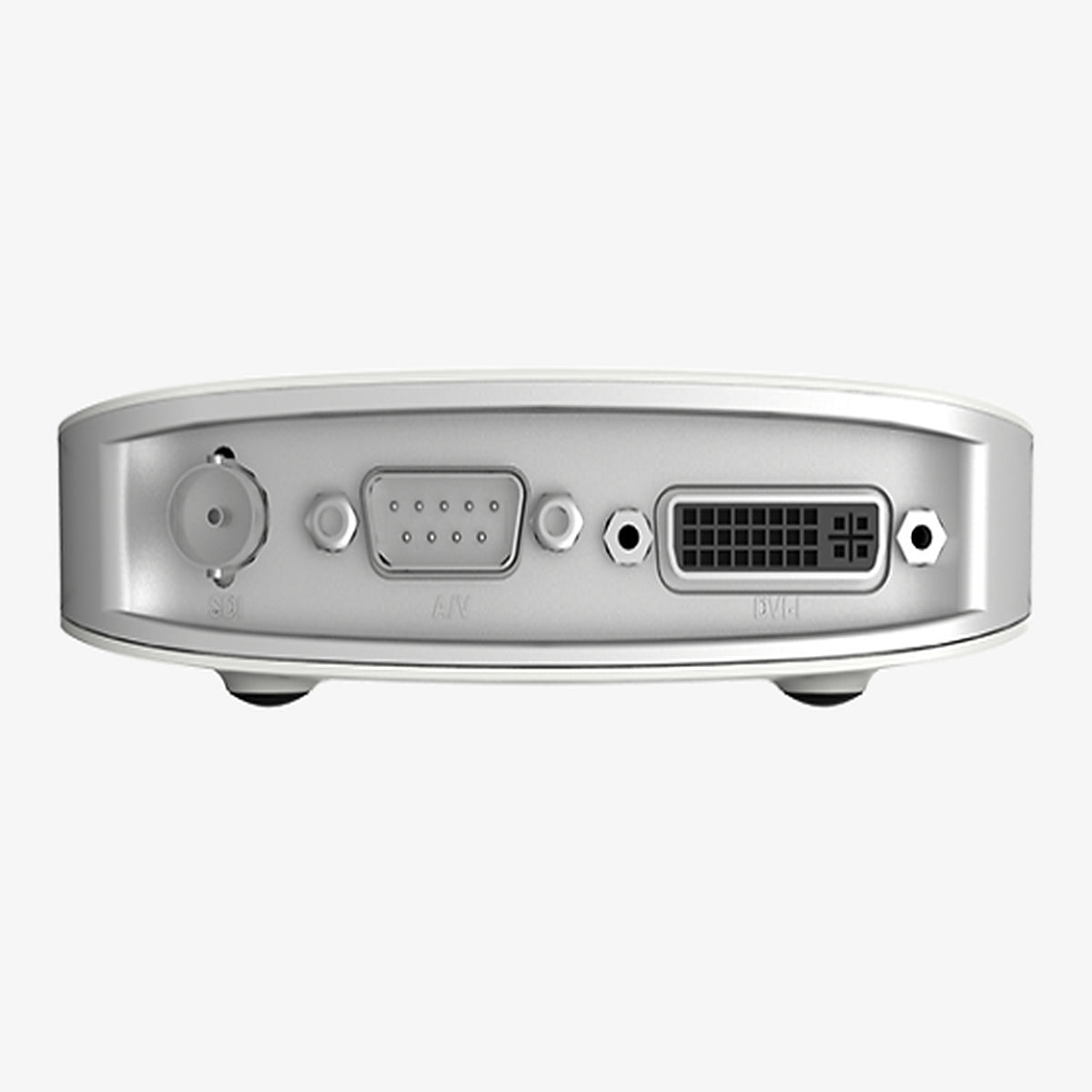

SDI Input
BNC · SD / HD / 3G-SDI
DVI-I Input
DVI · HDMI · VGA · Component
DB9 Breakout
S-Video · Composite · Component · Analog Audio
Computer Interface
USB 3.0 · USB 2.0 Compatible
OBS Studio XSplit and VLC
Magewell lists OBS Studio, XSplit, and VLC among compatible applications. These workflows can use captured video for live streaming, recording, monitoring, and other professional production tasks.
Zoom Rooms and Microsoft Teams
Zoom Rooms and Microsoft Teams are included in Magewell's compatibility list. Professional cameras and presentation sources can therefore be brought into compatible conferencing and collaboration workflows through USB capture.
Native Capture APIs and SDK
Magewell supports Windows DirectShow and audio APIs, Linux V4L2 and ALSA, and macOS AVCaptureSession and AudioUnit. The MWCapture SDK also provides tools for signal status, configuration, and real-time audio and video capture.
Broadcast and Production Teams
Capture professional SDI and HDMI sources into software-based production systems.
AV Integrators
Support modern digital and legacy analog sources with one external USB capture device.
Corporate Conferencing
Bring professional cameras and presentation sources into compatible meeting platforms.
Education and Lecture Capture
Capture classroom cameras, computers, and legacy presentation equipment for recording or streaming.
Archiving and Digitization
Ingest Composite, S-Video, Component, VGA, and other legacy sources into modern computers.
Software Developers
Build custom capture workflows using platform-native APIs and the Magewell MWCapture SDK.
Magewell Support
Magewell provides a two-year limited manufacturer warranty for USB Capture hardware. Coremicro can help confirm input formats, breakout connections, USB compatibility, capture software, operating-system support, audio requirements, and workflow integration before deployment.
| Specification | Detail |
|---|---|
| Product | USB Capture AIO |
| Part Number | 32110 |
| SKU | 321100000 |
| Capture Channels | 1 video channel |
| Primary Function | Multi-format digital and analog video capture over USB |
| BNC Input | SD / HD / 3G-SDI |
| DVI-I Input | DVI 1.0 · HDMI 1.4a via breakout · VGA via adapter · Component via breakout |
| DB9 Input | YC / S-Video · Composite video · Component video · Analog stereo audio |
| HDMI Maximum Input | 2048×1080 60fps 4:4:4 |
| HDMI Receiver | 225 MHz |
| HDMI Color Sampling / Depth | RGB / YUV 4:4:4 8 / 10 / 12-bit · YUY 4:2:2 12-bit |
| HDMI EDID | Customizable |
| HDMI Embedded Audio Input | Up to 8 channels · 24-bit · 192 kHz |
| SDI Maximum Input | 2048×1080 60fps 4:2:2 10-bit |
| SDI Standards | ST 259 · ST 292 · ST 425 3Ga · 3Gb-DL · 3Gb-DS |
| SDI Color Sampling / Depth | RGB / YUV 4:4:4 10 / 12-bit · YUV 4:2:2 8 / 10 / 12-bit · RGBA / YUVA 4:4:4:4 10-bit |
| SDI Embedded Audio Input | Up to 8 channels |
| 3G-SDI Cable Distance | Up to approximately 150 m |
| VGA / Component Conversion | 12-bit ADC |
| VGA / Component Color Formats | RGB · YCbCr / YUV |
| Analog Sync Support | Separated sync · Composite sync · Sync-on-green · Sync-on-luminance |
| Analog Video Timing | DMT · CEA · CVT · GTF · Custom CVT / GTF |
| Analog Pixel Rate | Up to 165 MHz with 1:1 sampling |
| Analog Audio Input | 3.5 mm line input / stereo analog audio |
| Composite / S-Video Standards | NTSC · PAL · SECAM |
| Analog Standard Detection | Automatic for S-Video and Composite sources |
| Video Processing Pipeline | Up to 160M pixels per second |
| Capture Resolution Range | Custom capture resolutions up to 2048×2160 |
| Capture Frame Rate Capability | Up to 120fps depending on resolution, USB bandwidth, and internal working frequency |
| 1920×1080 Capture Rates | 23.98 · 24 · 25 · 29.97 · 30 · 50 · 59.94 · 60 · 75fps |
| 1280×720 Capture Rates | 23.98 · 24 · 25 · 29.97 · 30 · 50 · 59.94 · 60 · 100 · 119.88 · 120fps |
| SD Capture Outputs | 720×576p25 · 720×480p30 |
| Capture Pixel Formats | YUY2 · UYVY · RGB24 · RGB32 |
| Video Processing | Cropping · Up/down scaling · Deinterlacing · Aspect-ratio conversion · Color-format conversion · Frame-rate conversion · Flip · Mirror |
| HDMI Capture Audio | Up to 2-channel IEC60958 audio streams |
| SDI Capture Audio | Up to 2 channels at 48 kHz |
| Host Interface | USB 3.0 |
| USB Compatibility | USB 2.0 · USB 3.1 Gen 1 |
| Compatible Operating Systems | Windows · Linux · macOS · Chrome OS |
| Windows APIs | DirectShow · Wave API · DirectSound · WASAPI |
| Linux APIs | V4L2 · ALSA |
| macOS APIs | AVCaptureSession · AudioUnit |
| Compatible Software | Zoom Rooms · Microsoft Teams · Skype for Business · Google Hangouts · GoToMeeting · GStreamer · VLC · OBS Studio · XSplit · QuickTime Player |
| Included Utility | Magewell USB Capture Utility |
| SDK | Magewell MWCapture SDK |
| Input Detection | Automatic input signal format detection |
| Continuous Operation | Designed for continuous 24×7 operation |

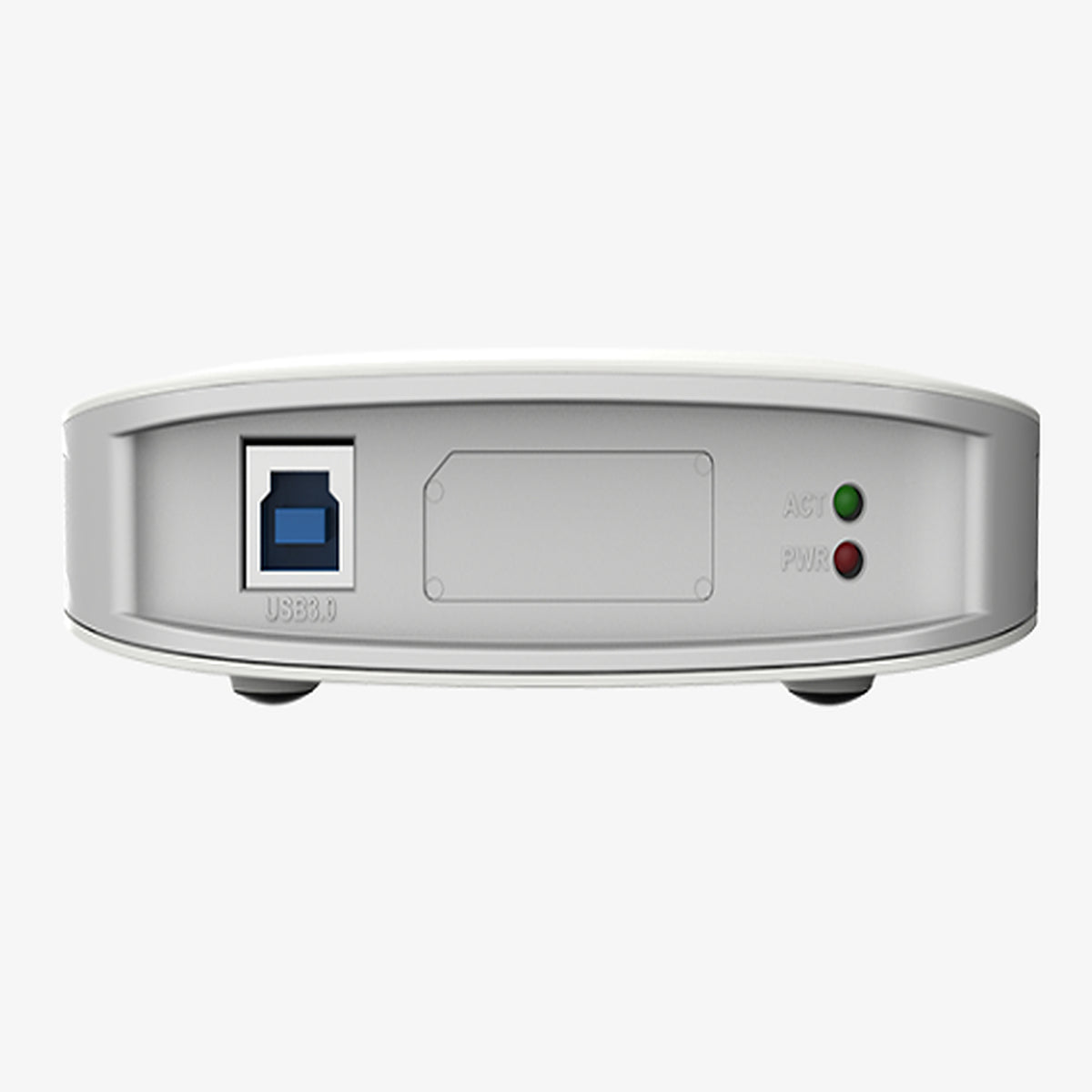

| Status Indicator | LED indicates input lock and device status |
| Dimensions | 116 × 116 × 32 mm |
| Maximum Current | Approximately 1 A at 5 V |
| Maximum Power Consumption | Approximately 5 W |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | −20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Manufacturer Warranty | 2 years for USB Capture hardware |
| Accessory Warranty | 1 year for included breakout cables and adapters |
| Included Device | USB Capture AIO |
| Included USB Cable | USB 3.0 cable |
| Included VGA Adapter | DVI to VGA connector |
| Included DVI-I Breakout | DVI-I to HDMI + Component breakout |
| Included DB9 Breakout | DB9 to YC + Composite + Analog Audio + Component breakout |
What inputs can the Magewell USB Capture AIO capture?
The device can capture one SDI, HDMI, DVI, VGA, Component, Composite, or S-Video source at a time. Supplied adapters and breakout cables provide access to the various digital, analog video, and analog audio connections.
What is the maximum HDMI and SDI input resolution?
HDMI input supports up to 2048×1080 60fps 4:4:4. SDI input supports up to 2048×1080 60fps 4:2:2 10-bit through the SD, HD, and 3G-SDI BNC connection.
Can USB Capture AIO capture legacy analog video?
Yes. The device supports VGA, Component, Composite, and S-Video in addition to digital inputs. Composite and S-Video support NTSC, PAL, and SECAM with automatic input-standard detection.
Does USB Capture AIO support high-frame-rate capture?
Yes. Magewell specifies a processing pipeline with capture frame rates up to 120fps depending on resolution and available USB bandwidth. For example, 1280×720 supports rates up to 120fps while 1920×1080 supports rates up to 75fps.
How many audio channels are captured over USB?
HDMI and SDI inputs can carry more embedded audio channels, but the USB capture output supports up to two audio channels. SDI capture audio is specified at up to two channels at 48 kHz, while analog stereo audio can also be captured.
Which applications work with USB Capture AIO?
Magewell lists OBS Studio, Zoom Rooms, Microsoft Teams, VLC, XSplit, QuickTime Player, and other compatible software. The device also supports platform-native capture APIs on Windows, Linux, and macOS.
What warranty does USB Capture AIO include?
Magewell provides a two-year limited warranty for USB Capture hardware. Included breakout cables and adapters have separate one-year coverage under Magewell's published warranty terms.
Capture Modern and Legacy Video with One USB Device
Buy Magewell USB Capture AIO from Coremicro, an authorized Magewell dealer for professional capture, broadcast, streaming, conferencing, archiving, and AV integration. Contact our team for pricing and availability, or to confirm source formats, breakout connections, software compatibility, USB bandwidth, and audio requirements before ordering.
