Product Highlights
- 1080p60 H.264 H.265 streaming
- 4K HDMI input loop-through
- Internal USB smartphone recording
- Ethernet and Wi-Fi connectivity

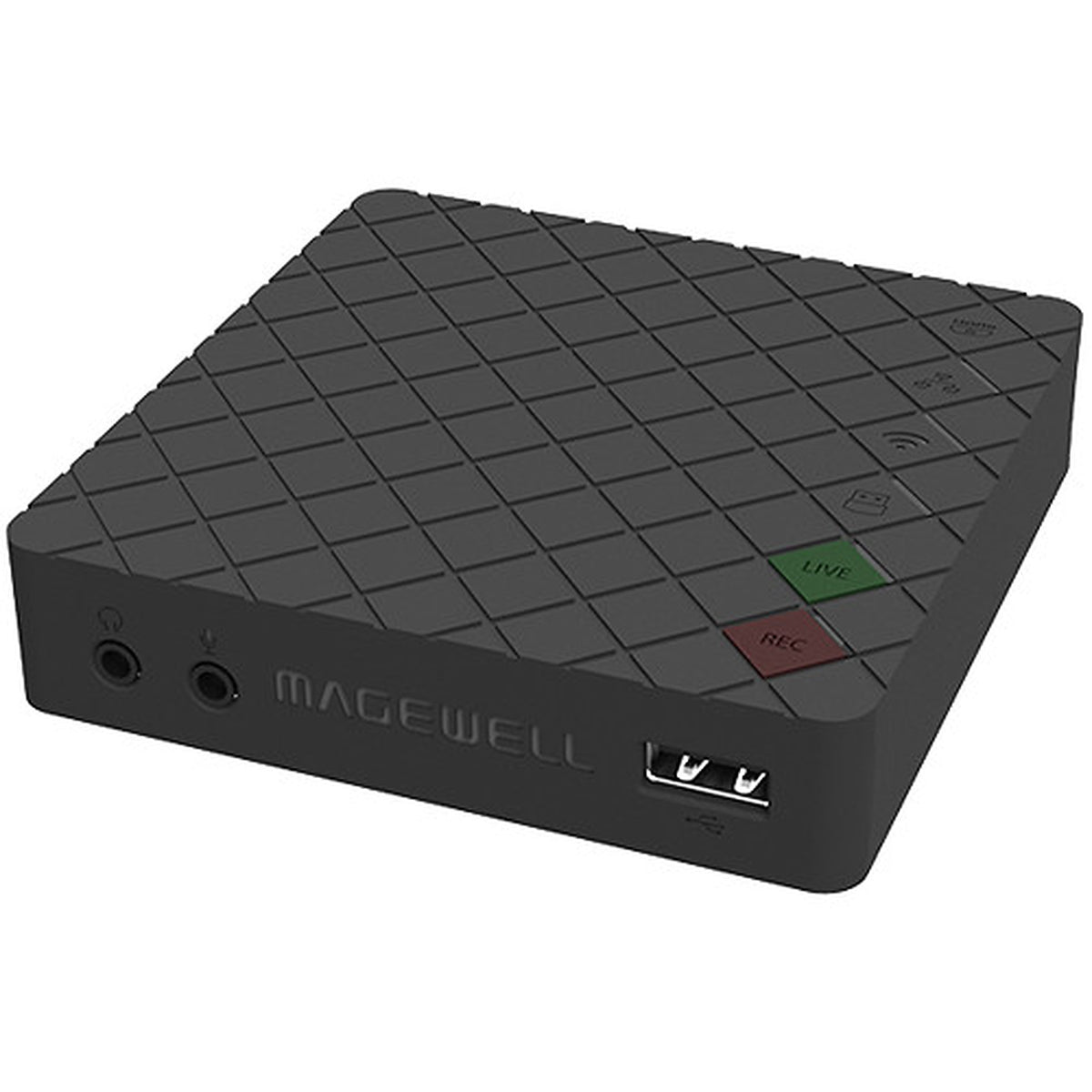

Magewell Ultra Stream HDMI 1080p60 H.264 H.265 Streaming Encoder
- SKU:
- MAG-53010
- MPN:
- 53010
Ships in 2-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The Magewell Ultra Stream HDMI is a dedicated HDMI streaming encoder and recorder designed for simple standalone live production. It accepts and loops through HDMI sources up to 4096×2160 60fps while encoding video up to 1920×1080 60fps using H.264 or H.265. Built-in recording, wired Ethernet, Wi-Fi, optional mobile broadband, smartphone control, and direct support for popular streaming workflows make it ideal for compact productions.
1080p60 H.264 and H.265 Encoding
Encode professional video at resolutions up to 1920×1080 and frame rates up to 60fps. H.264 and H.265 video encoding provide flexible options for live streaming and recording, with main and sub streams available simultaneously.
4K HDMI Input and Loop-Through
HDMI input and loop-through support signals up to 4096×2160 60fps in 4:2:0 or 4096×2160 30fps in 4:4:4 and 4:2:2 formats. The original HDMI source remains available for a local monitor or other downstream equipment.
Direct Live Streaming Workflows
Stream to popular services such as YouTube, Twitch, and Facebook Live, or configure custom RTMP and RTMPS destinations. RTSP streaming is also supported, and up to two streaming sessions can operate simultaneously.
Built-In Multi-Destination Recording
Record to 32GB of internal storage, a connected USB flash drive, or a paired mobile device. Internal and USB recordings support MP4 or MOV files, giving productions a convenient local copy alongside live streaming.
Ethernet Wi-Fi and Mobile Broadband
Connect through Gigabit Ethernet or dual-band Wi-Fi for flexible network access. An optional USB 3G or 4G mobile broadband modem can provide another internet connection option when wired infrastructure is unavailable.
Simple App and Web Management
Operate the encoder from its onboard controls, smartphone app, browser-based WebUI, or Magewell Control Hub. HTTP APIs enable integration into custom systems while real-time status information simplifies monitoring.
HDMI Video

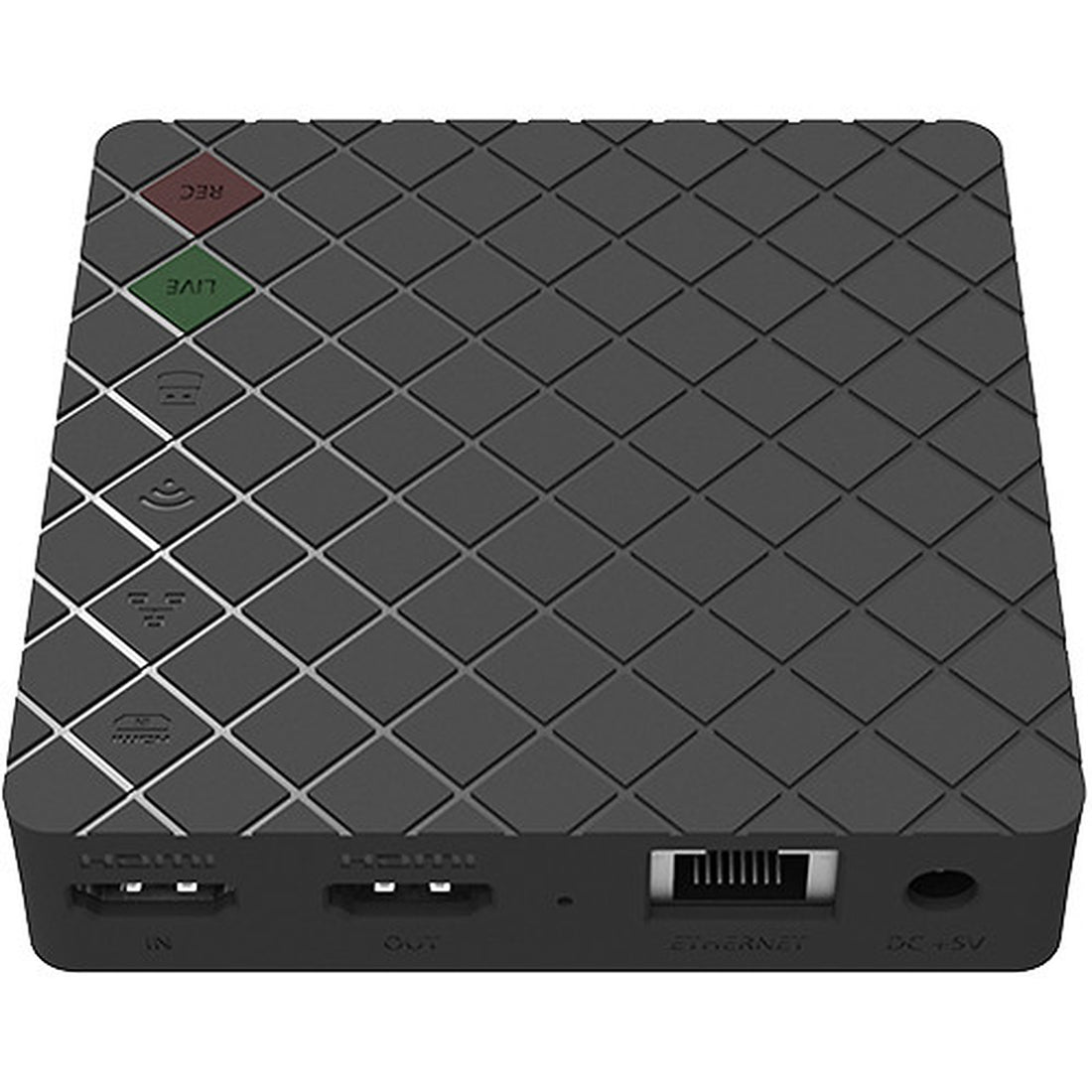

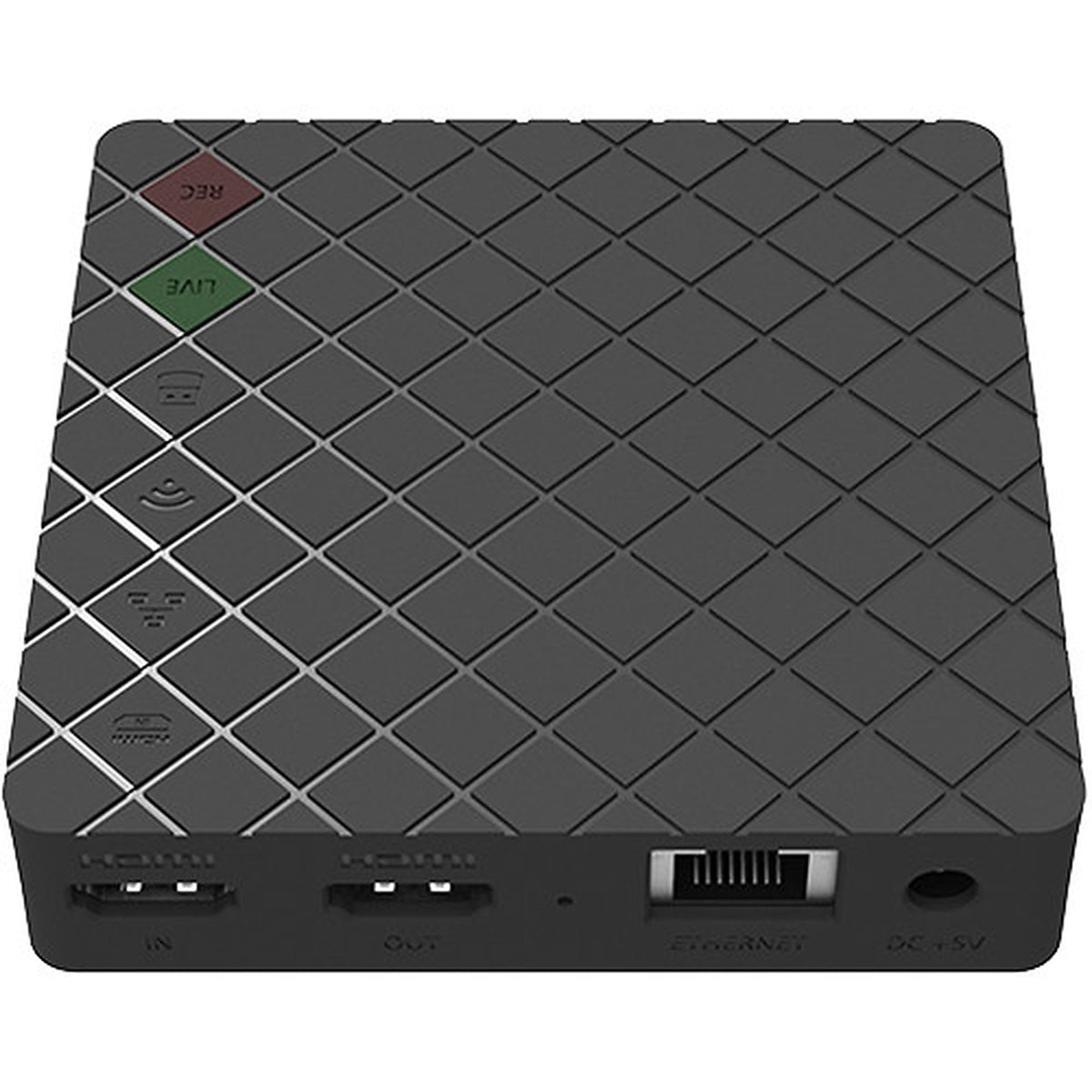

HDMI Input + Loop-Through
Network
Gigabit Ethernet · Wi-Fi
Audio

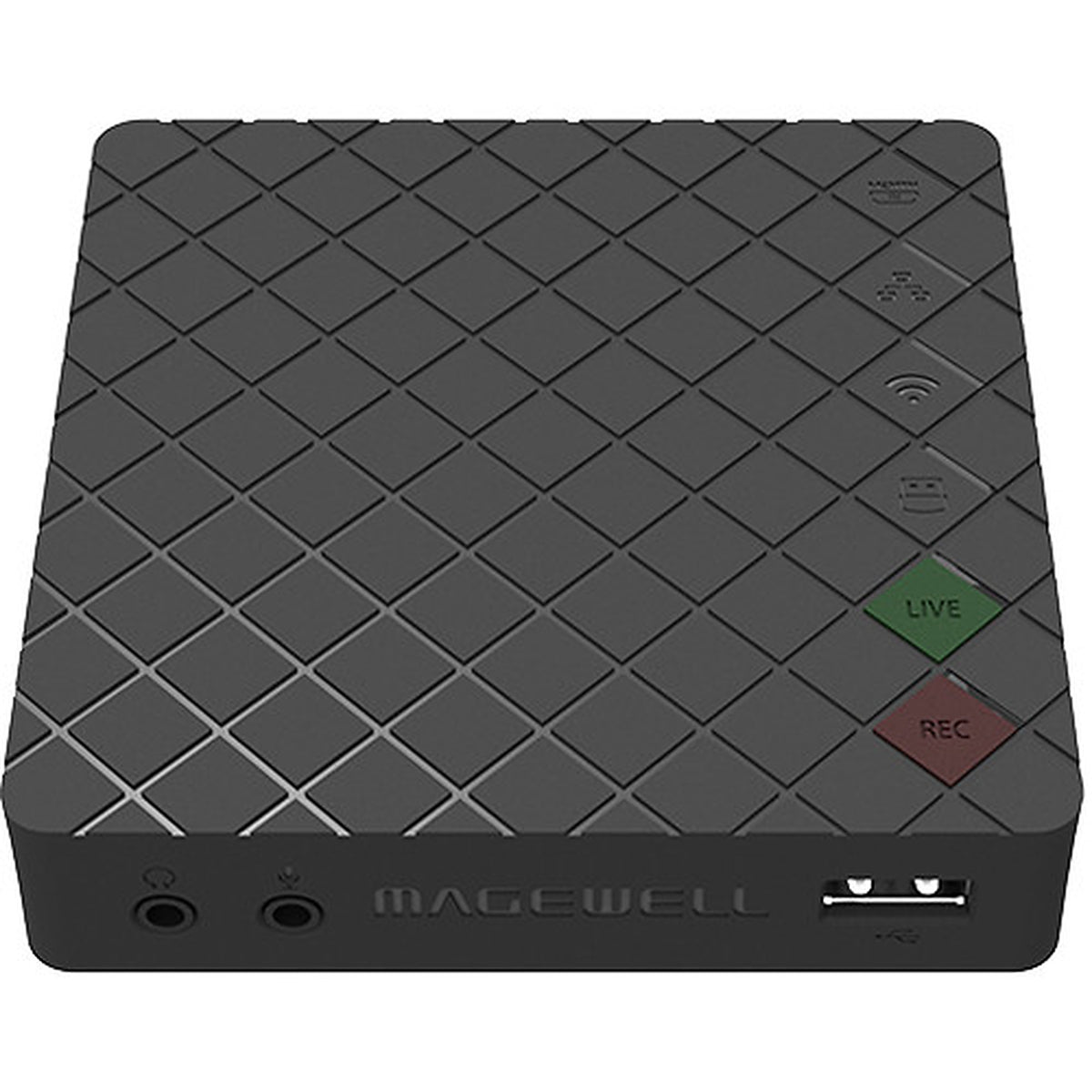

3.5 mm Microphone · Headphone
USB
USB Storage · Optional Mobile Broadband
YouTube Twitch and Facebook Live
Ultra Stream HDMI provides dedicated workflows for popular live streaming services including YouTube, Twitch, and Facebook Live. Users can also configure their own RTMP or RTMPS destination for custom streaming platforms.
Dual-Stream Encoding
Main and sub streams can be encoded simultaneously. The main stream supports bitrates up to 8 Mbps while the sub stream supports up to 2 Mbps, allowing separate profiles for different streaming or monitoring requirements.
Internal USB and Mobile Recording
Record simultaneously to internal storage, USB media, and a paired smartphone. Internal storage supports normal and loop-style recording, while recorded files can be managed and downloaded through the WebUI.
Content Creators
Stream HDMI cameras directly to online platforms without a dedicated production computer.
Live Event Producers
Stream and record event feeds while maintaining HDMI loop-through for local monitoring.
House of Worship
Deliver reliable live services to online audiences with straightforward standalone operation.
Education Teams
Stream lectures, presentations, and campus events while creating local recordings.
Corporate AV
Encode presentations, meetings, training sessions, and company broadcasts from HDMI sources.
Remote Production Teams
Use Ethernet, Wi-Fi, or optional mobile broadband connectivity for flexible field streaming.
Magewell Support
Magewell provides a two-year limited manufacturer warranty for Ultra Stream hardware. Coremicro can help confirm HDMI source formats, streaming platform requirements, network connectivity, recording media, audio configuration, and deployment requirements before purchase.
| Specification | Detail |
|---|---|
| Product | Ultra Stream HDMI |
| Part Number | 53010 |
| SKU — US/EU/UK/AU/JP | 530100000 |
| SKU — KR | 530100006 |
| Primary Function | Standalone HDMI streaming encoder and recorder with loop-through |
| HDMI Input | HDMI 1.4a · DVI-D compatible |
| HDMI Loop-Through | HDMI 1.4a · DVI-D compatible |
| Maximum 4K Input / Loop-Through | 4096×2160 60fps 4:2:0 |
| Maximum 4:4:4 / 4:2:2 Input | 4096×2160 30fps |
| Input Color Depth | 8-bit · 10-bit · 12-bit |
| Input EDID | Customizable |
| HDMI Embedded Audio | Up to 8 channels · 24-bit · 192 kHz |
| Microphone Input | 3.5 mm analog input |
| Headphone Output | 3.5 mm analog output |
| Video Encoding | H.264 · H.265 / HEVC |
| Maximum Encoded Resolution | 1920×1080 |
| Maximum Encoding Frame Rate | 60fps |
| Encoding Streams | Dual stream · Main stream + sub stream |
| Main Stream Maximum Bitrate | 8 Mbps |
| Sub Stream Maximum Bitrate | 2 Mbps |
| Supported HD Encoding Resolutions | 1920×1080 · 1600×1200 · 1600×900 · 1440×1080 · 1440×900 · 1280×1024 · 1280×960 · 1280×800 · 1280×720 · 1024×768 |
| Supported Encoding Frame Rates | 60 · 59.94 · 50 · 30 · 29.97 · 25 · 24 · 15 · 10 · 5fps |
| Encoded Audio | 2-channel AAC · 48 kHz · 16-bit |
| Audio Bitrates | 256 · 192 · 128 · 96 · 64 · 48 · 32 · 16 kbps |
| Streaming Platforms | YouTube · Twitch · Facebook Live |
| Streaming Protocols | RTMP · RTMPS · RTSP |
| Simultaneous Streaming Sessions | Up to 2 |
| Internal Storage | 32GB |
| Recording Destinations | Internal storage · USB flash drive · Paired mobile device |
| Internal / USB Recording Formats | MP4 · MOV |
| Mobile Recording Format | MP4 |
| Internal Recording Modes | Automatic · Loop-style · Normal |
| USB Recording Modes | Automatic · Normal |
| Recording File Management | Download recorded videos through WebUI |
| Cloud / Server Upload | FTP with TLS · Dropbox · Google Drive |
| Wired Network | 10/100/1000 Mbps Ethernet |
| Wi-Fi | 802.11 a/b/g/n/ac |
| Mobile Broadband | Optional USB 3G / 4G modem support |
| Bluetooth | Bluetooth BLE |
| Local Control | On-device buttons |
| Mobile Control | Magewell Ultra Stream smartphone application |
| Web Management | Browser-based WebUI |
| Centralized Management | Magewell Control Hub |
| Integration API | HTTP APIs |

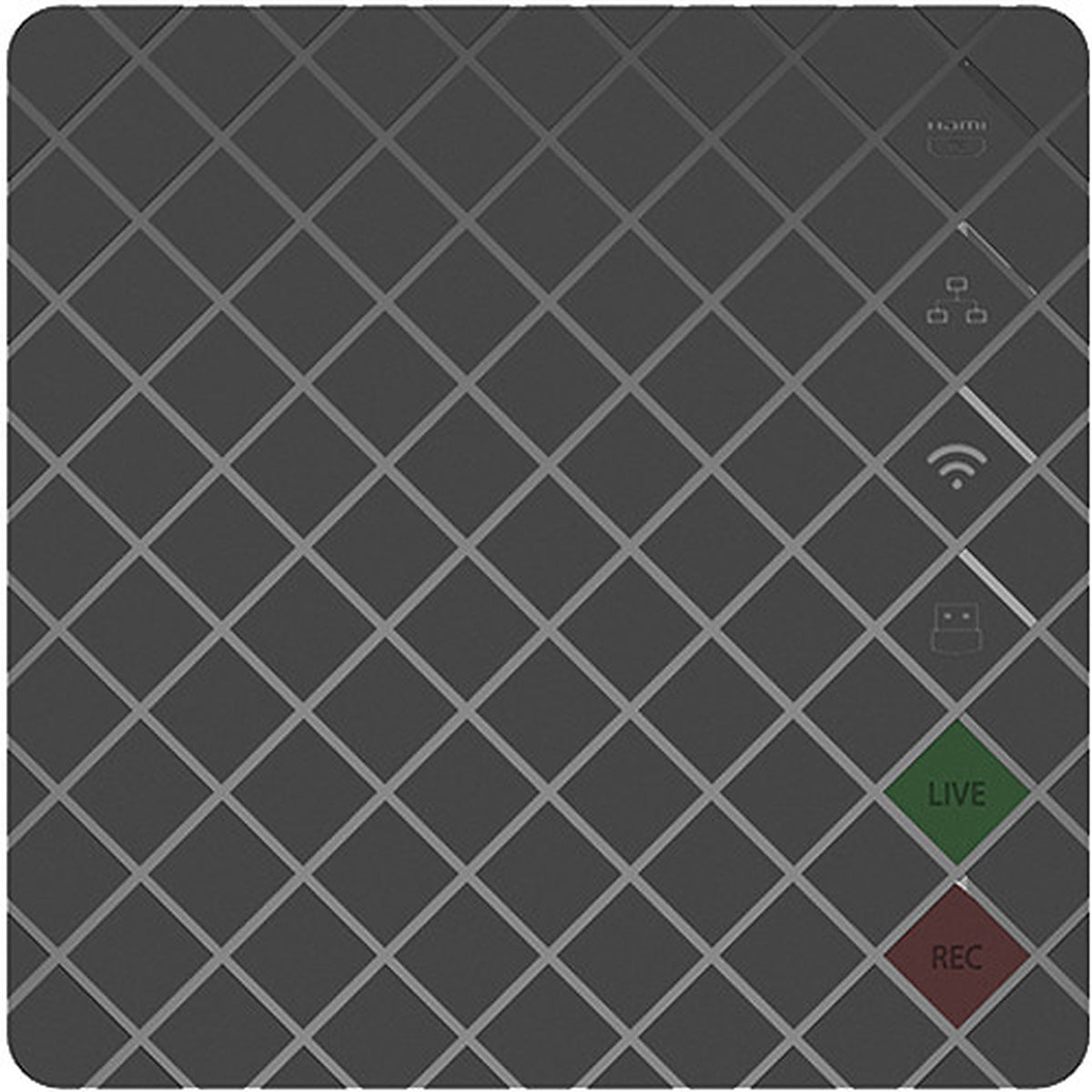

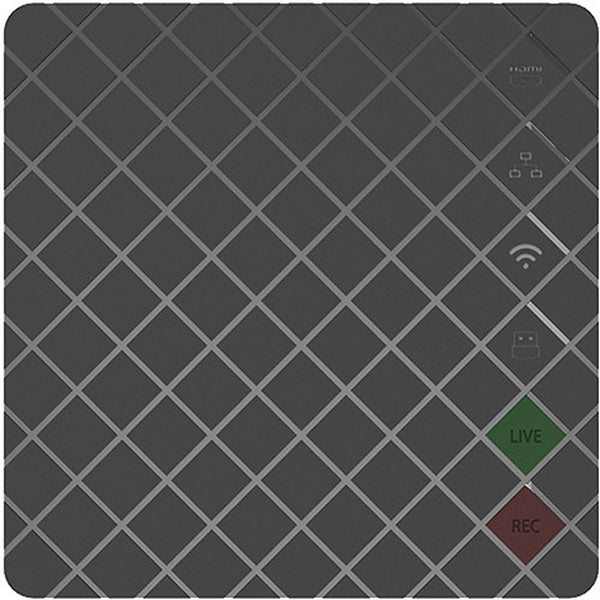

| Status Indicators | Input signal · Ethernet · Wi-Fi · USB storage · Startup · Recording · Streaming · Updating |
| Power Input | DC 5V / 2A |
| Maximum Power Consumption | Approximately 9.6 W |
| Dimensions | 94.2 × 94.2 × 22.3 mm |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | −20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Manufacturer Warranty | 2 years |
| Included Device | Ultra Stream HDMI |
| Included Power | Regional power adapter · Power cable |
| Included HDMI Cable | 1 × HDMI cable |
What does the Magewell Ultra Stream HDMI do?
Ultra Stream HDMI is a standalone HDMI streaming encoder and recorder. It can stream live video to supported online services or custom servers while also recording video locally without requiring a dedicated streaming computer.
Does the Ultra Stream HDMI stream in 4K?
No. It can accept and loop through supported HDMI signals up to 4096×2160, but its encoded video resolution is limited to 1920×1080 with frame rates up to 60fps.
Does the Ultra Stream HDMI support HDMI loop-through?
Yes. The HDMI loop-through can pass the incoming source to a local monitor or other downstream equipment while the encoder streams or records the video.
Which streaming services and protocols are supported?
The encoder provides workflows for YouTube, Twitch, and Facebook Live. It also supports custom RTMP and RTMPS destinations as well as RTSP streaming for compatible network workflows.
Where can the Ultra Stream HDMI record video?
Video can be recorded to the built-in 32GB storage, a connected USB flash drive, or a paired mobile device. Internal and USB recordings can use MP4 or MOV formats.
How can the Ultra Stream HDMI connect to the internet?
The device supports 10/100/1000 Mbps wired Ethernet and Wi-Fi connectivity. It can also use a compatible optional USB 3G or 4G mobile broadband modem.
What warranty does the Ultra Stream HDMI include?
Magewell provides a two-year limited manufacturer warranty for Ultra Stream hardware. Coremicro can help confirm HDMI formats, streaming destinations, networking, recording media, and audio requirements before deployment.
Stream and Record HDMI Video Without a Dedicated PC
Coremicro is an authorized Magewell dealer supporting live streaming, event production, education, corporate AV, house of worship, and professional video workflows. Contact our team to confirm HDMI source compatibility, streaming platforms, Ethernet or Wi-Fi requirements, recording storage, and audio configuration for your deployment.
