Product Highlights

4K30 H.264/H.265 SDI streaming encoder
NDI HX2/HX3 SRT RTMP streaming
SDI input with loop-through output
PoE Wi-Fi Gigabit Ethernet 4G/5G

Authorized Magewell Dealer

Magewell Ultra Encode SDI Plus 4K NDI H.265 Streaming Encoder

SKU:: MAG-531600000
MPN:: 531600000

Special Order

Regular price $655.00

Add to Wishlist Have questions? Contact us

Ships in 2-3 Business Day

Free Expedited Shipping

Secure payment

Manufacturer Warranty

Authorized Dealer

Description

Product Overview

4K30

Max Encoding

NDI HX3

IP Video

6

Streaming Sessions

128GB

Internal Recording

PoE + Wi-Fi

Network Options

Magewell Ultra Encode SDI Plus is a compact SDI streaming and recording encoder for live production, broadcast, remote contribution, and IP video workflows. It combines dual-stream H.264 and H.265 encoding with NDI HX2, NDI HX3, SRT, RTMP, HLS, RIST, and other streaming protocols while offering Gigabit Ethernet, Wi-Fi, PoE, internal recording, and browser-based remote management.

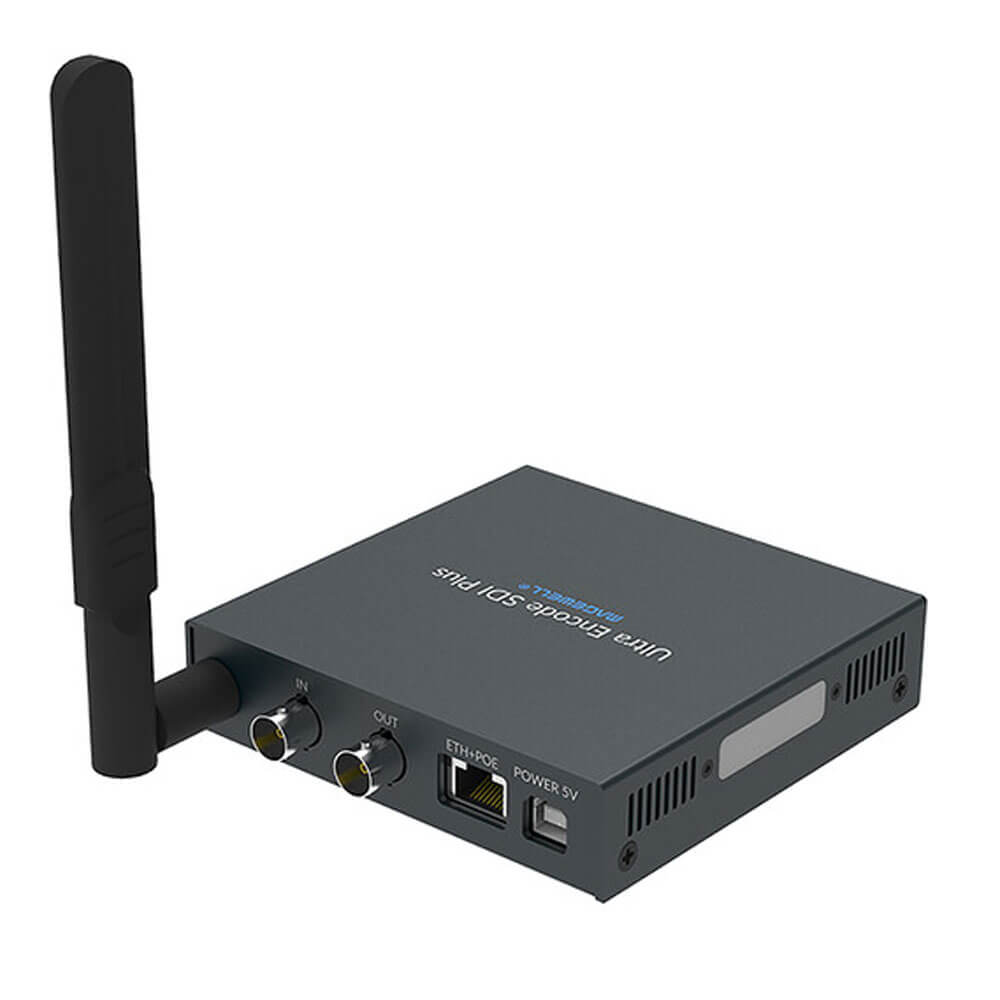

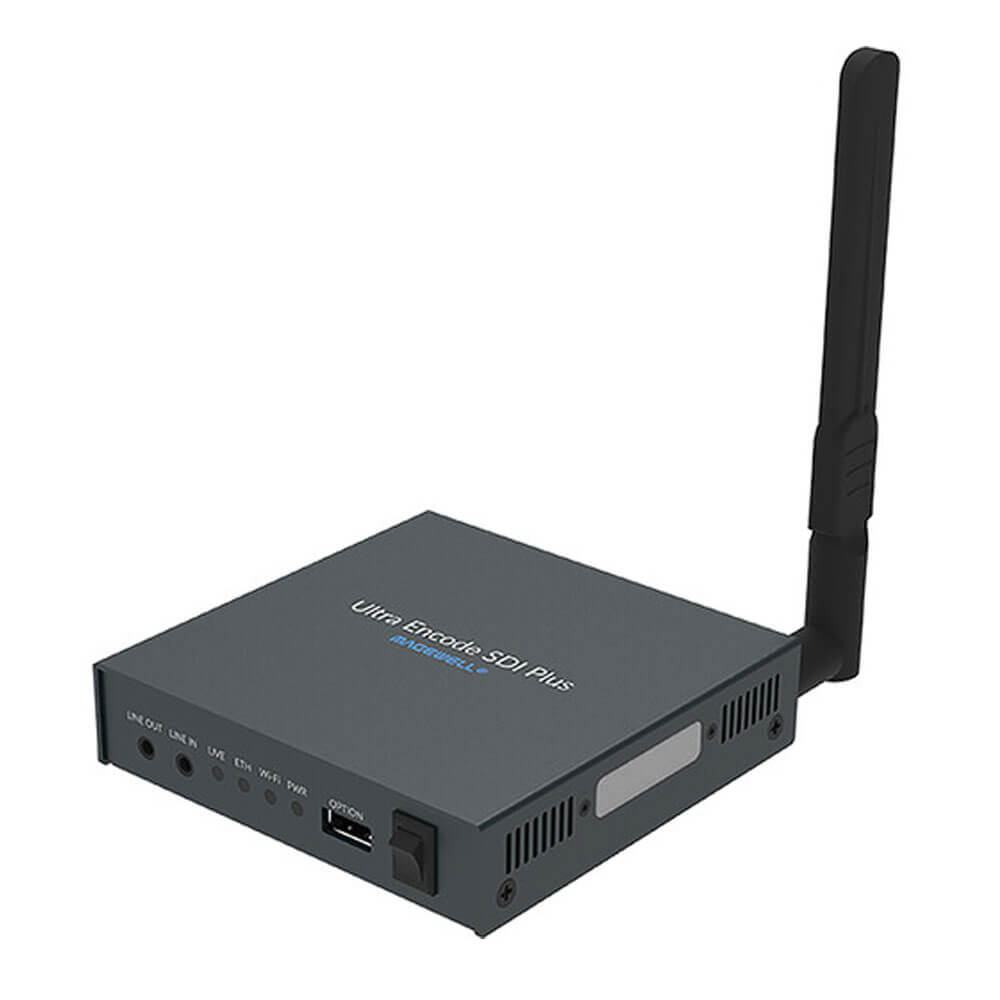

Magewell Ultra Encode SDI Plus 4K30 NDI encoder for broadcast and live streaming

Key Features

01

4K30 Dual-Stream Video Encoding

Dual-stream encoding provides independent main and sub streams for different delivery requirements. The main stream can be encoded at resolutions up to 4096 × 2160p30 using H.264 or H.265 HEVC. Separate profiles make it practical to create a high-quality program stream alongside a lower-bandwidth version for additional destinations.

02

NDI HX2 and NDI HX3 Encoder

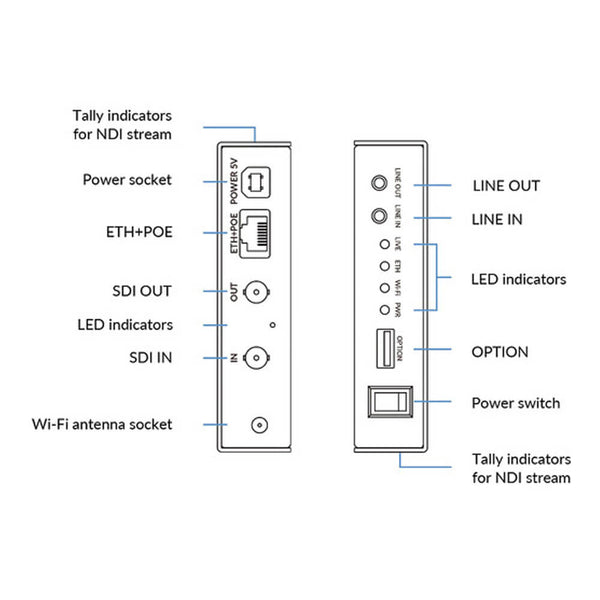

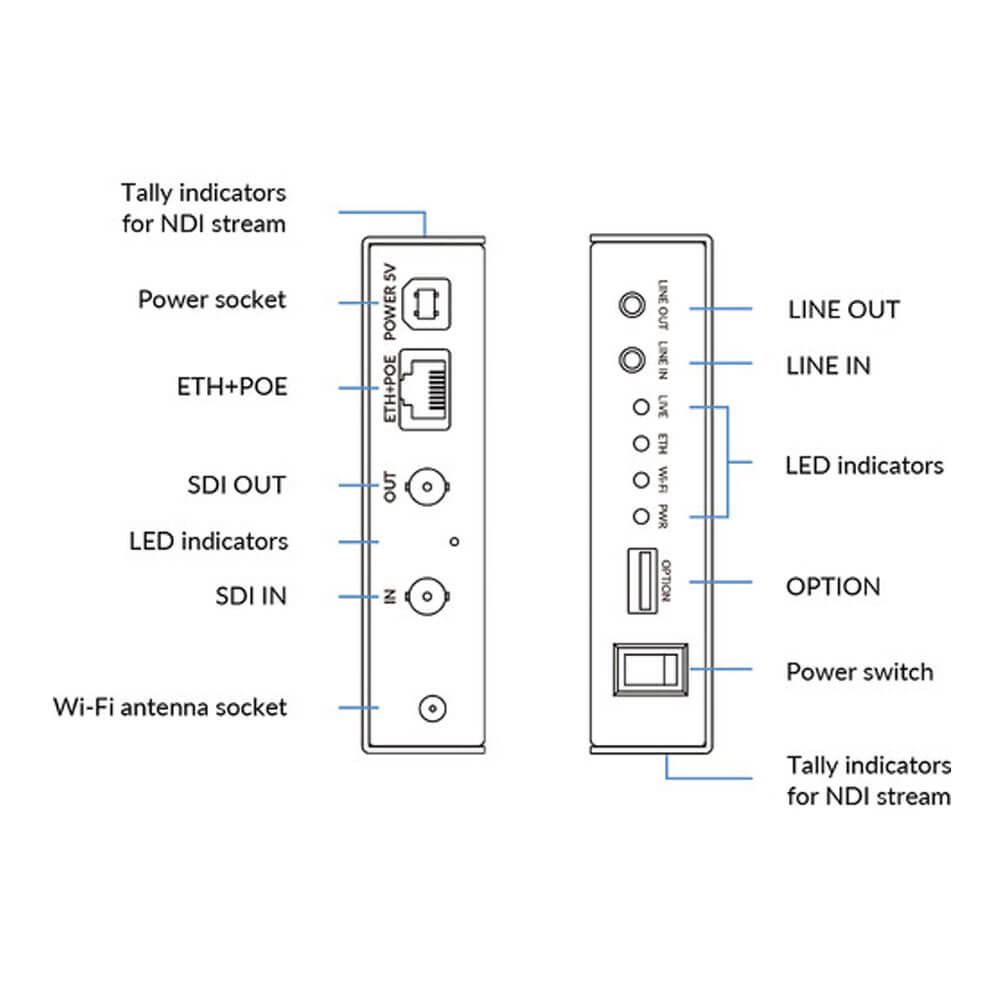

Native NDI HX2 and NDI HX3 support integrates the encoder into IP-based production environments. NDI HX3 encoding supports bitrates up to 62 Mbps, while tally indicators provide preview and program status. This makes the unit useful for network production, remote studios, and distributed live workflows.

03

Multi-Protocol Live Streaming Encoder

Stream using RTMP, RTMPS, SRT Caller, SRT Listener, RTSP, HLS, RIST, NDI HX2, NDI HX3, MPEG-TS over UDP or RTP, TVU ISSP, and ZIXI. The encoder supports up to six simultaneous streaming sessions across compatible protocol combinations. Native workflows are available for YouTube, Twitch, Facebook, and Wowza.

04

128GB Internal Video Recording

Record directly to 128GB of internal storage without requiring an external recorder. Additional recording targets include USB storage and NFS or CIFS network-attached storage. MP4, MOV, and TS recording formats are supported along with normal, loop, and scheduled recording.

05

PoE Wi-Fi and Gigabit Ethernet

A Gigabit Ethernet connection provides wired network transport and IEEE 802.3af PoE support for simplified installation. Integrated 802.11 a/b/g/n/ac Wi-Fi supports station and access-point modes. An optional USB 4G or 5G modem can also provide mobile broadband connectivity when a fixed network is unavailable.

06

Web UI Remote Encoder Management

The browser-based Web UI can be accessed from a computer or smartphone to preview video, configure encoding, manage streaming destinations, control recording, and update firmware. Magewell Control Hub and Zixi ZEN Master provide additional centralized management options. HTTP APIs are also available for third-party control integration.

SDI and Audio Workflow

SDI Input

Accepts SD, HD, and 3G-SDI signals with supported resolutions up to 2048 × 1080 at 60 fps.

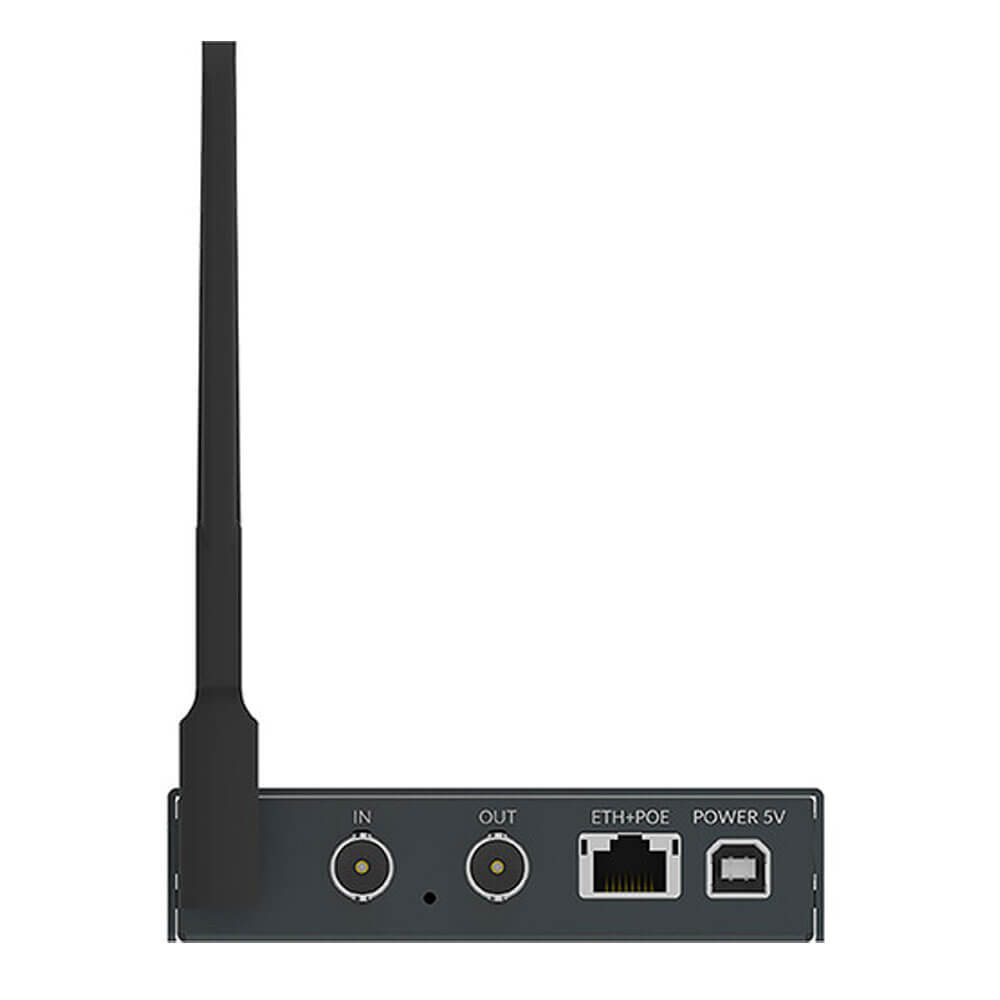

SDI Loop-Through

A dedicated BNC loop output passes the incoming SDI signal to additional monitoring or downstream production equipment.

Embedded SDI Audio

SDI input supports up to 16 channels of embedded audio with 24-bit audio and sample rates up to 192 kHz.

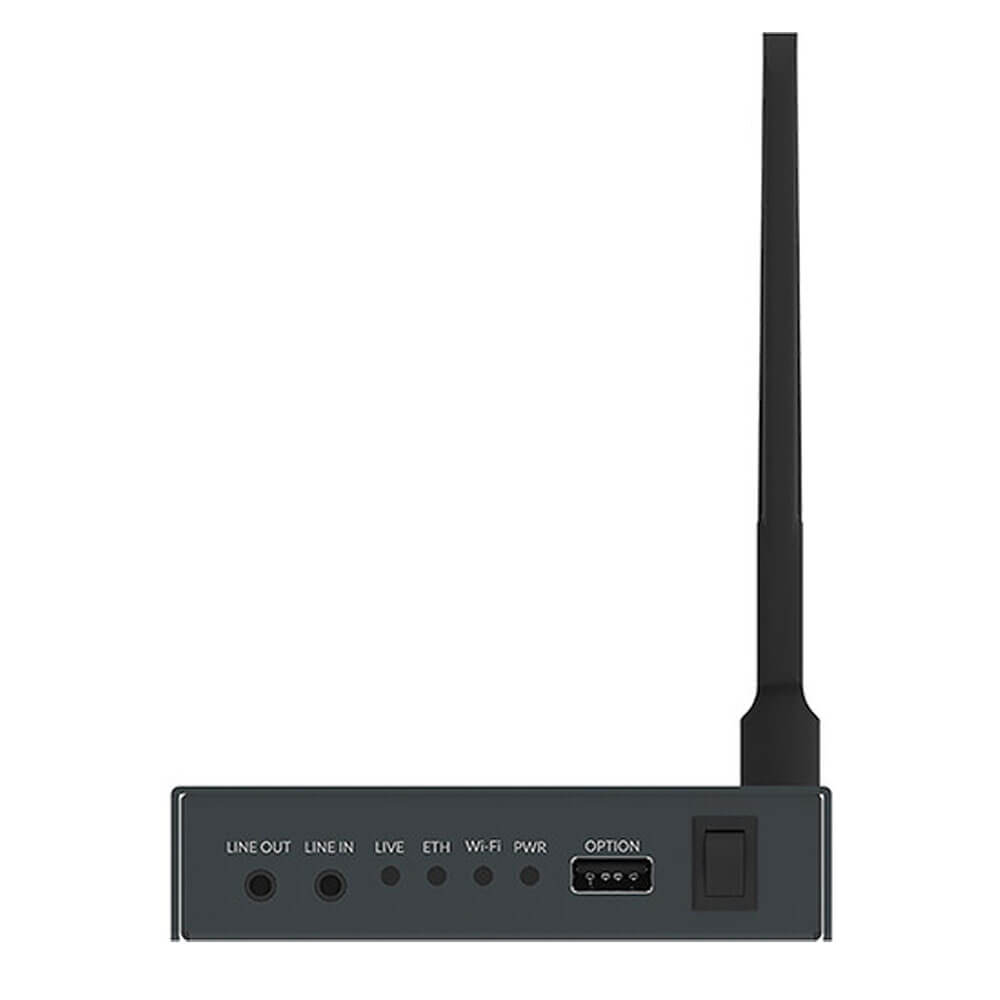

Analog Audio I/O

Dedicated 3.5 mm line input and line output provide an additional analog audio path for streaming and production workflows.

Who It's For

Live Production

Encode an SDI program feed for simultaneous delivery to streaming platforms and IP production systems.

Broadcast Facilities

Combine SDI infrastructure with NDI, SRT, recording, and network distribution in control rooms and broadcast environments.

House of Worship

Send a production feed to online platforms while recording a local copy for archive, replay, or later distribution.

Remote Contribution

SRT, Ethernet, Wi-Fi, and optional mobile broadband connectivity support field production and remote contribution workflows.

Technical Specifications

Specification	Detail
Product	Ultra Encode SDI Plus
SKU	531600000
Product Type	Streaming and Recording Encoder
SDI Input	1 × BNC SD/HD/3G-SDI
SDI Loop-Through	1 × BNC SD/HD/3G-SDI
Maximum SDI Input Resolution	2048 × 1080 at up to 60 fps
SDI Color Sampling	YCbCr 10/12-bit 4:2:2 and 4:4:4:4
Maximum Main Stream Encoding	4096 × 2160p30
Encoding Profiles	Dual stream — main stream and sub stream
Video Codecs	H.264 and H.265 HEVC
NDI Support	NDI HX2 and NDI HX3
Maximum NDI HX3 Bitrate	62 Mbps
Maximum Other Video Bitrate	32 Mbps
Streaming Protocols	RTSP, RTMP, RTMPS, SRT Caller, SRT Listener, NDI HX2, NDI HX3, HLS, MPEG-TS over UDP, MPEG-TS over RTP, TVU ISSP, ZIXI, and RIST
Simultaneous Streaming	Up to 6 sessions depending on protocol combination
Native Streaming Services	YouTube, Twitch, Facebook, and Wowza
Internal Recording	128GB
External Recording	USB storage and NFS/CIFS NAS
Recording Formats	MP4, MOV, and TS
Recording Modes	Normal, loop, and scheduled recording
SDI Embedded Audio	16-channel, 24-bit, up to 192 kHz
Analog Audio Input	1 × 3.5 mm line input
Analog Audio Output	1 × 3.5 mm line output
Ethernet	1 × RJ45 10/100/1000 Mbps Base-T
PoE	IEEE 802.3af
Wi-Fi	802.11 a/b/g/n/ac, Station and AP modes
Mobile Broadband	Optional USB 4G/5G modem, not supplied
USB	1 × USB Type-A
Overlays	Up to 8 overlays per stream
Remote Management	Web UI, Magewell Control Hub, Zixi ZEN Master
API	HTTP APIs for third-party control systems
Power Input	DC 5V / 3A
Maximum Power Consumption	8.72W
Dimensions	106.6 × 106.2 × 25 mm
Mounting	2 × M3 threaded holes and 1/4-20 socket via T-bracket
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 70°C
Operating Humidity	5% to 90% non-condensing
In the Box	Ultra Encode SDI Plus × 1 · 5V power adapter × 1 · USB Type-A to Type-B cable × 1 · Wi-Fi antenna × 1 · T-bracket × 1

Frequently Asked Questions

What is Magewell Ultra Encode SDI Plus used for?

It converts an SDI video source into compressed IP streams for live production, broadcast, remote contribution, and online streaming. It can also record internally, to USB storage, or to compatible network-attached storage.

Does the SDI encoder support 4K?

The main encoded stream can reach 4096 × 2160p30. The current Magewell specification lists SDI input and loop-through signals up to 2048 × 1080 at 60 fps.

Does it support NDI HX3?

Yes. The encoder supports both NDI HX2 and NDI HX3 for network video workflows. Magewell specifies NDI HX3 video bitrates up to 62 Mbps.

How many streaming destinations are supported?

Up to six streaming sessions can operate simultaneously depending on the protocol combination. Some protocols have specific session limitations, including exclusive operation for an NDI HX3 session.

Can the encoder record without a computer?

Yes. It includes 128GB of internal recording storage and can also record to compatible USB storage or NFS/CIFS network storage. MP4, MOV, and TS file formats are supported.

Can Ultra Encode SDI Plus use PoE?

Yes. IEEE 802.3af PoE is supported through the Gigabit Ethernet connection. The unit can also operate from its 5V DC power input.

Can it stream over 4G or 5G?

An optional compatible USB 4G or 5G modem can be used for mobile broadband streaming. The modem is not included with the encoder.

Deploy Magewell Ultra Encode SDI Plus

Coremicro is an authorized Magewell dealer for professional streaming encoders, NDI systems, SDI production, and IP video workflows. Contact our team to confirm protocol, network, recording, and integration requirements for your deployment.

Talk to a Specialist

Product Specifications
Video Inputs	1x BNC (3G-SDI) Female
Audio Inputs	1x 1/8" / 3.5 mm TRS Stereo Analog Female
Video Outputs	1x BNC (3G-SDI) Female (Loop Output)
Audio Outputs	1x 1/8" / 3.5 mm TRS Stereo Analog Female (Loop Output)
Video Standards	Input Video Format SDI (10/12-Bit 4:4:4/4:2:2 YCC) DCI 4K at 23.98/24/25/29.97/30 fps DCI 2K at 23.98/24/25/29.97/30/47.95/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 23.98/24/25/29.97/30/50/59.94/60 fps 720p at 25/29.97/30/50/59.94/60 fps 576p at 25 fps 576i / 625 lines at 50 fps 480p at 29.97 fps 480i / 525 lines at 59.94 fps Input Audio Format Analog Output Video Format RJ45 / USB-A / Wireless DCI 4K at 15/23.98/24/25/29.97/30 fps DCI 2K at 15/23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 15/23.98/24/25/29.97/30/50/59.94/60 fps 720p at 15/23.98/24/25/29.97/30/50/59.94/60 fps UXGA (1600 x 1200) at 15/23.98/24/25/29.97/30/50/59.94/60 fps 1440 x 900 at 15/23.98/24/25/29.97/30/50/59.94/60 fps SXGA (1280 x 1024) at 15/23.98/24/25/29.97/30/50/59.94/60 fps 1280 x 960 at 15/23.98/24/25/29.97/30/50/59.94/60 fps WXGA (1280 x 800) at 15/23.98/24/25/29.97/30/50/59.94/60 fps 1280 x 720 (Non-Standard WXGA) at 15/23.98/24/25/29.97/30/50/59.94/60 fps XGA (1024 x 768) at 15/23.98/24/25/29.97/30/50 fps 960 x 540 at 15/23.98/24/25/29.97/30/50/59.94/60 fps SVGA (800 x 600) at 15/23.98/24/25/29.97/30/50/59.94/60 fps 768 x 576 at 15/23.98/24/25/29.97/30/50/59.94/60 fps 720 x 576 at 15/23.98/24/25/29.97/30/50/59.94/60 fps 720 x 540 at 15/23.98/24/25/29.97/30/50/59.94/60 fps 720 x 480 at 15/23.98/24/25/29.97/30/50/59.94/60 fps VGA (640 x 480) at 15/23.98/24/25/29.97/30/50/59.94/60 fps 640 x 360 15/23.98/24/25/29.97/30/50/59.94/60 fps Output Audio Format Analog
Recording	Supports setting and managing recording function and tasks Supports recording to local storage (128 GB) Supports format and performance test Automatically upload files to remote file storage platform including FTP server, Google Drive, and Dropbox Supports recording to external USB storage Supported system format: FAT32, exFAT and NTFS Supports recording to network attached storage (NFS/CIFS) Supported system format: NFS, CIFS Supports loop recording and normal recording Supports saving recording files in MP4, MOV or TS format Supports specifying a video stream and an audio stream for each recording task Supports customizing recording file name and prefix Supports splitting recording files by time MP4, MOV: up to 4 hours TS: no limit Supports exporting or downloading files through Web UI Supports recording scheduler
Network	Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T IEEE 802.3af PoE Wi-Fi: 802.11 a/b/g/n/ac, Station and AP modes supported 4G/5G USB modem (not supplied) USB Net
Streaming	Natively supports streaming to: Twitch YouTube (HLS/RTMP), publishing to timeline or a new event and setting “made for kids”. Facebook, enabling backup stream and publishing to timeline or a new event. WOWZA over RTMP, adding token and publishing to timeline or a new event. WOWZA over SRT, setting AES encryption (AES–128/192/256) and publishing to a channel or a new event. Supports streaming protocols: RTSP RTMP/RTMPS SRT Caller/SRT Listener NDI®\|HX2/NDI® HX3 HLS TS over UDP/TS over RTP TVU ISSP Supports streaming to 6 destinations simultaneously, containing 1 session of RTSP/SRT Listener/HLS/ISSP (if included), or 2 NDI®\|HX2 sessions (if included) Supports 1 NDI® HX3 sessions exclusively Supports specifying a video stream and an audio stream for each streaming session Supports live stream scheduler
Physical / Environmental Specifications
Dimension	Dimensions (w x d x h): 4.2 x 4.2 x 1" Weight: 1.485 lb
Environment	Operating Temperature: 32 to 140°F
Warranty	Limited 1-Year Warranty
