Product Highlights
- 4K30 H.264/H.265 HDMI SDI encoding
- Up to six streaming destinations
- NDI HX3 and SRT streaming
- SD card and USB recording

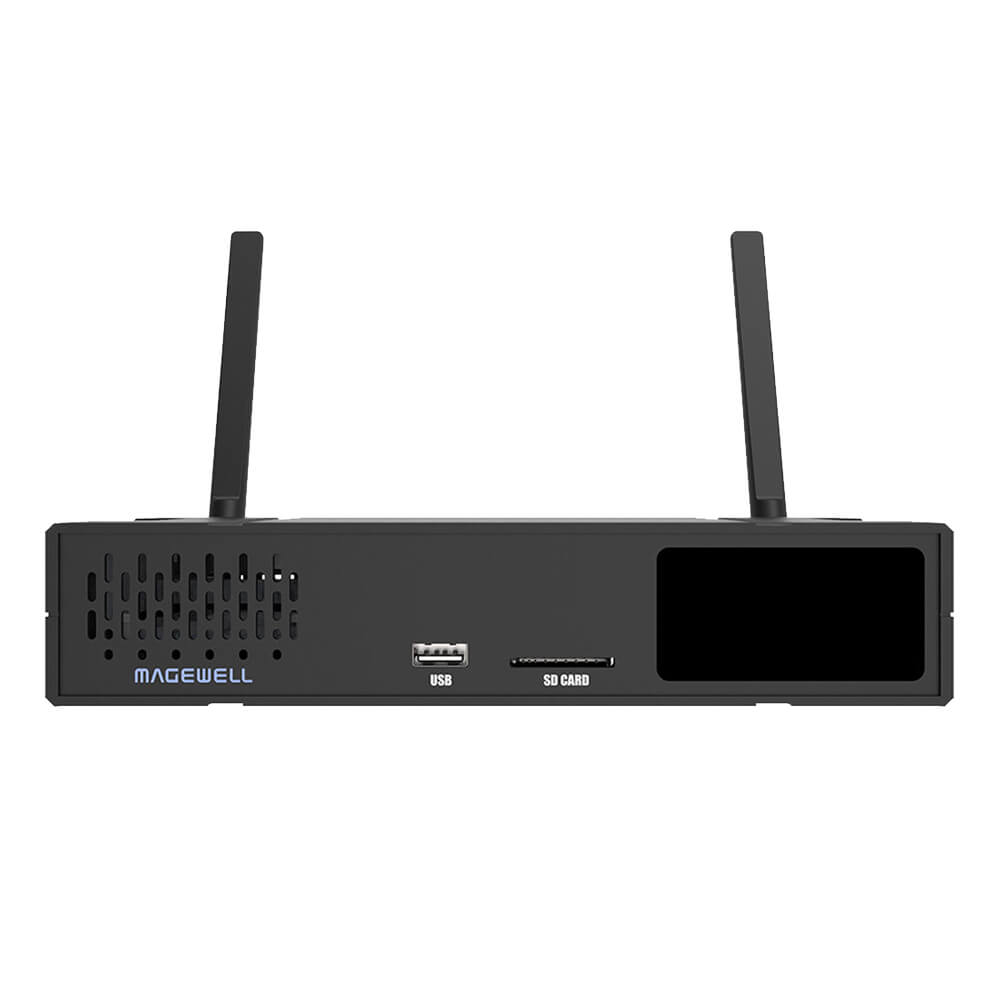

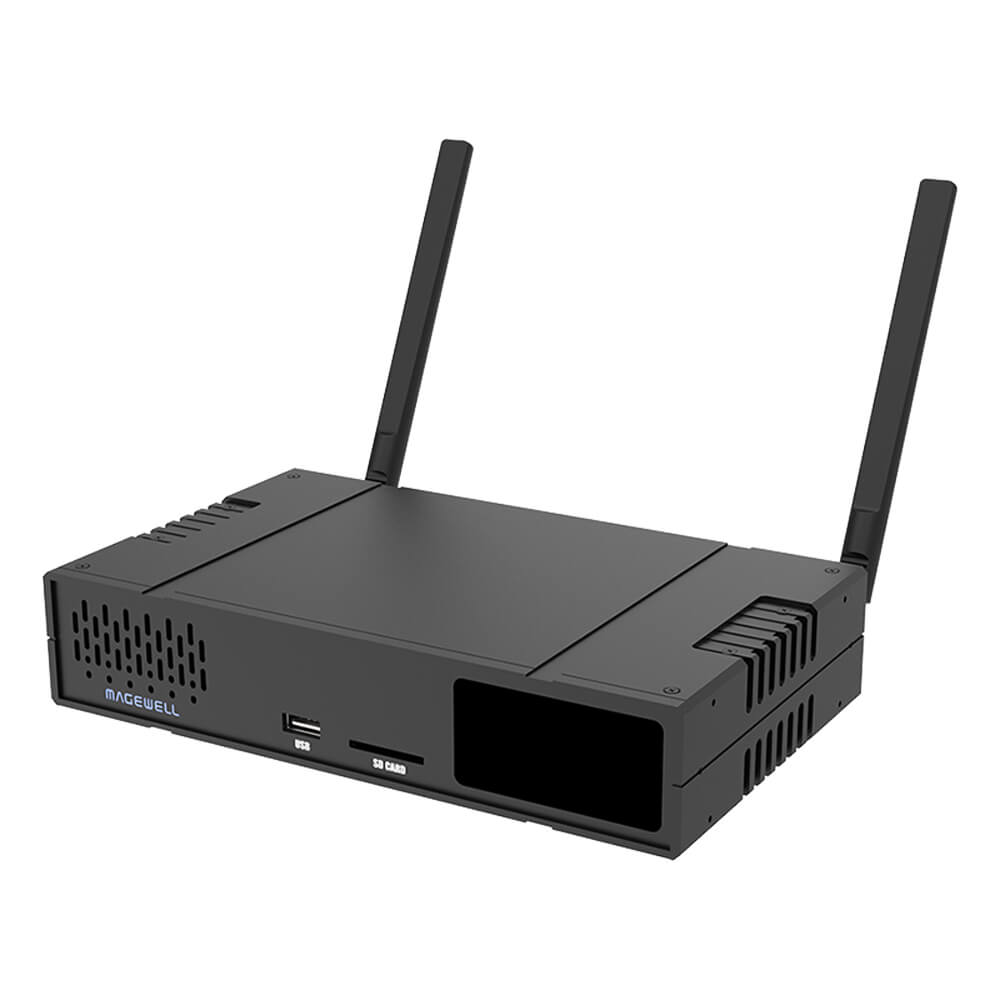

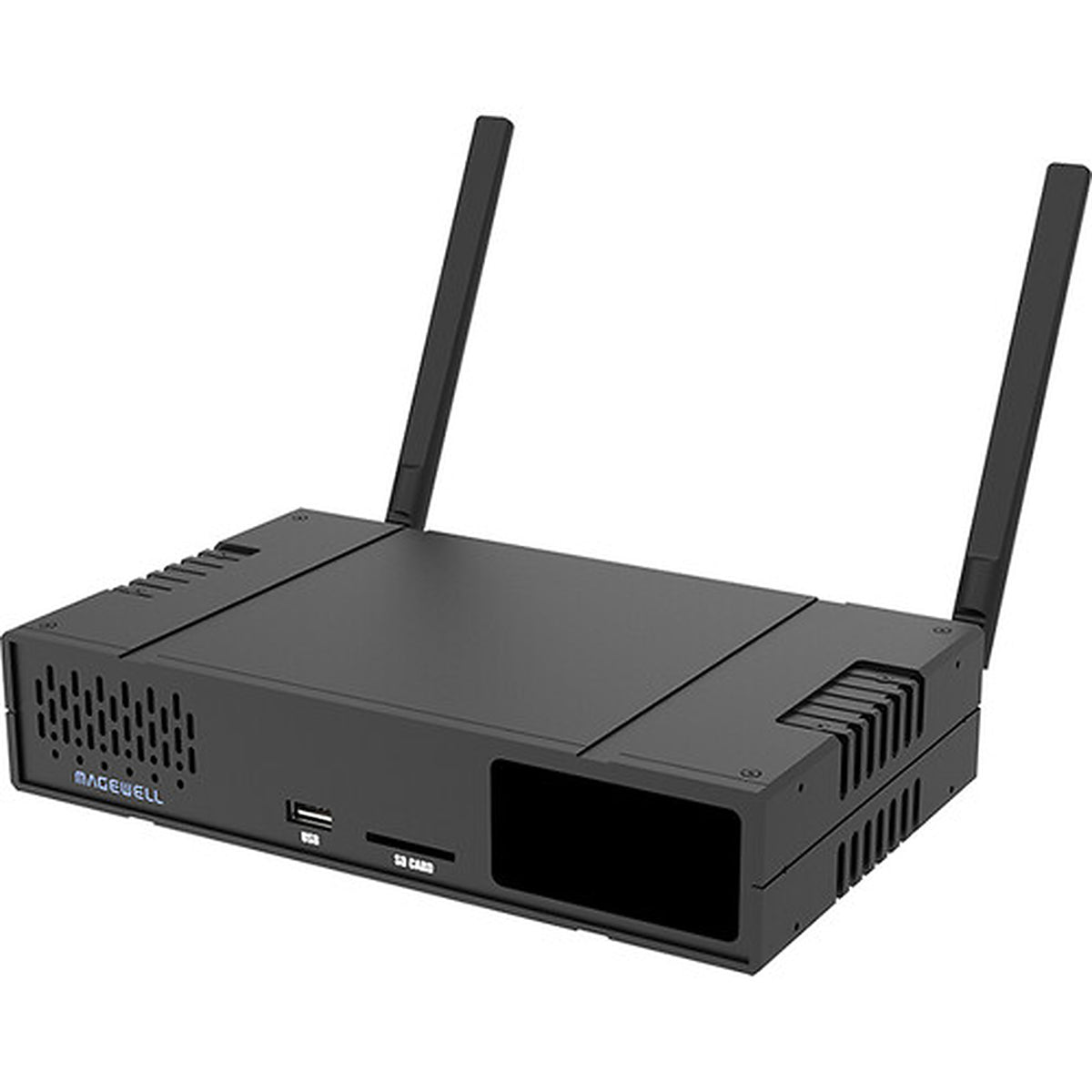

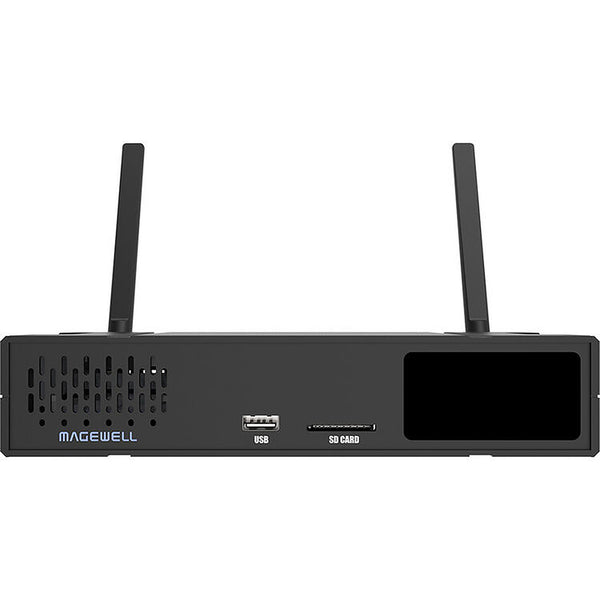

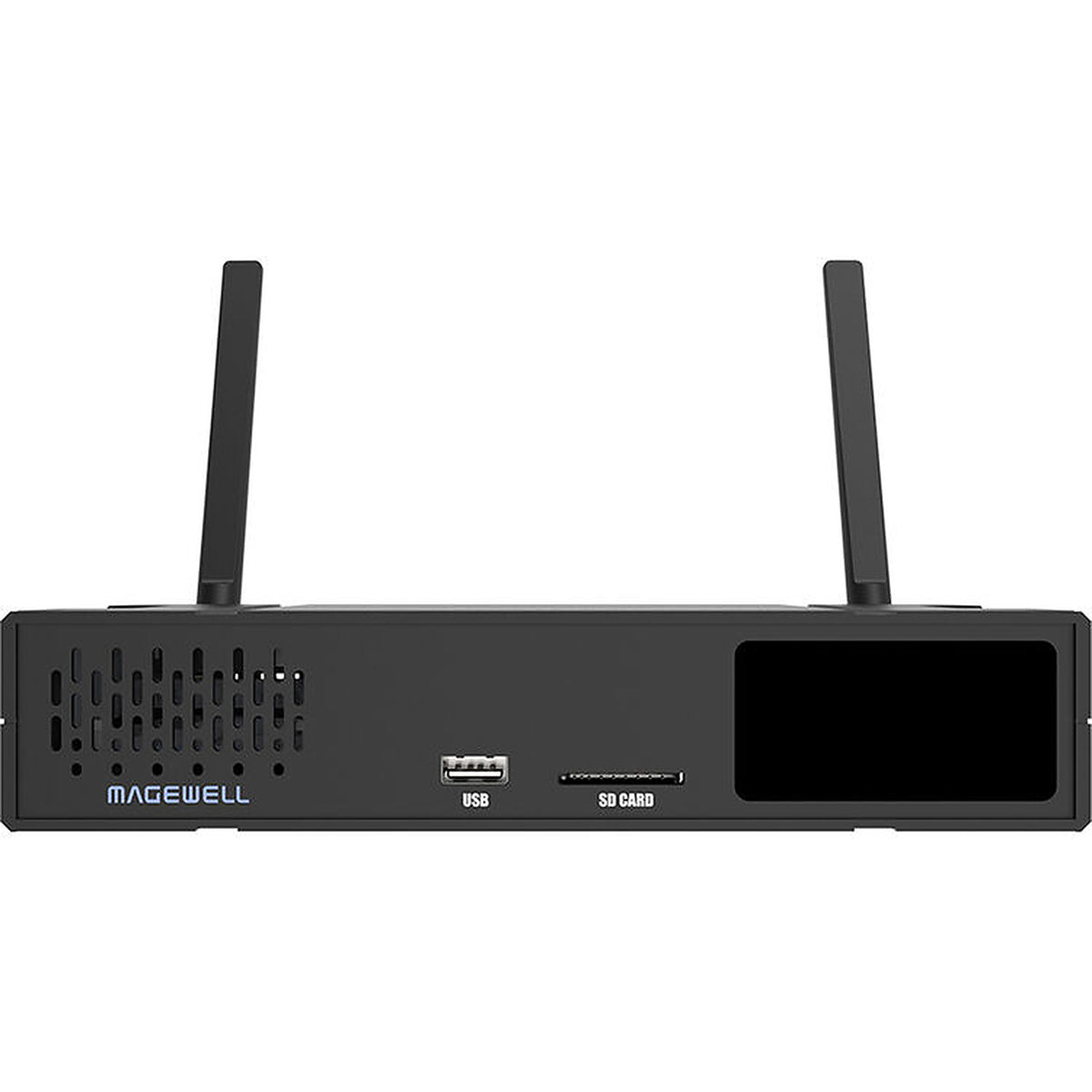

Magewell Ultra Encode AIO 4K HDMI SDI Streaming Encoder & Recorder
- SKU:
- MAG-53130
- MPN:
- 531300000
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The Magewell Ultra Encode AIO is a professional 4K HDMI and SDI streaming encoder and recorder for broadcast production, sports, education and live events. This single-channel hardware encoder accepts HDMI or SDI video, or combines both inputs in picture-in-picture or side-by-side layouts. H.264/H.265 encoding up to 4096 x 2160p30, SRT contribution, NDI HX2/HX3 support and scheduled recording make it a flexible bridge between baseband video sources and IP workflows.
The Magewell Ultra Encode AIO (manufacturer SKU 531300000 for US/EU/UK/AU/JP; Coremicro SKU MAG-53130) is an HDMI/SDI 4K video encoder and recorder sold by Coremicro, an authorized Magewell dealer in Union City, California. It accepts HDMI signals up to 4096 x 2160p60 and SDI signals up to 4096 x 2160p30, with main-stream H.264/H.265 encoding up to 4096 x 2160p30. It supports SRT, RTMP/RTMPS, NDI HX2/HX3, HDMI/SDI input mixing, and recording to SD card, USB drive or compatible network storage. Coremicro lists a retail price of $899; this is not a manufacturer-verified MSRP. Magewell provides a two-year limited hardware warranty, subject to the manufacturer's conditions.
HDMI + SDI in One Unit
Select either video input or build a single mixed program from HDMI and SDI sources.
4K Encoding and IP Delivery
Encode H.264 or H.265 up to 4096 x 2160p30 for supported streaming workflows.
Stream and Record
Distribute the live feed and create local or network recordings using supported media.
HDMI and SDI Video Mixing with PiP
Ultra Encode AIO can encode one selected HDMI or SDI input, or combine both video sources into a single picture-in-picture or side-by-side program. Operators can configure up to eight text, image or clock overlays on an encoding profile. This enables on-screen identifiers and simple branded output without adding a separate composition computer.
Video Codecs
H.264 and H.265 (HEVC) with main and sub encoding profiles.
Streaming Protocols
RTMP, RTMPS, SRT Caller/Listener, RTSP, RTP/UDP transport streams, HLS, RIST, ZIXI and TVU ISSP.
NDI Compatibility
NDI HX2 and NDI HX3 for compatible IP production and AV-over-IP workflows.
4K30 H.264 and H.265 Hardware Encoding
Encode HDMI or supported SDI sources in a main stream at up to 4096 x 2160p30, with a configurable sub stream up to 1080p60. The non-NDI HX3 video bitrate ceiling is 32 Mb/s; NDI HX3 has its own maximum of 62 Mb/s. HDMI input supports up to 4K60, but the encoded output is limited to 4K30.
Up to Six Streaming Sessions
Stream to multiple destinations with protocol-specific concurrency limits. NDI HX3 operates as one exclusive session.
Different Stream Profiles
Select the main or sub encoding profile for supported destination sessions.
Scheduled Streaming
Set scheduled tasks to start or stop delivery for supported streaming destinations.
Local File Recording
Record MP4, MOV or TS files to an SD card or external USB storage device.
Network Storage
Record to compatible NFS or CIFS network shares.
Recording Controls
Run normal or loop recording, configure schedules and manage recordings from the Web UI.
NDI HX3 Streaming for Network Video Workflows
Ultra Encode AIO supports both NDI HX2 and NDI HX3 for compatible networked production equipment and software. NDI HX3 offers an efficient transport option for IP video distribution, with a listed encoding bitrate up to 62 Mb/s. Magewell specifies one exclusive NDI HX3 streaming session, so the general six-session limit does not apply when HX3 is active.
Video I/O
1 x HDMI input and loop-through; 1 x SDI input and loop-through (SD/HD/3G/6G).
Networking
Gigabit Ethernet, PoE+, Wi-Fi station/AP modes and support for an optional USB cellular modem.
System Control
1.9-inch LCD touch screen, browser-based Web UI, Magewell Control Hub and HTTP APIs.
High-Quality Live Streaming
Encode the HDMI or SDI program feed for supported streaming platforms and record the event at the same time.
Remote SRT Video Feeds
Send a live program to a compatible remote receiver using SRT Caller or Listener according to network requirements.
IP Production and Recording
Connect camera or switcher outputs to NDI-compatible production paths, with supported scheduled recording tasks.
Live Event Producers
Stream and record video from HDMI or SDI production systems.
Broadcast Teams
Deliver SRT feeds to supported remote receiving systems.
AV Integrators
Build rack-mounted IP video distribution and managed AV workflows.
Education and Worship
Publish classes or services while keeping local recordings.
Magewell Manufacturer Support
Magewell provides a two-year limited warranty for Ultra Encode AIO hardware. Supplied cables and the power adapter have a separate one-year limited warranty. Eligibility and service are subject to Magewell's published warranty conditions.
| Specification | Detail |
|---|---|
| Model | Magewell Ultra Encode AIO |
| Manufacturer SKU | 531300000 (US/EU/UK/AU/JP); 531300001 (KR) |
| Coremicro SKU | MAG-53130 |
| HDMI Input and Loop-Through | 1 x HDMI 1.4a input and 1 x HDMI loop-through; up to 4096 x 2160p60 |
| SDI Input and Loop-Through | 1 x SD/HD/3G/6G-SDI input and 1 x SDI loop-through; up to 4096 x 2160p30 |
| Main Stream Encoding | H.264/H.265 up to 4096 x 2160p30 |
| Sub Stream Encoding | Selectable up to 1920 x 1080p60 |
| Video Bitrate | Up to 32 Mb/s (non-NDI HX3); up to 62 Mb/s (NDI HX3) |
| Input Mixing | Single HDMI or SDI source; HDMI + SDI picture-in-picture or side-by-side output |
| Video Overlays | Up to 8 text, image or clock overlays per encoding profile |
| Streaming Protocols | RTMP/RTMPS, SRT Caller/Listener, RTSP, HLS, TS over UDP/RTP, NDI HX2/HX3, TVU ISSP, ZIXI, RIST |
| Concurrent Streaming | Up to 6 destinations with protocol limits; 1 exclusive NDI HX3 session |
| Streaming Platforms | YouTube, Facebook, Twitch and compatible RTMP/SRT destinations |
| Recording Formats | MP4, MOV and TS |
| Recording Storage | SD card, external USB storage or NFS/CIFS network storage; media not included |
| Recording Functions | Normal and loop recording; scheduled recording |
| Audio Inputs | 16-channel SDI embedded audio, 8-channel HDMI embedded audio; 3.5 mm stereo line input |
| Audio Encoding | Up to 8 AAC channels with supported audio channel mapping |

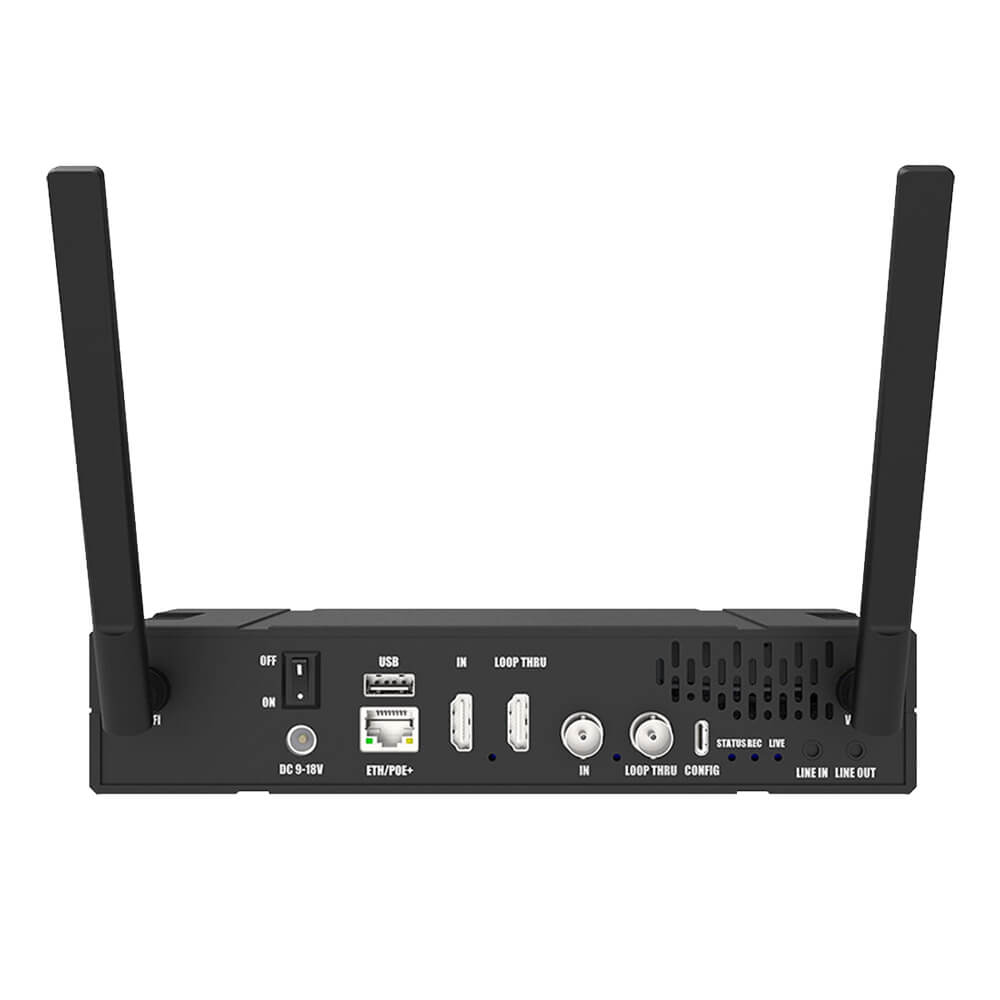

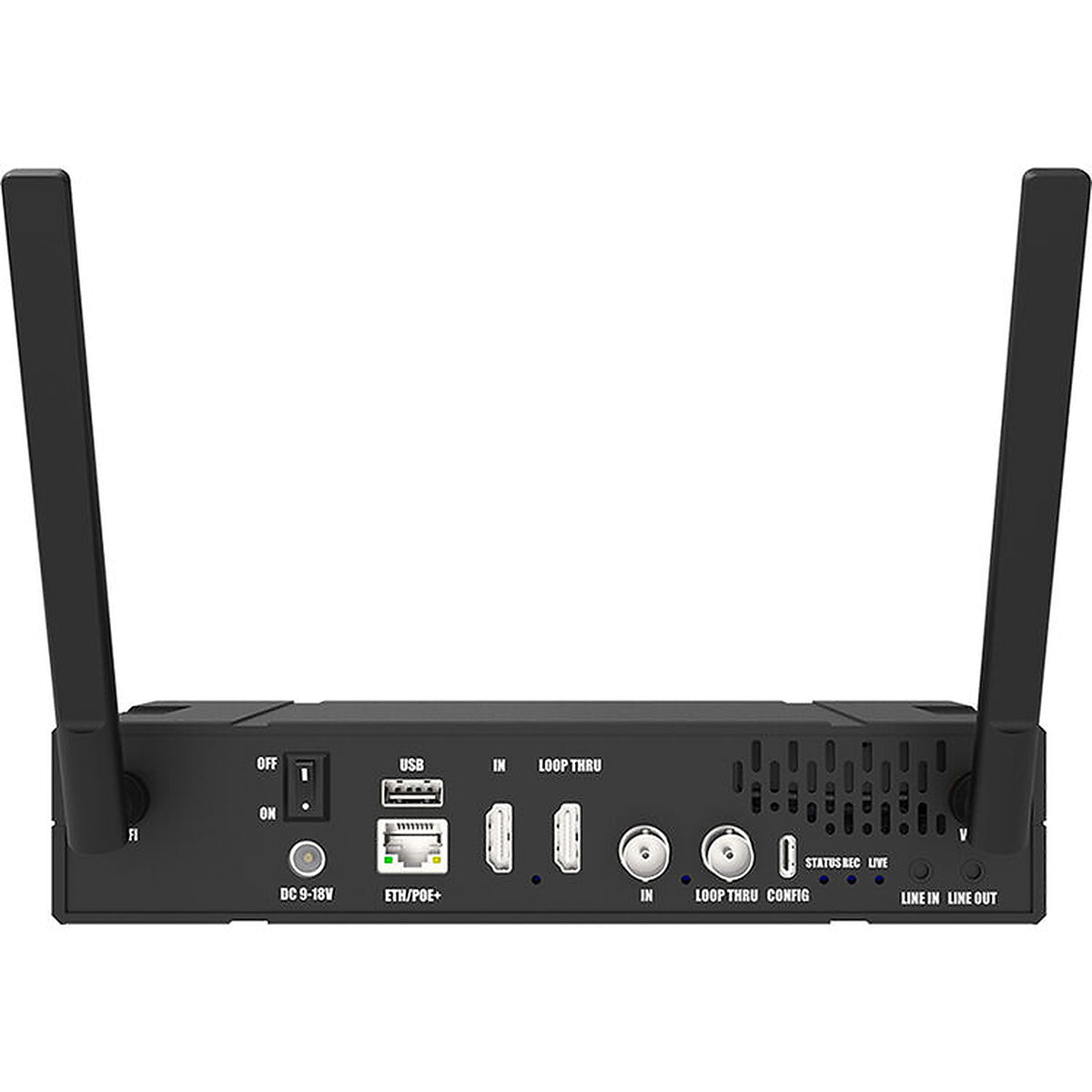

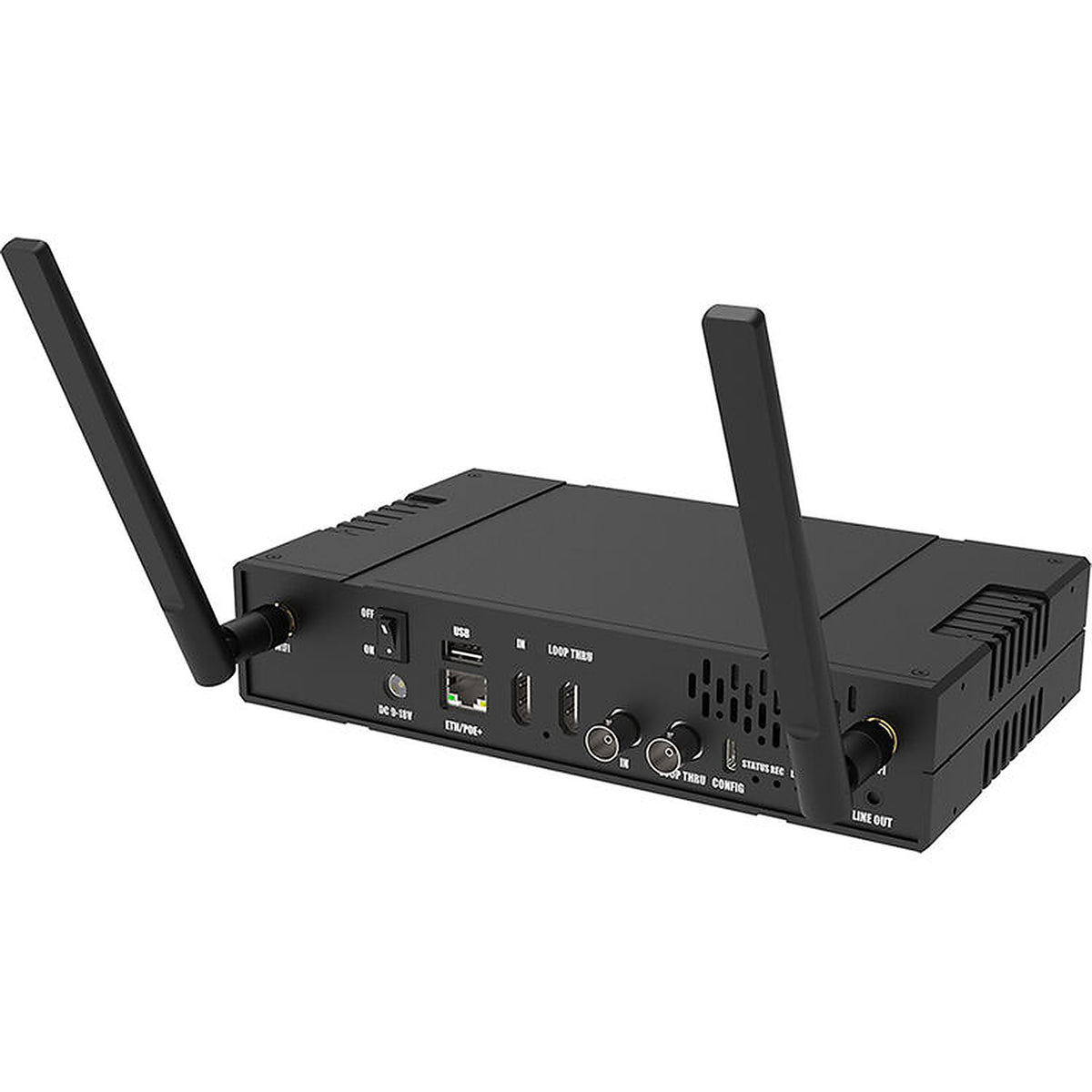

| Video Connections | HDMI input/loop-through and SDI input/loop-through |
| Other Connections | 3.5 mm LINE IN/OUT, 1 x USB-C configuration port, 2 x USB-A, 1 x SD card slot |
| Network Connectivity | Gigabit Ethernet, PoE+ (IEEE 802.3at), Wi-Fi 802.11 a/b/g/n/ac |
| Management | 1.9-inch LCD touch screen, Web UI, Magewell Control Hub, HTTP API |
| Power | DC 9–18 V; maximum consumption approximately 11.5 W |
| Dimensions | 214.9 x 128.2 x 44.55 mm |
| Rack Installation | Standard 1U rack with included mounting kit |
| Warranty | 2-year limited device warranty; 1-year limited warranty for supplied cable/adapter |
What is the Magewell Ultra Encode AIO used for?
It is a hardware encoder and recorder that converts HDMI or SDI video into supported IP streams for live events, remote contribution and AV production. It also records to compatible external media or network storage.
How does Ultra Encode AIO combine HDMI and SDI video?
It can select either input or combine HDMI and SDI sources in picture-in-picture or side-by-side layouts. The resulting single program can be encoded and delivered using supported protocols.
Does the Magewell Ultra Encode AIO support 4K60 streaming?
Its HDMI input accepts up to 4096 x 2160p60, but main-stream video encoding is limited to 4096 x 2160p30. SDI input is supported up to 4096 x 2160p30.
Can Ultra Encode AIO stream and record simultaneously?
Yes. It can run compatible streaming and recording tasks together and save files to an SD card, USB storage or compatible NFS/CIFS network storage. External recording media must be supplied separately.
Is Ultra Encode AIO compatible with SRT and NDI HX3 receivers?
It supports SRT Caller/Listener and NDI HX2/HX3 outputs for receiving devices or software that support those protocols. NDI HX3 uses one exclusive session rather than the general six-stream configuration.
How does Ultra Encode AIO compare with Ultra Encode HDMI Plus?
Both support 4K30 H.264/H.265 encoding and NDI HX3. Ultra Encode AIO adds HDMI and SDI inputs in the same unit, including the option to combine those sources, while Ultra Encode HDMI Plus is an HDMI-input model.
Is Coremicro an authorized Magewell dealer?
Coremicro identifies itself as an authorized Magewell dealer in Union City, California. Purchases are subject to Magewell's applicable limited warranty and service terms.
Plan Your HDMI and SDI Streaming Workflow
Talk with Coremicro about Ultra Encode AIO compatibility, SRT and NDI delivery, recording media, multi-destination streaming, and rack installation.
