Product Highlights
- 6G-SDI to NDI conversion
- 4K30 SDI input support
- SDI loop-through output
- 16-channel embedded audio
Magewell Pro Convert SDI 4K Plus 6G-SDI NDI High Bandwidth Converter
- SKU:
- MAG-64030
- MPN:
- 64030
Ships in 2-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The Magewell Pro Convert SDI 4K Plus converts professional SDI video into NDI High Bandwidth for broadcast, live production, streaming, and AV-over-IP workflows. It accepts SD, HD, 3G, and 6G-SDI signals up to 4096×2160 30fps while providing SDI loop-through and support for up to 16 channels of embedded audio. Gigabit Ethernet, PoE, WebUI management, PTZ control, and flexible video processing make it a powerful bridge between existing SDI equipment and network-based production systems.
6G-SDI to NDI High Bandwidth
Convert professional SDI sources into real-time NDI High Bandwidth streams for IP-based production. The encoder supports SD, HD, 3G, and 6G-SDI signals and brings existing broadcast equipment into flexible networked media workflows.

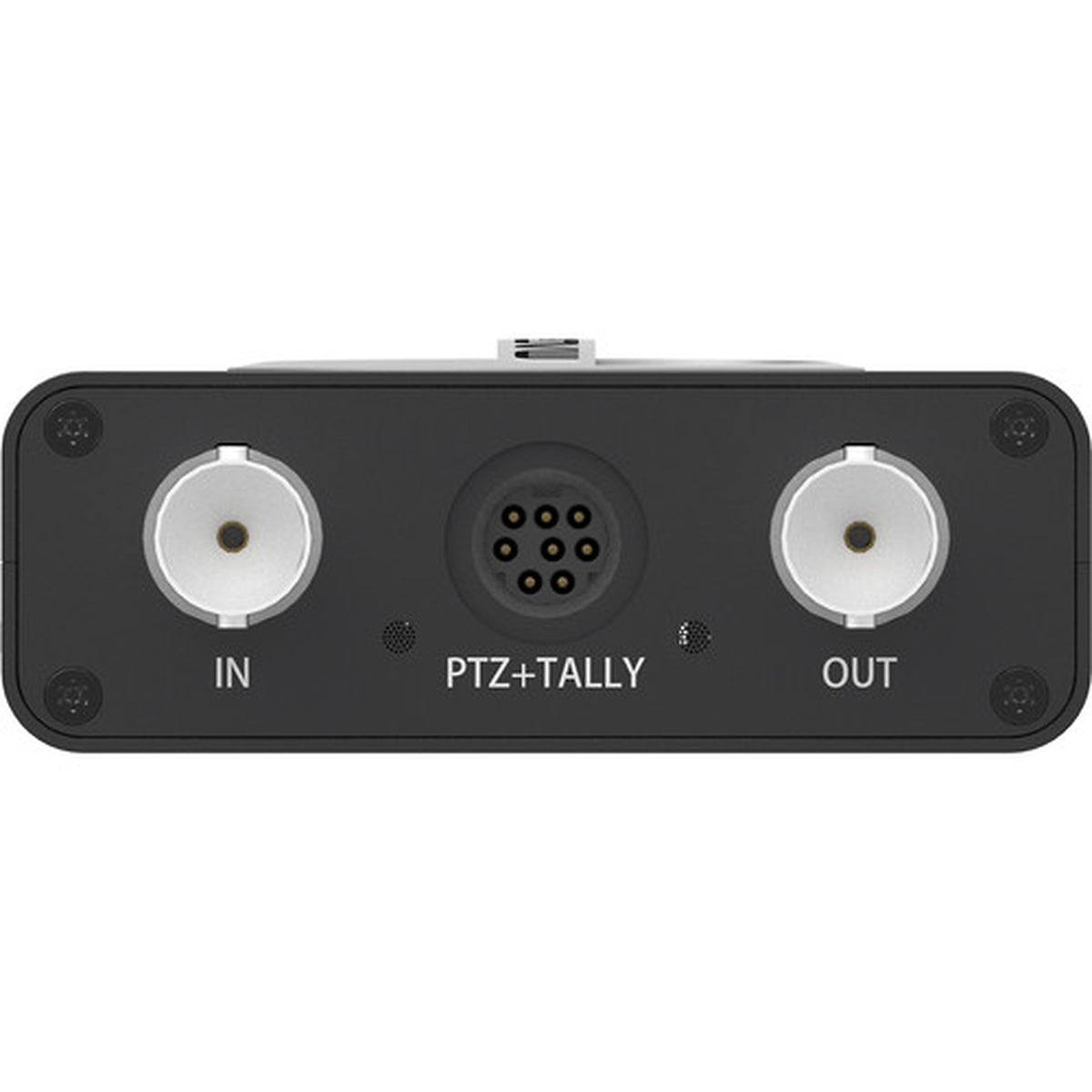

4K30 SDI Input and Loop-Through
The BNC input accepts video up to 4096×2160 30fps while a dedicated SDI loop-through keeps the source available for monitors, routers, recorders, or other downstream equipment. Single-link 6G-SDI simplifies 4K connectivity with professional video systems.
16-Channel Embedded Audio
Up to 16 channels of SDI embedded audio can be carried from the source into the network workflow. NDI encoding also supports up to 16 embedded audio channels for multi-channel broadcast, production, and professional AV applications.

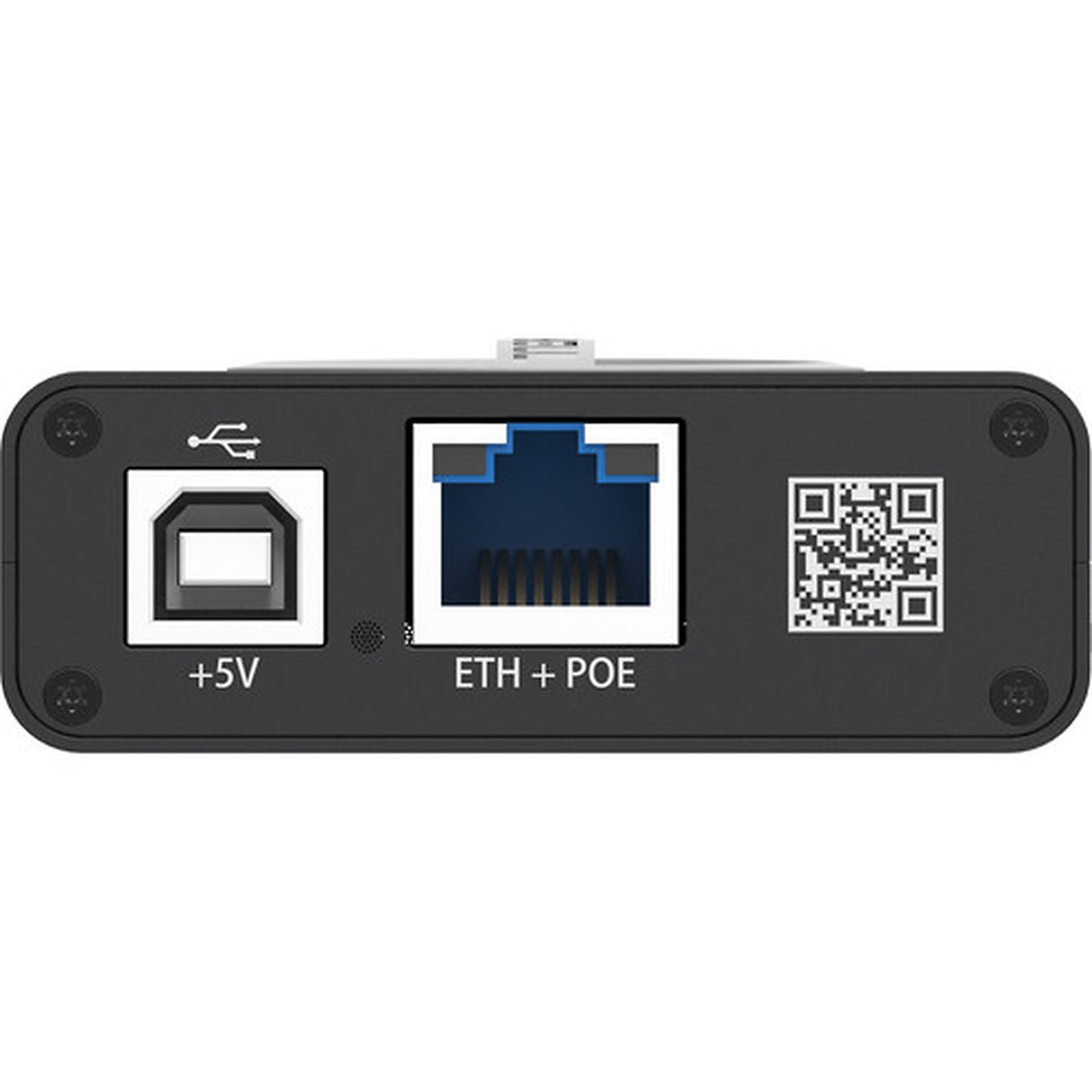

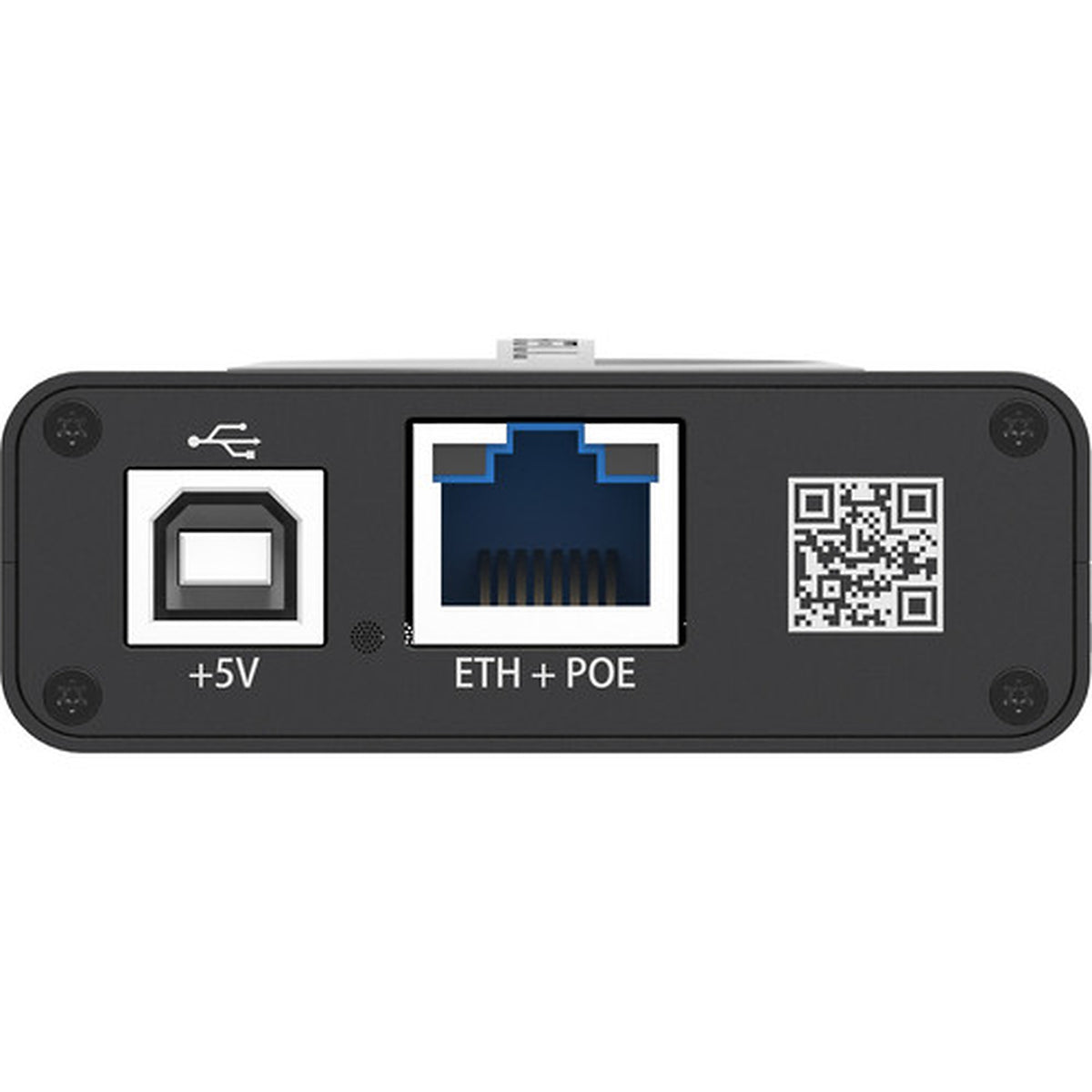

Gigabit Ethernet with PoE
The 10/100/1000 Mbps Ethernet connection carries NDI video over standard IP networks. IEEE 802.3af PoE enables compatible network infrastructure to deliver power and data through one Ethernet cable, simplifying installation in studios and integrated AV environments.
Advanced Video Processing
Configurable processing includes deinterlacing, up and down scaling, frame-rate control, and aspect-ratio adjustment. NDI output can match the input resolution or use a supported custom resolution, while HDR HLG support extends compatibility with modern workflows.
PTZ Tally and Remote Management
Compatible PTZ cameras can be controlled through NDI using VISCA and PELCO protocols. WebUI, Magewell Control Hub, HTTP APIs, Mini-DIN 8 connectivity, and tally support provide flexible control for live production and integrated AV systems.
SDI Input
BNC · SD / HD / 3G / 6G-SDI
SDI Loop-Through
BNC · Up to 4096×2160 30fps
Network
Gigabit Ethernet · IEEE 802.3af PoE
Control Interfaces
USB 2.0 Type-B · Mini-DIN 8
NDI Studio Monitor and NDI Workflows
Magewell lists NDI Studio Monitor among supported products. The network stream can also be received by other compatible NDI-enabled devices and applications, including workflows that require stream transmission across network segments.
OBS and vMix Integration
OBS and vMix are listed by Magewell as supported products. Compatible NDI workflows can incorporate SDI cameras and other professional video sources into live switching, streaming, recording, and network-based production environments.
Control Hub and Control Plugins
Browser-based WebUI and Magewell Control Hub provide remote configuration and monitoring. HTTP APIs support custom integrations, while available Crestron and Q-SYS control plugins help integrate Pro Convert encoders into professional control environments.
Broadcast Integrators
Bring professional SDI cameras and broadcast sources into NDI-based production networks.
Live Production Teams
Convert 4K30 SDI sources into low-latency IP video for networked live production.
AV over IP Integrators
Extend professional SDI sources across managed Gigabit Ethernet infrastructure.
Streaming Productions
Feed compatible NDI streams into OBS, vMix, and other network production systems.
Corporate and Education AV
Distribute high-quality SDI camera feeds across professional IP-based media networks.
Control System Integrators
Combine HTTP APIs, control plugins, PTZ operation, and tally with integrated AV systems.
Magewell Support
Magewell provides a two-year limited manufacturer warranty for Pro Convert hardware. Coremicro can help confirm SDI standards, 4K input formats, NDI network requirements, PoE compatibility, audio-channel requirements, PTZ control, and system integration before deployment.
| Specification | Detail |
|---|---|
| Product | Pro Convert SDI 4K Plus |
| Part Number | 64030 |
| SKU — US/EU/UK/AU/JP | 640300000 |
| SKU — KR | 640300006 |
| Primary Function | 6G-SDI to NDI High Bandwidth conversion with SDI loop-through |
| Video Input | Single-link SD / HD / 3G / 6G-SDI via BNC |
| Video Loop-Through | SD / HD / 3G / 6G-SDI via BNC |
| Maximum Input / Loop-Through | 4096×2160 30fps |
| Supported 4K Input | 4096×2160p / 3840×2160p at 23.98 / 24 / 25 / 29.97 / 30fps |
| Supported 2K / Full HD Input | 2048×1080 / 1920×1080 progressive and interlaced formats with supported rates up to 60fps |
| Supported 720p Input | 1280×720p at 50 / 59.94 / 60fps |
| Supported SD Input | PAL 720×576 · NTSC 720×480 |
| SDI Standards | ST 259 · ST 292 · ST 425 3Ga / 3Gb / 3Gb-DL / 3Gb-DS · ST 2081 6G |
| SDI Color Sampling | RGB 4:4:4 · YCbCr 4:4:4 · YCbCr 4:2:2 |
| Input Color Depth | 10-bit · 12-bit |
| Input Color Formats | RGB · YUV BT.601 · BT.709 · BT.2020 |
| SDI Embedded Audio | Up to 16 channels |
| 6G-SDI Cable Distance | Up to approximately 100 m / 328 ft |
| NDI Encoding | NDI High Bandwidth real-time encoding |
| Maximum NDI Encoding | 4096×2160 60fps 4:2:2 8-bit |
| Typical 4K NDI Outputs | 4096×2160p / 3840×2160p at 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60fps |
| Typical HD NDI Outputs | 2048×1080 / 1920×1080 progressive or interlaced, plus 1280×720p at supported frame rates |
| NDI Output Resolution | Same as input or supported custom resolution |
| Output Frame Rate | Original rate or 1/2, 1/3, or 1/4 of input frame rate |
| NDI Embedded Audio | Up to 16 channels |
| HDR Support | HLG |
| Video Processing | Deinterlacing · Up/down scaling · Frame-rate conversion · Aspect-ratio configuration |
| Network Interface | 10/100/1000 Mbps Ethernet |
| Power over Ethernet | IEEE 802.3af PoE |
| Network Configuration | DHCP supported |
| Cross-Network Streaming | Supports sending NDI streams across network segments |
| Web Management | WebUI with real-time device and signal information |
| Centralized Management | Magewell Control Hub |
| Integration API | HTTP APIs |
| Control Plugins | Crestron · Q-SYS |
| USB Interface | USB 2.0 Type-B |
| USB Functions | 5V / 2.1A power input · USB RNDIS / ECM |
| PTZ Control | VISCA · VISCA UDP · VISCA UDP2RS232 · PELCO-P · PELCO-D via NDI |
| PTZ / Tally Interface | Mini-DIN 8 |
| Tally | Preview and program indication supported |
| Onboard Control | 16-position rotary DIP switch for board index |
| Supported Products | NDI Studio Monitor · OBS · vMix · Other NDI-enabled products |
| Status Indicators | Power · Tally · Input signal · Loop-through signal |
| Dimensions | 117.5 × 66.7 × 23.4 mm |
| Mounting Hole | ¼-20 threaded hole |
| Maximum Current | Approximately 1.5 A at 5 V |
| Maximum Power Consumption | Approximately 7 W |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | −20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Manufacturer Warranty | 2 years |
| Included Device | Pro Convert SDI 4K Plus |
| Included Power Adapter | 5V / 2.1A regional power adapter |
| Included USB Cable | USB 2.0 Type-A to Type-B cable |
| Included Breakout Cable | Mini-DIN 8 breakout cable |
| Included Production Accessories | Tally light · L-bracket |
| Rackmount Option | Optional Magewell 1RU rackmount accessories available separately |
| High-Density Deployment | Module-format equivalent available for Magewell Modator chassis |
What does the Magewell Pro Convert SDI 4K Plus do?
The device converts professional SDI video into NDI High Bandwidth for transport across an IP network. It also provides SDI loop-through so the original source remains available for local monitoring, routing, recording, or other downstream equipment.
What is the maximum SDI input resolution?
The Pro Convert SDI 4K Plus accepts video up to 4096×2160 30fps. It supports SD, HD, 3G, and single-link 6G-SDI input standards through its BNC connection.
Does the Pro Convert SDI 4K Plus support SDI loop-through?
Yes. A dedicated BNC loop-through output passes the incoming SDI source to downstream professional video equipment while NDI encoding takes place at the same time.
How many audio channels does the converter support?
The SDI input supports up to 16 channels of embedded audio. NDI encoding can also carry up to 16 embedded audio channels, making the unit suitable for multi-channel professional workflows.
Can the Pro Convert SDI 4K Plus be powered by PoE?
Yes. Its Gigabit Ethernet connection supports IEEE 802.3af PoE, allowing compatible network equipment to provide power and data through the same Ethernet cable. USB Type-B can also provide the supported 5V power input.
Can the converter work with OBS and vMix?
Yes. Magewell lists OBS and vMix among supported products, along with NDI Studio Monitor. Other compatible NDI-enabled products can also receive the encoded network stream.
What warranty does the Pro Convert SDI 4K Plus include?
Magewell provides a two-year limited manufacturer warranty for Pro Convert hardware. Coremicro can help confirm SDI formats, NDI network requirements, PoE, audio channels, PTZ control, and integration requirements before deployment.
Bring Professional 4K SDI Sources into Your NDI Network
Coremicro is an authorized Magewell dealer supporting NDI encoding, AV-over-IP, broadcast, live production, streaming, corporate AV, and professional video integration. Contact our team to confirm SDI source formats, 6G-SDI cabling, 4K requirements, network bandwidth, PoE configuration, embedded audio, and PTZ control for your deployment.
