Product Highlights
- 1080p60 NDI HX3 video decoding
- Simultaneous HDMI and 3G-SDI output
- Hot-swappable Modator chassis module
- Control Hub HTTP API management
Magewell Pro Convert NDI to HDMI and SDI Module 1080p60 NDI HX3 Decoder
- SKU:
- MAG-B42110000
- MPN:
- B42110000
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
Magewell Pro Convert NDI to HDMI and SDI Module is a hot-swappable IP video decoder for Magewell Modator systems. It converts NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, SRT, H.264, H.265, and other supported network streams into simultaneous HDMI and SDI outputs at resolutions up to 1920 × 1080p60. Centralized management through the Modator chassis, Web UI, Control Hub, and HTTP APIs supports broadcast, live production, AV-over-IP, monitoring, and high-density rack workflows.
1080p60 NDI Video Decoding
Decode network video at resolutions up to 1920 × 1080p60 for professional monitoring and baseband distribution. Supported video formats include SpeedHQ, H.264, and H.265, giving the module flexibility across NDI and compressed IP video workflows.
NDI High Bandwidth HX2 HX3
The NDI decoder supports NDI High Bandwidth, NDI HX, NDI HX2, and NDI HX3 sources. Magewell currently specifies NDI 6.3 support, making the module suitable for current network-based production and distribution environments.
Simultaneous HDMI and 3G-SDI Output
A decoded IP source can be output simultaneously through HDMI and SDI at up to 1920 × 1080p60. This makes the module useful for feeding professional displays, routers, switchers, confidence monitors, and existing baseband infrastructure from the same network source.

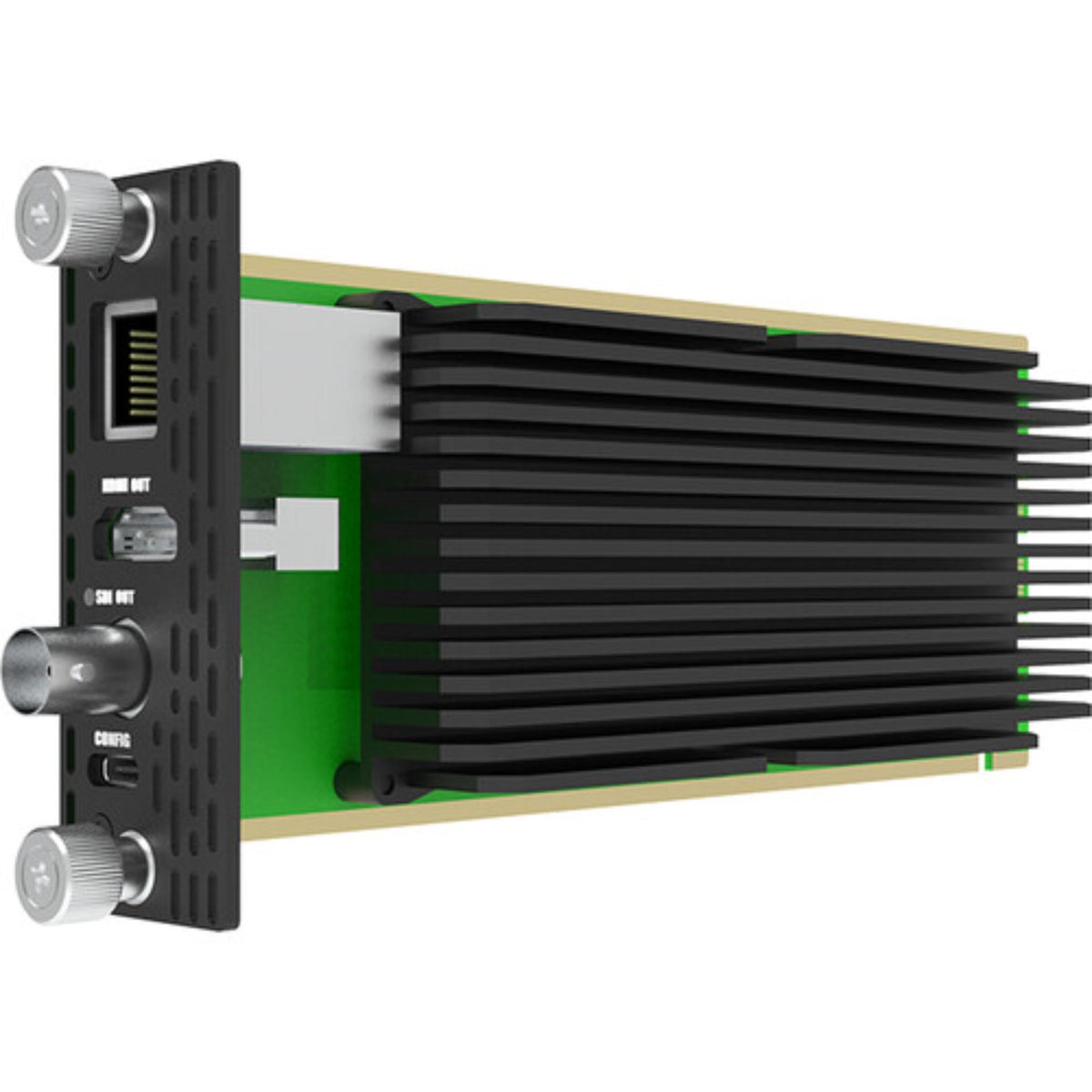

Hot-Swappable Modator Module
The decoder installs directly into the Magewell Modator 2U chassis through its dedicated Modator interface. Hot-swappable module architecture supports higher-density rack deployment without requiring a separate standalone decoder and power supply for every channel.
SRT and Multi-Protocol IP Decoding
Beyond NDI, the module supports RTSP, HTTP, HLS, RTMP Pull and Push, MPEG-TS over UDP, SRT, and RTP, plus TVU workflows. These options allow one decoder platform to handle contribution, distribution, monitoring, and AV-over-IP sources.
Control Hub and HTTP API Management
Configure and monitor the decoder through the Modator chassis, Web UI, or Magewell Control Hub. HTTP APIs support integration with third-party control systems, while remote status information helps engineering and IT teams manage larger deployments from a centralized location.

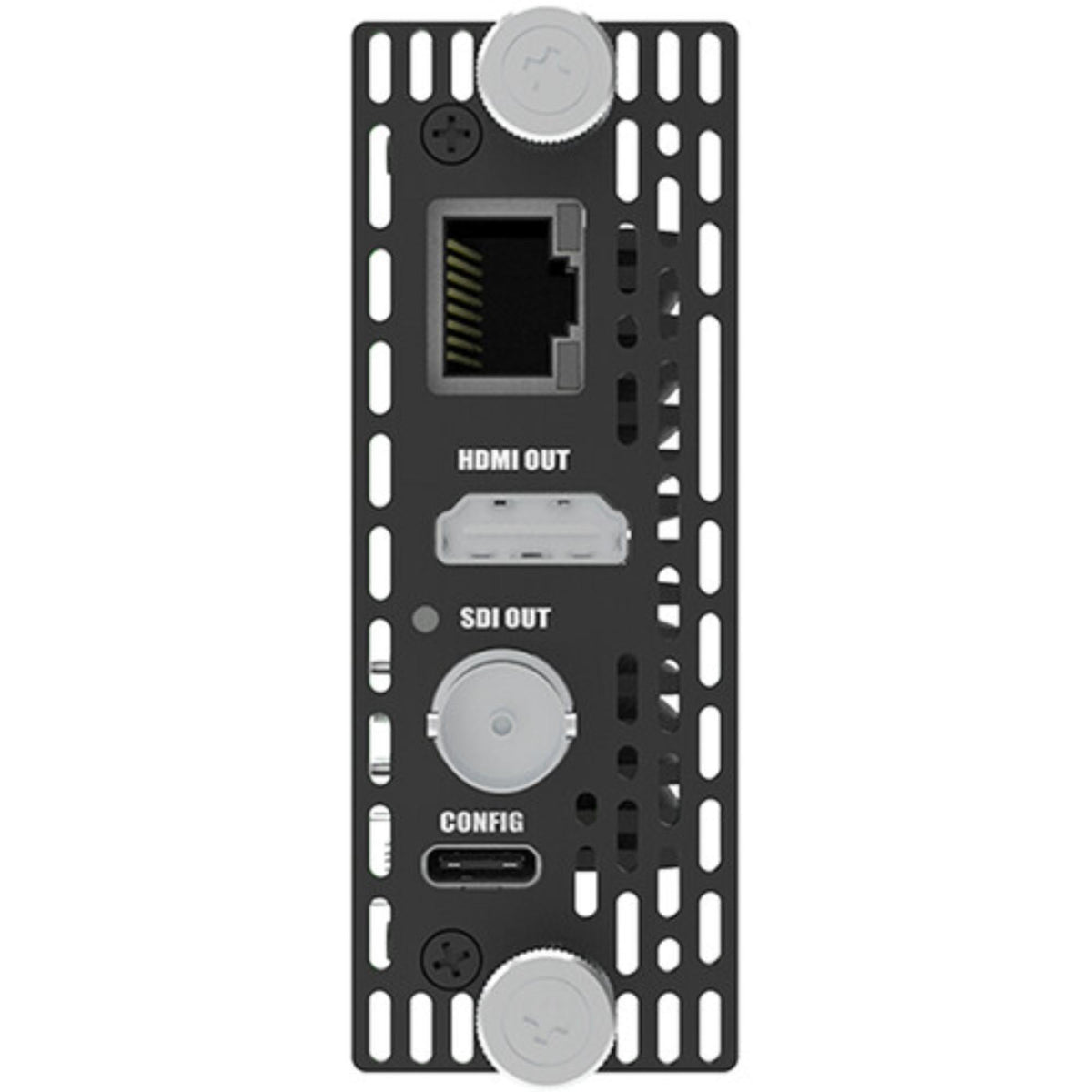

Gigabit Ethernet HDMI SDI and Modator Connectivity
A Gigabit Ethernet interface receives NDI and supported IP video streams, while dedicated HDMI 1.4 and SDI outputs connect the decoded signal to downstream baseband equipment. USB Type-C provides a configuration interface for service and management access.
The rear Modator connection links the module directly to the Magewell Modator 2U chassis and supports hot-swappable installation for scalable rack-based systems.
Broadcast Facilities
Decode NDI and compressed IP feeds into HDMI and SDI for monitoring, routing, switching, and distribution.
Live Production
Bring network sources back into conventional baseband production equipment at up to 1080p60.
AV over IP
Connect network-based distribution systems to existing HDMI displays and SDI infrastructure.
Control Rooms
Deploy multiple decoder channels for centralized monitoring and operational display systems.
Systems Integrators
Build managed IP video systems with centralized configuration, status monitoring, and API integration.
High-Density Racks
Add modular NDI decoding to Modator chassis installations where rack space and centralized management matter.
Magewell Support
Coremicro can help confirm Magewell Modator chassis compatibility, NDI and streaming protocol requirements, HDMI and SDI output formats, network configuration, Control Hub deployment, and API integration when building professional broadcast, AV-over-IP, live production, or high-density decoder systems.
| Specification | Detail |
|---|---|
| Product Name | Pro Convert for NDI to AIO Module |
| SKU | B42110000 |
| Part Number | B4211 |
| Product Type | NDI and IP Video Decoder Module |
| Chassis Compatibility | Magewell Modator 2U |
| Module Installation | Hot-swappable |
| Network Interface | 1 × RJ45 1000 Mbps Ethernet |
| Configuration Interface | 1 × USB Type-C |
| HDMI Output | 1 × HDMI 1.4 |
| SDI Output | 1 × SDI |
| Modator Interface | 1 × Modator chassis interface |
| Maximum Decode Resolution | Up to 2Kp60 / 1920 × 1080p60 output |
| NDI Formats | NDI High Bandwidth · NDI HX · NDI HX2 · NDI HX3 |
| NDI Version | NDI 6.3 |
| Streaming Protocols | RTSP · HTTP · HLS · RTMP Pull / Push · MPEG-TS over UDP / SRT / RTP · TVU |
| Video Decoding | SpeedHQ · H.264 · H.265 |
| Audio Decoding | AAC · MP3 |
| Simultaneous Output | HDMI and SDI |
| Maximum HDMI Output | 1920 × 1080p60 |
| HDMI Color Space | YUV BT.601 / BT.709 |
| HDMI Audio | 48 kHz · 8-channel |
| Maximum SDI Output | 1920 × 1080p60 |
| SDI Standards | SD ST 259 · HD ST 292 · 3Ga ST 425 · 3Gb ST 425 · 3Gb-DL ST 425 · 3Gb-DS ST 425 |
| SDI Color Space | YUV BT.601 / BT.709 |
| SDI Audio | 48 kHz · 8-channel |
| Closed Caption | Native CEA-608 / 608 over 708 |
| 3G-SDI Transmission Distance | Greater than 150 m |
| Remote Management | Modator chassis · Web UI · Magewell Control Hub |
| API | HTTP APIs |
| USB Networking | RNDIS / ECM |
| Web Browser Support | Edge · Firefox · Chrome · Safari · Opera |
| Status Indicator | Decode status LED |
| Dimensions | 184.4 × 30.0 × 81.5 mm |
| Weight | Approximately 300 g |
| Maximum Power Consumption | 5.2W |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Manufacturer Warranty | 2 years |
| In the Box | Pro Convert for NDI to AIO Module × 1 |
What does the Magewell Pro Convert NDI to HDMI and SDI Module do?
It decodes compatible NDI and IP video streams and converts them into simultaneous HDMI and SDI outputs for professional monitoring, routing, switching, and distribution systems.
Does the NDI decoder module support 1080p60?
Yes. Both HDMI and SDI outputs support resolutions up to 1920 × 1080p60.
Which NDI formats are supported?
The module supports NDI High Bandwidth, NDI HX, NDI HX2, and NDI HX3. Magewell currently specifies NDI 6.3 support.
Can the module decode SRT streams?
Yes. MPEG-TS over SRT is supported alongside UDP and RTP. The module also supports RTSP, HTTP, HLS, RTMP Pull and Push, TVU, and compatible NDI streams.
Can HDMI and SDI output at the same time?
Yes. The module can decode one compatible network source and output the resulting signal simultaneously through HDMI and SDI.
Does the decoder work without a Magewell Modator chassis?
No. This is a module-format product designed for installation in a Magewell Modator 2U chassis rather than a standalone desktop decoder.
Can multiple decoder modules be managed centrally?
Yes. Modules can be configured through the Modator chassis and Web UI, while Magewell Control Hub provides centralized remote management. HTTP APIs are also available for custom control-system integration.
