Product Highlights
- 2Kp60 NDI IP video decoding
- 4K60 HDMI 2.0 video output
- Hot-swappable Modator chassis module
- Control Hub HTTP API management

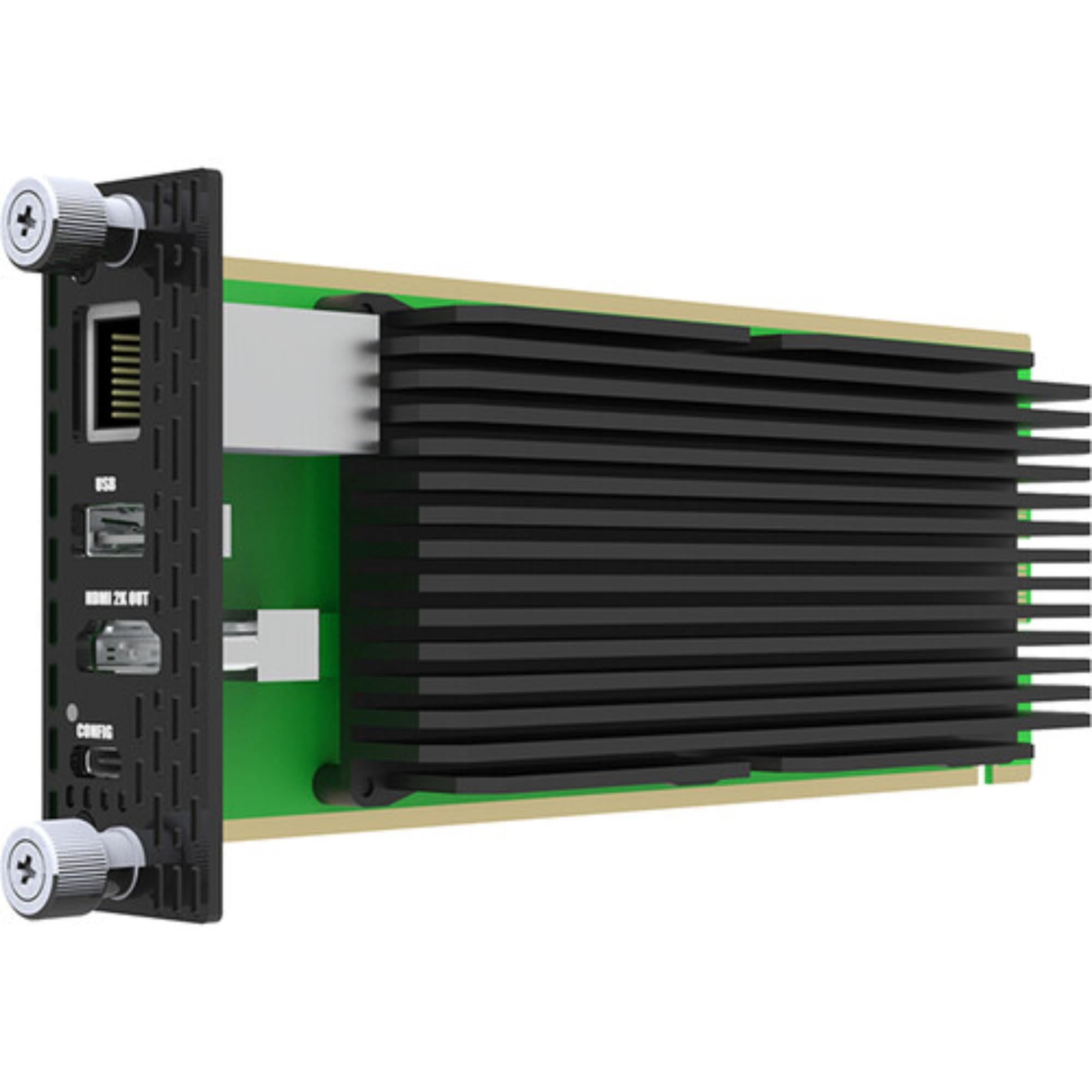

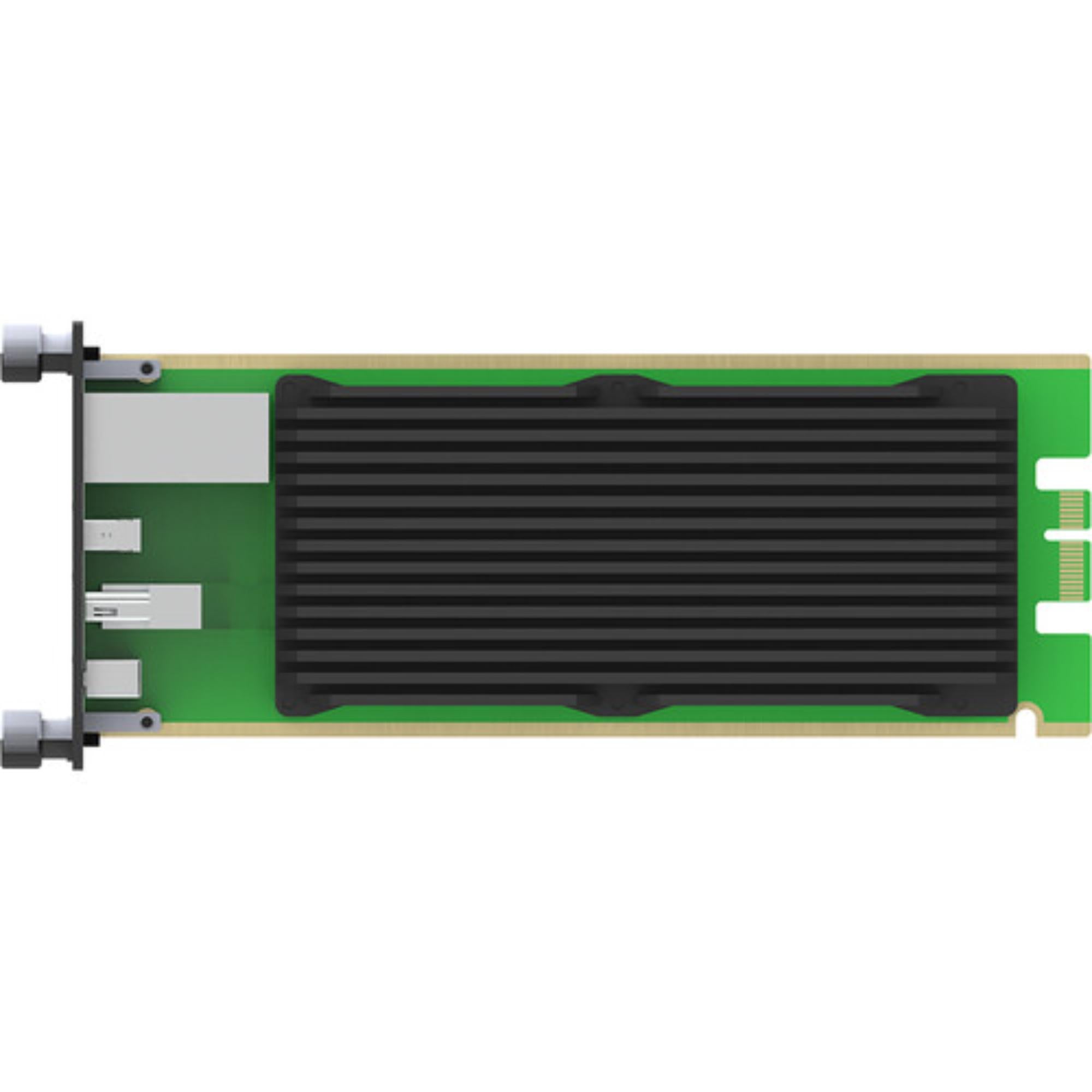

Magewell Pro Convert NDI to HDMI Module 2Kp60 NDI HX3 4K60 HDMI Decoder
- SKU:
- MAG-B41010000
- MPN:
- B41010000
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
Magewell Pro Convert NDI to HDMI Module is a hot-swappable IP video decoder for Magewell Modator systems that converts NDI and supported streaming sources into HDMI. It decodes network streams up to 2Kp60 and provides HDMI 2.0 output up to 4096 × 2160 at 60fps through integrated scaling. NDI High Bandwidth, NDI HX, HX2, HX3, SRT, H.264, and H.265 support make it suitable for broadcast monitoring, live production, AV-over-IP, control rooms, and high-density rack installations.
2Kp60 NDI and IP Video Decoding
Decode compatible network video streams at resolutions up to 2Kp60. SpeedHQ, H.264, and H.265 decoding supports professional NDI, streaming, contribution, monitoring, and AV-over-IP workflows without requiring software decoding on a separate host.
NDI High Bandwidth HX2 and HX3
NDI High Bandwidth, NDI HX, NDI HX2, and NDI HX3 are supported for integration with current and earlier NDI environments. Magewell specifies NDI 6.3 support for the module, making it suitable for modern network-based production systems.
4K60 HDMI 2.0 Video Output
HDMI 2.0 output supports formats up to 4096 × 2160 at 60fps with 4:4:4 8-bit output. Integrated up-conversion allows an HD decoded source to be scaled for a 4K display, while EDID-based optimization automatically selects an appropriate output format.
Hot-Swappable Modator Chassis Module
The decoder installs directly into a Magewell Modator 2U chassis. Hot-swappable architecture simplifies deployment and servicing while allowing multiple conversion channels to share a centralized rack platform instead of using individual standalone decoder units.
SRT and Multi-Protocol IP Decoding
Decode RTSP, HTTP, HLS, RTMP Pull and Push, MPEG-TS over UDP, SRT, and RTP, plus TVU sources. This protocol coverage allows the module to handle network feeds from live production, contribution, distribution, and managed streaming systems.
Control Hub Web UI and HTTP API
Configure and monitor the module through the Modator chassis, Web UI, or Magewell Control Hub. HTTP APIs support custom integration with third-party control environments, while real-time device and decoded-signal information assists engineering teams with centralized system management.

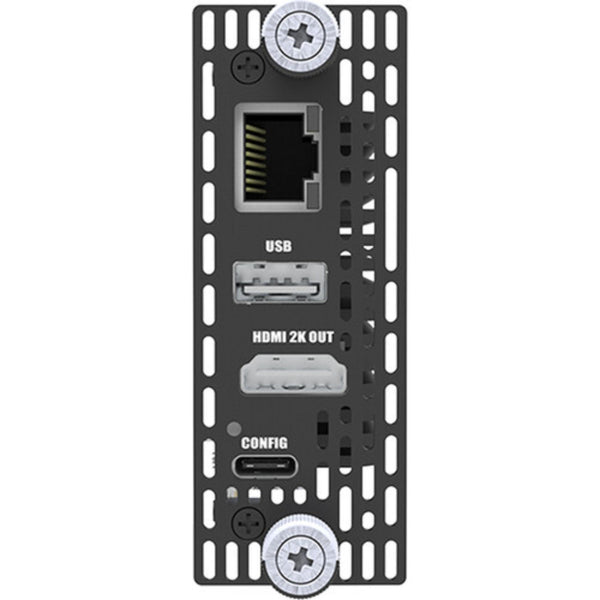

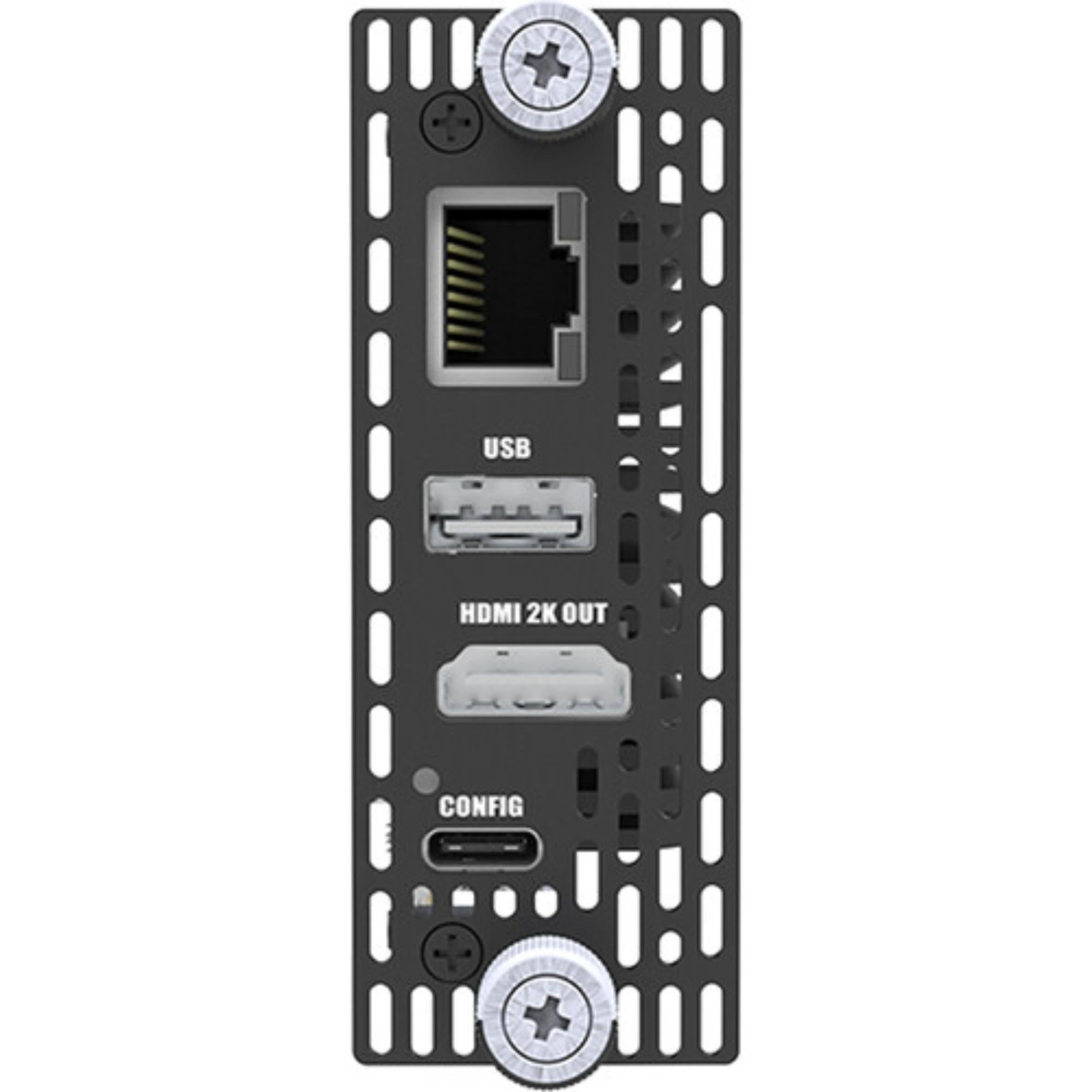

Gigabit Ethernet HDMI 2.0 and Modator Interface
A Gigabit Ethernet port receives NDI and supported IP video sources, while HDMI 2.0 provides the decoded output for professional displays, monitors, projectors, and downstream video equipment.
USB Type-C provides configuration access, while USB Type-A 3.0 supports compatible peripherals. The dedicated Modator interface connects the module directly to the Modator 2U chassis and supports hot-swappable installation.
Broadcast Facilities
Decode NDI and IP feeds for engineering monitors, multiview displays, and operational viewing positions.
Live Production
Convert network sources into HDMI for production monitors, confidence displays, and control-room viewing.
AV over IP
Connect NDI and streaming networks to conventional HDMI displays throughout professional AV installations.
Control Rooms
Deploy centrally managed decoder channels for monitoring, dashboards, operations, and production displays.
Systems Integrators
Build managed network-video systems with centralized configuration and HTTP API integration.
High-Density Racks
Add modular NDI-to-HDMI decoding where rack space, serviceability, and centralized management matter.
Magewell Support
Coremicro can help confirm Magewell Modator chassis compatibility, NDI and streaming protocol requirements, HDMI output formats, display EDID behavior, network configuration, Control Hub deployment, and API integration when building professional broadcast, AV-over-IP, live production, or centralized monitoring systems.
| Specification | Detail |
|---|---|
| Product Name | Pro Convert for NDI to HDMI Module |
| SKU | B41010000 |
| Part Number | B4101 |
| Product Type | NDI and IP Video Decoder Module |
| Chassis Compatibility | Magewell Modator 2U |
| Module Installation | Hot-swappable |
| Ethernet | 1 × RJ45 1000 Mbps Ethernet |
| USB Type-C | 1 × configuration port |
| USB Type-A | 1 × USB 3.0 peripheral port |
| HDMI Output | 1 × HDMI 2.0 |
| Modator Interface | 1 × hot-swappable Modator 2U interface |
| Maximum Decode Resolution | Up to 2Kp60 |
| NDI Formats | NDI High Bandwidth · NDI HX · NDI HX2 · NDI HX3 |
| NDI Version | NDI 6.3 |
| Streaming Protocols | RTSP · HTTP · HLS · RTMP Pull / Push · MPEG-TS over UDP / SRT / RTP · TVU |
| Video Decoding | SpeedHQ · H.264 · H.265 |
| Audio Decoding | AAC · MP3 |
| Maximum HDMI Output | 4096 × 2160 60fps 4:4:4 8-bit |
| 4K Output Processing | Integrated up-conversion from HD sources |
| HDMI 4K Formats | 4096 × 2160p / 3840 × 2160p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 |
| 2560 × 1440 Output | 60 / 100 fps |
| 1920 × 1080 Progressive Output | 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 100 / 119.88 / 120 fps |
| 1920 × 1080 Interlaced Output | 50 / 59.94 / 60 |
| HDMI Signal Formats | RGB · YUV 4:4:4 · YUV 4:2:2 |
| HDMI Audio | 48 kHz · 8-channel |
| Display Optimization | EDID-based automatic output format with integrated up/down conversion |
| Image Processing | Image flip · Deinterlacing · Safe area controls |
| Remote Management | Modator chassis · Web UI · Magewell Control Hub |
| Web UI Controls | Source decoding · OSD · Deinterlacing · Resolution · Audio gain · Sample rate · Channel mapping · Network |
| USB Networking | RNDIS / ECM |
| API | HTTP APIs |
| Web Browser Support | Edge · Firefox · Chrome · Safari · Opera |
| Status Indicator | Decode status LED |
| Dimensions | 184.4 × 30.0 × 81.5 mm |
| Weight | Approximately 290 g |
| Maximum Power Consumption | 4.3W |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Manufacturer Warranty | 2 years |
| In the Box | Pro Convert for NDI to HDMI Module × 1 |
What does Magewell Pro Convert NDI to HDMI Module do?
It decodes compatible NDI and IP video streams and converts them into HDMI for professional displays, monitoring systems, projectors, and other HDMI equipment. The module is designed for installation in a Magewell Modator 2U chassis.
Does the NDI decoder support native 4K streams?
The module decodes network streams at resolutions up to 2Kp60. Its HDMI 2.0 output can reach 4096 × 2160 at 60fps through integrated up-conversion from HD sources, so the 4K capability refers to HDMI output rather than native 4K NDI decoding.
Which NDI formats does the HDMI decoder support?
It supports NDI High Bandwidth, NDI HX, NDI HX2, and NDI HX3. Magewell currently specifies NDI 6.3 support.
Can the module decode SRT streams?
Yes. MPEG-TS over SRT is supported alongside UDP and RTP. Additional supported protocols include RTSP, HTTP, HLS, RTMP Pull and Push, TVU, and compatible NDI sources.
How does the module select its HDMI output format?
The module can use the EDID information from the connected display to deliver an appropriate output format. Integrated up/down conversion allows the decoder to adapt the decoded source to supported monitor resolutions.
Does it work without a Magewell Modator chassis?
No. This version is a hot-swappable module designed specifically for installation in the Magewell Modator 2U chassis rather than use as a standalone desktop decoder.
Can multiple NDI decoder modules be managed centrally?
Yes. Modules can be configured through the Modator chassis and Web UI, while Magewell Control Hub provides centralized remote management. HTTP APIs are also available for integration with custom control environments.
Build a Scalable NDI to HDMI Decoding System
Coremicro is an authorized Magewell dealer supporting professional NDI decoding, Modator systems, broadcast monitoring, AV-over-IP, live production, and centralized video deployments. Contact our team to confirm chassis configuration, decoder module count, network protocols, HDMI display requirements, and integration with your existing signal chain.
