Magewell Pro Convert NDI to AIO Module

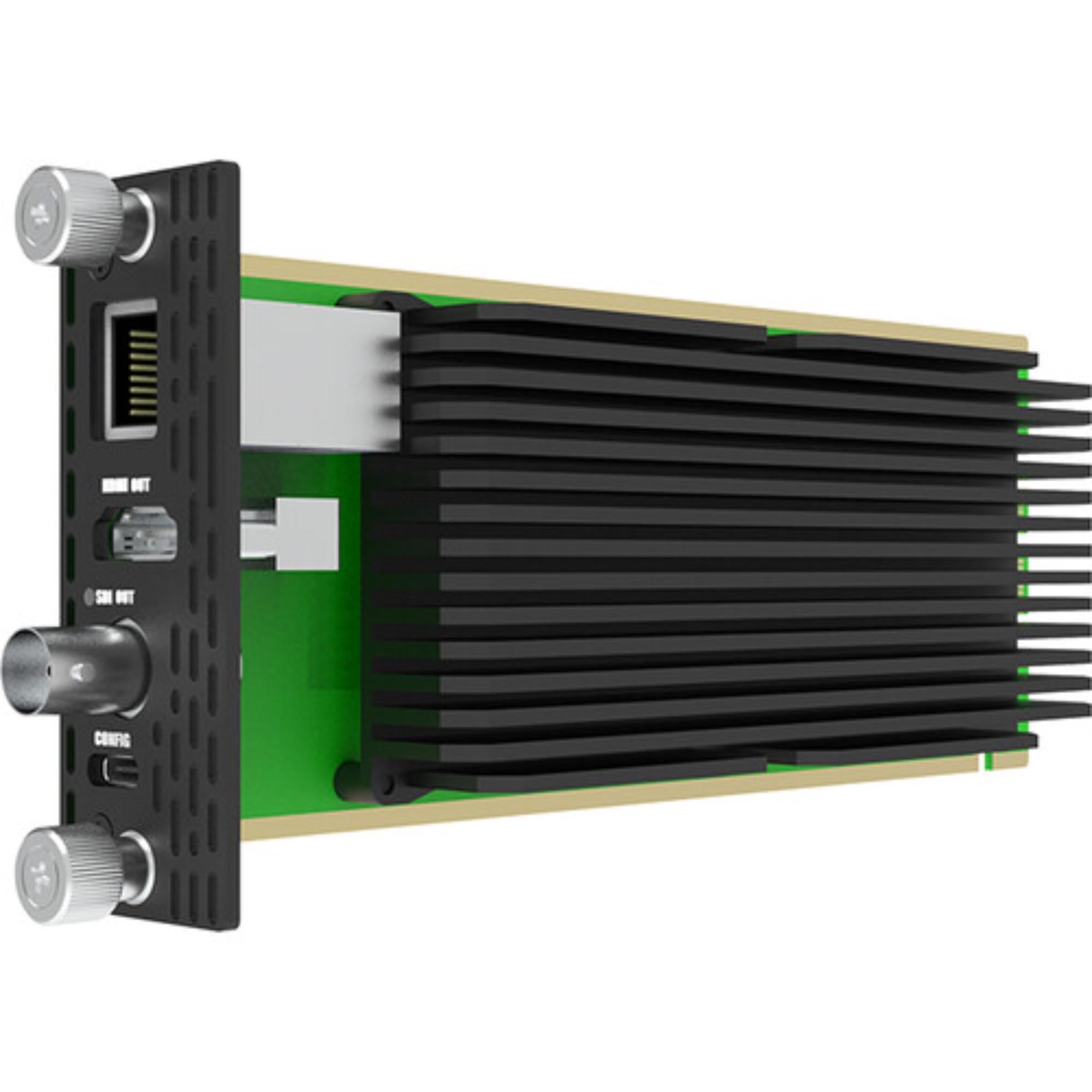

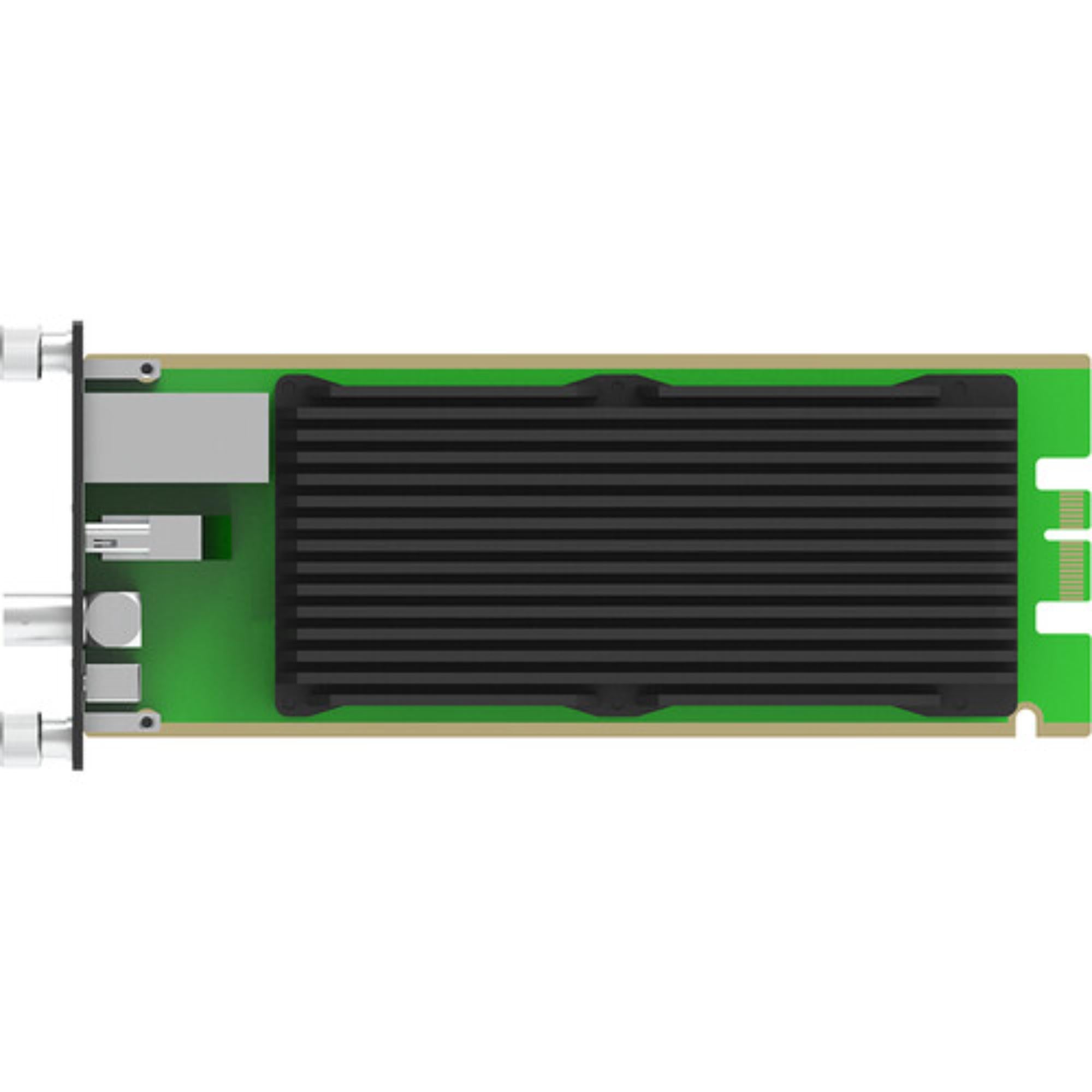

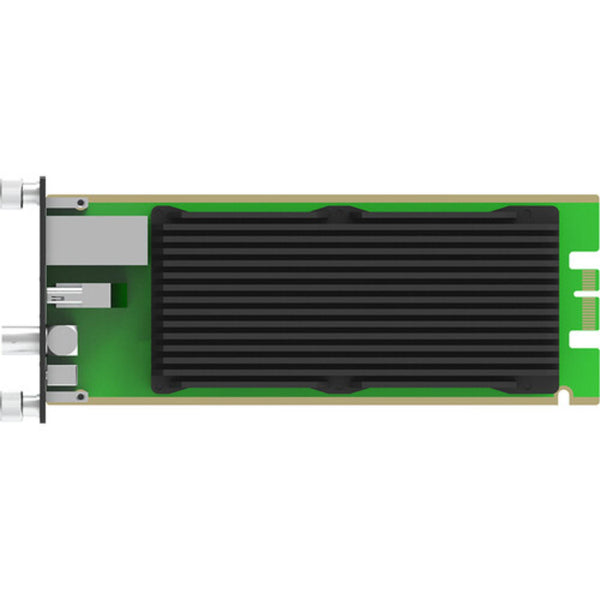

Magewell Pro Convert NDI to AIO Module is a hot-swappable video converter module designed for the Magewell Modator 2 RU chassis. It decodes high-bandwidth NDI and other supported IP video streams and sends them out through both HDMI and SDI, giving engineers a practical bridge between network video and conventional baseband monitoring or distribution.

The module handles NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, RTSP, HTTP, HLS, RTMP, MPEG-TS over UDP, SRT, RTP, and TVU protocols. HDMI and SDI can be decoded and output at the same time, while USB-C handles configuration and the built-in Modator interface connects the module directly to the rack chassis.

Highlights

• Hot-swappable converter module – installs directly into the Magewell Modator 2 RU chassis
• NDI decoding up to 2Kp60 – supports NDI High Bandwidth, NDI HX, HX2, and HX3
• HDMI and SDI outputs – both outputs can operate simultaneously
• 1080p60 maximum output – supported over HDMI and SDI
• 8-channel embedded audio – supports 48 kHz audio output
• Web-based control – works with Magewell Control Hub and standard web browsers

Quick Specs & Uses

• Product type: Hot-swappable NDI video converter module
• Chassis compatibility: Magewell Modator 2 RU

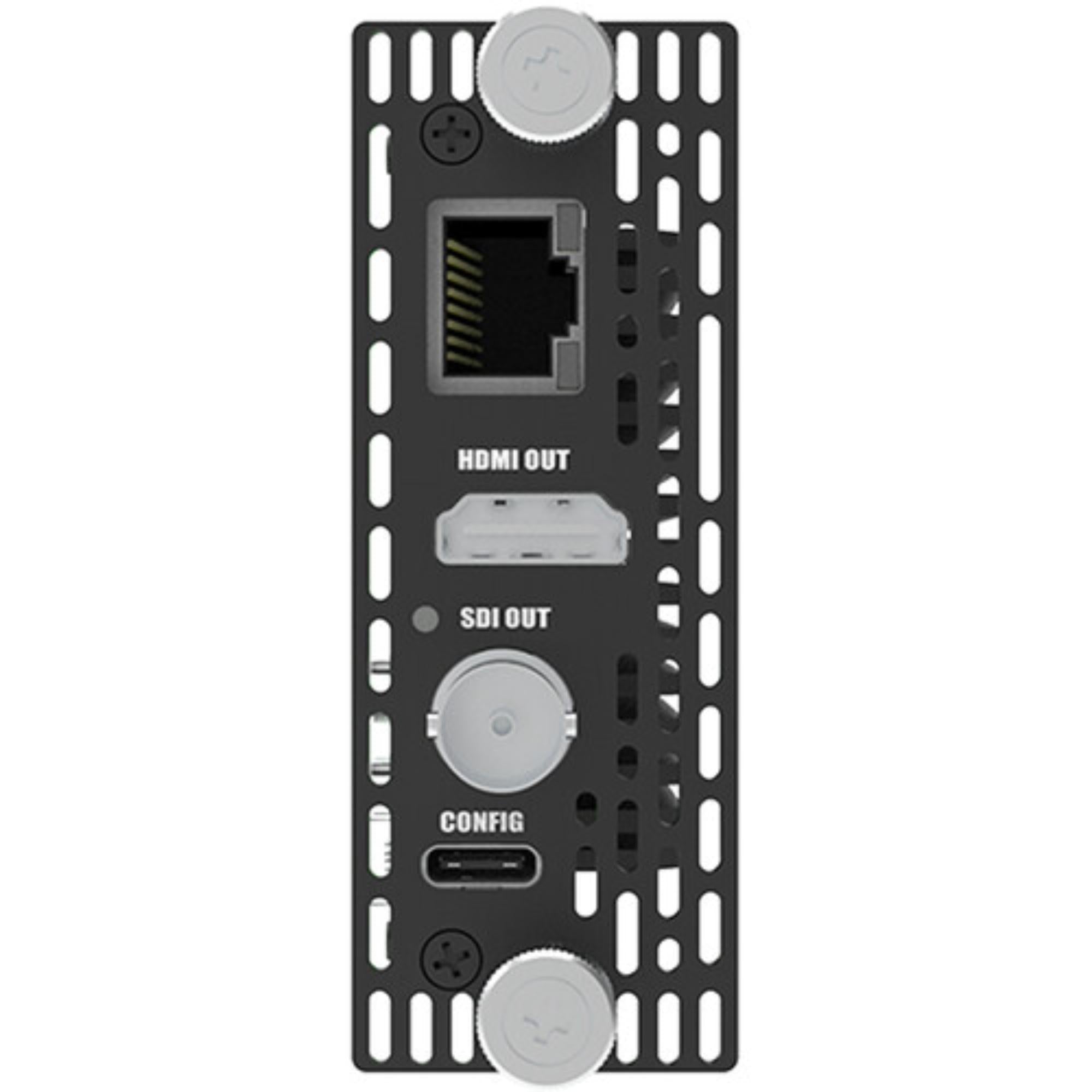

• Ethernet: 1 x RJ45 1000 Mbps port
• Configuration: 1 x USB Type-C port
• SDI output: 1 x SDI output port
• HDMI output: 1 x HDMI 1.4 output port
• Chassis interface: 1 x hot-swappable Modator interface
• Supported NDI: NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3
• Additional streaming protocols: RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP, TVU
• Video decoding: SpeedHQ, H.264, H.265
• Audio decoding: AAC, MP3
• NDI version: NDI 6.3
• HDMI maximum output: 1920 × 1080p60
• SDI maximum output: 1920 × 1080p60
• Signal format: YUV BT.601 / BT.709
• Audio output: 48 kHz, 8-channel embedded audio
• SDI standards: SD (ST 259), HD (ST 292), 3Ga / 3Gb / 3Gb-DL / 3Gb-DS (ST 425)
• Caption support: Native CEA-608 / 608 over 708
• 3G-SDI transmission distance: Greater than 150 m
• Dimensions: 184.4 × 30 × 81.5 mm (7.26 × 1.18 × 3.21 in)
• Weight: Approximately 0.300 kg (0.661 lb)
• Maximum power consumption: 5.2 W
• Operating temperature: 0 to 50°C
• Storage temperature: -20 to 70°C
• Relative humidity: 5 to 90%, non-condensing

Why It Helps

In an IP production rack, this module gives engineers a direct way to turn an NDI feed into standard HDMI and SDI outputs without adding another standalone converter outside the chassis. That keeps the signal path cleaner and makes better use of the Modator system already in the rack.

The simultaneous HDMI and SDI outputs are useful when the same decoded source needs to feed more than one destination. An HDMI display can be used for local monitoring while SDI continues on to a router, monitor, recorder, or other broadcast equipment.

Management can stay centralized as well. Through the Web UI or Magewell Control Hub, operators can check decoded signals and adjust OSD, deinterlacing, resolution, audio gain, sample rate, channel mapping, network settings, and firmware without pulling the module from the chassis.

System Characteristics

• IP-to-baseband conversion brings NDI and other supported streams into HDMI and SDI workflows
• Simultaneous HDMI and SDI output gives engineers two physical destinations from the same decoded source
• 2Kp60 NDI decoding supports demanding IP video feeds before baseband output
• 1080p60 HDMI and SDI delivery fits common broadcast monitoring and distribution systems
• Hot-swappable chassis design keeps installation and replacement straightforward inside the Modator platform
• Browser and Control Hub management provides remote access to signal status and configuration

What's In The Box

• 1 x Magewell Pro Convert NDI to AIO Module
