Product Highlights
- 1080p60 NDI USB video capture
- NDI HX2 HX3 SRT support
- UVC UAC plug-and-play operation
- Gigabit Ethernet USB-C connectivity
Magewell Pro Convert IP to USB 1080p60 NDI HX3 UVC Capture Device
- SKU:
- MAG-62300
- MPN:
- 62300
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
Magewell Pro Convert IP to USB converts NDI, SRT, H.264, H.265, and other supported IP video streams into standard USB video and audio for conferencing, streaming, recording, and production software. Hardware-based decoding keeps network-stream processing off the host computer while providing UVC video at resolutions up to 1920 × 1080p60 through USB Type-C.
Bring NDI and IP Video Directly into USB Software
Magewell Pro Convert IP to USB turns a compatible network video source into a conventional USB video and audio device. It accepts NDI High Bandwidth, NDI HX2, NDI HX3, and supported streaming sources before delivering the decoded signal through USB Type-C.
Applications that normally expect a webcam can receive the IP source without requiring a separate software-based decoder. This makes the device practical for conference rooms, production studios, corporate AV, and managed streaming environments.
Hardware-Decoded 1080p60 UVC Video
Network decoding is handled inside the converter instead of relying on the host computer's CPU or GPU. The computer receives a ready-to-use USB video source rather than processing the incoming IP stream itself.
Uncompressed UVC video supports resolutions up to 1920 × 1080p60 using YUY2 or NV12. MJPEG output is available up to 1920 × 1080p30, giving compatible software a choice of capture formats based on the host system and application.
Centralized Control Hub and API Management
Magewell Control Hub provides centralized management for integrators and IT administrators responsible for multiple Pro Convert devices. Remote access helps simplify configuration, status monitoring, maintenance, and troubleshooting across distributed rooms or production locations.
HTTP APIs provide additional integration options for custom applications and third-party control systems. A browser-based interface is also available for direct configuration and device management.

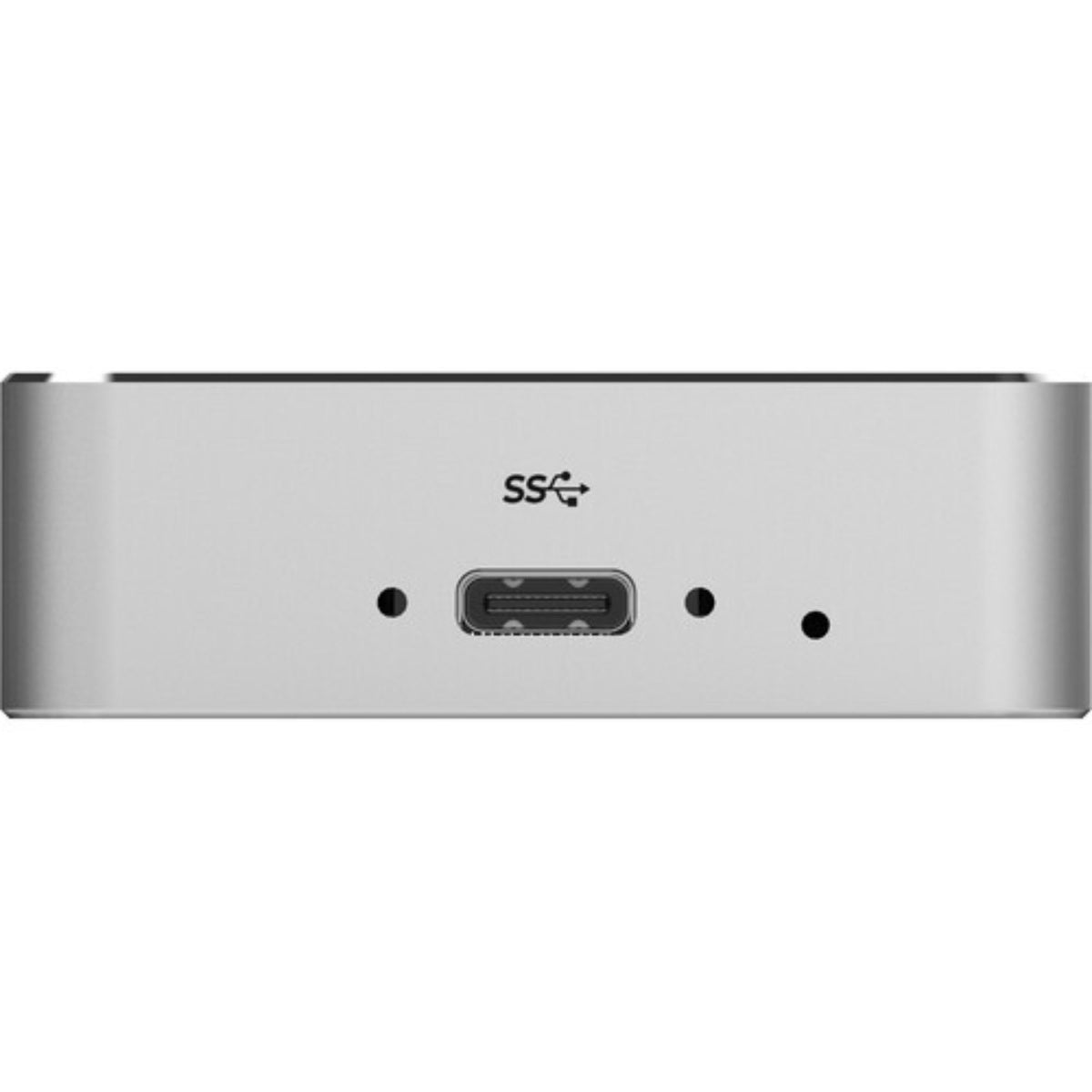

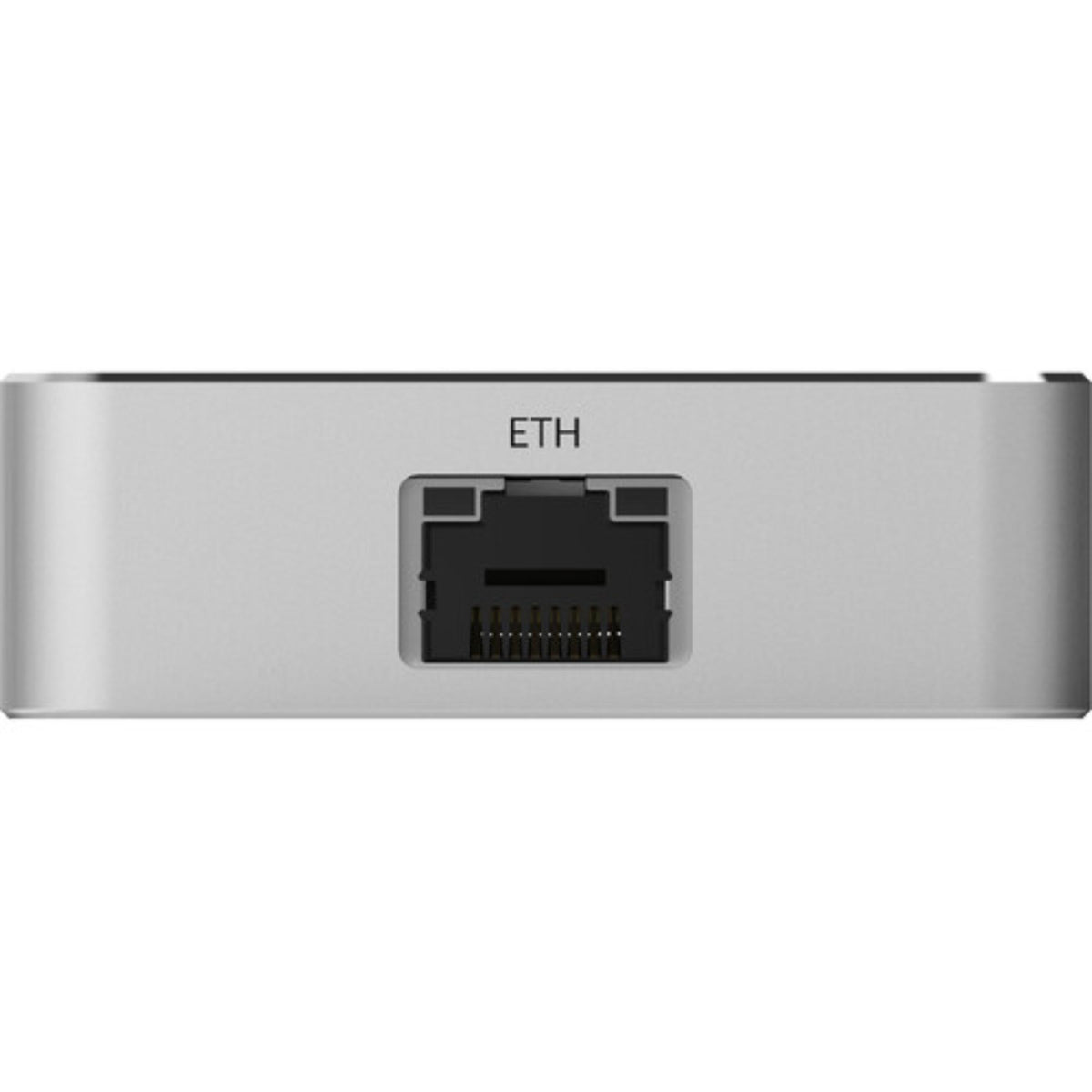

USB-C and Gigabit Ethernet Connectivity
Gigabit Ethernet connects the converter to the IP video network, while USB Type-C carries decoded video and audio to the host computer. The USB 3.0 host interface operates at up to 5 Gbps for high-bandwidth UVC capture.
USB also supplies operating power and provides USB networking for configuration. DHCP support simplifies deployment on managed production, corporate AV, education, and conferencing networks.
Zoom Rooms
Present supported network video to Zoom Rooms through a standard USB camera workflow.
Microsoft Teams
Bring compatible NDI and IP feeds into Teams as conventional USB video and audio.
OBS Studio
Use the decoded network source as a USB input for recording and live streaming.
vMix
Integrate supported network video into switching, recording, and production workflows over USB.
VLC and XSplit
Compatible applications can receive the decoded source through the standard USB capture interface.
USB Webcam Software
Works with compatible applications that recognize standard UVC video devices.
Conference Rooms
Convert centralized NDI and IP video sources into USB camera feeds for meeting-room computers.
Production Studios
Bring network feeds into recording, switching, streaming, and production applications over USB.
Corporate AV
Bridge IP-based media infrastructure with USB-based meeting and presentation computers.
Education
Route classroom and lecture-room IP video into compatible conferencing or capture applications.
Live Streaming
Convert supported network feeds into USB sources for software-based streaming systems.
Systems Integrators
Deploy managed IP-to-USB conversion across conference rooms, studios, and enterprise AV installations.
Magewell Support
Coremicro can help confirm NDI and IP protocol compatibility, USB host requirements, operating-system support, conferencing and production software compatibility, network configuration, and deployment requirements when integrating the Magewell Pro Convert IP to USB into professional AV, streaming, conferencing, education, and production workflows.
| Specification | Detail |
|---|---|
| Product Name | Magewell Pro Convert IP to USB |
| SKU | 623000000 |
| Part Number | 62300 |
| Product Type | IP to USB Video Converter |
| Decoded Video Sources | 1 |
| Maximum Decode Resolution | 1920 × 1080p60 |
| NDI Support | NDI High Bandwidth · NDI HX2 · NDI HX3 |
| Streaming Protocols | RTMP · RTSP · RTP · UDP · SRT · HTTP |
| Video Decoding | SpeedHQ · H.264 · H.265 |
| Maximum Uncompressed UVC Output | 1920 × 1080p60 YUY2 / NV12 |
| Maximum MJPEG Output | 1920 × 1080p30 |
| USB Audio | UAC · 2-channel · 16-bit · 48 kHz |
| USB Host Interface | USB 3.0 Type-C · Up to 5 Gbps |
| USB Networking | USB NCM / USB NET |
| Ethernet | 1 × RJ45 10/100/1000 Mbps Base-T |
| Network Configuration | DHCP supported |
| Remote Management | Web UI · Magewell Control Hub |
| API | HTTP APIs |
| Operating Systems | Windows · Linux · macOS |
| Compatible Software | Zoom Rooms · Microsoft Teams · OBS Studio · vMix · VLC · XSplit · QuickTime Player · Compatible USB webcam software |
| Dimensions | 98.1 × 56.78 × 18 mm |
| Maximum Power Consumption | Approximately 3.8W |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| In the Box | Pro Convert IP to USB × 1 · USB Type-C to USB Type-A Cable 80 cm × 1 · USB Type-C to USB Type-C Cable 80 cm × 1 |
What does Magewell Pro Convert IP to USB do?
It decodes a compatible NDI or IP video stream and presents the source to a computer as standard USB video and audio. Conferencing, streaming, and production software can then use the network feed through a conventional UVC and UAC workflow.
Does the NDI to USB converter support 1080p60?
Yes. Uncompressed UVC output supports resolutions up to 1920 × 1080p60 using YUY2 or NV12. MJPEG output supports resolutions up to 1920 × 1080p30.
Which NDI formats does Pro Convert IP to USB support?
It supports NDI High Bandwidth, NDI HX2, and NDI HX3 network video sources.
Can Magewell Pro Convert IP to USB receive SRT?
Yes. SRT is supported alongside RTMP, RTSP, RTP, UDP, HTTP, and compatible NDI sources.
Does hardware decoding reduce computer processing load?
Yes. The network stream is decoded by the Magewell hardware before reaching the host computer. The computer receives the resulting video through USB instead of decoding the original network stream itself.
Can it work with Zoom Teams OBS and vMix?
Compatible software includes Zoom Rooms, Microsoft Teams, OBS Studio, vMix, VLC, XSplit, QuickTime Player, and other applications capable of recognizing a standard USB webcam.
Does Pro Convert IP to USB require a separate power adapter?
The device receives operating power through its USB Type-C connection, allowing the host connection to provide both power and USB video connectivity.
Bring IP Video Directly into Your USB Workflow
Coremicro is an authorized Magewell dealer supporting professional NDI conversion, USB capture, video conferencing, corporate AV, live streaming, and production workflows. Contact our team to confirm network protocol, USB format, software compatibility, and deployment requirements for your system.
