Magewell Pro Convert IP to USB

Magewell Pro Convert IP to USB takes a single IP video stream and turns it into a USB UVC feed for a connected computer. It is built for situations where a network source needs to show up as a standard USB video device, making it useful for conferencing, streaming, AV production, and other software-based workflows.

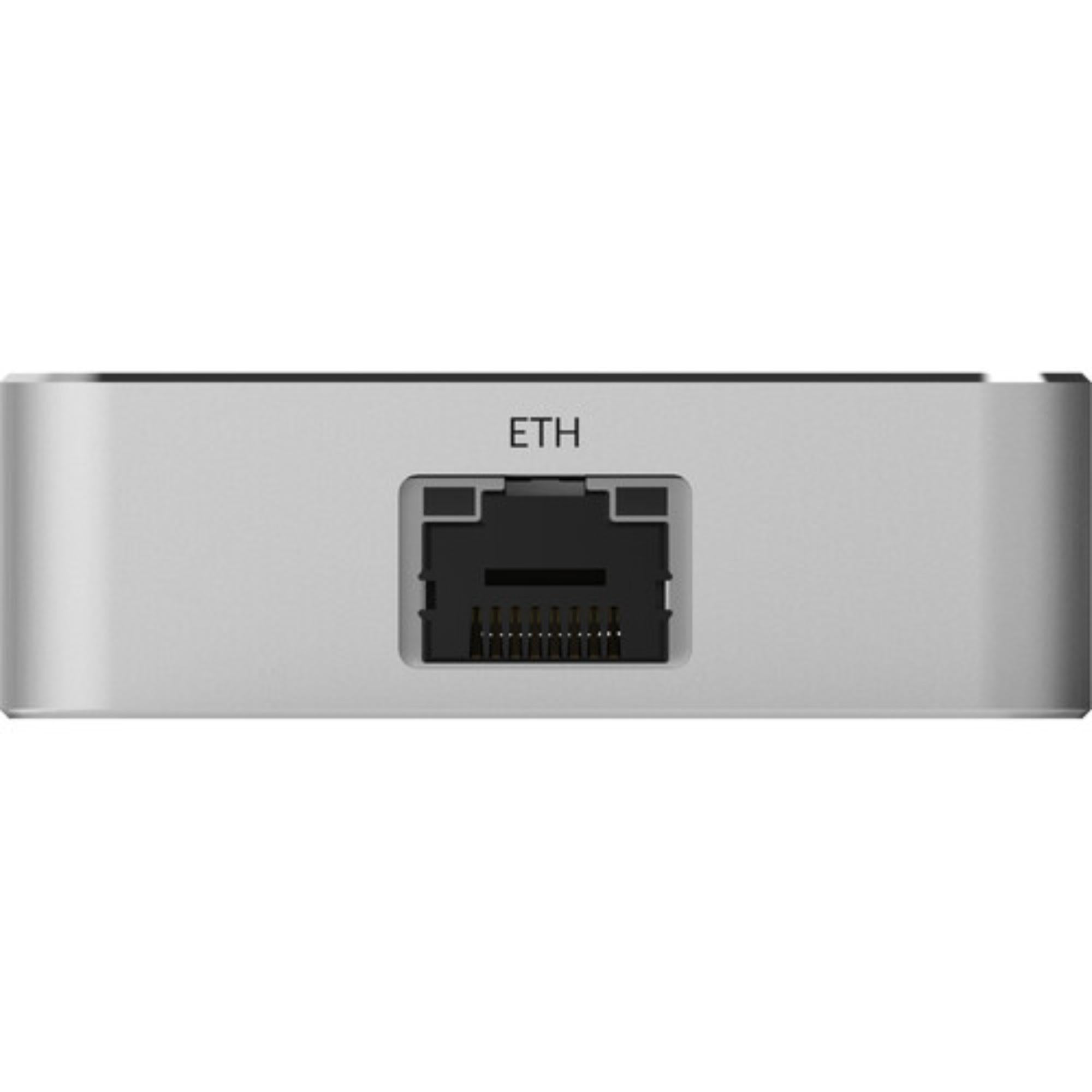

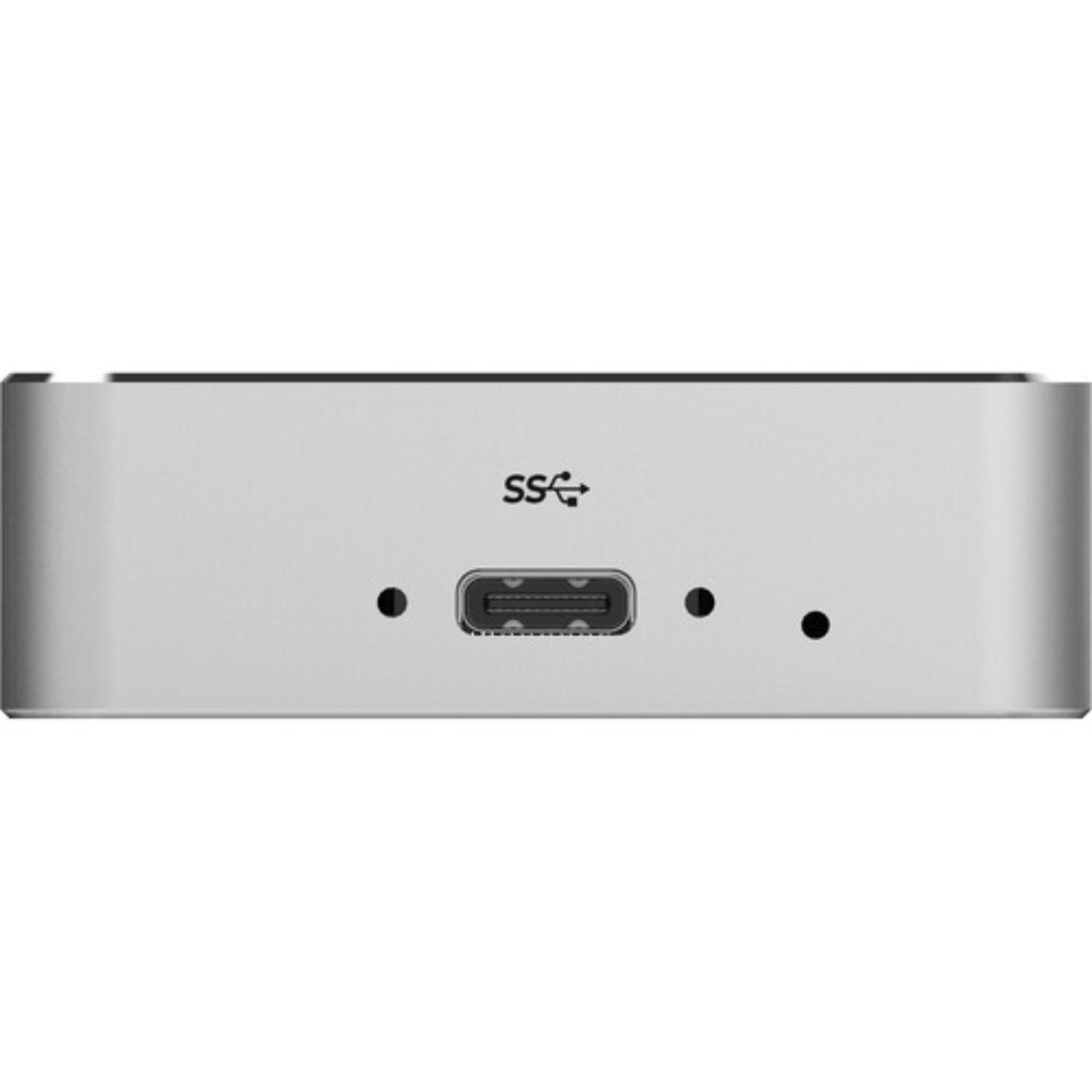

The RJ45 port handles the incoming IP video and control connection, while USB-C provides the video output and host connection. The unit supports NDI, NDI HX2, NDI HX3, SRT, RTMP, RTP, RTSP, UDP, H.264, and H.265, with output up to 1920 × 1080 at 60 fps.

Highlights

• Plug-and-play USB video decoder – converts IP video into a USB UVC feed
• 1080p60 USB-C output – supports video up to 1920 × 1080 at 60 fps
• Broad IP protocol support – works with NDI, NDI HX2, NDI HX3, SRT, RTMP, RTP, RTSP, and UDP
• H.264 and H.265 decoding – handles common compressed IP video formats
• Web UI and Control Hub support – gives operators remote access to configuration and management
• Remote PTZ camera control – adds control capability for compatible PTZ workflows

Quick Specs & Uses

• Product type: Plug-and-play IP-to-USB video decoder
• Video input: 1 x RJ45 (NDI) female
• Video output: 1 x USB-C female
• Maximum USB-C output: 1920 × 1080 at up to 60 fps
• Additional USB-C formats: 1280 × 1024, 1280 × 720, 720 × 480, and 640 × 480 at up to 60 fps
• RJ45 input resolution: Up to 1920 × 1080 at 60 fps
• IP video decoding: H.264, H.265, NDI, NDI HX2, NDI HX3, RTMP, RTP, RTSP, SRT, UDP
• Transport protocols: HTTP, NDI, NDI HX2, NDI HX3, RTMP, RTP, RTSP, SRT, UDP
• Simultaneous streams: 1
• Embedded audio: 2-channel over LAN (RJ45), NDI, and USB
• HDCP support: No
• HDR support: No
• HDMI CEC: No
• Wireless: No
• Media / memory card slot: No
• OS compatibility: macOS 10 or later, Windows 10, Linux
• Power input: 1 x USB-C, 5 VDC at 1 A
• Power consumption: 3.8 W
• Operating conditions: 0 to 50°C (32 to 122°F), 5 to 90% humidity
• Storage conditions: -20 to 70°C (-4 to 158°F), 5 to 90% humidity
• Dimensions: 98 × 57 × 18 mm (3.9 × 2.2 × 0.7 in)

Why It Helps

When an IP camera or network feed needs to enter software that expects a USB source, this converter removes an extra step from the signal chain. Instead of adding a separate decoder and capture device, the Pro Convert IP to USB presents the incoming stream directly as USB video.

The wide protocol support gives engineers room to work with different network environments. NDI and NDI HX sources can sit alongside SRT, RTMP, RTP, RTSP, or UDP feeds, which makes the box useful when production systems are not built around a single streaming format.

Control stays accessible through the Web UI and Magewell Control Hub, so setup does not have to happen from the device alone. For PTZ workflows, remote camera control can also remain part of the same network-based setup.

System Characteristics

• IP-to-USB conversion presents a network video source as a USB UVC device
• Single-stream decoding keeps the signal path focused on one selected IP source
• 1080p60 output supports common HD conferencing and production workflows
• 2-channel embedded audio carries audio along with the video feed
• RJ45 network input and control keeps video transport and device access on the same connection
• Cross-platform support allows use with macOS, Windows, and Linux systems

What's In The Box

• 1 x Magewell Pro Convert IP to USB
