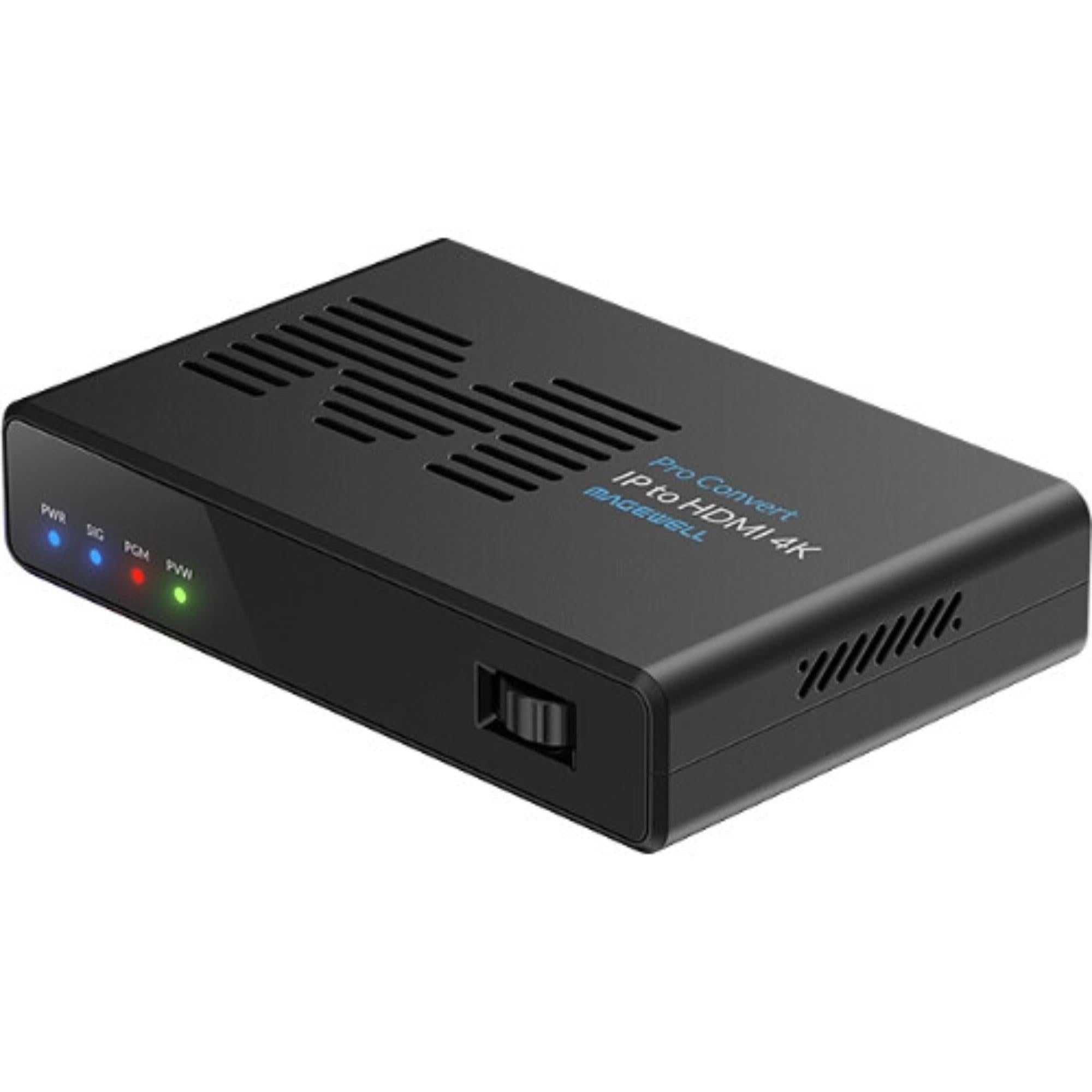

Magewell Pro Convert IP to HDMI 4K

Magewell Pro Convert IP to HDMI 4K takes an IP video feed and turns it into an HDMI signal for a monitor, display, or other HDMI destination. It handles resolutions up to DCI 4K60 and supports a broad mix of network protocols, making it useful when an IP source needs to land on a conventional video output without adding a larger conversion system.

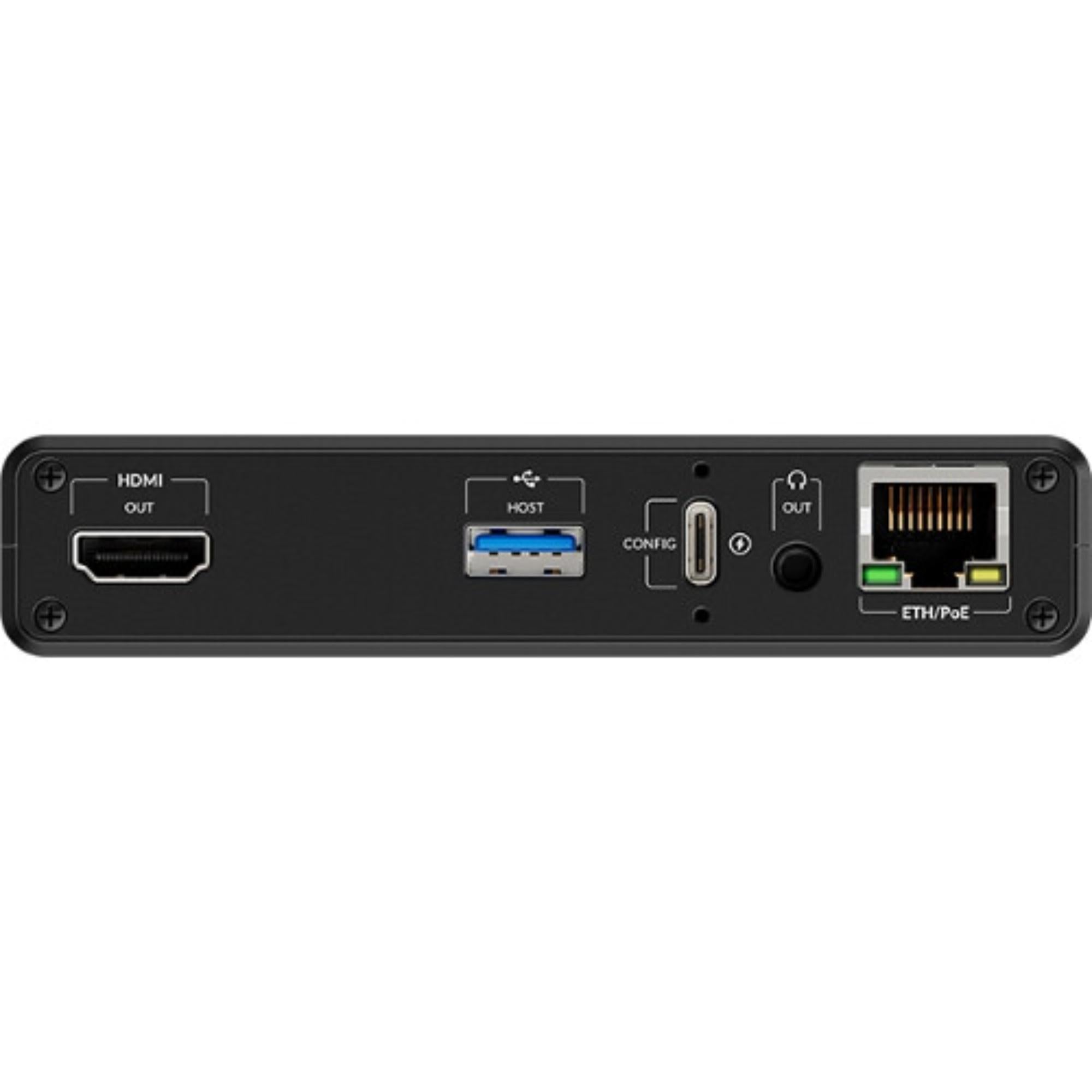

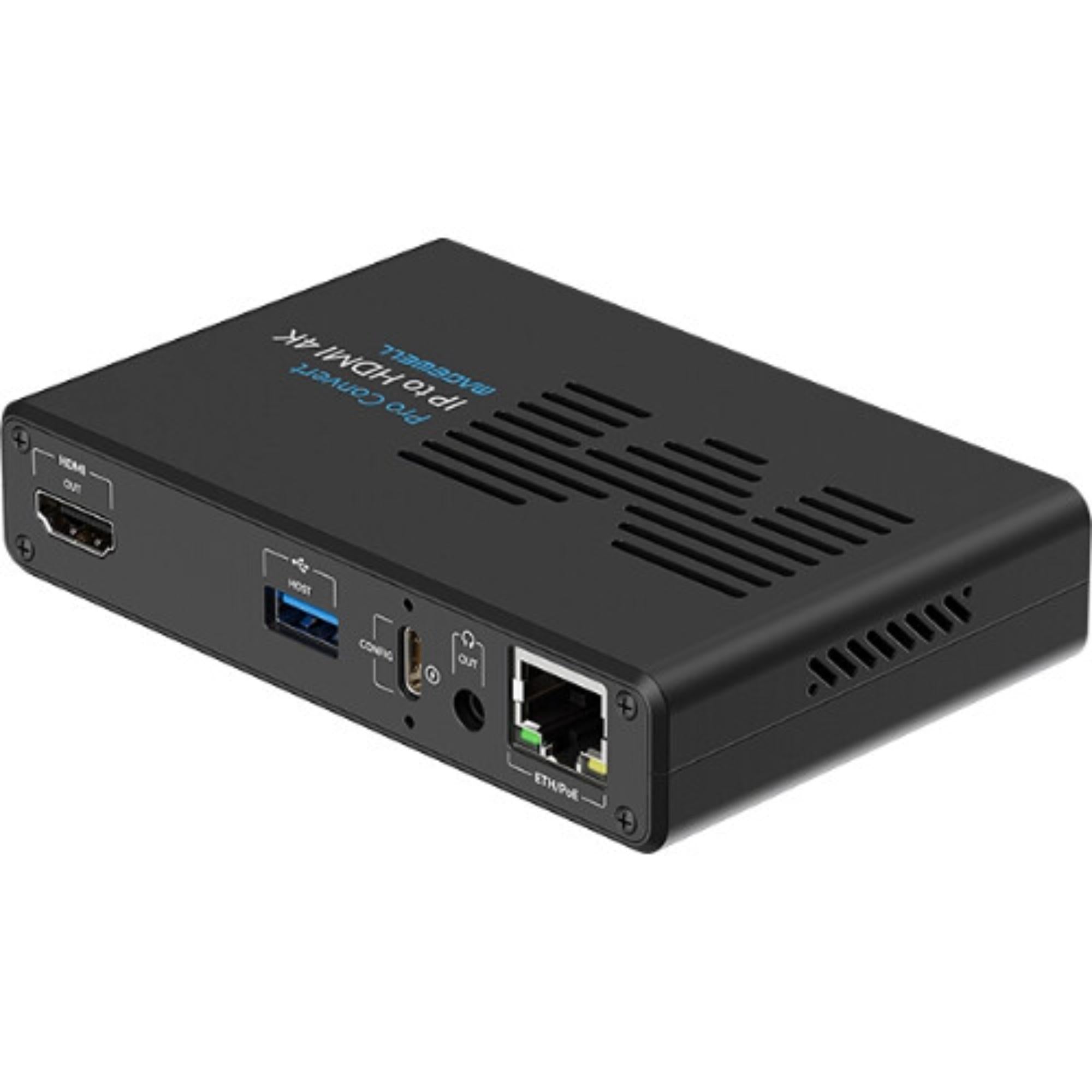

The unit accepts network video through its RJ45 port and provides HDMI 2.0 output along with a 3.5 mm stereo analog audio connection. It can be managed through the Web GUI, USB keyboard or mouse, or onboard controls, and also supports PIP and quad multiview layouts for monitoring more than one view on the output.

Highlights

• IP-to-HDMI conversion – decodes network video and outputs it through HDMI 2.0
• Up to 4096 × 2160p60 – supports DCI 4K and UHD output formats
• Broad protocol support – works with NDI, NDI HX2, NDI HX3, SRT, RTMP, RTP, RTSP, HLS, HTTP, UDP, and Zixi
• HDR PQ/HLG support – handles supported high-dynamic-range workflows
• PIP and quad multiview – provides flexible display layouts for monitoring
• 8-channel embedded audio – carries multichannel audio through HDMI, IP, LAN, and NDI workflows

Quick Specs & Uses

• Product type: IP-to-HDMI 4K decoder
• Video input: 1 x RJ45 (NDI) female
• Video output: 1 x HDMI 2.0 female
• Audio output: 1 x 3.5 mm TRS stereo analog female
• Other I/O: 1 x USB-C 3.0 / 3.1 / 3.2 Gen 1, shared with power; 1 x USB-A control port
• Maximum video output: 4096 × 2160 at up to 60 fps
• IP video decoding: H.264, H.265
• IP audio decoding: AAC, AC3, G.711, MP3, Opus
• Transport protocols: HLS, HTTP, NDI, NDI HX2, NDI HX3, RTMP, RTP, RTSP, SRT, UDP, Zixi
• Embedded audio: HDMI / IP / LAN (RJ45) / NDI, 8-channel
• HDR support: PQ / HLG
• Media / memory card slot: No
• Wireless: No
• Cellular support: No
• Power input: 1 x USB-C, 12 VDC at 1 A
• PoE support: PoE+ 802.3at
• Power consumption: 12.12 W
• Operating conditions: 0 to 40°C (32 to 104°F), 5 to 90% humidity
• Storage conditions: -20 to 70°C (-4 to 158°F), 5 to 90% humidity
• Dimensions: 120 × 79.3 × 24.5 mm (4.7 × 3.1 × 1 in)

Why It Helps

IP video is convenient for moving signals around a network, but the final destination is often still an HDMI monitor or display. The Pro Convert IP to HDMI 4K handles that last step directly, turning the selected network stream into a local HDMI output without requiring a separate computer to decode it.

The protocol support gives engineers room to work across different systems instead of locking the decoder to a single transport method. NDI and NDI HX can sit alongside SRT, RTMP, RTSP, HLS, UDP, or Zixi feeds, which is useful when the same facility handles several kinds of contribution and monitoring sources.

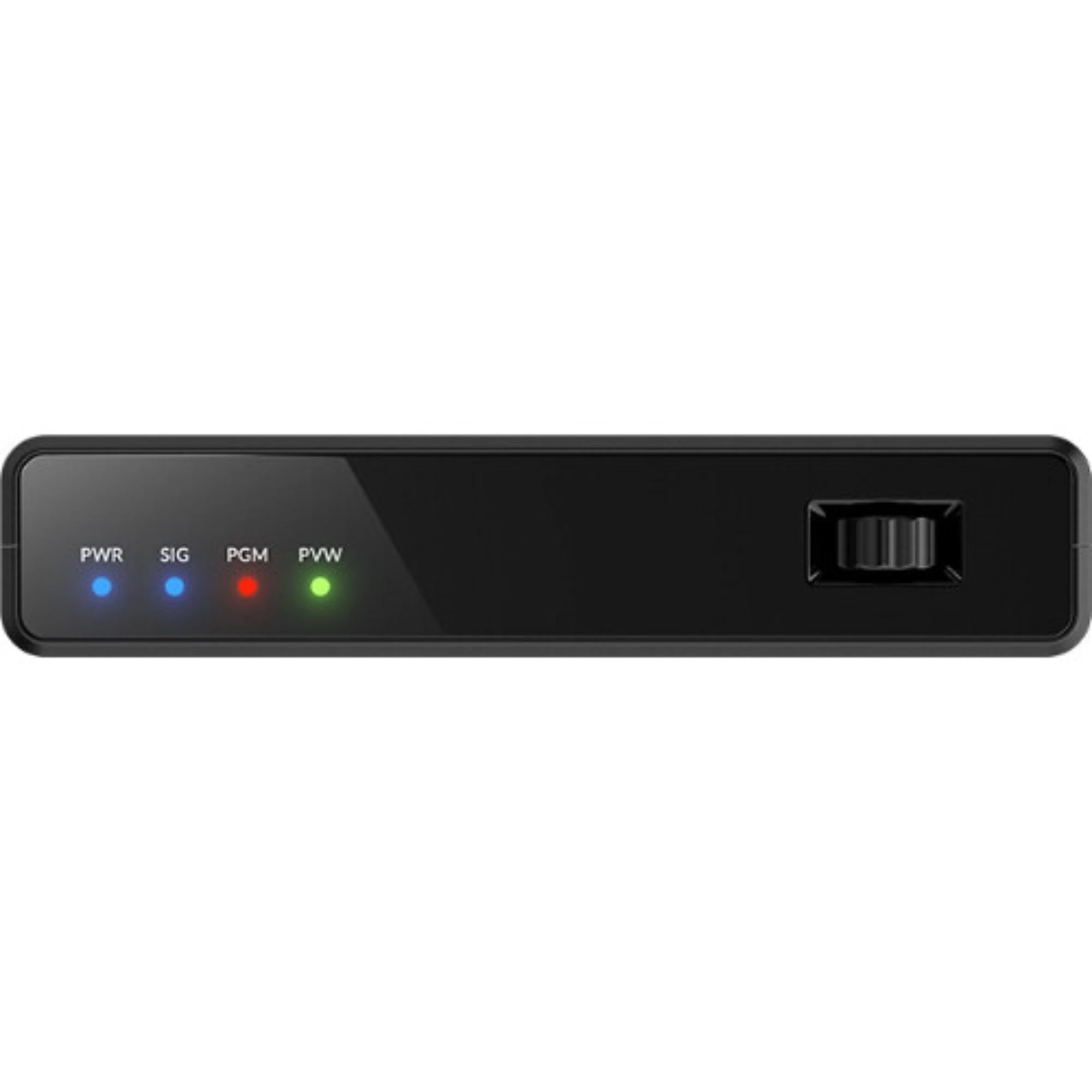

Control is also practical once the unit is installed. The Web GUI can handle configuration remotely, while USB keyboard or mouse control and onboard operation are available when someone is working directly at the device. PIP and quad multiview support add another useful option when several views need to share the same display.

System Characteristics

• 4K IP decoding brings network video to HDMI displays at up to 4096 × 2160p60
• H.264 and H.265 support covers common compressed IP video workflows
• PIP and quad layouts provide additional monitoring flexibility on the HDMI output
• HDR PQ/HLG compatibility supports high-dynamic-range source material
• Web, USB, and onboard control give operators several ways to manage the decoder
• USB-C or PoE+ power makes installation easier in different rack, desk, or display-side setups

What's In The Box

• 1 x Magewell Pro Convert IP to HDMI 4K Decoder
• 1 x USB-C to USB-C Cable
• 1 x USB-C to USB-A Cable
• 1 x Power Adapter
• 1 x Bracket
• 1 x Bracket Fastener
• 2 x M4 Screws
• 2 x M4 Nuts
