Magewell Pro Convert IP to HDMI

Magewell Pro Convert IP to HDMI takes IP video from a network and puts it onto a conventional HDMI display. It can decode as many as four streams, which makes it useful when a production monitor needs a single full-screen source, a dual-picture-in-picture view, or a four-channel quad layout.

The unit connects through Gigabit Ethernet and supports NDI, NDI HX, NDI HX2, NDI HX3, HLS, HTTP, RTMP, RTMPS, RTP, RTSP, SRT, TCP, TCP/IP, TS-MPEG, and Zixi workflows. HDMI handles the main video output, while a 3.5 mm stereo connection provides analog audio and the USB-A host port adds another control option.

Highlights

• Up to 4 IP streams – decodes multiple network sources for a single HDMI display
• 2560 × 1440 at 60 fps – supports higher-than-1080p output for compatible workflows
• Dual PIP and quad-screen layouts – puts two or four sources on the same display
• Broad IP protocol support – works with NDI, NDI HX, SRT, HLS, RTMP, RTSP, and other supported transports
• HDR10 support – accommodates supported high-dynamic-range material

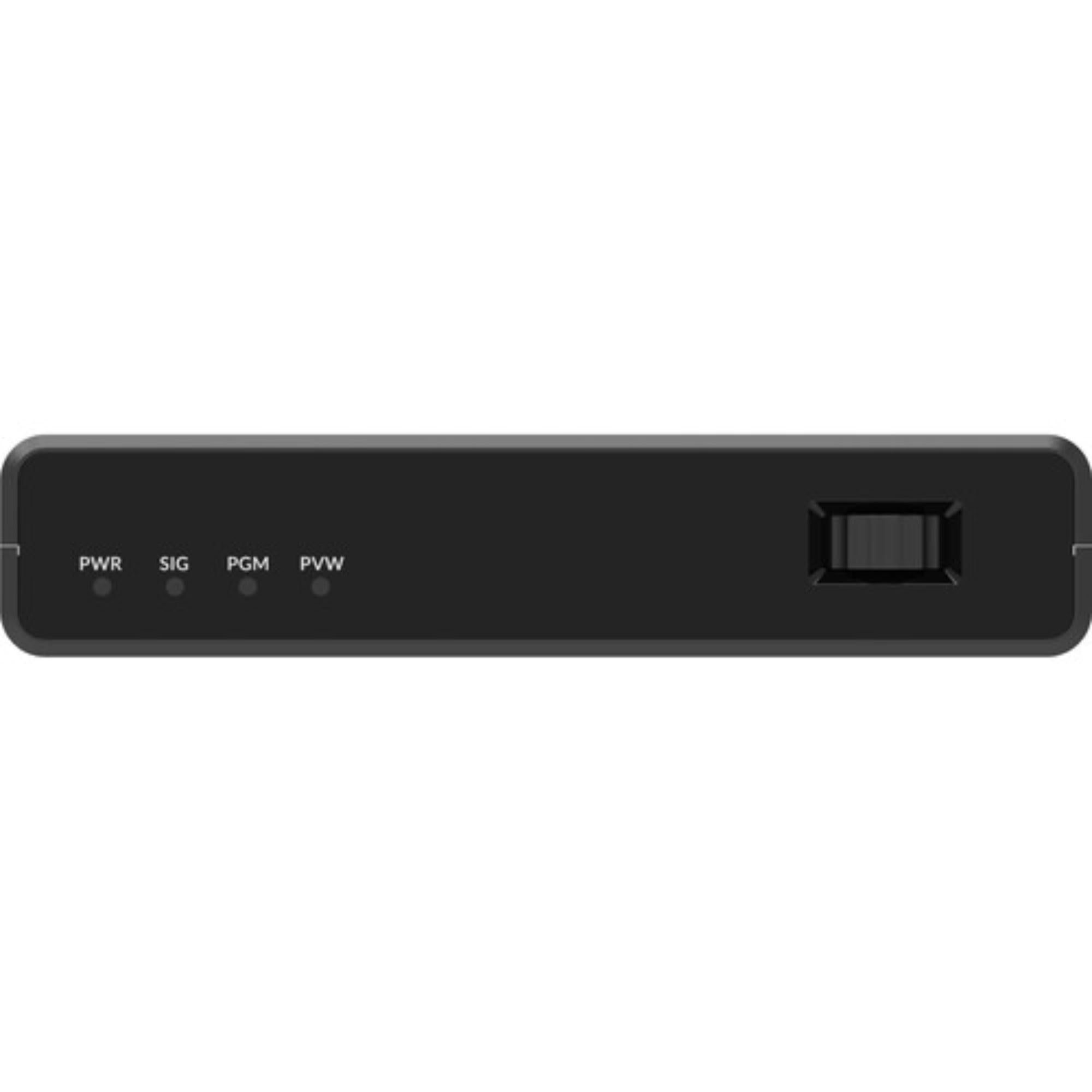

• Web UI and LED indicators – gives operators direct access to setup and status information

Quick Specs & Uses

• Product type: IP-to-HDMI video decoder

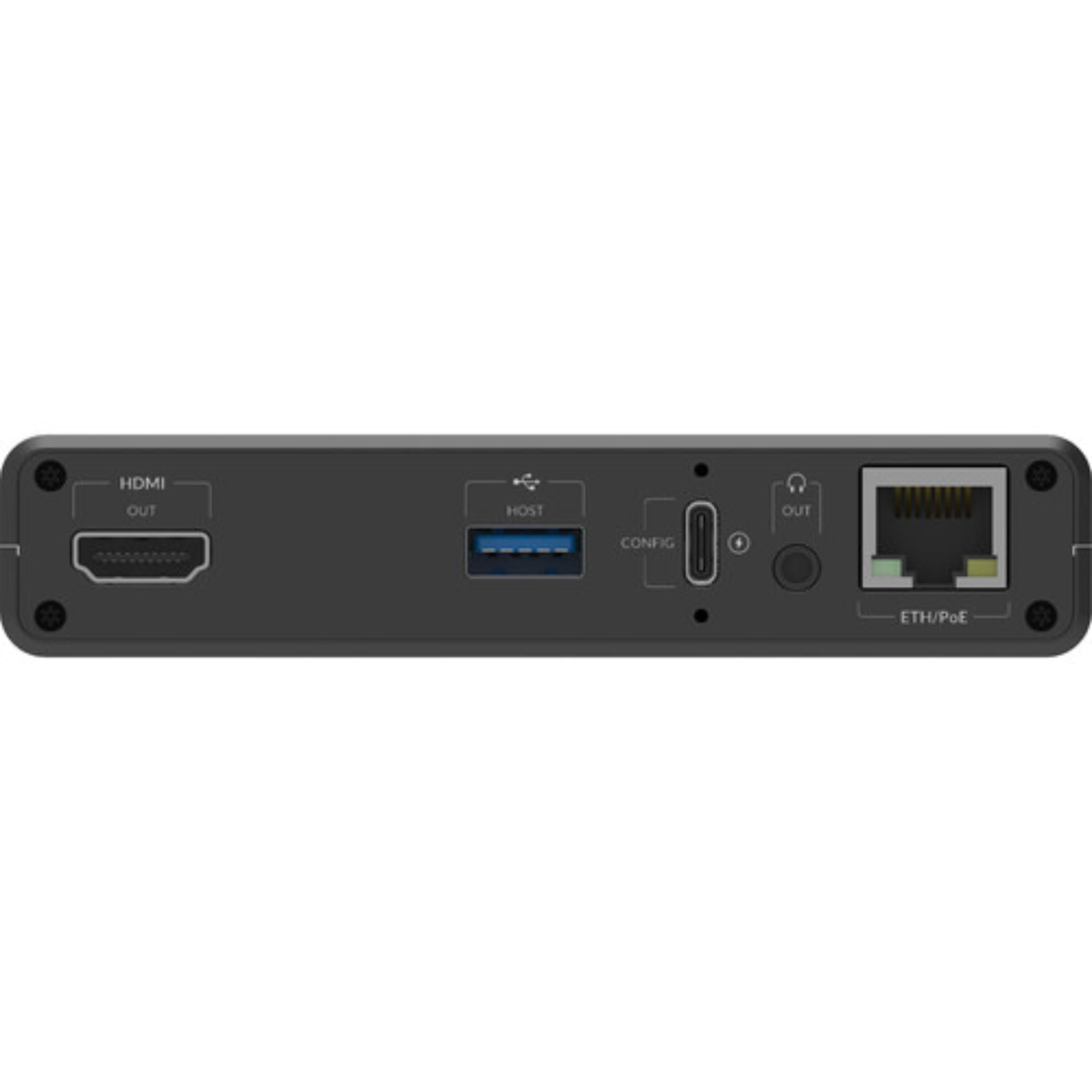

• Video input: 1 x RJ45 LAN female
• Video output: 1 x HDMI female
• Audio output: 1 x 3.5 mm TRS stereo analog female
• USB I/O: 1 x USB-A host
• Maximum decoding resolution: 2560 × 1440 at 60 fps
• IP video decoding: H.264, H.265, HLS, MPEG2, NDI, NDI HX, NDI HX2, NDI HX3, RTMP, RTMPS, RTP, RTSP, SRT, Zixi
• IP audio decoding: AAC, AC3, G.711, MP3, Opus
• Transport protocols: HTTP, NDI, NDI HX, NDI HX2, NDI HX3, RTMP, RTMPS, RTP, RTSP, SRT, TCP, TCP/IP, TS-MPEG, Zixi
• Simultaneous streams: 4
• Embedded audio: HDMI / IP
• Media / memory card slot: No
• Wireless: No
• Cellular support: No
• Power input: 1 x USB-C, 5 to 12 VDC at 1.3 A
• PoE support: PoE+ 802.3at and PoE 802.3af
• Power consumption: 6.62 W device; 10 W power supply
• Operating conditions: 0 to 40°C (32 to 104°F), 5 to 90% humidity
• Storage conditions: -20 to 70°C (-4 to 158°F), 5 to 90% humidity
• Dimensions: 120 × 79.3 × 24.5 mm (4.7 × 3.1 × 1 in)

Why It Helps

Once several IP feeds are already on the network, getting them onto one confidence monitor should not require a stack of separate decoders. This unit can take up to four streams and place them on a single HDMI display, which is handy around control rooms, production desks, or other monitoring positions.

The multiview options are particularly useful when an operator wants to keep an eye on more than one source at once. A dual PIP layout works for two feeds, while the quad-screen mode can show four channels together instead of forcing the operator to switch back and forth.

Installation is flexible as well. The decoder can run from USB-C or network power through PoE, and the Web UI gives engineers another way to manage the device without having to sit directly in front of it.

System Characteristics

• Four-stream IP decoding allows several network sources to share one HDMI display
• Dual PIP and quad-screen output provides practical multiview options for monitoring
• NDI and streaming protocol support fits a mix of broadcast, AV, and IP video workflows
• HDR10 compatibility supports compatible high-dynamic-range content
• Gigabit Ethernet handles network video transport and device connectivity
• USB-C and PoE power options give installers more freedom in rack, desk, and display-side setups

What's In The Box

• 1 x Magewell Pro Convert IP to HDMI Decoder
• 1 x Power Adapter
• 1 x USB-C to USB-C Cable
• 1 x USB-C to USB-A Cable
• 1 x Mounting Bracket
• 1 x Bracket Fastener
• 2 x M4 Screws
• 2 x M4 Nuts
