Product Highlights
- 4K60 NDI IP video decoding
- HDMI 2.0 and 12G-SDI outputs
- Picture-in-picture and quad-view decoding
- HDR PoE+ Gigabit Ethernet networking
Magewell Pro Convert IP to AIO 4K60 NDI 12G-SDI HDMI Decoder
- SKU:
- MAG-64400
- MPN:
- 64400
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
Magewell Pro Convert IP to AIO 4K is a professional 4K60 IP video decoder that converts NDI, SRT, H.264, H.265, and other network streams to HDMI and SDI. It supports NDI High Bandwidth, NDI HX2, NDI HX3, Picture-in-Picture, Quad View, HDR PQ and HLG, Gigabit Ethernet, and PoE+ for broadcast, live production, monitoring, presentation, and AV-over-IP workflows.
4K HDMI and 12G-SDI Output Connectivity

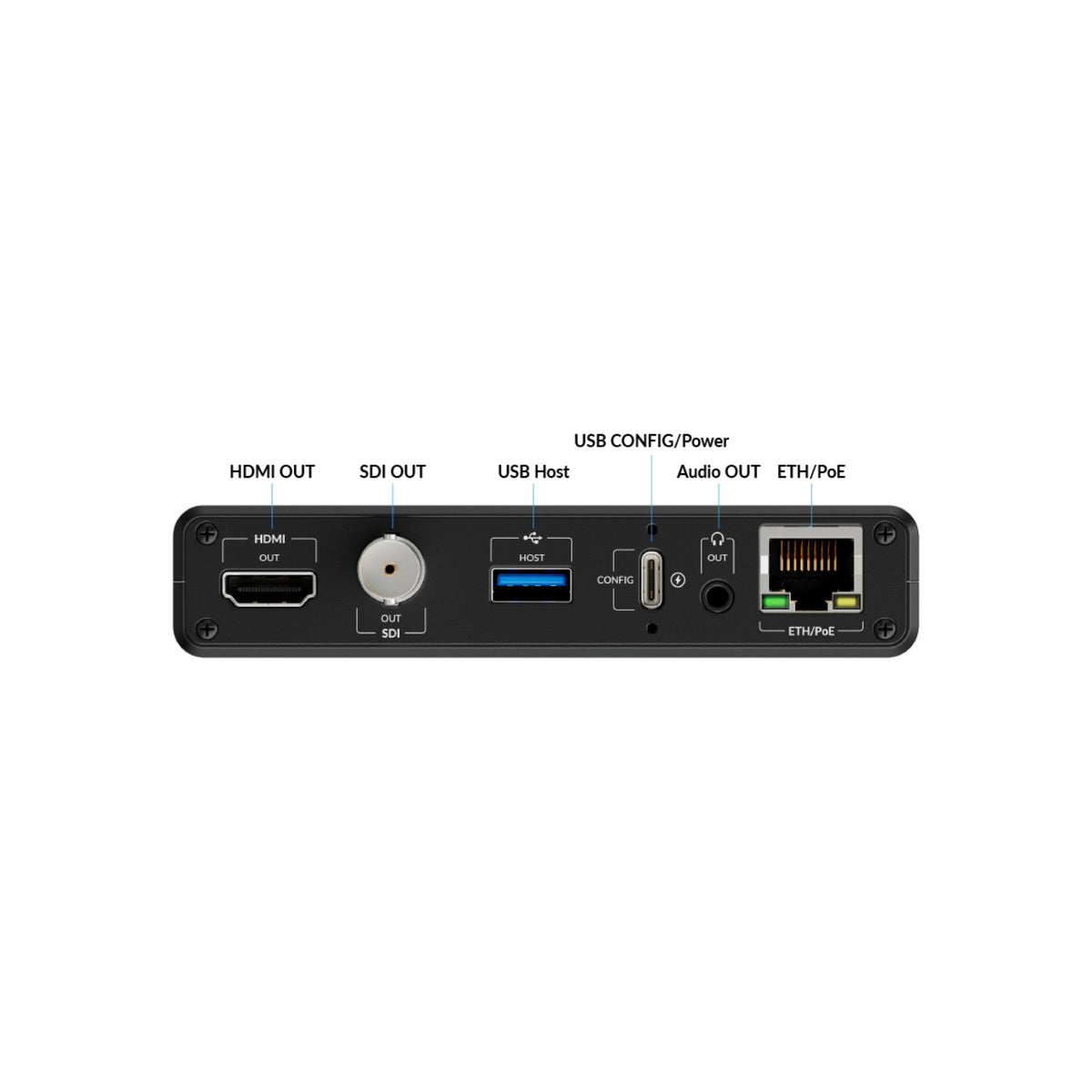

The NDI to HDMI and SDI decoder connects IP-based media networks directly to professional baseband equipment. HDMI 2.0 and SD, HD, 3G, 6G, and 12G-SDI outputs support display, routing, monitoring, and production systems. Gigabit Ethernet provides the IP connection and IEEE 802.3at PoE+ support, while USB Type-C provides power and USB NET connectivity.
4K60 IP Video Decoding
4K60 IP video decoding supports one H.264, H.265, SpeedHQ, or MPEG2 source at resolutions up to 4096 × 2160p60. Single View delivers the selected network source as a full-screen HDMI and SDI output for broadcast monitoring, presentation, and professional AV systems.
NDI HX2 HX3 and SRT Decoder
NDI HX3 and SRT decoding integrates the unit with modern IP production and contribution systems. Single View supports NDI High Bandwidth, NDI HX2, NDI HX3, MPEG-TS over RTP, UDP, SRT and RIST, plus RTMP, RTSP, HLS, HTTP, and ZIXI. Magewell also specifies NDI 6.3 support.
HDMI 2.0 and 12G-SDI Output
4K HDMI and 12G-SDI output gives the decoder direct access to professional displays, routers, switchers, and monitoring systems. HDMI reaches 4096 × 2160 60fps at 4:4:4 8-bit or 4:2:2 12-bit transport, while SDI reaches 4096 × 2160 60fps at 4:2:2 10-bit.
Two-Stream Picture-in-Picture Decoding
Picture-in-Picture decoding combines two compatible network sources at resolutions up to 1920 × 1080p60. Supported formats include H.264, H.265, SpeedHQ, and MPEG2. A maximum of one NDI High Bandwidth or one MPEG2 source can be decoded within the two-stream layout.
Four-Stream Quad View Decoder
Quad View decoding combines up to four H.264 or H.265 IP sources into one output layout. Supported streams can reach 1920 × 1080p60 and include NDI HX2, NDI HX3, SRT, RIST, RTMP, RTSP, HLS, HTTP, and ZIXI workflows. This provides compact multiview monitoring without a separate multiviewer.
HDR PoE+ and Remote Management
HDR PQ and HLG are supported across compatible HDMI and SDI workflows, with HDR metadata carried through the SDI ANC path. IEEE 802.3at PoE+ simplifies installation over Gigabit Ethernet. Web UI, Magewell Control Hub, Zixi ZEN Master, and HTTP APIs provide local and centralized management options.
Broadcast Production
Decode network contribution and production feeds directly to HDMI or professional 12G-SDI infrastructure.
Live Production
Bring NDI, SRT, RIST, and other network sources into switchers, displays, and monitoring systems.
AV over IP
Connect IP-based video distribution networks with existing HDMI and SDI presentation equipment.
Multiview Monitoring
Monitor two sources in Picture-in-Picture or up to four sources with the built-in Quad View layout.
| Specification | Detail |
|---|---|
| Product | Pro Convert IP to AIO 4K |
| SKU | 644000000 |
| Part Number | 64400 |
| Product Type | IP Video Decoder |
| Single View Channels | 1 |
| Single View Resolution | Up to 4096 × 2160p60 |
| Single View Formats | H.264, H.265, SpeedHQ, MPEG2 |
| Single View Protocols | NDI High Bandwidth, NDI HX2, NDI HX3, MPEG-TS over RTP, UDP, SRT and RIST, RTMP, RTSP, HLS, HTTP, ZIXI |
| Picture-in-Picture Channels | 2 |
| Picture-in-Picture Resolution | Up to 1920 × 1080p60 |
| Picture-in-Picture Formats | H.264, H.265, SpeedHQ, MPEG2 |
| Picture-in-Picture Limitation | Maximum one NDI High Bandwidth or one MPEG2 source |
| Quad View Channels | 4 |
| Quad View Resolution | Up to 1920 × 1080p60 |
| Quad View Formats | H.264, H.265 |
| Quad View Protocols | NDI HX2, NDI HX3, MPEG-TS over RTP, UDP, SRT and RIST, RTMP, RTSP, HLS, HTTP, ZIXI |
| NDI Support | NDI High Bandwidth, NDI HX2, NDI HX3 |
| NDI Version | NDI 6.3 |
| Audio Decoding | AAC, MP3, AC3, Opus, G.711 |
| HDMI Interface | HDMI 2.0 |
| Maximum HDMI Output | 4096 × 2160 60fps 4:4:4 8-bit or 4096 × 2160 60fps 4:2:2 12-bit transport |
| HDMI Color Space | BT.601, BT.709, BT.2020 |
| HDMI HDR | PQ and HLG |
| HDMI Audio Output | 48/96 kHz, 8-channel |
| SDI Output Interface | SD, HD, 3G, 6G, and 12G-SDI |
| Maximum SDI Output | 4096 × 2160 60fps 4:2:2 10-bit |
| SDI Audio Output | 48 kHz, 8-channel |
| SDI Closed Caption | CEA-608 and CEA-708 embedded CEA-608 support |
| SDI HDR | PQ and HLG through ANC metadata |
| Analog Audio | 1 × 3.5 mm line output |
| Network Interface | 10/100/1000 Mbps Ethernet |
| PoE | IEEE 802.3at PoE+ |
| USB Type-C | 12V 20W power input and USB NET |
| USB Type-A | Keyboard and mouse support |
| Remote Management | Magewell Control Hub and Zixi ZEN Master |
| Web Management | Web UI with output preview and PTZ control |
| Browser Support | Edge, Firefox, Chrome, Safari, Opera |
| API | HTTP APIs |

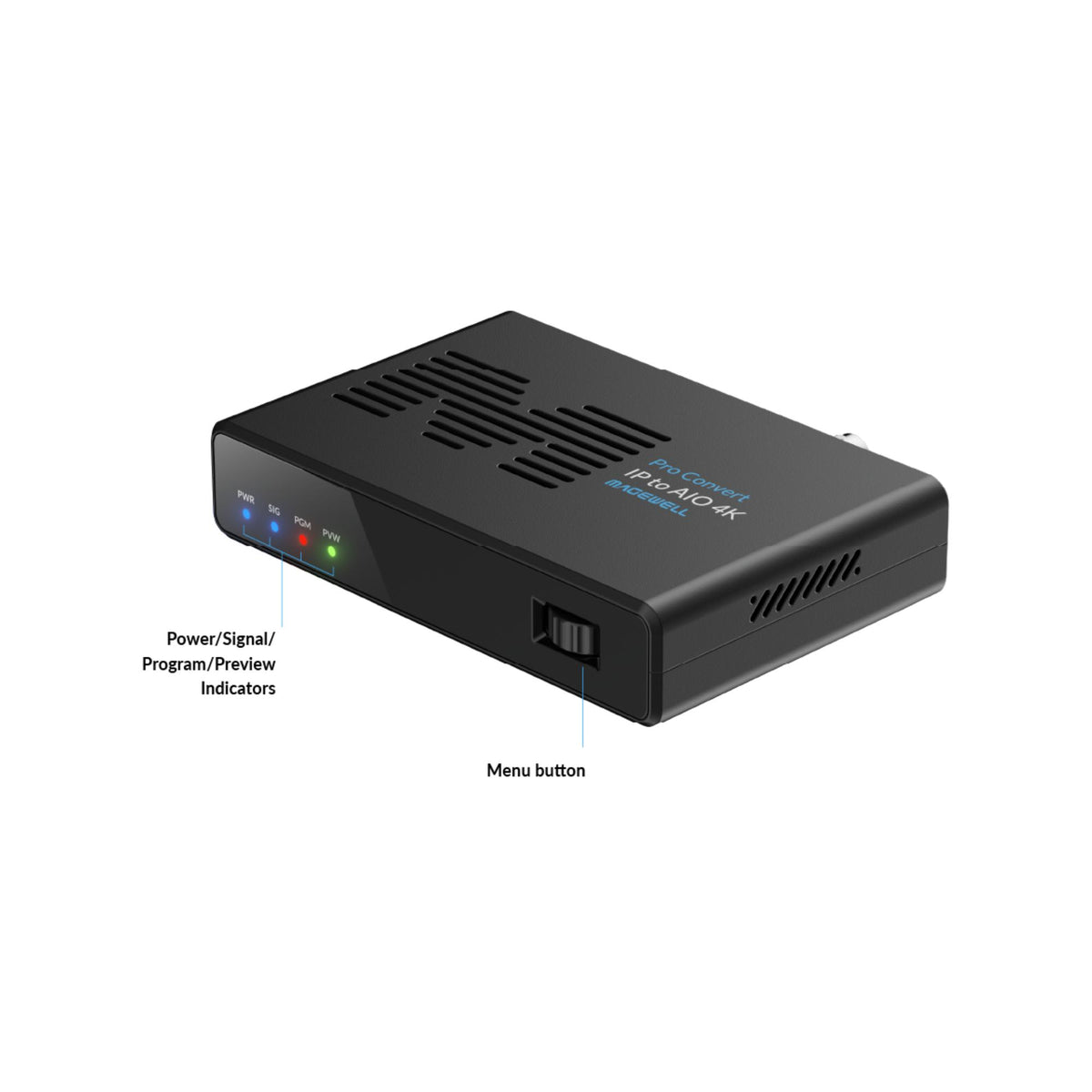

| Tally | Program PGM and Preview PVW indicators |
| Dimensions | 4.72 × 3.12 × 0.96 in / 120 × 79.3 × 24.5 mm |
| Maximum Power Consumption | Approximately 15.1W |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| In the Box | Pro Convert IP to AIO 4K × 1 · Universal Power Adapter × 1 · USB Type-C to Type-C Cable × 1 · USB Type-C to Type-A Cable × 1 · Fishtale Bracket × 1 · Bracket Fasteners × 1 · M4 × 12 Black Screws × 2 · M4 Black Nuts × 2 |
What does Magewell Pro Convert IP to AIO 4K do?
It decodes compatible network video streams and converts them into professional HDMI and SDI outputs. It is designed for NDI, SRT, RIST, H.264, H.265, and other IP video workflows used in broadcast, production, presentation, and monitoring.
Does the 4K IP decoder support 60 fps?
Yes. Single View supports one decoded source at up to 4096 × 2160p60. Both HDMI and 12G-SDI outputs can also operate at up to 4096 × 2160 60fps.
Which NDI formats does the decoder support?
Single View supports NDI High Bandwidth, NDI HX2, and NDI HX3. Magewell currently specifies support for NDI 6.3.
Can it decode SRT video to SDI?
Yes. MPEG-TS over SRT can be decoded and output through the device's SDI or HDMI connections. RIST, RTP, UDP, RTMP, RTSP, HLS, HTTP, and ZIXI are also supported.
Can it display multiple IP sources?
Yes. Picture-in-Picture supports two compatible sources, while Quad View combines up to four H.264 or H.265 streams. Single View is available for one full-screen 4K60 source.
Does the HDMI and SDI decoder support HDR?
Yes. HDR PQ and HLG are supported. For SDI output, HDR information is carried through ANC metadata.
Can the 4K NDI decoder use PoE+?
Yes. The Gigabit Ethernet interface supports IEEE 802.3at PoE+. The decoder can also receive 12V power through its USB Type-C connection.
Deploy Magewell Pro Convert IP to AIO 4K
Coremicro is an authorized Magewell dealer for professional NDI decoders, 4K IP video, 12G-SDI systems, broadcast monitoring, live production, and AV-over-IP workflows. Contact our team to confirm protocol, output, multiview, HDR, and network requirements for your installation.
Talk to a SpecialistSpecifications
