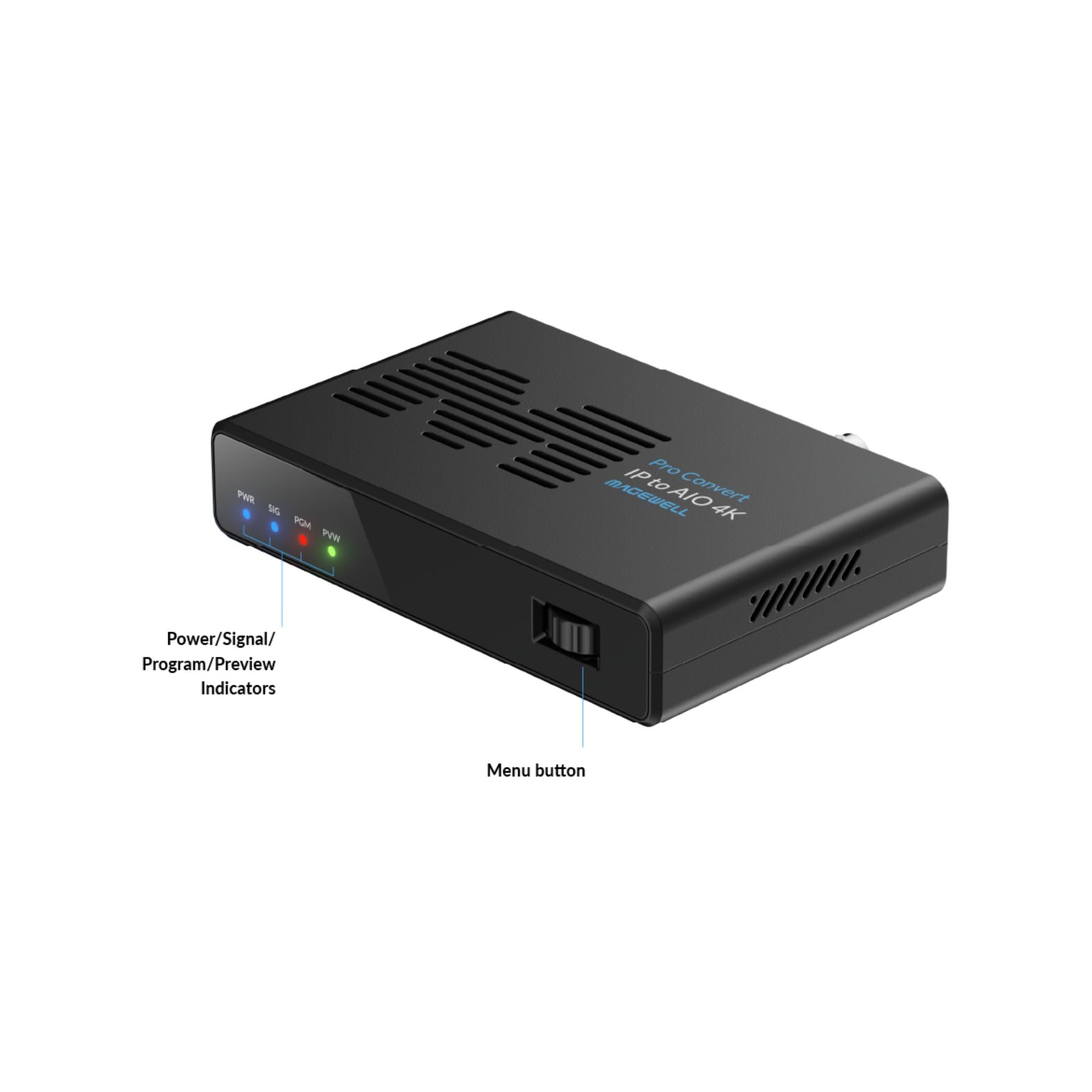

Magewell Pro Convert IP to AIO 4K

Magewell Pro Convert IP to AIO 4K is built for situations where IP video needs to land on conventional HDMI or SDI equipment. It can decode as many as four network streams and turn them into a single 4Kp60 output, giving engineers a straightforward bridge between IP-based media networks and baseband presentation, monitoring, or distribution gear.

The decoder supports single-view, picture-in-picture, and quad-view layouts, so one box can cover anything from a single 4K feed to four HD sources on the same output. It works with NDI High Bandwidth, NDI HX2, NDI HX3, MPEG-TS, SRT, RIST, RTMP, RTSP, HLS, HTTP, and Zixi, while HDMI 2.0 and SDI provide the physical outputs.

Highlights

• Up to 4 IP streams – decodes multiple sources into one HDMI and SDI output
• Single-view up to 4Kp60 – handles resolutions up to 4096 × 2160 at 60 fps
• PIP and quad-view layouts – supports two-channel picture-in-picture and four-channel multiview
• HDMI 2.0 and 12G-SDI outputs – connects IP sources to professional display and baseband equipment
• HDR PQ/HLG support – works with supported high-dynamic-range video
• Remote management – supports Magewell Control Hub, Zixi ZEN Master, and Web UI tools

Quick Specs & Uses

• Product type: Multi-stream IP-to-HDMI/SDI 4K decoder
• Single-view decoding: 1 channel up to 4096 × 2160p60
• Picture-in-picture decoding: 2 channels up to 1920 × 1080p60
• Quad-view decoding: 4 channels up to 1920 × 1080p60
• Supported protocols: NDI High Bandwidth, NDI HX2, NDI HX3, MPEG-TS over RTP/UDP/SRT/RIST, RTMP, RTSP, HLS, HTTP, Zixi
• Video decoding: H.264, H.265, SpeedHQ, MPEG2
• Audio decoding: AAC, MP3, AC3, Opus, G.711
• NDI version: NDI 6.3
• HDMI maximum output: 4096 × 2160 at 60 fps, 4:4:4 8-bit or 4:2:2 12-bit
• SDI maximum output: 4096 × 2160 at 60 fps, 4:2:2 10-bit
• Color spaces: BT.601, BT.709, BT.2020
• HDR support: PQ / HLG
• Audio output: 48 / 96 kHz, 8-channel

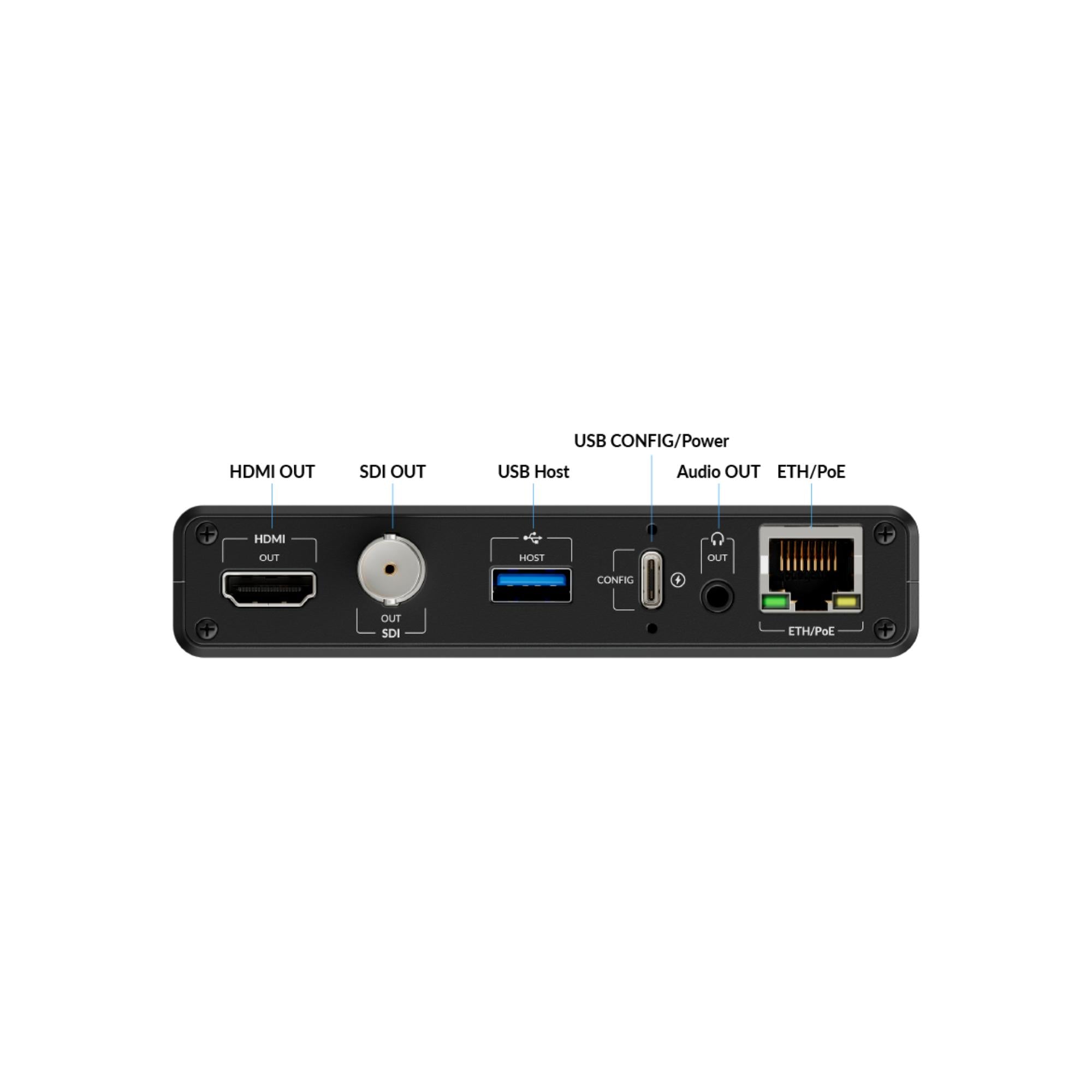

• HDMI interface: HDMI 2.0
• SDI interface: SD / HD / 3G / 6G / 12G-SDI
• Audio interface: 3.5 mm line output
• Network interface: 10/100/1000 Mbps Ethernet
• PoE support: IEEE 802.3at PoE+
• USB-C: USB 3.0 Type-C, 12V 20W power and USB NET
• USB-A: USB 3.0 Type-A for keyboard and mouse control
• Dimensions: 120 × 79.3 × 24.5 mm (4.72 × 3.12 × 0.96 in)
• Mounting holes: 6.5 mm diameter
• Maximum power consumption: Approximately 15.1 W
• Operating temperature: 0 to 40°C
• Storage temperature: -20 to 70°C
• Relative humidity: 5 to 90%, non-condensing

Why It Helps

IP video is easy to move around a network, but control rooms and display systems still rely heavily on HDMI and SDI. This decoder handles that handoff directly, so an engineer can bring network sources into existing monitors, routers, switchers, or presentation systems without rebuilding the rest of the signal chain.

The multiview modes are useful when one output needs to show more than one source. A single feed can run at full 4Kp60, two sources can share the screen in picture-in-picture, or four channels can be arranged in a quad view for compact confidence monitoring.

Once the unit is installed, management can stay remote. Control Hub, Zixi ZEN Master, and the built-in Web UI provide access to signal information, output settings, audio parameters, PTZ control, firmware, network configuration, and live output previews without requiring hands-on access to the device.

System Characteristics

• Four-stream decoding gives one device enough capacity for single, dual, or quad monitoring layouts
• 4Kp60 HDMI and SDI output supports modern high-resolution presentation and broadcast chains
• HDR PQ/HLG support keeps compatible high-dynamic-range workflows intact
• 12G-SDI support brings 4K IP sources into professional SDI infrastructure
• Remote centralized management helps engineers manage the unit without visiting the installation point
• USB-C and PoE+ powering gives installers more flexibility around racks, displays, and production desks

What's In The Box

• 1 x Magewell Pro Convert IP to AIO 4K
• 1 x Universal Power Adapter
• 1 x USB Type-C to Type-C Cable
• 1 x USB Type-C to Type-A Cable
• 1 x Fishtail Bracket
• 1 x Bracket Fastener
• 2 x M4 × 12 Black Screws
• 2 x M4 Black Nuts
