Product Highlights
- 4K60 HDMI video input support
- NDI High Bandwidth video encoding
- HDMI input with loop-through output
- Hot-swappable Modator chassis module
Magewell Pro Convert HDMI Plus Module 4K HDMI Input NDI High Bandwidth Encoder
- SKU:
- MAG-B40210000
- MPN:
- B40210000
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
Magewell Pro Convert HDMI Plus Module is a hot-swappable HDMI-to-NDI encoder for Magewell Modator systems. It accepts HDMI sources up to 4096 × 2160 at 60fps in 4:2:0 or 30fps in 4:4:4 and 4:2:2, provides HDMI loop-through, and converts the incoming signal to NDI High Bandwidth for network distribution. Centralized management through the Modator chassis, Web UI, Control Hub, and HTTP APIs supports broadcast, live production, AV-over-IP, corporate AV, and high-density rack workflows.
4K HDMI Input for NDI Encoding
The HDMI input accepts signals up to 4096 × 2160 at 60fps with 4:2:0 sampling or 30fps with 4:4:4 and 4:2:2 sampling. Custom EDID configuration provides additional flexibility when integrating computers, cameras, switchers, and other HDMI sources.
NDI High Bandwidth Video Encoding
Real-time NDI High Bandwidth encoding converts the HDMI source for professional IP video distribution. Encoding supports 4:2:2 8-bit video with source-matched or custom output resolutions and selectable output frame-rate ratios.
HDMI Input with Local Loop-Through
HDMI loop-through allows the source to remain connected to a local monitor, router, or downstream device while the same signal is encoded for the network. The loop output supports the same maximum input formats, including 4K60 at 4:2:0.
Hot-Swappable Modator Chassis Module

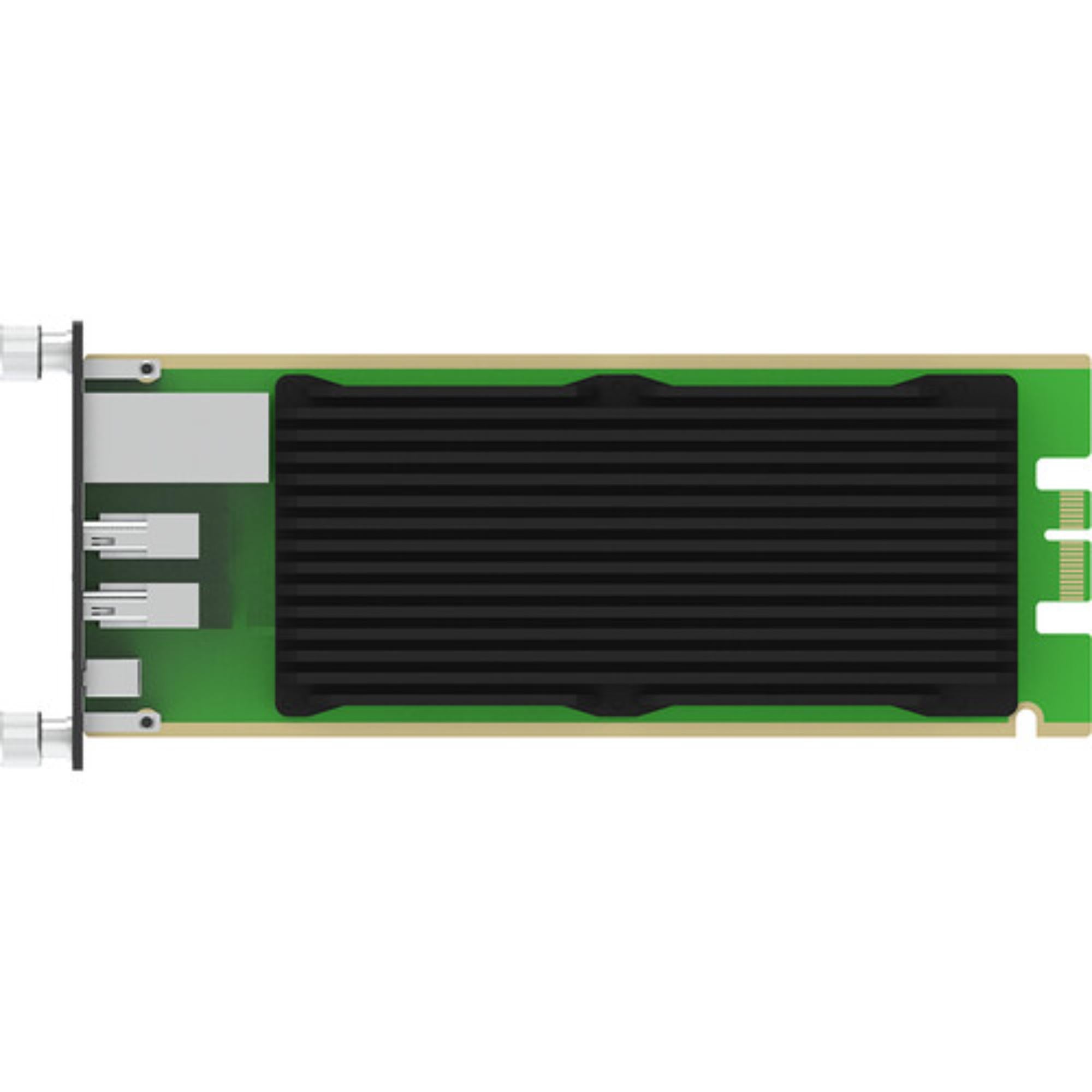

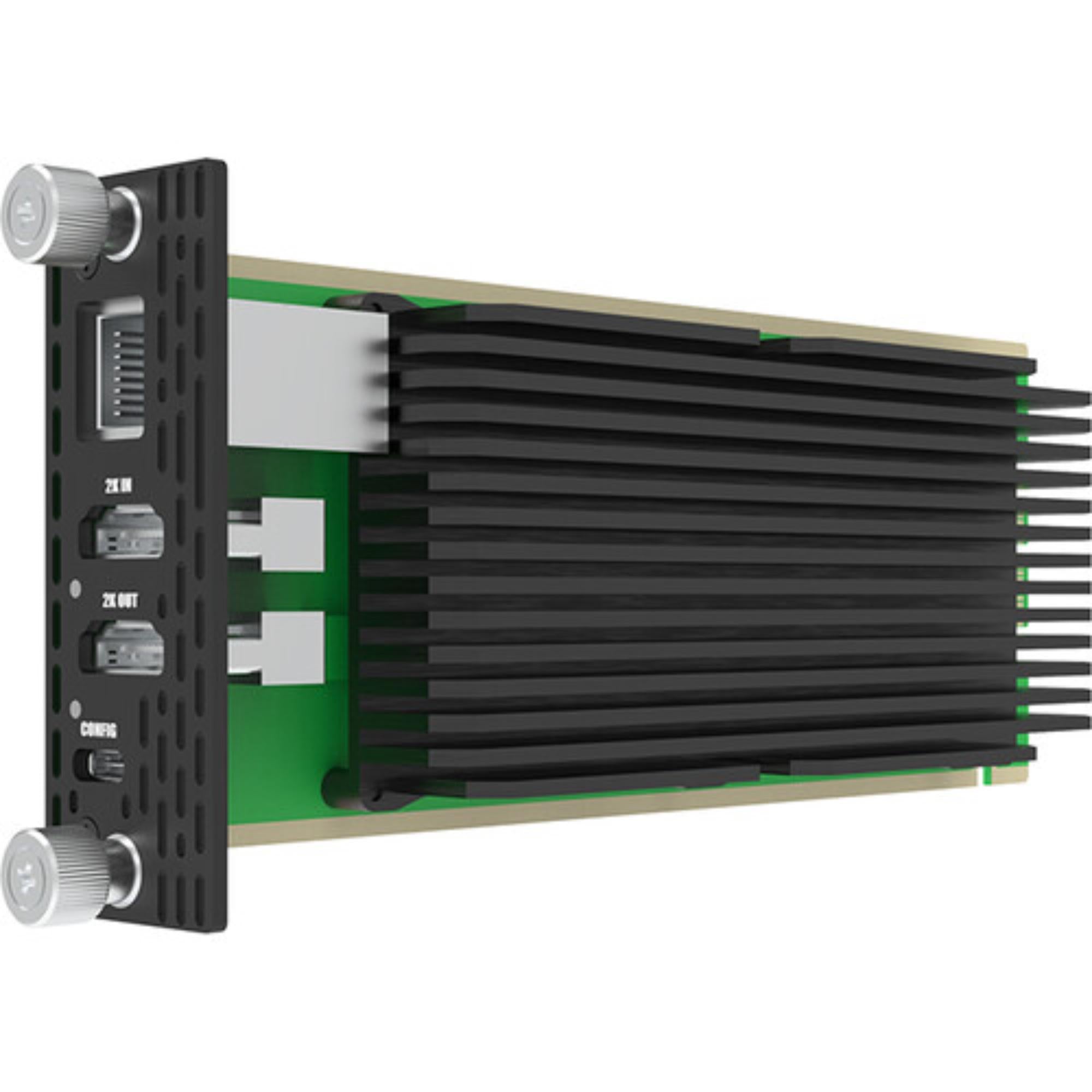

The encoder installs directly into a Magewell Modator 2U chassis using the dedicated module interface. Hot-swappable architecture simplifies service and channel expansion while supporting higher-density rack installations with centralized power and management.
Custom EDID Scaling and Frame Rate
Custom EDID settings allow the encoder to accommodate different HDMI source formats. NDI output can use the source resolution or a custom resolution, while output frame rate can match the original or operate at one-half, one-third, or one-quarter of the input frame rate.
Control Hub Web UI and HTTP API
Configure and monitor the module through the Modator chassis, Web UI, or Magewell Control Hub. HTTP APIs support custom control-system integration, while real-time source and device information helps engineering teams manage larger deployments from a centralized location.
HDMI Input Loop-Through and Gigabit Ethernet
Dedicated HDMI input and output provide source connection and local loop-through, while Gigabit Ethernet carries the resulting NDI High Bandwidth stream onto the IP network.

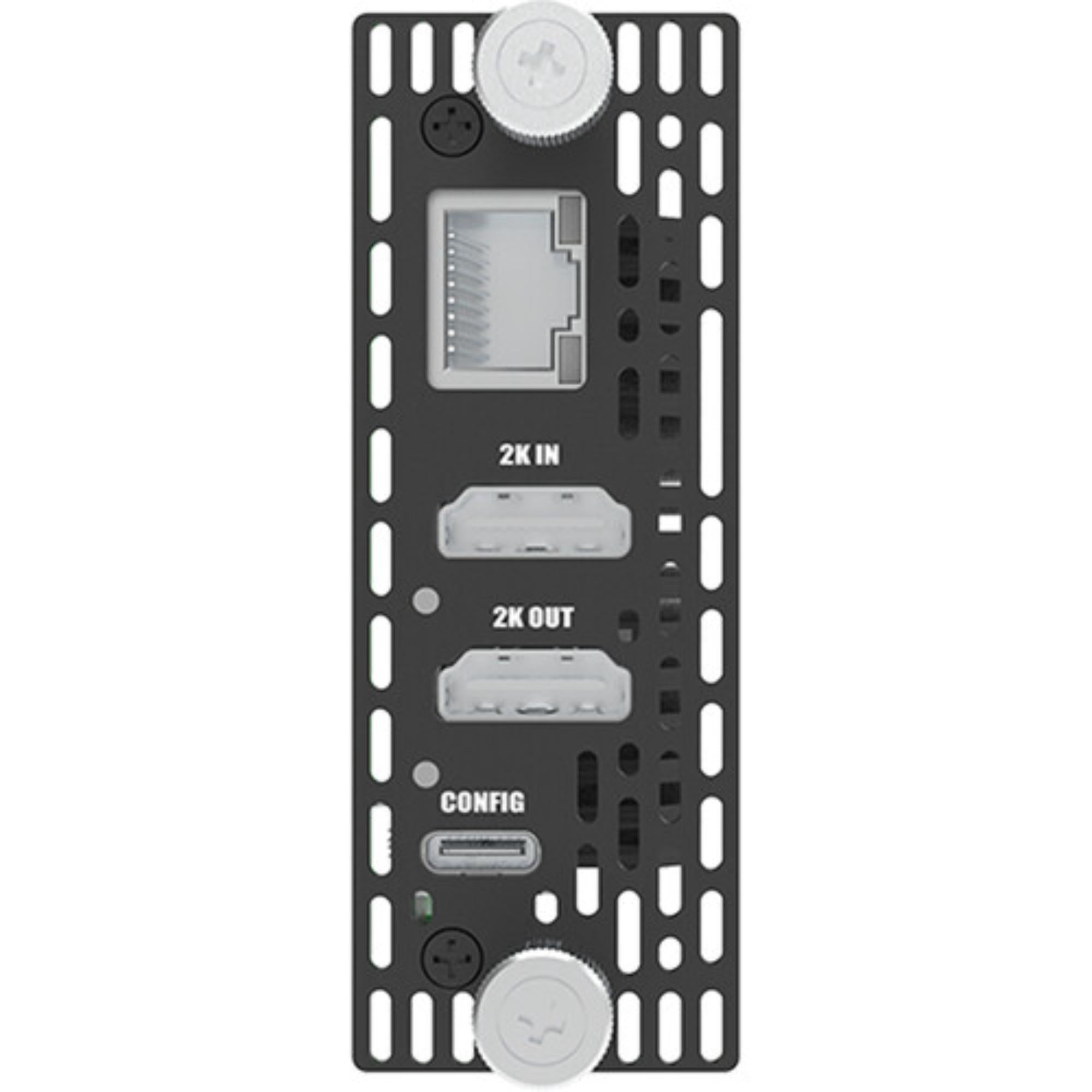

A USB Type-C configuration port provides direct management access. The rear Modator interface connects the encoder to the Modator 2U chassis and enables hot-swappable installation within a modular rack-based system.
Broadcast Facilities
Convert HDMI sources into NDI for centralized routing, monitoring, production, and facility-wide distribution.
Live Production
Bring cameras, switcher outputs, and other HDMI sources onto NDI production networks.
AV over IP
Distribute HDMI content across managed Gigabit Ethernet networks using NDI High Bandwidth.
Corporate AV
Connect presentation computers and HDMI systems to network-based video infrastructure.
Systems Integrators
Build centrally managed HDMI-to-NDI systems with Web UI, Control Hub, and HTTP API integration.
High-Density Racks
Add modular NDI encoding channels where rack space, centralized management, and serviceability matter.
Magewell Support
Coremicro can help confirm Magewell Modator chassis compatibility, HDMI source formats, NDI network requirements, EDID configuration, loop-through workflows, Control Hub deployment, and API integration when building professional broadcast, AV-over-IP, corporate AV, live production, and high-density NDI encoding systems.
| Specification | Detail |
|---|---|
| Product Name | Pro Convert HDMI Plus Module |
| SKU | B40210000 |
| Part Number | B4021 |
| Product Type | HDMI to NDI High Bandwidth Encoder Module |
| Chassis Compatibility | Magewell Modator 2U |
| Module Installation | Hot-swappable |
| Ethernet | 1 × RJ45 1000 Mbps Ethernet |
| Configuration Port | 1 × USB Type-C |
| HDMI Input | 1 × HDMI 1.4 |
| HDMI Loop-Through | 1 × HDMI 1.4 |
| Modator Interface | 1 × hot-swappable Modator 2U interface |
| Maximum HDMI Input | 4096 × 2160 60fps 4:2:0 |
| 4K 4:4:4 / 4:2:2 Input | Up to 4096 × 2160 30fps |
| Maximum HDMI Loop-Through | 4096 × 2160 60fps 4:2:0 |
| Input Color Formats | RGB · YUV BT.601 · YUV BT.709 |
| HDMI Audio Input | 8-channel embedded audio |
| Input EDID | Customizable |
| Network Video Output | NDI High Bandwidth |
| Maximum NDI Encoding | Up to 2048 × 2160 120fps · 4:2:2 · 8-bit |
| NDI Version | NDI 6.2 |
| NDI Audio | 8-channel embedded audio |
| NDI Resolution Control | Same as source or custom output resolution |
| NDI Frame Rate Control | Original · 1/2 · 1/3 · 1/4 of input frame rate |
| Typical 1080p NDI Outputs | 2048 × 1080p / 1920 × 1080p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 |
| Typical 720p NDI Outputs | 1280 × 720p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 100 / 119.88 / 120 |
| Interlaced NDI Output | 1920 × 1080i at 25 / 29.97 / 30 / 50 / 59.94 / 60 |
| Remote Management | Modator chassis · Web UI · Magewell Control Hub |
| Web UI Controls | Encoding · Deinterlacing · EDID · Up/down scaling · Frame rate · Aspect ratio · Network configuration |
| USB Networking | RNDIS / ECM |
| API | HTTP APIs |
| Web Browser Support | Edge · Firefox · Chrome · Safari · Opera |
| Input Status Indicator | LED indicates locked or unlocked HDMI input |
| Loop-Through Status Indicator | LED indicates connected device and detected signal |
| Dimensions | 184.4 × 30.0 × 81.5 mm |
| Weight | Approximately 295 g |
| Maximum Power Consumption | 6.2W |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Manufacturer Warranty | 2 years |
| In the Box | Pro Convert HDMI Plus Module × 1 |
What does Magewell Pro Convert HDMI Plus Module do?
It converts a compatible HDMI source into an NDI High Bandwidth stream for distribution over an IP network. It also provides HDMI loop-through for local monitoring and installs in a Magewell Modator 2U chassis.
Does the HDMI to NDI encoder accept 4K60?
Yes. HDMI input and loop-through support up to 4096 × 2160 at 60fps with 4:2:0 sampling. At 4:4:4 or 4:2:2 sampling, the maximum 4K frame rate is 30fps.
Does the module output 4K60 NDI?
The 4K60 specification applies to HDMI input and loop-through at 4:2:0. NDI High Bandwidth encoding has separate output parameters and supports custom scaling and frame-rate conversion, so the product should not be described simply as a native 4K60 NDI encoder.
Does Pro Convert HDMI Plus Module provide HDMI loop-through?
Yes. The incoming HDMI signal can be passed through to a local display or downstream HDMI device while the source is encoded for NDI distribution.
Can the HDMI input EDID be customized?
Yes. The HDMI input supports custom EDID configuration, allowing the module to accommodate different source formats and system requirements.
Does the module work without a Magewell Modator chassis?
No. This version is a hot-swappable module designed for installation in the Magewell Modator 2U chassis rather than operation as a standalone desktop encoder.
Can multiple HDMI to NDI modules be managed centrally?
Yes. Modules can be configured through the Modator chassis and Web UI, while Magewell Control Hub provides centralized management. HTTP APIs are also available for integration with custom control systems.
Build a Scalable HDMI to NDI Encoding System
Coremicro is an authorized Magewell dealer supporting professional NDI encoding, Modator systems, broadcast production, AV-over-IP, corporate AV, and high-density network video deployments. Contact our team to confirm chassis configuration, module count, HDMI source formats, NDI network requirements, and integration with your existing infrastructure.
