Product Highlights
- 4K60 HDMI 2.0 video input
- 4K60 NDI High Bandwidth encoding
- HDMI 2.0 loop-through output
- Hot-swappable Modator chassis module
Magewell Pro Convert HDMI 4K Plus Module 4K60 NDI High Bandwidth Encoder
- SKU:
- MAG-B40110000
- MPN:
- B40110000
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
Magewell Pro Convert HDMI 4K Plus Module is a hot-swappable 4K HDMI-to-NDI encoder for Magewell Modator systems. It accepts HDMI 2.0 signals up to 4096 × 2160 at 60fps with 4:4:4 8-bit sampling, provides full-resolution HDMI loop-through, and encodes NDI High Bandwidth streams up to 4K60 or 1080p240. Centralized management through the Modator chassis, Web UI, Magewell Control Hub, and HTTP APIs supports broadcast, live production, AV-over-IP, corporate AV, and high-density network video deployments.
4K60 HDMI 2.0 Video Input
HDMI 2.0 input accepts signals up to 4096 × 2160 at 60fps with 4:4:4 8-bit sampling. RGB and YUV BT.601, BT.709, and BT.2020 signals are supported, giving the encoder flexibility with cameras, computers, switchers, and other professional HDMI sources.
Native 4K60 NDI High Bandwidth Encoding
NDI High Bandwidth encoding reaches 4096 × 2160 at 60fps with 4:2:2 8-bit sampling. Unlike the HD-oriented HDMI Plus Module, this 4K model preserves a full 4K60 workflow from HDMI input through network encoding for professional IP production and distribution.
4K60 HDMI Loop-Through Output
HDMI 2.0 loop-through supports the same maximum 4096 × 2160 60fps 4:4:4 8-bit signal as the input. A local monitor or downstream HDMI device can remain connected while the same source is encoded and distributed across the NDI network.

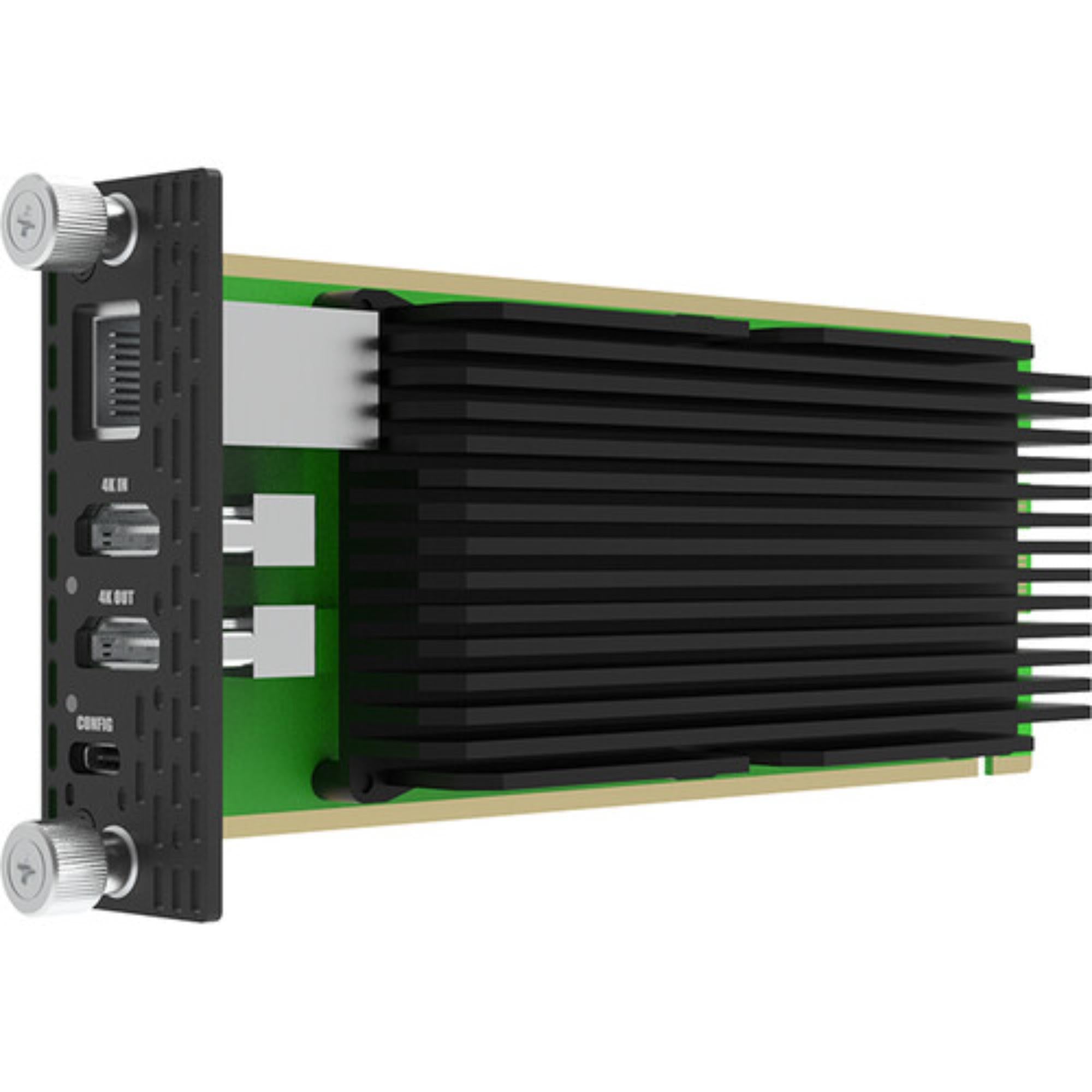

Hot-Swappable Modator Chassis Module

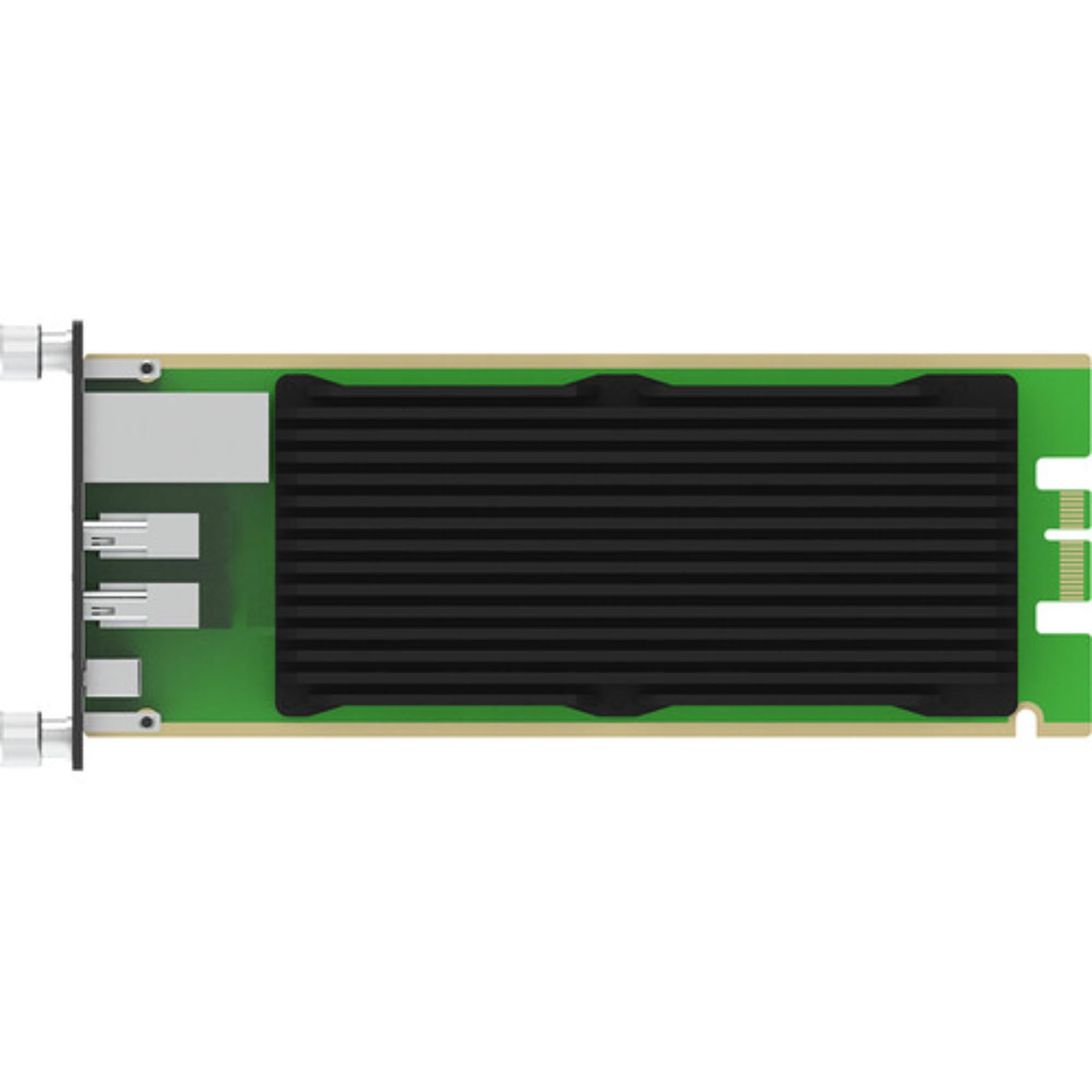

The encoder installs directly into the Magewell Modator 2U chassis through its dedicated module interface. Hot-swappable architecture simplifies expansion and servicing while allowing multiple encoder channels to share centralized rack space, system management, and infrastructure.
1080p240 and Custom NDI Output
High-frame-rate NDI encoding supports up to 1920 × 1080 at 240fps with 4:2:2 8-bit sampling. Output can use the source resolution or a custom resolution, while frame rate can match the input or operate at one-half, one-third, or one-quarter of the source rate.
Control Hub Web UI and HTTP API
Configure and monitor the encoder through the Modator chassis, Web UI, or Magewell Control Hub. HTTP APIs support third-party control integration, while remote access provides real-time device and signal information for centralized engineering and system administration.

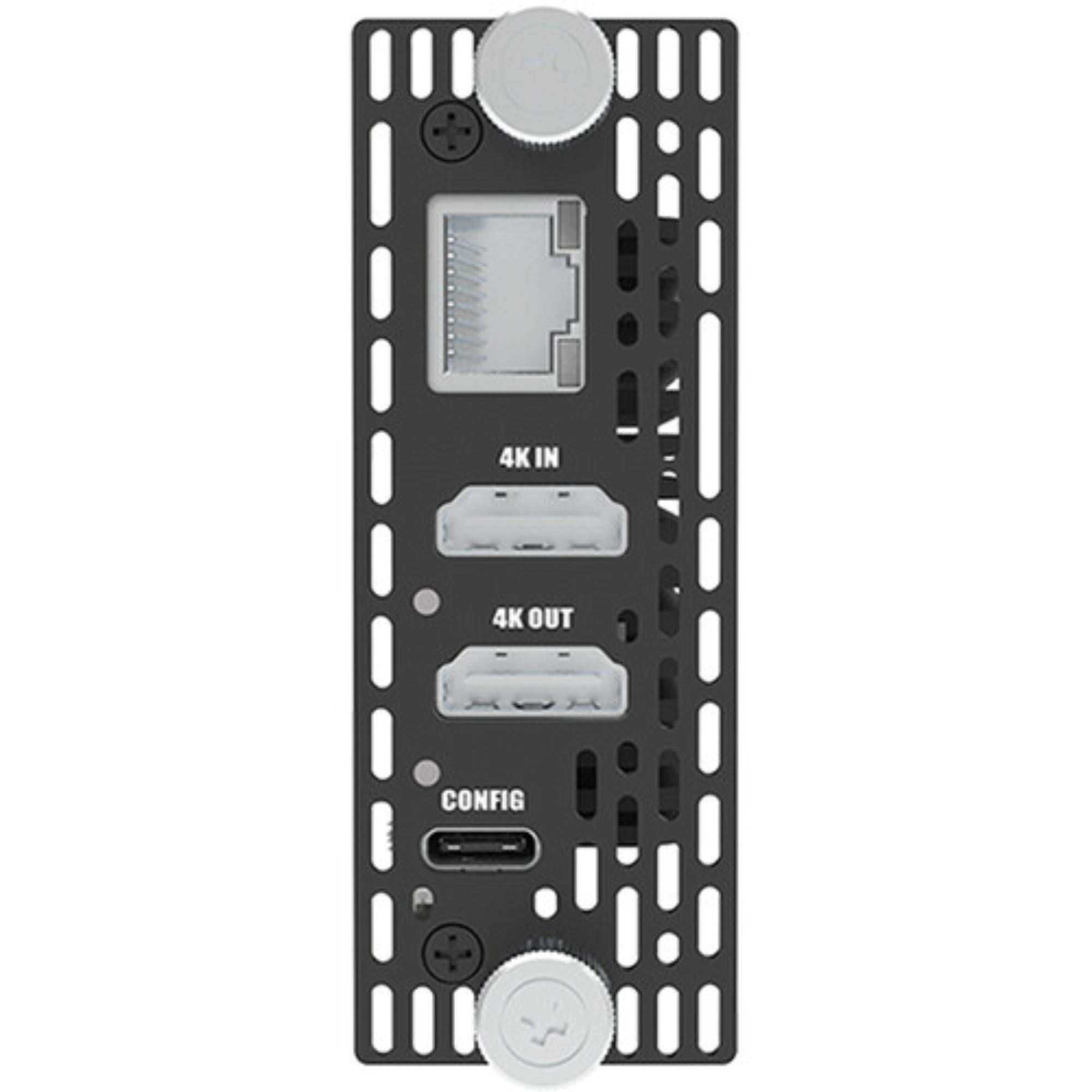

HDMI 2.0 Input Loop-Through and Gigabit Ethernet
HDMI 2.0 input and loop-through provide direct connection for professional 4K source equipment and local monitoring. Gigabit Ethernet carries the resulting NDI High Bandwidth stream to the IP network.
USB Type-C provides direct configuration access, while the dedicated rear Modator interface connects the module to the Modator 2U chassis and enables hot-swappable installation within a scalable rack-based system.
Broadcast Facilities
Move 4K HDMI sources onto NDI infrastructure for facility-wide production, routing, monitoring, and distribution.
Live Production
Convert cameras, switcher outputs, graphics systems, and other HDMI sources into high-bandwidth NDI feeds.
AV over IP
Distribute high-resolution HDMI video across managed Ethernet networks using NDI High Bandwidth.
High Frame Rate Production
Support workflows requiring high-frame-rate network encoding at resolutions up to 1920 × 1080p240.
Systems Integrators
Build centrally managed HDMI-to-NDI systems with Web UI, Control Hub, EDID control, and HTTP API integration.
High-Density Racks
Add modular 4K NDI encoding channels where rack density, centralized management, and serviceability matter.
Magewell Support
Coremicro can help confirm Magewell Modator chassis compatibility, 4K HDMI source formats, NDI network requirements, custom EDID settings, high-frame-rate encoding, loop-through workflows, Control Hub deployment, and HTTP API integration when building professional broadcast, AV-over-IP, live production, corporate AV, or high-density NDI systems.
| Specification | Detail |
|---|---|
| Product Name | Pro Convert HDMI 4K Plus Module |
| SKU | B40110000 |
| Part Number | B4011 |
| Product Type | 4K HDMI to NDI High Bandwidth Encoder Module |
| Chassis Compatibility | Magewell Modator 2U |
| Module Installation | Hot-swappable |
| Ethernet | 1 × RJ45 1000 Mbps Ethernet |
| Configuration Port | 1 × USB Type-C |
| HDMI Input | 1 × HDMI 2.0 |
| HDMI Loop-Through | 1 × HDMI 2.0 |
| Modator Interface | 1 × Modator 2U hot-swappable interface |
| Maximum HDMI Input | 4096 × 2160 60fps · 4:4:4 · 8-bit |
| Maximum HDMI Loop-Through | 4096 × 2160 60fps · 4:4:4 · 8-bit |
| HDMI Video Formats | RGB · YUV BT.601 · BT.709 · BT.2020 |
| HDMI Audio | 8-channel embedded audio |
| Input EDID | Customizable |
| Network Video Output | NDI High Bandwidth |
| Maximum 4K NDI Encoding | 4096 × 2160 60fps · 4:2:2 · 8-bit |
| Maximum 1080p NDI Encoding | 1920 × 1080 240fps · 4:2:2 · 8-bit |
| NDI Version | NDI 6.2 |
| NDI Audio | 8-channel embedded audio |
| NDI Resolution Control | Same as source or custom output resolution |
| NDI Frame Rate Control | Original · 1/2 · 1/3 · 1/4 of input frame rate |
| 4K NDI Output Formats | 4096 × 2160p · 3840 × 2160p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 |
| 2K NDI Output | 2048 × 1080p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 |
| 1080p NDI Output Formats | 1920 × 1080p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 100 / 119.88 / 120 |
| 720p NDI Output Formats | 1280 × 720p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 100 / 119.88 / 120 |
| 1080i NDI Output | 1920 × 1080i at 25 / 29.97 / 30 / 50 / 59.94 / 60 |
| SD NDI Output | 720 × 480p/i up to 120 · 720 × 576p/i up to 100 |
| Remote Management | Modator chassis · Web UI · Magewell Control Hub |
| Web UI Controls | Encoding · Deinterlacing · EDID · Up/down scaling · Frame rate · Aspect ratio · Network configuration |
| USB Networking | RNDIS / ECM |
| API | HTTP APIs |
| Browser Support | Edge · Firefox · Chrome · Safari · Opera |
| Input Status Indicator | LED indicates locked or unlocked HDMI input |
| Loop-Through Status Indicator | LED indicates connected device and detected signal |
| Dimensions | 184.4 × 30.0 × 81.5 mm |
| Weight | Approximately 295 g |
| Maximum Power Consumption | 7W |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Manufacturer Warranty | 2 years |
| In the Box | Pro Convert HDMI 4K Plus Module × 1 |
What does Magewell Pro Convert HDMI 4K Plus Module do?
It converts a compatible HDMI source into an NDI High Bandwidth stream for professional IP video distribution. The module also provides HDMI loop-through and installs directly into a Magewell Modator 2U chassis.
Does the 4K HDMI to NDI encoder support 4K60?
Yes. HDMI input and loop-through support signals up to 4096 × 2160 at 60fps with 4:4:4 8-bit sampling.
Can it encode NDI at 4K60?
Yes. NDI High Bandwidth encoding supports up to 4096 × 2160 at 60fps with 4:2:2 8-bit sampling.
Does the module support high-frame-rate NDI encoding?
Yes. NDI encoding can reach 1920 × 1080 at 240fps with 4:2:2 8-bit sampling, making the module suitable for supported high-frame-rate production workflows.
Does Pro Convert HDMI 4K Plus Module provide HDMI loop-through?
Yes. A local HDMI device can receive the source through the HDMI 2.0 loop-through output while the same signal is encoded and distributed over the NDI network.
Can the HDMI input EDID be customized?
Yes. The module supports custom HDMI input EDID settings, providing control over how connected HDMI sources identify and negotiate supported video formats.
Does the module work without a Magewell Modator chassis?
No. This is a hot-swappable module designed specifically for installation in the Magewell Modator 2U chassis rather than use as a standalone encoder.
Can multiple 4K NDI encoder modules be managed centrally?
Yes. Modules can be managed through the Modator chassis and Web UI, while Magewell Control Hub provides centralized remote management. HTTP APIs are available for custom control-system integration.
Build a High-Density 4K HDMI to NDI System
Coremicro is an authorized Magewell dealer supporting professional 4K NDI encoding, Modator systems, broadcast production, AV-over-IP, live production, and high-density network video deployments. Contact our team to confirm chassis configuration, module count, HDMI source formats, NDI bandwidth requirements, and integration with your existing infrastructure.
