Product Highlights
- SD HD 3G 2K SDI capture
- SDI loop-through with embedded audio
- 10-bit hardware video processing
- Ultra-low-latency multi-stream capture

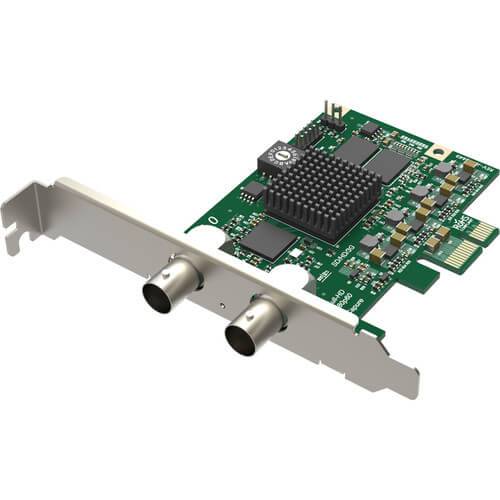

Magewell Pro Capture SDI One Channel HD PCIe 3G-SDI Capture Card
- SKU:
- MAG-11050
- MPN:
- 11050
Ships in 2-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
Magewell Pro Capture SDI is a one-channel PCIe capture card for SD, HD, 3G, and 2K SDI workflows. It captures professional SDI video with embedded audio while providing a dedicated SDI loop-through output for monitoring or downstream equipment. Full 10-bit processing, multi-stream capture, long-distance SDI equalization, and ultra-low-latency operation make it suitable for broadcast, streaming, recording, ingest, and professional video integration.
SD HD 3G and 2K SDI Capture
Capture SD-SDI, HD-SDI, and 3G-SDI signals through a dedicated BNC input with support for professional video formats up to 2048 × 1080. Supported 3G modes include Level A, Level B, dual-link mapping, and dual-stream configurations for flexible broadcast and production workflows.
Dedicated SDI Loop-Through Output
A second BNC connector provides SDI loop-through for sending the incoming signal to a local monitor, router, recorder, waveform display, or other downstream SDI device while the same source is captured by the workstation.
Full 10-Bit Hardware Video Processing
Two onboard processing pipelines provide approximately 180 Mpixels/s of processing bandwidth each. Hardware functions include cropping, scaling, deinterlacing, aspect-ratio conversion, color-space conversion, frame-rate conversion, color adjustment, and OSD composition.
Long-Distance SDI Cable Equalization
Integrated SDI equalization supports cable runs up to approximately 330 meters for SD-SDI, 190 meters for HD-SDI, and 150 meters for 3G-SDI. This helps the card integrate into control rooms, studios, venues, and other installations with longer professional SDI cable paths.
Ultra-Low-Latency Capture Pipeline
Ultra-low-latency capture is specified at 64 video lines, helping reduce delay between the incoming SDI signal and the capture application. This is valuable for interactive production, monitoring, visualization, and custom real-time processing systems.
Multiple Independent Capture Streams
Multiple capture streams can be generated from the single SDI input with independent processing settings. Resolution, frame rate, cropping, aspect ratio, deinterlacing, color format, and color adjustments can be configured separately for individual applications.
SDI Input Loop-Through and PCIe Gen2 x1
Two BNC connectors provide dedicated SDI input and loop-through connectivity. The input accepts SD, HD, 3G, and supported 2K formats with embedded audio, while the loop output passes the incoming SDI signal to downstream equipment.
The card connects to the host workstation through PCIe Gen2 x1. Its low-profile form factor supports compact systems while also fitting standard professional production and ingest workstations.
Broadcast Production
Capture professional SDI feeds from cameras, routers, switchers, and other broadcast equipment.
Live Streaming
Bring SDI camera or switcher outputs into compatible streaming and production applications.
Studio Ingest
Record SD, HD, 3G, and supported 2K SDI sources into professional workstation-based workflows.
Control Rooms
Capture SDI while maintaining loop-through connectivity for monitoring and downstream signal distribution.
Systems Integrators
Use Magewell capture APIs and standard operating-system interfaces in custom professional video systems.
Multi-Card Workstations
Install multiple compatible capture cards for higher-density SDI ingest configurations.
Magewell Support
Coremicro can help confirm SDI format compatibility, cable distance requirements, PCIe configuration, embedded audio, loop-through workflows, supported operating systems, capture software, driver configuration, and Magewell Capture SDK integration for broadcast, streaming, recording, monitoring, and custom video systems.
| Specification | Detail |
|---|---|
| Product Name | Pro Capture SDI |
| Part Number | 11050 |
| SKU | 110500000 |
| Product Type | One-Channel SDI PCIe Capture Card |
| Capture Channels | 1 |
| Host Interface | PCIe Gen2 x1 |
| SDI Input | 1 × BNC |
| SDI Loop-Through | 1 × BNC |
| Supported SDI Formats | SD-SDI · HD-SDI · 3Ga · 3Gb · 3Gb-DL · 3Gb-DS |
| Maximum SDI Input Resolution | 2048 × 1080 |
| Maximum SDI Loop-Through Resolution | 2048 × 1080 |
| SDI Color Depth | 10-bit · 12-bit input support |
| SDI Color Sampling | RGB 4:4:4 · YCbCr 4:4:4 · YCbCr 4:2:2 |
| SDI Embedded Audio | Up to 8 mono channels at 48kHz |
| SDI Payload Identification | SMPTE 352 payload extraction |
| Closed Caption | Supported through Magewell Capture SDK |
| Maximum SD-SDI Cable Distance | Up to approximately 330m |
| Maximum HD-SDI Cable Distance | Up to approximately 190m |
| Maximum 3G-SDI Cable Distance | Up to approximately 150m |
| Maximum Capture Resolution | Up to 2048 × 2160 |
| Maximum Capture Frame Rate | Up to 144fps depending on resolution, PCIe bandwidth, and processing limits |
| 1920 × 1080 Capture | Up to approximately 80fps |
| Capture Formats | 4:2:0 8-bit · 4:2:2 8-bit · 4:4:4 8-bit · 4:4:4 10-bit |
| Video Processing | Full 10-bit processing |
| Processing Pipelines | 2 pipelines at approximately 180 Mpixels/s each |
| Hardware Processing | Cropping · Scaling · Deinterlacing · Aspect-ratio conversion · Color-space conversion · Frame-rate conversion · OSD composition |
| Multiple Capture Streams | Unlimited streams from the single input channel |
| Independent Stream Settings | Cropping · Aspect ratio · Color format · Resolution · Frame rate · Deinterlacing · Color adjustment |
| Ultra-Low Latency | 64 video lines |
| Windows Support | DirectShow · DirectKS and compatible applications |
| Linux Support | V4L2 · ALSA |
| macOS Support | AVCaptureSession · AudioUnit |
| Compatible Software | OBS · vMix · VLC · XSplit · Wirecast · VidBlaster · VirtualDub and compatible applications |
| Form Factor | Low-profile PCIe x1 add-on card |
| Card Dimensions | 87.68 × 68.88 mm without PCI bracket |
| Maximum Power Consumption | Approximately 4.45W |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| In the Box | Pro Capture SDI × 1 · Low Profile Bracket × 1 |
What SDI formats can Magewell Pro Capture SDI capture?
It supports SD-SDI, HD-SDI, and 3G-SDI formats, including supported 2K signals up to 2048 × 1080.
Does Pro Capture SDI include SDI loop-through?
Yes. A dedicated BNC loop-through output passes the incoming SDI signal to a monitor, router, recorder, or other downstream SDI equipment while the signal is being captured.
Does the card capture embedded SDI audio?
Yes. The SDI input supports up to eight mono embedded-audio channels at 48kHz.
How far can an SDI source be from the capture card?
Magewell specifies cable equalization up to approximately 330 meters for SD-SDI, 190 meters for HD-SDI, and 150 meters for 3G-SDI under supported conditions.
Can one SDI input generate multiple capture streams?
Yes. Multiple streams can be generated from the single input channel with independent resolution, frame rate, cropping, aspect ratio, deinterlacing, color format, and color-adjustment settings.
Which operating systems are supported?
Magewell provides capture support for Windows, Linux, and macOS through native platform APIs and compatible third-party applications.
What is included with Pro Capture SDI?
The standard package includes one Pro Capture SDI card and one low-profile PCI bracket.
