Product Highlights
- Single-link 12G-SDI capture
- Dual-link 6G-SDI support
- Quad-link 3G-SDI support
- Capture up to 4096x2160
Magewell Pro Capture SDI 4K Plus 12G-SDI PCIe Capture Card
- SKU:
- MAG-11180
- MPN:
- 11180
Ships in 2-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview

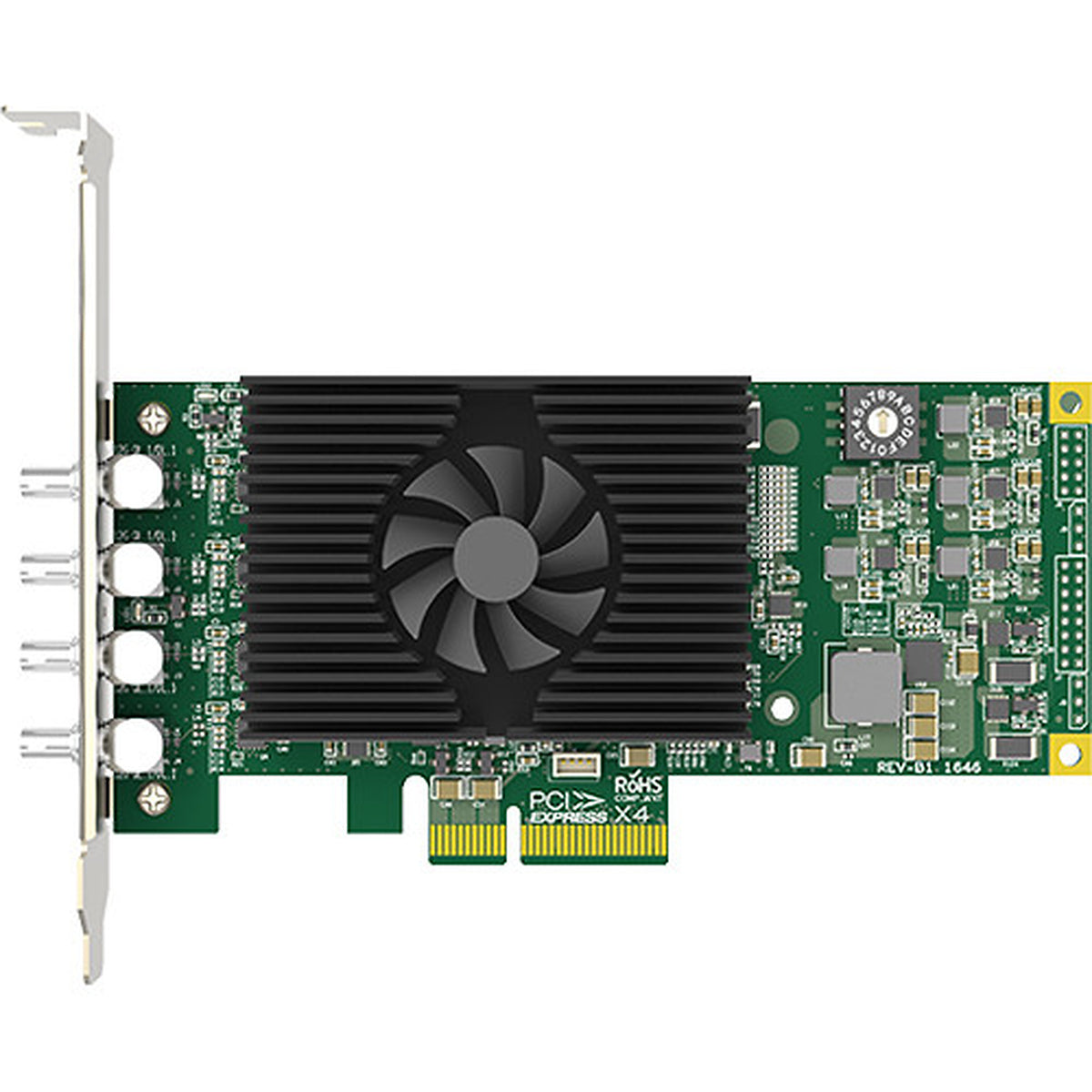

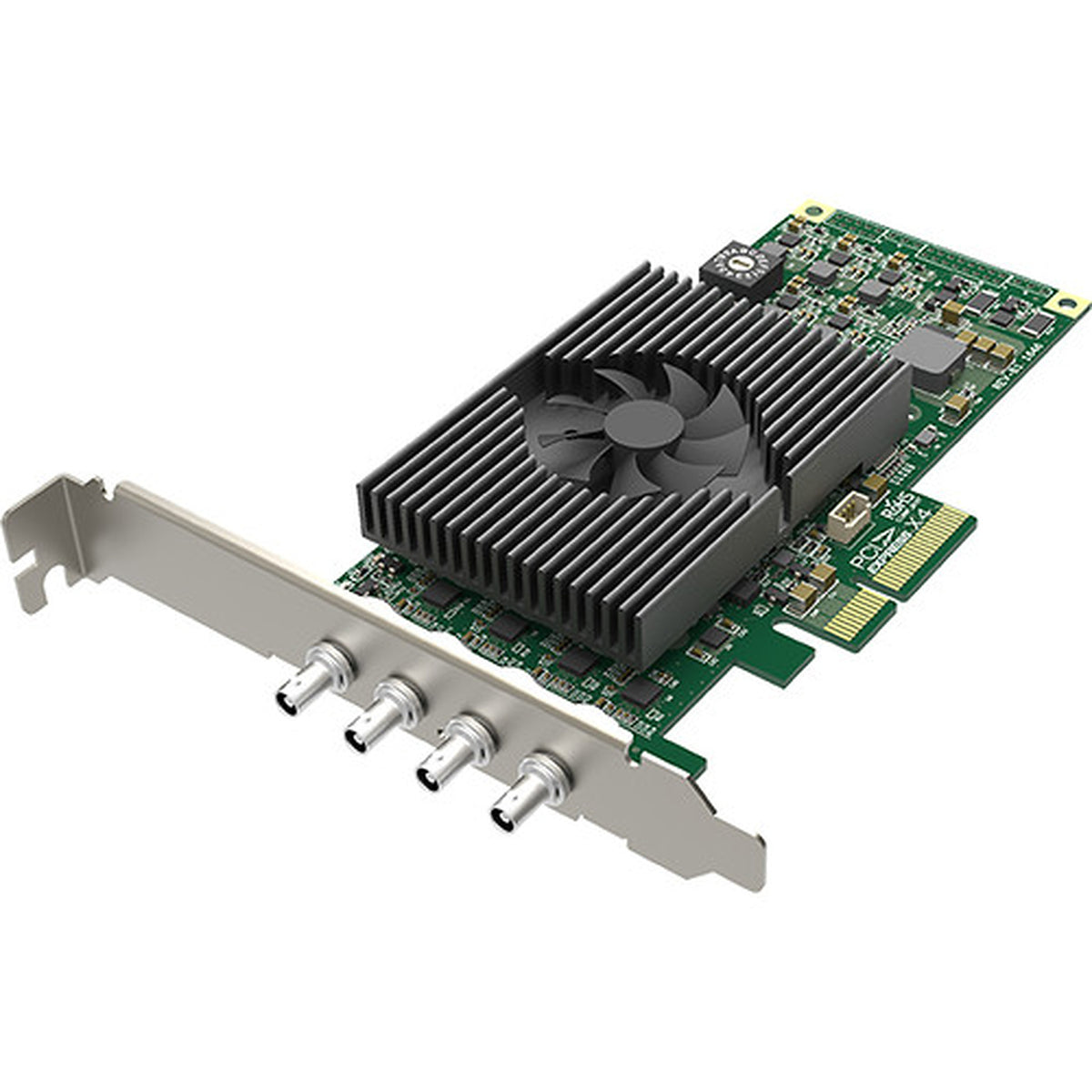

The Magewell Pro Capture SDI 4K Plus is a one-channel 12G-SDI PCIe capture card for professional 4K video ingest. It captures one SDI signal using single-link 12G-SDI, dual-link 6G-SDI, or quad-link 3G-SDI connections at input resolutions up to 4096×2160. PCIe Gen2 x4 connectivity, 10-bit hardware processing, multiple capture streams, and ultra-low-latency operation make it suitable for broadcast, live production, streaming, recording, and professional AV workflows.
Single-Link 12G-SDI 4K Capture
A single 12G-SDI connection can carry the complete high-bandwidth video signal into the capture workstation. The card supports SD, HD, 3G, 6G, and 12G-SDI standards with input resolutions up to 4096×2160. This simplifies professional 4K signal ingest where a single-cable SDI workflow is preferred.
Dual-Link 6G and Quad-Link 3G Support
The card also accepts one 4K source through dual-link 6G-SDI or quad-link 3G-SDI connections. Input link configuration is detected automatically. This allows integration with professional equipment using different SDI transport methods while maintaining one capture channel.
Capture up to 4096×2160
Both input and capture image resolutions are supported up to 4096×2160 pixels. Capture frame rates can reach up to 144fps depending on image resolution and available PCIe bandwidth. The card supports both 2K and 4K SDI workflows.
Full 10-Bit Hardware Processing
Two hardware processing pipelines provide approximately 720 Mpixels/s of processing bandwidth each. Full 10-bit processing supports cropping, scaling, deinterlacing, color conversion, aspect-ratio conversion, frame-rate conversion, and OSD composition.
Ultra-Low-Latency PCIe Capture
Magewell specifies an ultra-low-latency mode of 64 video lines. Partial-notification functionality is available through the Magewell Capture SDK. PCIe Gen2 x4 provides a direct high-bandwidth path between the capture card and host workstation.
Multiple Independent Capture Streams
Unlimited capture streams can be generated from the active input channel. Each stream can use independent cropping, aspect ratio, color format, resolution, frame rate, deinterlacing, color adjustment, and OSD settings. This allows one SDI source to serve multiple software workflows.
Single-Link Mode
1 × 12G-SDI
Dual-Link Mode
2 × 6G-SDI
Quad-Link Mode
4 × 3G-SDI
Host Interface
PCIe Gen2 x4
OBS vMix and Wirecast Compatibility
Magewell lists OBS, vMix, Wirecast, XSplit, VidBlaster, VLC, and VirtualDub among supported applications. Other compatible DirectShow, V4L2, and AVCaptureSession software can also access the card. This supports streaming, recording, monitoring, and live production workflows.
Windows Linux and macOS Support
Windows support includes DirectShow, DirectKS, Wave API, DirectSound, and WASAPI. Linux applications can use V4L2 and ALSA. macOS applications can access video and audio through AVCaptureSession and AudioUnit.
Capture Express and Magewell SDK
Magewell includes Capture Express software with the Pro Capture platform. The Magewell Capture SDK provides additional access to device control, timing, capture formats, synchronization, and low-latency functionality. Universal drivers and updatable firmware support workstation integration.
Broadcast Engineers
Capture professional 12G-SDI and multi-link 4K feeds inside broadcast workstations.
Live Production Teams
Ingest cameras, routers, switchers, and production outputs into software systems.
Streaming Integrators
Bring professional SDI sources into OBS, vMix, Wirecast, and compatible software.
AV Integrators
Add flexible single-link, dual-link, or quad-link SDI capture to fixed systems.
Post-Production Facilities
Ingest 4K SDI signals with hardware scaling, color processing, and frame conversion.
Software Developers
Build custom professional capture applications with Magewell APIs and the Capture SDK.
Magewell Support
Magewell provides a two-year manufacturer warranty for the Pro Capture SDI 4K Plus. Coremicro can help confirm SDI link configuration, source resolution, PCIe compatibility, operating-system support, and software requirements before deployment.
| Specification | Detail |
|---|---|
| Product | Pro Capture SDI 4K Plus |
| Part Number | 11180 |
| SKU | 111800000 |
| Capture Channels | 1 channel |
| SDI Interfaces | 4 × HD-BNC |
| Single-Link Capture | 1 × 12G-SDI |
| Dual-Link Capture | 2 × 6G-SDI |
| Quad-Link Capture | 4 × 3G-SDI |
| Supported SDI Standards | SD · HD · 3Ga · 3Gb · 3Gb-DL · 3Gb-DS · 6G · 12G-SDI |
| Link Detection | Automatic single-link, dual-link, and quad-link detection |
| Host Interface | PCIe Gen2 x4 |
| Maximum Input Resolution | Up to 4096×2160 pixels |
| Maximum Capture Resolution | Up to 4096×2160 pixels |
| Maximum Capture Frame Rate | Up to 144fps depending on image resolution and PCIe bandwidth |
| 2K / 4K Modes | 2048×1080 · 4096×2160 |
| SDI Color Sampling | RGB 4:4:4 · YCbCr 4:4:4 · YCbCr 4:2:2 |
| SDI Color Depth | 10-bit · 12-bit |
| SDI Embedded Audio | Up to 8 mono channels at 48 kHz |
| SD-SDI Cable Length | Up to approximately 330 m |
| HD-SDI Cable Length | Up to approximately 190 m |
| 3G-SDI Cable Length | Up to approximately 150 m |
| 6G-SDI Cable Length | Up to approximately 75 m |
| 12G-SDI Cable Length | Up to approximately 40 m |
| 4:2:0 8-Bit Capture | NV12 · I420 · YV12 |
| 4:2:2 8-Bit Capture | YUY2 · YUYV · UYVY |
| 4:4:4 8-Bit Capture | V308 · IYU2 · V408 · BGR24 · BGR32 |
| 4:4:4 10-Bit Capture | V410 · Y410 |
| Video Processing | 10-bit processing · Cropping · Scaling · Deinterlacing · Aspect-ratio conversion · Color conversion · Frame-rate conversion · OSD |
| Processing Pipelines | 2 pipelines at approximately 720 Mpixels/s each |
| Color Formats | RGB · YCbCr 601 · YCbCr 709 · YCbCr 2020 |
| Multiple Capture Streams | Unlimited streams from one input channel with independent processing settings |
| Ultra-Low Latency | 64 video lines |
| Hardware Timestamp | 100 ns high-resolution hardware clock |
| PCIe 2.x DMA Bandwidth | Approximately 1600 MB/s per channel |
| PCIe 1.x DMA Bandwidth | Approximately 800 MB/s per channel |
| Windows APIs | DirectShow · DirectKS · Wave API · DirectSound · WASAPI |
| Linux APIs | V4L2 · ALSA |
| macOS APIs | AVCaptureSession · AudioUnit |
| Supported Software | VLC · VirtualDub · OBS · XSplit · vMix · VidBlaster · Wirecast · Microsoft Media Encoder · Adobe Flash Media Encoder |
| Included Software | Capture Express |
| Driver and Firmware | Universal driver · Updatable firmware |
| Multiple Cards per System | Supported with onboard 16-position card-number rotary switch |
| Form Factor | Low-profile PCIe x4 add-on card |
| Dimensions | 140 × 68.88 mm without PCI bracket |
| Maximum Power Consumption | Approx. 10.9 W at quad-link 3G-SDI · 10.59 W at dual-link 6G-SDI · 10.39 W at single-link 12G-SDI |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | −20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Manufacturer Warranty | 2 years |
| Included Hardware | Pro Capture SDI 4K Plus card · 4 × HD-BNC to BNC cables · Low-profile bracket |
What is the Magewell Pro Capture SDI 4K Plus used for?
The card captures professional SDI video and embedded audio inside a PCIe workstation. It is designed for broadcast, live production, streaming, recording, post-production, monitoring, and professional AV systems.
What SDI connection methods does the card support?
It can capture one 4K SDI source using single-link 12G-SDI, dual-link 6G-SDI, or quad-link 3G-SDI. The card automatically detects the active link configuration.
What is the maximum capture resolution?
The card supports input and capture image resolutions up to 4096×2160 pixels. Capture frame rates can reach up to 144fps depending on image resolution and available PCIe bandwidth.
How many SDI connectors are available?

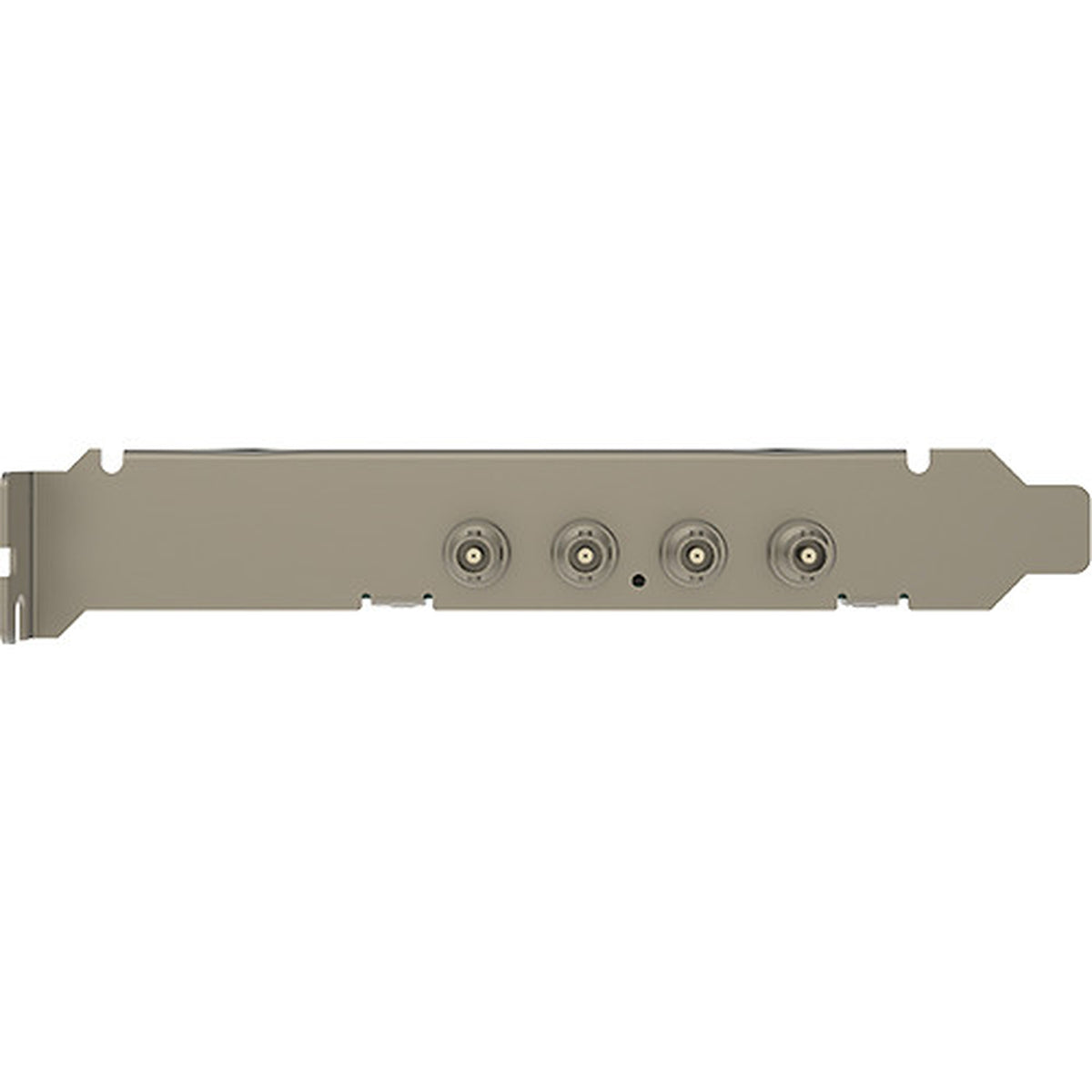

The card uses four HD-BNC connectors. Their capabilities vary so the connectors can be combined for single-link, dual-link, or quad-link SDI capture.
Is the card compatible with OBS vMix and Wirecast?
Yes. Magewell lists OBS, vMix, Wirecast, XSplit, VidBlaster, VLC, VirtualDub, and other compatible capture applications.
Can one SDI input generate multiple capture streams?
Yes. Magewell specifies unlimited capture streams from the active input channel. Each stream can use independent resolution, frame rate, cropping, aspect ratio, deinterlacing, color format, color adjustment, and OSD settings.
What warranty does the Pro Capture SDI 4K Plus include?
Magewell provides a two-year manufacturer warranty for the product. Coremicro can help confirm SDI link configuration, PCIe requirements, operating-system support, and software compatibility before deployment.
Build a Professional 12G-SDI 4K Capture Workstation
Coremicro is an authorized Magewell dealer supporting professional SDI capture for broadcast, live production, streaming, recording, and AV integration. Contact our team to confirm single-link, dual-link, or quad-link SDI requirements, PCIe compatibility, software support, and workstation configuration.
