Product Highlights
- Four SD HD 3G SDI inputs
- 2K SDI video capture support
- PCIe Gen2 x4 host interface
- 10-bit hardware video processing
Magewell Pro Capture Quad SDI Four Channel 3G-SDI PCIe Capture Card
- SKU:
- MAG-11090
- MPN:
- 11090
Ships in 2-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview

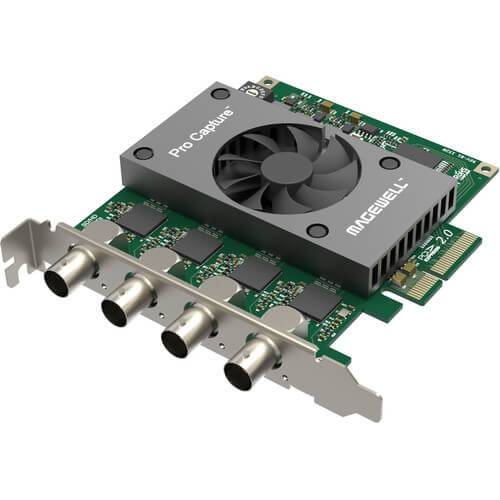

Magewell Pro Capture Quad SDI is a four-channel professional PCIe capture card for simultaneous SD, HD, 3G, and supported 2K SDI ingest. Four independent BNC inputs capture professional video with embedded audio in one workstation, while onboard 10-bit processing provides scaling, deinterlacing, color conversion, frame-rate conversion, and flexible multi-stream capture for broadcast, live production, recording, monitoring, and high-density video workflows.
Four Independent SDI Inputs
Four BNC connectors provide four independent SDI capture channels in a single PCIe card. This high-density design reduces slot usage when a workstation needs to ingest multiple cameras, switcher feeds, routers, or other professional SDI sources simultaneously.
SD HD 3G and 2K SDI Capture
Each input supports SD-SDI, HD-SDI, and 3G-SDI formats, including supported 2K signals up to 2048 × 1080. Support for multiple 3G-SDI mappings provides compatibility with a broad range of professional broadcast and production equipment.
Embedded SDI Audio Capture
Each SDI input captures embedded digital audio alongside the video signal. Up to eight mono channels at 48kHz can be accessed from each input for recording, streaming, production, and custom application workflows.
Full 10-Bit Hardware Video Processing
Onboard processing supports full 10-bit video handling with hardware cropping, scaling, deinterlacing, aspect-ratio conversion, color-space conversion, frame-rate conversion, color adjustment, and OSD composition.
Ultra-Low-Latency Capture
Ultra-low-latency capture is specified at 64 video lines, reducing delay between incoming SDI sources and the host application. This supports monitoring, visualization, live production, and other latency-sensitive workflows.
Independent Multi-Stream Capture
Multiple capture streams can be generated from an input channel with independent settings for cropping, resolution, frame rate, aspect ratio, deinterlacing, color format, and color adjustment for application-specific processing.
Four BNC Inputs and PCIe Gen2 x4
Four BNC connectors provide independent professional SDI capture channels, allowing four compatible sources to be ingested by one workstation without external input switching.
The PCIe Gen2 x4 host interface provides the bandwidth required for multi-channel video transfer and onboard processing in professional production and integration systems.
Broadcast Production
Capture up to four professional SDI feeds from cameras, routers, switchers, and other broadcast sources.
Live Production
Bring multiple SDI camera or program feeds into a workstation-based production environment.
Multi-Camera Streaming
Capture multiple SDI sources for compatible streaming, switching, encoding, and recording applications.
Studio Ingest
Record multiple SDI feeds simultaneously in high-density workstation-based ingest systems.
Control Rooms
Integrate several SDI sources into monitoring, recording, analysis, and visualization systems.
Systems Integrators
Build custom multi-channel capture systems using Magewell APIs and native operating-system interfaces.
Magewell Support
Coremicro can help confirm SDI format compatibility, four-channel PCIe bandwidth requirements, embedded-audio workflows, cable distances, supported operating systems, capture applications, driver configuration, and Magewell Capture SDK integration for professional multi-channel broadcast and video systems.
| Specification | Detail |
|---|---|
| Product Name | Pro Capture Quad SDI |
| Part Number | 11090 |
| SKU | 110900000 |
| Product Type | Four-Channel HD SDI PCIe Capture Card |
| Capture Channels | 4 |
| Host Interface | PCIe Gen2 x4 |
| SDI Inputs | 4 × BNC |
| Supported SDI Formats | SD-SDI · HD-SDI · 3Ga · 3Gb · 3Gb-DL · 3Gb-DS |
| Maximum SDI Input Resolution | 2048 × 1080 per input |
| SDI Input Color Depth | 10-bit · 12-bit |
| SDI Color Sampling | RGB 4:4:4 · YCbCr 4:4:4 · YCbCr 4:2:2 |
| Embedded SDI Audio | Up to 8 mono channels at 48kHz per input |
| SDI Payload Identification | SMPTE 352 payload extraction |
| Closed Caption | Supported through Magewell Capture SDK |
| Maximum SD-SDI Cable Distance | Up to approximately 330m |
| Maximum HD-SDI Cable Distance | Up to approximately 190m |
| Maximum 3G-SDI Cable Distance | Up to approximately 150m |
| Maximum Capture Image Resolution | Up to 2048 × 2160 |
| Maximum Capture Frame Rate | Up to 144fps depending on resolution, PCIe bandwidth, and processing requirements |
| 1920 × 1080 Capture | Up to approximately 80fps |
| Capture Formats | 4:2:0 8-bit · 4:2:2 8-bit · 4:4:4 8-bit · 4:4:4 10-bit |
| Video Processing | Full 10-bit processing |
| Processing Pipelines | 2 pipelines at approximately 180 Mpixels/s each |
| Hardware Processing | Cropping · Scaling · Deinterlacing · Aspect-ratio conversion · Color-space conversion · Frame-rate conversion · Color adjustment · OSD composition |
| Capture Streams | Unlimited capture streams for any one input channel |
| Independent Stream Settings | Cropping · Aspect ratio · Color format · Resolution · Frame rate · Deinterlacing · Color adjustment |
| Ultra-Low Latency | 64 video lines |
| PCIe 2.0 DMA Bandwidth | Approximately 400MB/s per channel |
| Multiple Cards per System | Supported |
| 3Gb-DS Capture Note | First stream capture supported for applicable 3Gb-DS signals |
| Windows Support | DirectShow · DirectKS and compatible applications |
| Linux Support | V4L2 · ALSA |
| macOS Support | AVCaptureSession · AudioUnit |
| Compatible Software | OBS · vMix · VLC · XSplit · Wirecast · VidBlaster · VirtualDub and compatible applications |
| Form Factor | Normal-profile PCIe x4 add-on card |
| Card Dimensions | 112.15 × 102.92 mm without PCI bracket |
| Maximum Power Consumption | Approximately 17.1W |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Manufacturer Warranty | 2 years |
| In the Box | Pro Capture Quad SDI × 1 |
Can Pro Capture Quad SDI capture four sources simultaneously?
Yes. Four independent BNC inputs provide four SDI capture channels in one PCIe card for supported SD, HD, 3G, and 2K workflows.
What SDI resolutions are supported?
Supported SDI input formats include resolutions up to 2048 × 1080 per input. The capture engine can produce images up to 2048 × 2160 through onboard processing.
Does each SDI input capture embedded audio?
Yes. Each input supports up to eight mono embedded-audio channels at 48kHz.
Does Pro Capture Quad SDI provide loop-through outputs?
No dedicated SDI loop-through outputs are listed for this model. The card is designed around four independent BNC capture inputs.
Can one input generate multiple capture streams?
Yes. Multiple streams can be generated from an input channel with independent resolution, frame rate, cropping, aspect ratio, color format, deinterlacing, and color-adjustment settings.
Which operating systems are supported?
Magewell supports Windows, Linux, and macOS through native capture APIs and compatible third-party applications.
What is included with Pro Capture Quad SDI?
The manufacturer lists one Pro Capture Quad SDI card in the standard package.
