Product Highlights
- PCIe 2.0 HDMI Video Interface Card
- 4 x HDMI Inputs, Embedded Audio
- Resolution Support up to 2048 x 2160
- 10-Bit Video Processing, Deinterlacing
- Crop, Timestamp, Color Adjust, OSD
- Timecode, 3D HDMI, Convert Aspect Ratio
- Windows, Mac, and Linux Compatibility

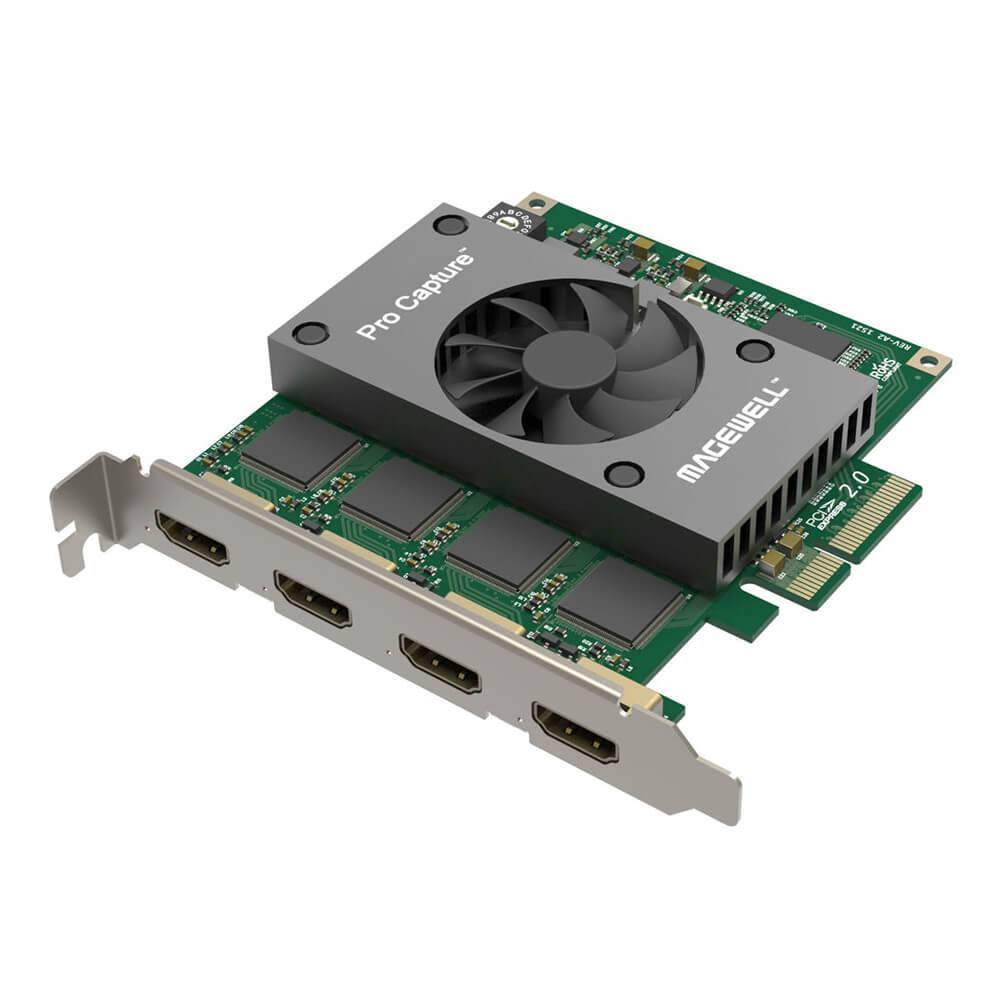

Magewell Pro Capture Quad HDMI Four Channel HD PCIe Capture Card
- SKU:
- MAG-11100
- MPN:
- 11100
Ships in 2-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
Magewell Pro Capture Quad HDMI is a four-channel HD PCIe capture card for simultaneous HDMI video and embedded-audio ingest. Four independent HDMI 1.4a inputs bring multiple cameras, computers, switchers, or other compatible sources into one workstation, while onboard 10-bit processing supports scaling, deinterlacing, color conversion, frame-rate conversion, and flexible multi-stream capture for production, streaming, recording, monitoring, and integration.
Four Independent HDMI Inputs
Four HDMI Type-A connectors provide four independent capture channels in a single PCIe card. This high-density architecture allows multiple compatible video sources to be captured simultaneously without relying on an external input switcher.
Embedded HDMI Audio Capture
Each HDMI channel captures embedded digital audio alongside video. Magewell SDK support provides access to compatible IEC60958 and IEC61937 audio with up to eight channels for professional recording, production, streaming, and custom application workflows.
Full 10-Bit Hardware Video Processing
Hardware processing provides full 10-bit video handling with cropping, scaling, deinterlacing, aspect-ratio conversion, color-space conversion, frame-rate conversion, color adjustment, and OSD composition for flexible application-specific capture formats.
Custom HDMI EDID Support
Custom EDID capability helps the capture system present appropriate display capabilities to connected HDMI sources. This provides additional flexibility when integrating computers, cameras, presentation systems, and other professional HDMI equipment.
Ultra-Low-Latency Capture
Ultra-low-latency capture is specified at 64 video lines, helping reduce delay between an incoming source and the host application. This supports monitoring, visualization, live production, and other latency-sensitive workflows.
Independent Multi-Stream Capture
Multiple capture streams can be generated from an input channel with independent settings for cropping, resolution, frame rate, aspect ratio, deinterlacing, color format, and color adjustment for different applications.
Four HDMI Inputs and PCIe Gen2 x4
Four HDMI Type-A connectors provide independent video and embedded-audio capture channels, allowing four compatible HDMI sources to be connected directly to one workstation.
The PCIe Gen2 x4 host interface provides bandwidth for multi-channel video transfer and onboard processing in professional production, recording, and integration systems.
Live Production
Capture multiple HDMI cameras, switcher feeds, or production sources in one workstation-based video system.
Multi-Camera Streaming
Bring up to four HDMI sources into compatible streaming, switching, encoding, and production applications.
Presentation Capture
Capture several presentation computers or AV sources for events, training, education, and corporate video.
Recording Workstations
Ingest multiple HDMI feeds simultaneously for recording, monitoring, or post-production workflows.
Visualization Systems
Integrate multiple digital video or computer feeds into monitoring, analysis, and visualization applications.
Systems Integrators
Build custom multi-channel capture solutions using Magewell APIs and standard operating-system capture interfaces.
Magewell Support
Coremicro can help confirm HDMI source compatibility, multi-channel PCIe bandwidth requirements, embedded-audio workflows, EDID configuration, supported operating systems, capture applications, driver configuration, and Magewell Capture SDK integration for professional four-channel HDMI video systems.
| Specification | Detail |
|---|---|
| Product Name | Pro Capture Quad HDMI |
| Part Number | 11100 |
| SKU | 111000000 |
| Product Type | Four-Channel HD PCIe Capture Card |
| Capture Channels | 4 |
| Host Interface | PCIe Gen2 x4 |
| Video Inputs | 4 × HDMI Type-A |
| Input Standards | DVI 1.0 · HDMI 1.4a |
| Maximum Input Resolution | Up to 2048 × 2160 |
| HDMI Receiver | 225MHz |
| HDMI Cable Equalization | Up to approximately 30m |
| Custom EDID | Supported |
| HDMI Input Color Depth | 8-bit · 10-bit · 12-bit |
| HDMI Color Sampling | RGB 4:4:4 · YCbCr 4:4:4 · YCbCr 4:2:2 |
| Embedded HDMI Audio | Up to 8-channel IEC60958 / IEC61937 audio via SDK |
| HDMI InfoFrame Extraction | Supported |
| HDMI 3D Information | Side-by-Side Half · Top-and-Bottom · Frame Packing |
| DSLR Time Code Extraction | Sony / Canon supported formats |
| Maximum Capture Resolution | Up to 2048 × 2160 |
| Maximum Capture Frame Rate | Up to 144fps depending on resolution, PCIe bandwidth, and processing requirements |
| 1920 × 1080 Capture | Up to approximately 80fps |
| Capture Formats | 4:2:0 8-bit · 4:2:2 8-bit · 4:4:4 8-bit · 4:4:4 10-bit |
| Video Processing | Full 10-bit processing |
| Processing Pipelines | 2 pipelines at approximately 180 Mpixels/s each |
| Hardware Processing | Cropping · Scaling · Deinterlacing · Aspect-ratio conversion · Color-space conversion · Frame-rate conversion · Color adjustment · OSD composition |
| Capture Streams | Unlimited capture streams for any one input channel |
| Independent Stream Settings | Cropping · Aspect ratio · Color format · Resolution · Frame rate · Deinterlacing · Color adjustment |
| Ultra-Low Latency | 64 video lines |
| PCIe 2.0 DMA Bandwidth | Approximately 400MB/s per channel |
| Multiple Cards per System | Supported |
| Windows Support | DirectShow · DirectKS and compatible applications |
| Linux Support | V4L2 · ALSA |
| macOS Support | AVCaptureSession · AudioUnit |
| Compatible Software | OBS · vMix · VLC · XSplit · Wirecast · VidBlaster · VirtualDub and compatible applications |
| Form Factor | Normal-profile PCIe x4 add-on card |
| Card Dimensions | 112.15 × 102.92 mm without PCI bracket |
| Maximum Power Consumption | Approximately 15.39W |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Manufacturer Warranty | 2 years |
| In the Box | Pro Capture Quad HDMI × 1 |
Can Pro Capture Quad HDMI capture four sources simultaneously?
Yes. Four independent HDMI Type-A inputs provide four capture channels for compatible sources in one PCIe workstation.
Does each HDMI input capture embedded audio?
Yes. Embedded HDMI audio can be captured with each video input, with Magewell SDK access to compatible audio formats and up to eight channels.
Is Pro Capture Quad HDMI a 4K UHD capture card?
No. The documented maximum input and capture resolution is 2048 × 2160. The card should not be represented as a 3840 × 2160 UHD capture device.
Does each HDMI input support custom EDID?
Custom EDID support helps configure how connected HDMI sources identify the capture system and can simplify integration with different source devices.
Can one HDMI input create multiple capture streams?
Yes. Multiple streams can be generated from an input channel with independent resolution, frame rate, cropping, aspect ratio, deinterlacing, color format, and color-adjustment settings.
Which operating systems are supported?
Magewell supports Windows, Linux, and macOS through native capture APIs and compatible third-party applications.
What is included with Pro Capture Quad HDMI?
The manufacturer lists one Pro Capture Quad HDMI card in the standard package.
Build a Four-Channel HDMI Capture Workstation
Coremicro is an authorized Magewell dealer supporting professional multi-channel HDMI capture for live production, streaming, recording, presentation systems, visualization, and custom integration. Contact our team to confirm source resolutions, PCIe bandwidth, embedded-audio requirements, EDID configuration, software compatibility, and multi-card workstation deployments.
Talk to a SpecialistSpecifications
