Product Highlights
- Mini PCIe SDI video capture
- 3G-SDI input with loop-through
- Embedded SDI audio capture
- 10-bit hardware video processing
Magewell Pro Capture Mini SDI Small Heat Sink HD Mini PCIe Capture Card
- SKU:
- MAG-11130
- MPN:
- 11130
Ships in 2-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
Magewell Pro Capture Mini SDI with Small Heat Sink is a compact one-channel Mini PCIe capture card for SD, HD, 3G, and supported 2K SDI workflows. It captures professional SDI video with embedded audio while providing a dedicated SDI loop-through connection for downstream monitoring or routing. Full 10-bit processing, multi-stream capture, long-distance SDI equalization, and ultra-low-latency operation make it suitable for embedded broadcast, streaming, recording, and custom video systems.
Compact Mini PCIe Form Factor

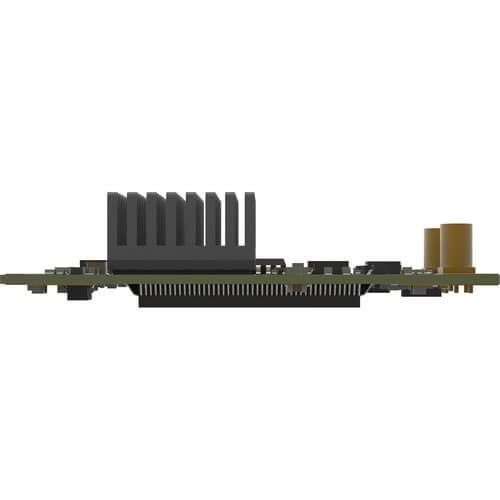

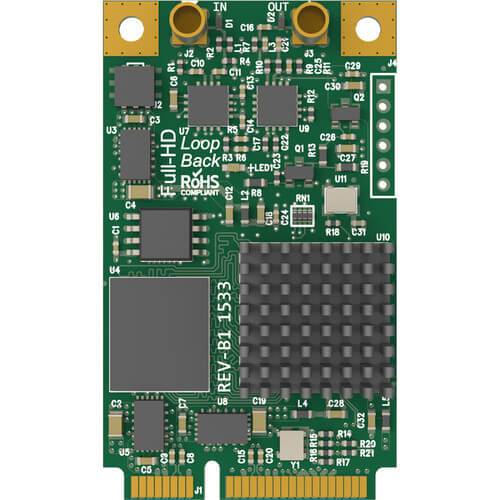

The 30 × 51 mm Mini PCIe board fits compact embedded computers, professional video appliances, and custom systems where a conventional full-size PCIe capture card is not practical. This listing uses the Small Heat Sink configuration.
SD HD 3G and 2K SDI Capture
Capture SD-SDI, HD-SDI, and 3G-SDI through the MMCX input, including supported 2K signals up to 2048 × 1080. RGB 4:4:4, YCbCr 4:4:4, and YCbCr 4:2:2 sampling are supported with 10-bit and 12-bit SDI input depth.
Dedicated SDI Loop-Through
A second MMCX connection provides SDI loop-through for passing the incoming signal to a monitor, recorder, router, or other downstream SDI device while the same source remains available to the host capture application.
Embedded SDI Audio Capture
Up to eight mono embedded-audio channels at 48kHz can be captured from the SDI source, supporting professional recording, streaming, monitoring, and custom application workflows without requiring a separate audio capture device.
Full 10-Bit Hardware Video Processing
Two onboard processing pipelines provide approximately 180 Mpixels/s each. Hardware functions include cropping, scaling, deinterlacing, aspect-ratio conversion, color-space conversion, frame-rate conversion, color adjustment, and OSD composition.
Ultra-Low-Latency Multi-Stream Capture
Ultra-low-latency capture is specified at 64 video lines. Multiple streams can also be generated from the single input with independent resolution, frame rate, cropping, aspect ratio, deinterlacing, color format, and color-adjustment settings.
MMCX SDI Input Loop-Through and Mini PCIe
Two MMCX connectors provide independent SDI input and loop-through connections. The included MMCX-to-BNC cables convert these compact board-level interfaces to standard professional BNC SDI connections.
The host interface uses PCIe Gen2 x1 within the Mini PCIe form factor, allowing professional SDI capture to be integrated into compact embedded computers and purpose-built video systems.
Embedded Broadcast Systems
Add professional SDI capture and loop-through to compact broadcast and production appliances.
Live Streaming
Capture professional SDI cameras and program feeds into compatible streaming and encoding applications.
Recording Appliances
Integrate SDI video and embedded audio into compact recording and ingest hardware.
Monitoring Systems
Capture an SDI source while maintaining loop-through connectivity for local monitoring or downstream equipment.
Systems Integrators
Build compact custom SDI systems using Magewell APIs and standard operating-system capture interfaces.
Custom Video Hardware
Integrate professional SDI ingest into purpose-built hardware where internal board space is limited.
Magewell Support
Coremicro can help confirm Mini PCIe host compatibility, SDI format support, cable-distance requirements, MMCX-to-BNC connectivity, loop-through configuration, embedded audio, enclosure and thermal requirements, supported operating systems, capture applications, driver configuration, and Magewell Capture SDK integration.
| Specification | Detail |
|---|---|
| Product Name | Pro Capture Mini SDI |
| Variant | Small Heat Sink |
| Part Number | 11130 |
| SKU | 111300000 |
| Product Type | One-Channel Mini PCIe HD SDI Capture Card |
| Capture Channels | 1 |
| Host Interface | PCIe Gen2 x1 |
| Form Factor | Mini PCIe add-on card |
| SDI Input Interface | 1 × MMCX |
| SDI Loop-Through Interface | 1 × MMCX |
| External SDI Connectivity | MMCX to BNC via supplied cables |
| Supported SDI Formats | SD-SDI · HD-SDI · 3Ga · 3Gb · 3Gb-DL · 3Gb-DS |
| Maximum SDI Input Resolution | 2048 × 1080 |
| Maximum Loop-Through Resolution | 2048 × 1080 |
| SDI Color Depth | 10-bit · 12-bit input support |
| SDI Color Sampling | RGB 4:4:4 · YCbCr 4:4:4 · YCbCr 4:2:2 |
| Embedded SDI Audio | Up to 8 mono channels at 48kHz |
| SDI Payload Identification | SMPTE 352 payload extraction |
| 3Gb-DS Support | Limited to capture of the first stream |
| Dual-Link Capture Support | Limited first-link capture depending on format |
| Maximum SD-SDI Cable Distance | Up to approximately 330m |
| Maximum HD-SDI Cable Distance | Up to approximately 190m |
| Maximum 3G-SDI Cable Distance | Up to approximately 150m |
| Maximum Capture Image Resolution | Up to 2048 × 2160 |
| Maximum Capture Frame Rate | Up to 144fps depending on resolution, PCIe bandwidth, and processing requirements |
| 1920 × 1080 Capture | Up to approximately 80fps |
| 4:2:0 8-Bit Formats | NV12 · I420 · YV12 |
| 4:2:2 8-Bit Formats | YUY2 · YUYV · UYVY |
| 4:4:4 8-Bit Formats | V308 · IYU2 · V408 · BGR24 · BGR32 |
| 4:4:4 10-Bit Formats | V410 · Y410 |
| Video Processing | Full 10-bit processing |
| Processing Pipelines | 2 × approximately 180 Mpixels/s |
| Hardware Processing | Cropping · Scaling · Deinterlacing · Aspect-ratio conversion · Color-space conversion · Frame-rate conversion · Color adjustment · OSD composition |
| Color-Space Support | RGB · YCbCr BT.601 · BT.709 · BT.2020 |
| OSD Resolution | Up to 2048 × 2160 |
| Capture Streams | Unlimited capture streams from the single input channel |
| Independent Stream Settings | Cropping · Aspect ratio · Color format · Resolution · Frame rate · Deinterlacing · Color adjustment |
| Ultra-Low Latency | 64 video lines |
| Hardware Timestamp | 100ns high-resolution hardware clock |
| PCIe 2.0 DMA Bandwidth | Approximately 400MB/s per channel |
| PCIe 1.0 DMA Bandwidth | Approximately 200MB/s per channel |
| GPU Transfer Support | AMD DirectGMA · NVIDIA GPUDirect |
| Multiple Cards per System | Supported |
| Windows Support | DirectShow · DirectKS · Wave API · DirectSound · WASAPI |
| Linux Support | V4L2 · ALSA |
| macOS Support | AVCaptureSession · AudioUnit |
| Compatible Software | OBS · vMix · VLC · XSplit · Wirecast · VidBlaster · VirtualDub and compatible applications |
| Card Dimensions | 30 × 51 mm |
| Heat Sink Variant | Small Heat Sink |
| Maximum Power High Performance Firmware | Approximately 3.62W |
| Maximum Power Low Power Firmware | Approximately 3.19W |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Manufacturer Warranty | 2 years |
| In the Box | Pro Capture Mini SDI × 1 · MMCX to BNC Cable × 2 |
What SDI formats can Pro Capture Mini SDI capture?
It supports SD-SDI, HD-SDI, and 3G-SDI formats, including supported 2K signals up to 2048 × 1080.
Does Pro Capture Mini SDI include SDI loop-through?
Yes. A dedicated MMCX loop-through connection passes the incoming SDI signal to downstream equipment while the source is being captured by the host system.
Does the card capture embedded SDI audio?
Yes. Up to eight mono embedded-audio channels at 48kHz can be captured from the SDI input.
How do standard BNC SDI cables connect?
The board uses compact MMCX connectors. Two MMCX-to-BNC cables are specified for standard professional BNC SDI input and loop-through connections.
Can one SDI input generate multiple capture streams?
Yes. Multiple streams can be generated from the single input with independent resolution, frame rate, cropping, aspect ratio, deinterlacing, color format, and color-adjustment settings.
Which operating systems are supported?
Magewell supports Windows, Linux, and macOS through native capture APIs and compatible third-party applications.
What is included with this Small Heat Sink version?
The technical specifications list one Pro Capture Mini SDI card and two 32 cm MMCX-to-BNC cables for SDI input and loop-through connectivity.
Build a Compact Professional SDI Capture System
Coremicro is an authorized Magewell dealer supporting compact Mini PCIe SDI capture for embedded broadcast systems, streaming appliances, recording hardware, monitoring, and custom video integration. Contact our team to confirm SDI formats, Mini PCIe compatibility, loop-through requirements, cable distances, thermal considerations, software support, and SDK integration.
