Product Highlights
- Mini PCIe HDMI video capture
- No heat sink configuration
- HDMI 1.4a embedded audio
- 10-bit hardware video processing
Magewell Pro Capture Mini HDMI No Heat Sink HD Mini PCIe Capture Card
- SKU:
- MAG-11112
- MPN:
- 11112
Ships in 2-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
Magewell Pro Capture Mini HDMI with No Heat Sink is a compact one-channel Mini PCIe capture card for embedded and purpose-built professional video systems. It captures HDMI 1.4a video with embedded audio through the supplied SHD-to-HDMI breakout, while onboard 10-bit processing handles scaling, deinterlacing, color conversion, frame-rate conversion, and multi-stream capture. SKU 111100002 identifies the No Heat Sink configuration within the Pro Capture Mini HDMI family.
Compact Mini PCIe Form Factor

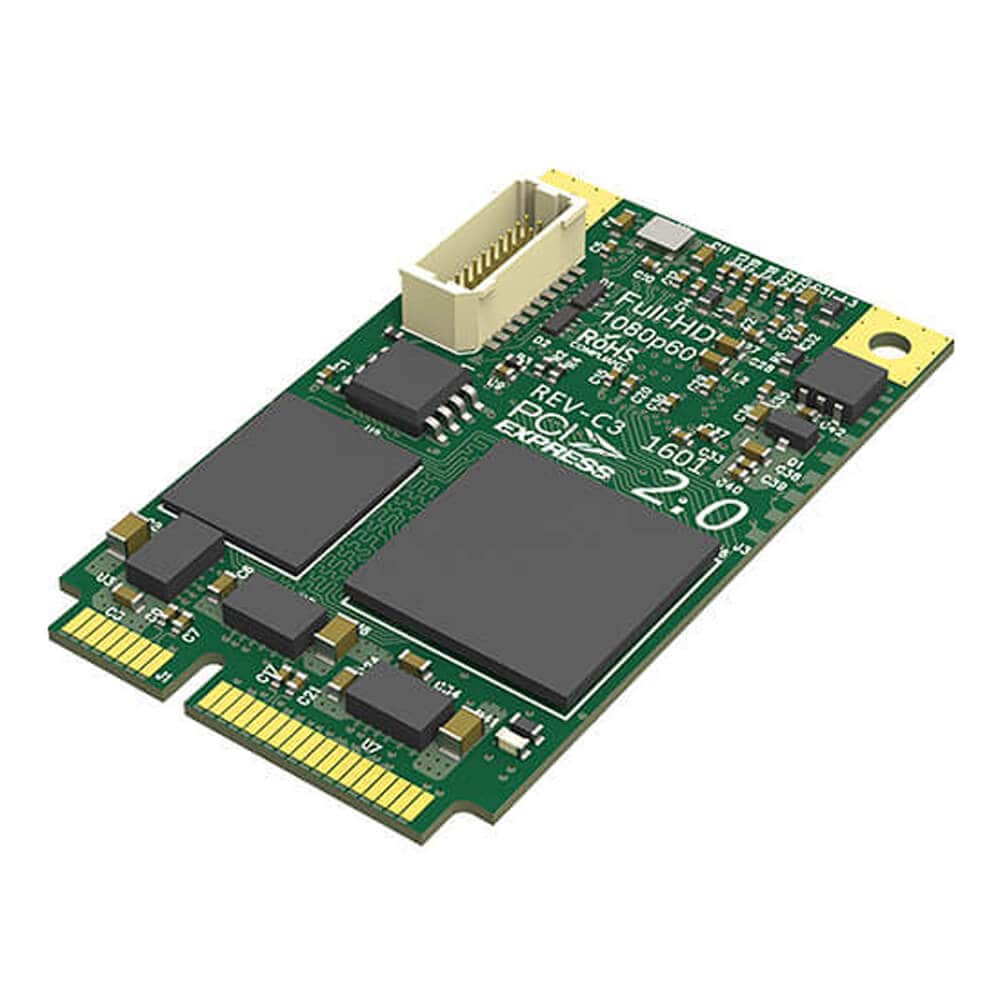

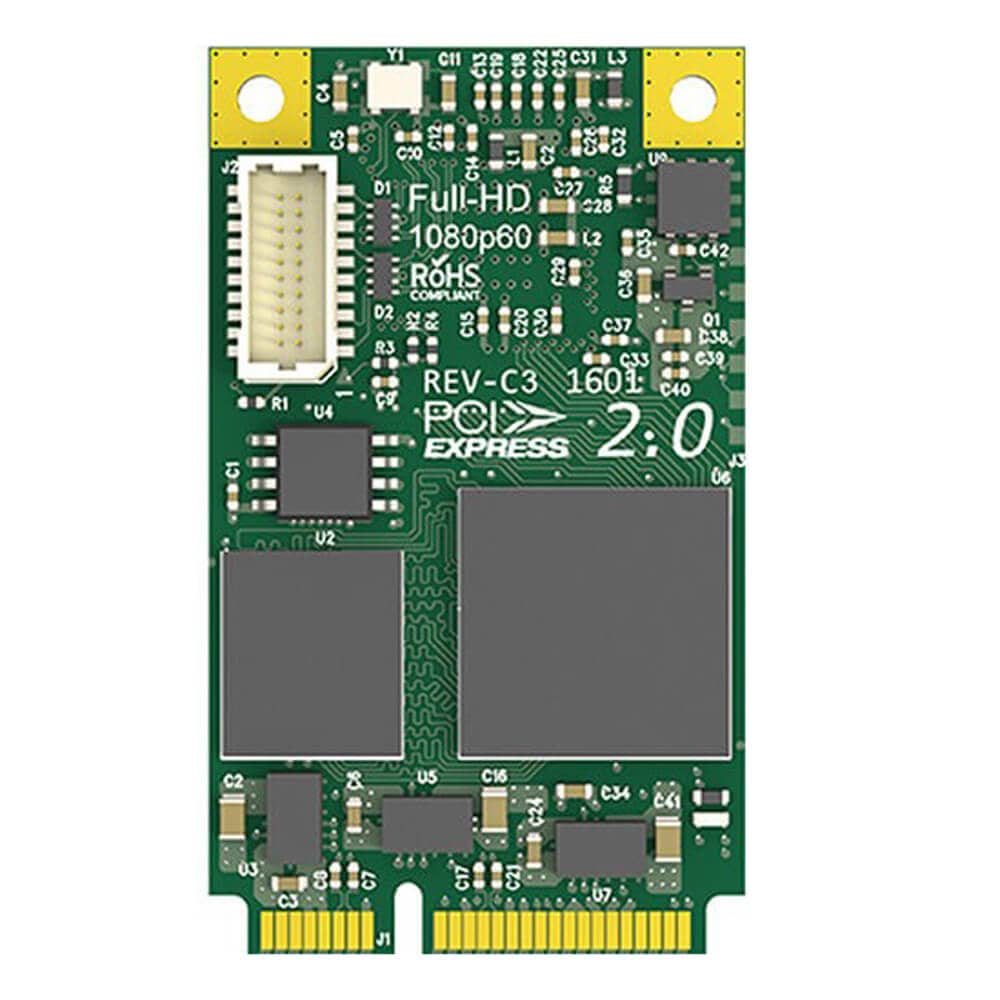

The compact 30 × 51 mm board is designed for embedded computers, dedicated video appliances, and custom systems where a conventional full-size PCIe capture card is not practical.
No Heat Sink Configuration
SKU 111100002 is the No Heat Sink configuration within the Pro Capture Mini HDMI family. It provides the same compact Mini PCIe capture platform while allowing system designers to account for thermal management within their own enclosure.
HDMI 1.4a Video Capture
HDMI 1.4a and compatible DVI 1.0 sources are supported with input resolutions up to 2048 × 2160. The board uses a JST SHD 20-pin input connection with an included breakout for standard HDMI Type-A source connectivity.
Embedded HDMI Audio Capture
Embedded digital audio is captured alongside the HDMI video signal. Magewell SDK support provides access to compatible IEC60958 and IEC61937 audio with up to eight channels for recording, streaming, and custom applications.
Full 10-Bit Hardware Video Processing
Onboard processing supports full 10-bit video handling with hardware cropping, scaling, deinterlacing, aspect-ratio conversion, color-space conversion, frame-rate conversion, color adjustment, and OSD composition.
Ultra-Low-Latency Multi-Stream Capture
Ultra-low-latency operation is specified at 64 video lines. Multiple capture streams can also be generated from the single input with independent resolution, frame rate, cropping, aspect ratio, deinterlacing, color format, and color-adjustment settings.
JST SHD Input and Mini PCIe Gen2 x1
A JST SHD 20-pin connector carries HDMI video and embedded audio to the capture board. The supplied SHD-to-HDMI Type-A breakout provides a standard connection for cameras, computers, switchers, and other compatible HDMI sources.
The host interface uses Mini PCIe Gen2 x1, allowing the capture engine to be integrated directly into compact embedded computers and purpose-built professional video systems.
Embedded Video Systems
Add professional HDMI capture to embedded computers and dedicated video appliances.
Systems Integrators
Build custom capture platforms around the compact Mini PCIe architecture and Magewell software interfaces.
Live Streaming
Capture HDMI cameras and production sources into compatible streaming and encoding applications.
Recording Appliances
Integrate HDMI ingest into compact recording hardware and dedicated capture systems.
Visualization Systems
Bring digital video and computer sources into monitoring, analysis, and visualization applications.
Custom Video Hardware
Integrate a compact professional capture engine into products with limited internal board space.
Magewell Support
Coremicro can help confirm Mini PCIe host compatibility, enclosure and thermal requirements, HDMI source formats, SHD breakout connectivity, embedded-audio workflows, operating-system support, capture applications, driver configuration, and Magewell Capture SDK integration for compact professional video systems.
| Specification | Detail |
|---|---|
| Product Name | Pro Capture Mini HDMI |
| Variant | No Heat Sink |
| Part Number | 11110 |
| SKU | 111100002 |
| Product Type | One-Channel Mini PCIe HD Capture Card |
| Capture Channels | 1 |
| Host Interface | Mini PCIe Gen2 x1 |
| Video Input Connector | JST SHD 20-pin |
| External HDMI Connection | HDMI Type-A via supplied SHD breakout |
| Input Standards | DVI 1.0 · HDMI 1.4a |
| Maximum Input Resolution | Up to 2048 × 2160 |
| HDMI Receiver | 225MHz |
| HDMI Cable Equalization | Up to approximately 30m |
| Custom EDID | Supported |
| HDMI Input Color Depth | 8-bit · 10-bit · 12-bit |
| HDMI Color Sampling | RGB 4:4:4 · YCbCr 4:4:4 · YCbCr 4:2:2 |
| Embedded HDMI Audio | Up to 8-channel IEC60958 / IEC61937 audio via SDK |
| HDMI InfoFrame Extraction | Supported |
| HDMI 3D Information | Side-by-Side Half · Top-and-Bottom · Frame Packing |
| DSLR Time Code Extraction | Sony / Canon supported formats |
| Maximum Capture Resolution | Up to 2048 × 2160 |
| Maximum Capture Frame Rate | Up to 144fps depending on resolution, Mini PCIe bandwidth, and processing requirements |
| 1920 × 1080 Capture | Up to approximately 80fps |
| Capture Formats | 4:2:0 8-bit · 4:2:2 8-bit · 4:4:4 8-bit · 4:4:4 10-bit |
| Video Processing | Full 10-bit processing |
| Processing Pipelines | 2 pipelines at approximately 180 Mpixels/s each |
| Hardware Processing | Cropping · Scaling · Deinterlacing · Aspect-ratio conversion · Color-space conversion · Frame-rate conversion · Color adjustment · OSD composition |
| Capture Streams | Unlimited capture streams from the single input channel |
| Independent Stream Settings | Cropping · Aspect ratio · Color format · Resolution · Frame rate · Deinterlacing · Color adjustment |
| Ultra-Low Latency | 64 video lines |
| Multiple Cards per System | Supported |
| Windows Support | DirectShow · DirectKS and compatible applications |
| Linux Support | V4L2 · ALSA |
| macOS Support | AVCaptureSession · AudioUnit |
| Compatible Software | OBS · vMix · VLC · XSplit · Wirecast · VidBlaster · VirtualDub and compatible applications |
| Form Factor | Mini PCIe add-on card |
| Card Dimensions | 30 × 51 mm |
| Heat Sink Variant | No Heat Sink |
| Maximum Power High Performance Firmware | Approximately 3.24W |
| Maximum Power Low Power Firmware | Approximately 2.7W |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Manufacturer Warranty | 2 years |
| In the Box | Pro Capture Mini HDMI × 1 · SHD to HDMI Type-A Breakout × 1 |
What is the No Heat Sink version of Pro Capture Mini HDMI?
This listing is SKU 111100002, the No Heat Sink configuration within the Pro Capture Mini HDMI family.
How does HDMI connect to the Mini PCIe card?
The board uses a JST SHD 20-pin connector. The supplied SHD-to-HDMI Type-A breakout provides a standard HDMI connection for compatible source equipment.
Does Pro Capture Mini HDMI capture embedded audio?
Yes. Compatible embedded HDMI audio is captured alongside video, with Magewell SDK access to supported audio formats and up to eight channels.
Is Pro Capture Mini HDMI a 4K UHD capture card?
No. The documented maximum input and capture resolution is 2048 × 2160, not 3840 × 2160 UHD.
Can one HDMI input generate multiple capture streams?
Yes. Multiple streams can be generated from the single input with independent resolution, frame rate, cropping, aspect ratio, deinterlacing, color format, and color-adjustment settings.
Which operating systems are supported?
Magewell supports Windows, Linux, and macOS through platform-native capture APIs and compatible third-party applications.
What is included with this No Heat Sink version?
The standard package includes one Pro Capture Mini HDMI card and one SHD-to-HDMI Type-A breakout cable.
