Product Highlights
- Mini PCIe HDMI video capture
- Large heat sink configuration
- HDMI 1.4a embedded audio
- 10-bit hardware video processing
Magewell Pro Capture Mini HDMI Large Heat Sink HD Mini PCIe Capture Card
- SKU:
- MAG-11111
- MPN:
- 11111
Ships in 2-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
Magewell Pro Capture Mini HDMI with Large Heat Sink is a compact one-channel Mini PCIe capture card for embedded and purpose-built professional video systems. It captures HDMI 1.4a video with embedded audio through the supplied SHD-to-HDMI breakout, while onboard 10-bit processing handles scaling, deinterlacing, color conversion, frame-rate conversion, and multi-stream capture. SKU 111100001 uses Magewell's Large Heat Sink configuration while retaining the Pro Capture Mini HDMI capture platform.
Compact Mini PCIe Form Factor
Measuring only 30 × 51 mm, the Mini PCIe board is designed for compact computers, embedded systems, video appliances, and custom hardware where a conventional full-size PCIe capture card is not practical.

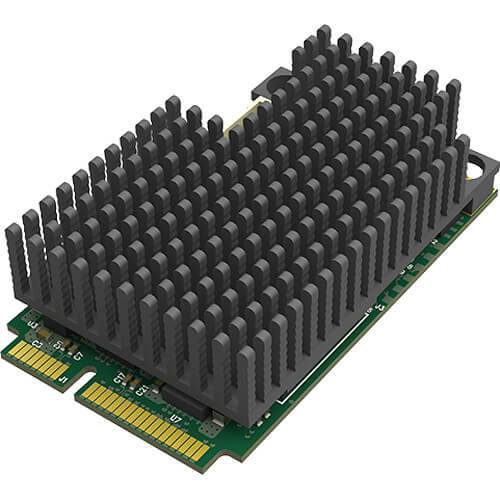

Large Heat Sink Configuration
SKU 111100001 is supplied as the Large Heat Sink version of Pro Capture Mini HDMI. Magewell offers three heat-sink configurations for this capture-card family, allowing system designers to select the physical configuration appropriate for their installation.
HDMI 1.4a Video Capture
HDMI 1.4a and compatible DVI 1.0 sources are supported with input resolutions up to 2048 × 2160. A JST SHD 20-pin connection carries the source signal to the card, with a supplied breakout providing standard HDMI Type-A connectivity.
Embedded HDMI Audio Capture
Embedded digital audio is captured alongside the HDMI video signal. Magewell SDK support provides access to compatible IEC60958 and IEC61937 audio with up to eight channels for recording, streaming, and custom applications.
Full 10-Bit Hardware Video Processing
Onboard hardware provides full 10-bit processing with cropping, scaling, deinterlacing, aspect-ratio conversion, color-space conversion, frame-rate conversion, color adjustment, and OSD composition.
Ultra-Low-Latency Multi-Stream Capture
Ultra-low-latency operation is specified at 64 video lines. Multiple capture streams can also be generated from the single input with independent resolution, frame rate, cropping, aspect ratio, deinterlacing, color format, and color-adjustment settings.

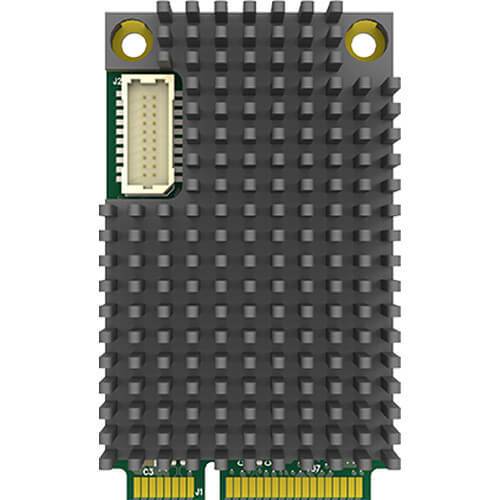

JST SHD Input and Mini PCIe Gen2 x1
A JST SHD 20-pin connector carries HDMI video and embedded audio to the capture card. The supplied SHD-to-HDMI Type-A breakout provides compatibility with standard HDMI cameras, computers, switchers, and other source equipment.
The host interface uses Mini PCIe Gen2 x1, allowing the capture engine to be integrated directly into compact embedded computers and purpose-built professional video systems.
Embedded Video Systems
Add HDMI capture to compact embedded computers and dedicated professional video appliances.
Systems Integrators
Build custom capture platforms around the compact Mini PCIe architecture and Magewell software interfaces.
Live Streaming
Capture HDMI cameras and production sources into compatible streaming and encoding applications.
Recording Appliances
Integrate HDMI ingest into compact recording hardware and purpose-built capture systems.
Visualization Systems
Bring digital video and computer sources into monitoring, analysis, and visualization applications.
Custom Video Hardware
Integrate a compact professional capture engine into products where internal board space is limited.
Magewell Support
Coremicro can help confirm Mini PCIe host compatibility, enclosure and heat-sink clearance, HDMI source requirements, SHD breakout connectivity, embedded-audio workflows, operating-system support, capture applications, driver configuration, and Magewell Capture SDK integration for compact professional video systems.
| Specification | Detail |
|---|---|
| Product Name | Pro Capture Mini HDMI |
| Variant | Large Heat Sink |
| Part Number | 11110 |
| SKU | 111100001 |
| Product Type | One-Channel Mini PCIe HD Capture Card |
| Capture Channels | 1 |
| Host Interface | Mini PCIe Gen2 x1 |
| Video Input Connector | JST SHD 20-pin |
| External HDMI Connection | HDMI Type-A via supplied SHD breakout |
| Input Standards | DVI 1.0 · HDMI 1.4a |
| Maximum Input Resolution | Up to 2048 × 2160 |
| HDMI Receiver | 225MHz |
| HDMI Cable Equalization | Up to approximately 30m |
| Custom EDID | Supported |
| HDMI Input Color Depth | 8-bit · 10-bit · 12-bit |
| HDMI Color Sampling | RGB 4:4:4 · YCbCr 4:4:4 · YCbCr 4:2:2 |
| Embedded HDMI Audio | Up to 8-channel IEC60958 / IEC61937 audio via SDK |
| HDMI InfoFrame Extraction | Supported |
| HDMI 3D Information | Side-by-Side Half · Top-and-Bottom · Frame Packing |
| DSLR Time Code Extraction | Sony / Canon supported formats |
| Maximum Capture Resolution | Up to 2048 × 2160 |
| Maximum Capture Frame Rate | Up to 144fps depending on resolution, Mini PCIe bandwidth, and processing requirements |
| 1920 × 1080 Capture | Up to approximately 80fps |
| Capture Formats | 4:2:0 8-bit · 4:2:2 8-bit · 4:4:4 8-bit · 4:4:4 10-bit |
| Video Processing | Full 10-bit processing |
| Processing Pipelines | 2 pipelines at approximately 180 Mpixels/s each |
| Hardware Processing | Cropping · Scaling · Deinterlacing · Aspect-ratio conversion · Color-space conversion · Frame-rate conversion · Color adjustment · OSD composition |
| Capture Streams | Unlimited capture streams from the single input channel |
| Independent Stream Settings | Cropping · Aspect ratio · Color format · Resolution · Frame rate · Deinterlacing · Color adjustment |
| Ultra-Low Latency | 64 video lines |
| Multiple Cards per System | Supported |
| Windows Support | DirectShow · DirectKS and compatible applications |
| Linux Support | V4L2 · ALSA |
| macOS Support | AVCaptureSession · AudioUnit |
| Compatible Software | OBS · vMix · VLC · XSplit · Wirecast · VidBlaster · VirtualDub and compatible applications |
| Form Factor | Mini PCIe add-on card |
| Card Dimensions | 30 × 51 mm |
| Heat Sink Variant | Large Heat Sink |
| Maximum Power High Performance Firmware | Approximately 3.24W |
| Maximum Power Low Power Firmware | Approximately 2.7W |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Manufacturer Warranty | 2 years |
| In the Box | Pro Capture Mini HDMI × 1 · SHD to HDMI Type-A Breakout × 1 |
What is the Large Heat Sink version of Pro Capture Mini HDMI?
This listing is SKU 111100001, the Large Heat Sink configuration of the Pro Capture Mini HDMI family. Magewell offers three heat-sink configurations for this card.
How does HDMI connect to the Mini PCIe card?
The board uses a JST SHD 20-pin connector. The supplied SHD-to-HDMI Type-A breakout provides a standard HDMI connection for compatible source equipment.
Does Pro Capture Mini HDMI capture embedded audio?
Yes. Compatible embedded HDMI audio is captured alongside video, with Magewell SDK access to supported audio formats and up to eight channels.
Is Pro Capture Mini HDMI a 4K UHD capture card?
No. The documented maximum input and capture resolution is 2048 × 2160, not 3840 × 2160 UHD.
Can one HDMI input generate multiple capture streams?
Yes. Multiple streams can be generated from the single input with independent resolution, frame rate, cropping, aspect ratio, deinterlacing, color format, and color-adjustment settings.
Which operating systems are supported?
Magewell supports Windows, Linux, and macOS through platform-native capture APIs and compatible third-party applications.
What is included with this Large Heat Sink version?
The standard package includes one Pro Capture Mini HDMI card and one SHD-to-HDMI Type-A breakout cable.
Build a Compact Embedded HDMI Capture System
Coremicro is an authorized Magewell dealer supporting compact Mini PCIe HDMI capture for embedded computers, recording hardware, streaming appliances, visualization platforms, and custom video integration. Contact our team to confirm Mini PCIe compatibility, enclosure clearance, thermal requirements, HDMI connectivity, software support, and SDK integration.
