Product Highlights
- Mini PCIe HDMI video capture
- HDMI 1.4a embedded audio
- 10-bit hardware video processing
- Ultra-low-latency multi-stream capture

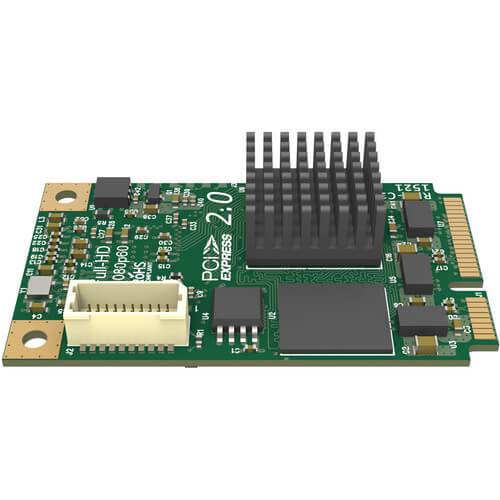

Magewell Pro Capture Mini HDMI Small Heat Sink HD Mini PCIe Capture Card
- SKU:
- MAG-11110
- MPN:
- 11110
Product Inquiry Form
Description
Product Overview
Magewell Pro Capture Mini HDMI with Small Heat Sink is a compact one-channel Mini PCIe capture card designed for embedded and space-conscious professional video systems. It captures HDMI 1.4a video with embedded audio through an included SHD-to-HDMI breakout, while onboard 10-bit processing provides scaling, deinterlacing, color conversion, frame-rate conversion, and flexible multi-stream capture for recording, streaming, visualization, and custom integration.
Compact Mini PCIe Form Factor
The 30 × 51 mm Mini PCIe card is designed for compact workstations, embedded systems, appliances, and custom video hardware where a full-size PCIe capture card is not practical. The Small Heat Sink configuration helps provide thermal management while keeping the overall installation compact.
HDMI 1.4a Video Capture
The card supports HDMI 1.4a and compatible DVI 1.0 signals with input resolutions up to 2048 × 2160. HDMI connectivity is provided through the included JST SHD 20-pin to HDMI Type-A breakout cable for integration with standard sources.
Embedded HDMI Audio Capture
Embedded digital audio is captured alongside the HDMI video signal. Magewell SDK support provides access to compatible IEC60958 and IEC61937 audio with up to eight channels for recording, streaming, production, and custom applications.
Full 10-Bit Hardware Video Processing
Onboard processing supports full 10-bit video handling with hardware cropping, scaling, deinterlacing, aspect-ratio conversion, color-space conversion, frame-rate conversion, color adjustment, and OSD composition.
Ultra-Low-Latency Capture
Ultra-low-latency operation is specified at 64 video lines, helping reduce delay between the incoming HDMI source and host application. This is useful for monitoring, visualization, interactive processing, and other latency-sensitive systems.
Multiple Independent Capture Streams
Multiple capture streams can be generated from the single HDMI input with independent cropping, resolution, frame rate, aspect ratio, deinterlacing, color format, and color-adjustment settings for different applications.
JST SHD Input and Mini PCIe Gen2 x1
A JST SHD 20-pin connector carries the HDMI input signal to the card, while the supplied breakout converts the connection to a standard HDMI Type-A interface for cameras, computers, switchers, and other compatible sources.
The host connection uses Mini PCIe Gen2 x1, allowing the capture engine to be integrated directly into compact embedded systems and purpose-built video hardware.
Embedded Video Systems
Add professional HDMI capture to compact embedded computers and dedicated video appliances.
Systems Integrators
Build custom capture hardware using the compact Mini PCIe architecture and Magewell software interfaces.
Live Streaming
Bring HDMI cameras and production sources into compatible streaming and encoding applications.
Recording Appliances
Integrate HDMI ingest into compact recording and workstation-based capture systems.
Visualization Systems
Capture digital video and computer sources for monitoring, analysis, and visualization applications.
Custom Video Hardware
Use the small 30 × 51 mm form factor in purpose-built professional video products with limited internal space.
Magewell Support
Coremicro can help confirm Mini PCIe host compatibility, HDMI input requirements, SHD breakout connectivity, embedded audio, thermal considerations, supported operating systems, capture software, driver configuration, and Magewell Capture SDK integration for compact and embedded professional video systems.
| Specification | Detail |
|---|---|
| Product Name | Pro Capture Mini HDMI |
| Variant | Small Heat Sink |
| Part Number | 11110 |
| SKU | 111100000 |
| Product Type | One-Channel Mini PCIe HD Capture Card |
| Capture Channels | 1 |
| Host Interface | Mini PCIe Gen2 x1 |
| Video Input Connector | JST SHD 20-pin |
| External HDMI Connection | HDMI Type-A via supplied SHD breakout |
| Input Standards | DVI 1.0 · HDMI 1.4a |
| Maximum Input Resolution | Up to 2048 × 2160 |
| HDMI Receiver | 225MHz |
| HDMI Cable Equalization | Up to approximately 30m |
| Custom EDID | Supported |
| HDMI Input Color Depth | 8-bit · 10-bit · 12-bit |
| HDMI Color Sampling | RGB 4:4:4 · YCbCr 4:4:4 · YCbCr 4:2:2 |
| Embedded HDMI Audio | Up to 8-channel IEC60958 / IEC61937 audio via SDK |
| HDMI InfoFrame Extraction | Supported |
| HDMI 3D Information | Side-by-Side Half · Top-and-Bottom · Frame Packing |
| DSLR Time Code Extraction | Sony / Canon supported formats |
| Maximum Capture Resolution | Up to 2048 × 2160 |
| Maximum Capture Frame Rate | Up to 144fps depending on resolution, Mini PCIe bandwidth, and processing requirements |
| 1920 × 1080 Capture | Up to approximately 80fps |
| Capture Formats | 4:2:0 8-bit · 4:2:2 8-bit · 4:4:4 8-bit · 4:4:4 10-bit |
| Video Processing | Full 10-bit processing |
| Processing Pipelines | 2 pipelines at approximately 180 Mpixels/s each |
| Hardware Processing | Cropping · Scaling · Deinterlacing · Aspect-ratio conversion · Color-space conversion · Frame-rate conversion · Color adjustment · OSD composition |
| Capture Streams | Unlimited capture streams from the single input channel |
| Independent Stream Settings | Cropping · Aspect ratio · Color format · Resolution · Frame rate · Deinterlacing · Color adjustment |
| Ultra-Low Latency | 64 video lines |
| Multiple Cards per System | Supported |
| Windows Support | DirectShow · DirectKS and compatible applications |
| Linux Support | V4L2 · ALSA |
| macOS Support | AVCaptureSession · AudioUnit |
| Compatible Software | OBS · vMix · VLC · XSplit · Wirecast · VidBlaster · VirtualDub and compatible applications |
| Form Factor | Mini PCIe add-on card |
| Card Dimensions | 30 × 51 mm |
| Heat Sink Variant | Small Heat Sink |
| Maximum Power High Performance Firmware | Approximately 3.24W |
| Maximum Power Low Power Firmware | Approximately 2.7W |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Manufacturer Warranty | 2 years |
| In the Box | Pro Capture Mini HDMI × 1 · SHD to HDMI Type-A Breakout × 1 |
What makes Pro Capture Mini HDMI different from a standard PCIe capture card?
It uses a compact 30 × 51 mm Mini PCIe form factor instead of a full-size PCIe expansion card, making it suited to embedded computers, compact appliances, and custom professional video systems.
How does HDMI connect to the card?
The board uses a JST SHD 20-pin input connector. An SHD-to-HDMI Type-A breakout is included so standard HDMI source devices can be connected to the card.
Does the card capture embedded HDMI audio?
Yes. Compatible embedded HDMI audio can be captured alongside video, with Magewell SDK access to supported audio formats and up to eight channels.
Is Pro Capture Mini HDMI a 4K UHD capture card?
No. The documented maximum input and capture image resolution is 2048 × 2160, so the card should not be represented as a 3840 × 2160 UHD capture device.
Can one HDMI input create multiple capture streams?
Yes. Multiple streams can be generated from the single input with independent resolution, frame rate, cropping, aspect ratio, deinterlacing, color format, and color-adjustment settings.
Which operating systems are supported?
Magewell supports Windows, Linux, and macOS through platform-native capture APIs and compatible third-party applications.
What is included with this Small Heat Sink version?
The package includes one Pro Capture Mini HDMI card and one SHD-to-HDMI Type-A breakout cable.
Build a Compact Embedded HDMI Capture System
Coremicro is an authorized Magewell dealer supporting compact Mini PCIe HDMI capture for embedded systems, streaming appliances, recording hardware, visualization platforms, and custom professional video integration. Contact our team to confirm Mini PCIe host compatibility, thermal requirements, HDMI connectivity, software support, and SDK integration.
