Product Highlights
- HDMI Component Composite S-Video capture
- PCIe Gen2 x1 host interface
- 10-bit hardware video processing
- Ultra-low-latency multi-stream capture

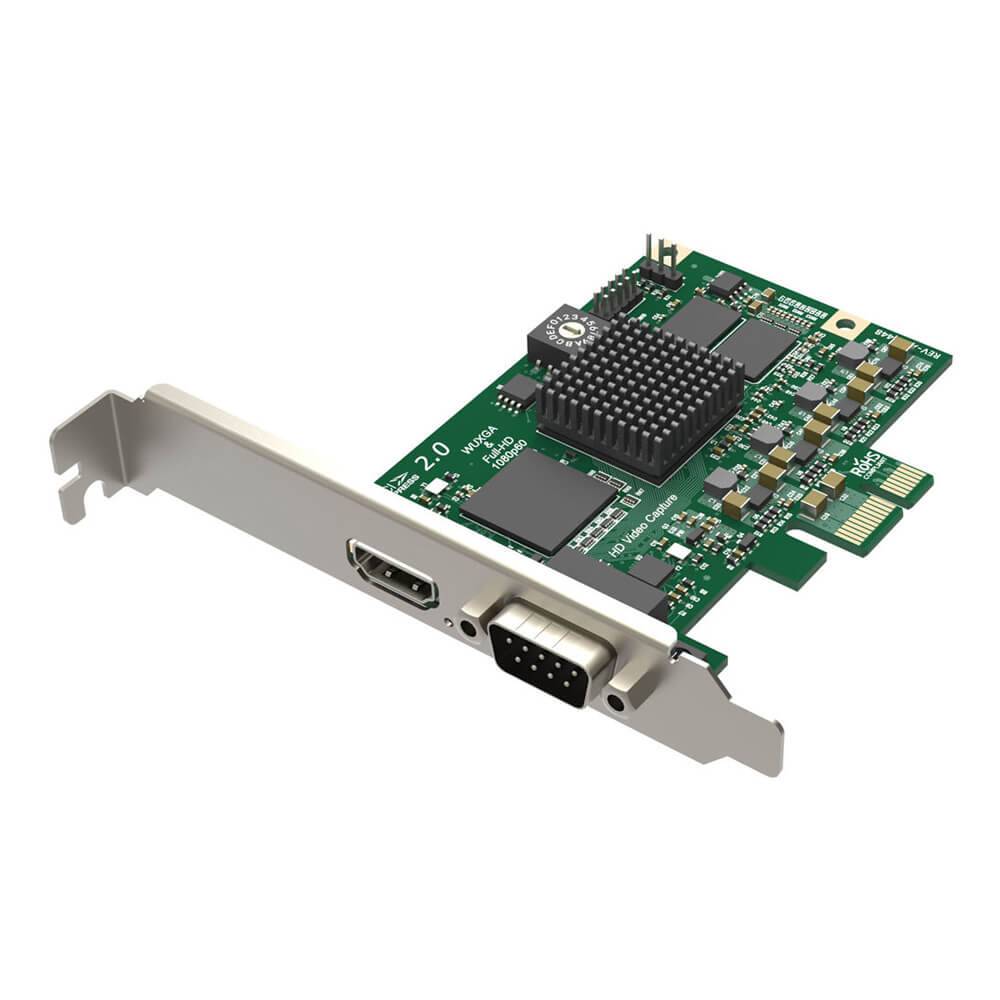

Magewell Pro Capture HDMI One Channel HD PCIe Multi Format Capture Card
- SKU:
- MAG-11040
- MPN:
- 11040
Ships in 2-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
Magewell Pro Capture HDMI is a one-channel HD PCIe capture card for HDMI, Component, Composite, and S-Video sources. HDMI supports embedded audio, while the DB9 breakout adds analog video and stereo audio connectivity for legacy and professional AV equipment. Full 10-bit processing, multi-stream capture, and ultra-low-latency operation make it suitable for streaming, recording, ingest, visualization, and custom integration systems.
HDMI 1.4a Professional Video Capture
The HDMI Type-A input supports HDMI 1.4a and compatible DVI 1.0 signals with input resolutions up to 2048 × 2160. An adaptive HDMI equalizer supports longer cable runs while customizable EDID helps accommodate different computers, cameras, switchers, and presentation sources.
Component Composite and S-Video Capture
A DB9 interface expands the card beyond HDMI with Component, Composite, S-Video, and stereo analog audio through the supplied breakout cable. Composite and S-Video support NTSC, PAL, and SECAM, while Component input uses 12-bit analog-to-digital conversion.
Full 10-Bit Hardware Video Processing
Two onboard processing pipelines provide approximately 180 Mpixels/s of processing bandwidth each. Hardware processing includes cropping, scaling, deinterlacing, aspect-ratio conversion, color-space conversion, frame-rate conversion, color adjustment, and OSD composition.
Ultra-Low-Latency Capture Pipeline
Ultra-low-latency capture is specified at 64 video lines, reducing delay between source input and the capture application. Magewell also provides partial notification through its Capture SDK for workflows where processing responsiveness is important.
Multiple Independent Capture Streams
Unlimited capture streams can be generated from the single input channel. Each stream can use independent cropping, resolution, frame rate, aspect ratio, color format, deinterlacing, and color-adjustment settings for different applications running on the same host.
Windows Linux and macOS Compatibility
Native APIs support Windows, Linux, and macOS environments, including DirectShow, DirectKS, V4L2, ALSA, AVCaptureSession, and AudioUnit. Compatible applications include OBS, vMix, VLC, XSplit, Wirecast, VidBlaster, VirtualDub, and other supported capture or streaming software.
HDMI Type-A DB9 and PCIe Gen2 x1
The HDMI Type-A connector handles digital video and embedded audio, while the DB9 interface provides Component, Composite, S-Video, and stereo analog audio through the included breakout.
The card connects to the host workstation through PCIe Gen2 x1. Its low-profile form factor supports compact production systems as well as standard professional capture workstations.
Live Streaming
Capture HDMI sources into OBS, vMix, Wirecast, XSplit, and compatible streaming applications.
Broadcast Production
Add reliable HDMI and analog video ingest to professional production and recording workstations.
Legacy Video Capture
Bring Composite, S-Video, and Component sources into modern digital capture systems.
Presentation Capture
Capture HDMI presentation computers and AV systems for recording, streaming, and archiving.
Systems Integrators
Use Magewell APIs and standard operating-system interfaces for custom capture and visualization systems.
Multi-Card Workstations
Install multiple capture cards in one host for higher-density professional video ingest.
Magewell Support
Coremicro can help confirm HDMI, Component, Composite, and S-Video compatibility, PCIe requirements, breakout connections, embedded and analog audio workflows, operating-system support, capture applications, driver configuration, and Magewell Capture SDK integration for professional streaming, recording, visualization, and custom video systems.
| Specification | Detail |
|---|---|
| Product Name | Pro Capture HDMI |
| Part Number | 11040 |
| SKU | 110400000 |
| Product Type | One-Channel HD PCIe Capture Card |
| Capture Channels | 1 |
| Host Interface | PCIe Gen2 x1 |
| Digital Video Input | 1 × HDMI Type-A |
| Analog Breakout Interface | 1 × DB9 |
| Supported Input Types | HDMI · Component · Composite · S-Video |
| Digital Input Standards | DVI 1.0 · HDMI 1.4a |
| Maximum Input Resolution | Up to 2048 × 2160 |
| HDMI Receiver | 225MHz |
| HDMI Cable Equalization | Up to 30m |
| HDMI EDID | Custom EDID supported |
| HDMI Color Depth | 8-bit · 10-bit · 12-bit |
| HDMI Color Sampling | RGB 4:4:4 · YCbCr 4:4:4 · YCbCr 4:2:2 |
| HDMI Embedded Audio | Up to 8-channel IEC60958 / IEC61937 audio via SDK |
| HDMI 3D Support | Side-by-Side Half · Top-and-Bottom · Frame Packing |
| HDMI Time Code Extraction | Sony / Canon DSLR time code |
| Component Video | Via supplied DB9 breakout |
| Component ADC | 12-bit |
| Component Color Formats | RGB · YCbCr |
| Component Timing Support | DMT · CEA · CVT · GTF · Custom timings |
| Composite Video | Via supplied DB9 breakout |
| S-Video | YC via supplied DB9 breakout |
| Composite / S-Video ADC | 12-bit |
| Composite / S-Video Standards | NTSC · PAL · SECAM |
| Analog Audio | Stereo L/R via DB9 breakout |
| Maximum Capture Resolution | Up to 2048 × 2160 |
| Maximum Capture Frame Rate | Up to 144fps depending on resolution, PCIe bandwidth, and processing limits |
| 1920 × 1080 Capture | Up to approximately 80fps |
| 4:2:0 8-Bit Formats | NV12 · I420 · YV12 |
| 4:2:2 8-Bit Formats | YUY2 · YUYV · UYVY |
| 4:4:4 8-Bit Formats | V308 · IYU2 · V408 · BGR24 · BGR32 |
| 4:4:4 10-Bit Formats | V410 · Y410 |
| Video Processing | Full 10-bit processing |
| Processing Pipelines | 2 pipelines at approximately 180 Mpixels/s each |
| Hardware Processing | Cropping · Scaling · Deinterlacing · Aspect-ratio conversion · Color conversion · Frame-rate conversion · OSD |
| Multiple Capture Streams | Unlimited streams from the single input channel |
| Independent Stream Settings | Cropping · Aspect ratio · Color format · Resolution · Frame rate · Deinterlacing · Color adjustment |
| Ultra-Low Latency | 64 video lines |
| Hardware Timestamp | 100ns high-resolution hardware clock |
| PCIe 2.0 DMA Bandwidth | Approximately 400MB/s per channel |
| Multiple Cards per System | Supported |
| Card Identification | 16-position onboard rotary switch |
| Windows APIs | DirectShow · DirectKS · Wave API · DirectSound · WASAPI |
| Linux APIs | V4L2 · ALSA |
| macOS APIs | AVCaptureSession · AudioUnit |
| Compatible Software | VLC · VirtualDub · OBS · XSplit · vMix · VidBlaster · Wirecast and compatible applications |
| Form Factor | Low-profile PCIe x1 add-on card |
| Card Dimensions | 92.76 × 68.88 mm without PCI bracket |
| Maximum Power Consumption | Approximately 4.59W |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Manufacturer Warranty | 2 years |
| In the Box | Pro Capture HDMI × 1 · DB9 to YC + Composite + Analog Audio + Component Breakout × 1 · Low Profile Bracket × 1 |
What video sources can Magewell Pro Capture HDMI capture?
It can capture one HDMI, Component, Composite, or S-Video source at a time. HDMI carries compatible embedded audio, while analog sources can use stereo audio through the supplied DB9 breakout.
Does Pro Capture HDMI support embedded HDMI audio?
Yes. HDMI supports up to eight channels of compatible IEC60958 or IEC61937 audio through the Magewell SDK.
Can it capture Composite and S-Video sources?
Yes. Composite and S-Video are supported through the DB9 breakout connection with NTSC, PAL, and SECAM standard detection.
Does the card support Component video?
Yes. Component video is supported through the supplied DB9 breakout with a 12-bit ADC, RGB and YCbCr support, and standard or customized video timings.
Can one HDMI input generate multiple capture streams?
Yes. Unlimited capture streams can be created from the single input channel, with independent resolution, frame rate, cropping, aspect ratio, deinterlacing, color format, and color-adjustment settings.
Which operating systems and applications are supported?
Magewell supports Windows, Linux, and macOS using native capture APIs. Compatible applications include OBS, vMix, VLC, XSplit, Wirecast, VidBlaster, VirtualDub, and other supported capture or streaming software.
What is included with Pro Capture HDMI?
The standard package includes the Pro Capture HDMI card, a DB9 breakout for YC, Composite, analog audio, and Component, plus a low-profile PCI bracket. The Mini Repeater 4K HDMI is listed separately as an optional accessory.
Build a Flexible HDMI and Analog Capture Workstation
Coremicro is an authorized Magewell dealer supporting professional HDMI capture, analog video ingest, live streaming, recording, broadcast production, visualization, and custom integration. Contact our team to confirm source formats, PCIe compatibility, breakout connections, software requirements, and multi-card workstation configurations.
