Product Highlights
- HDMI 2.0 4K60 capture
- Capture up to 4096x2160
- PCIe Gen2 x4 interface
- HDR10 and low-latency support

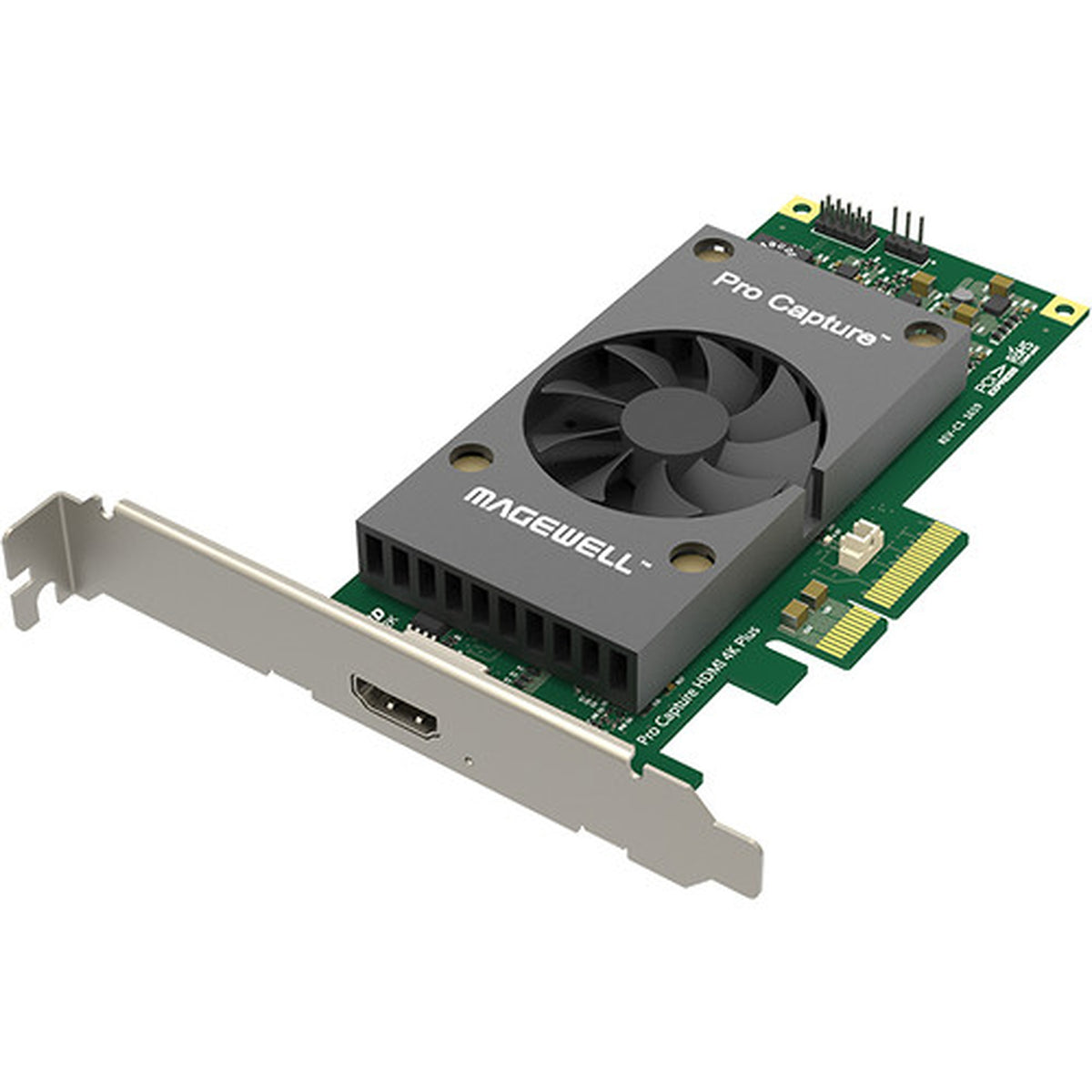

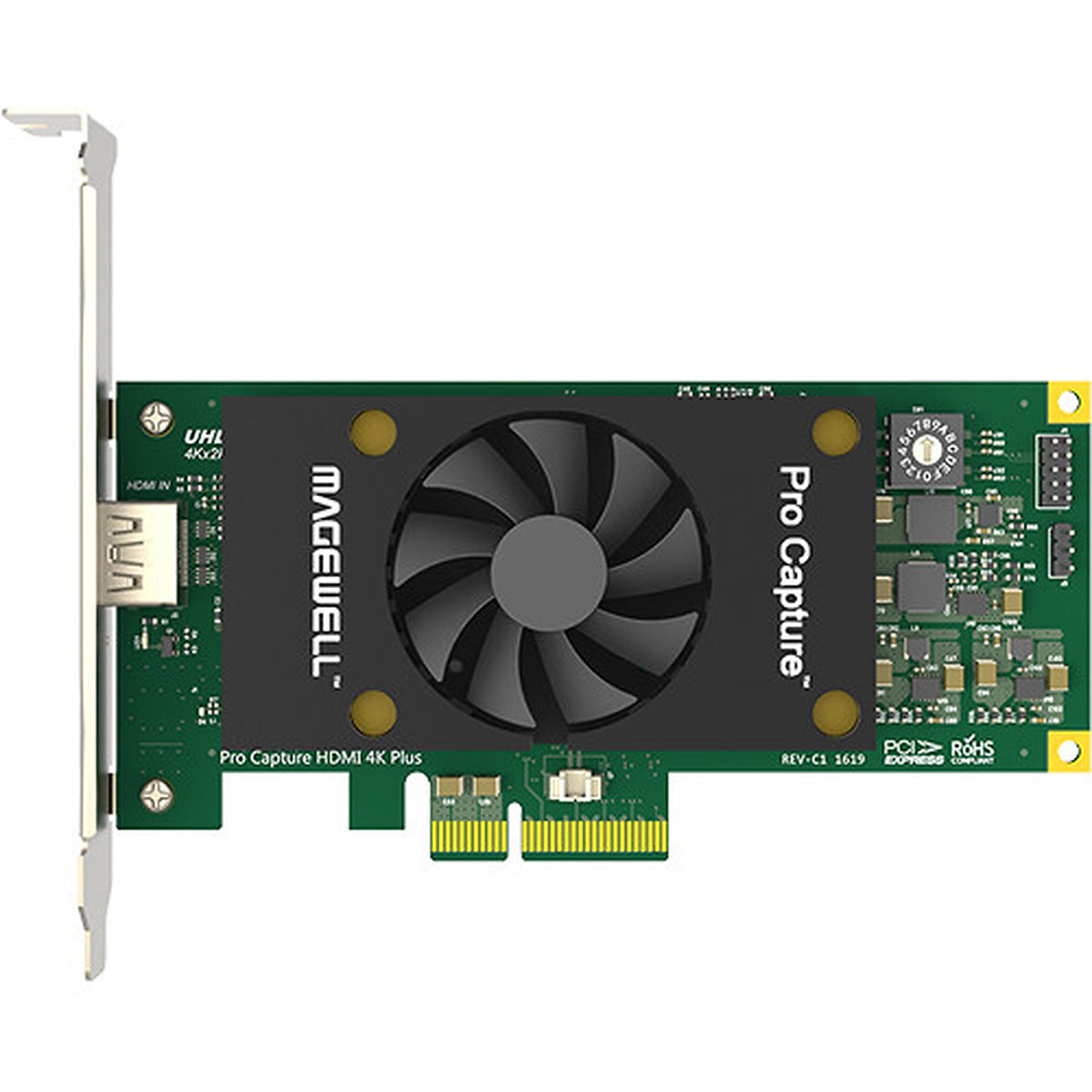

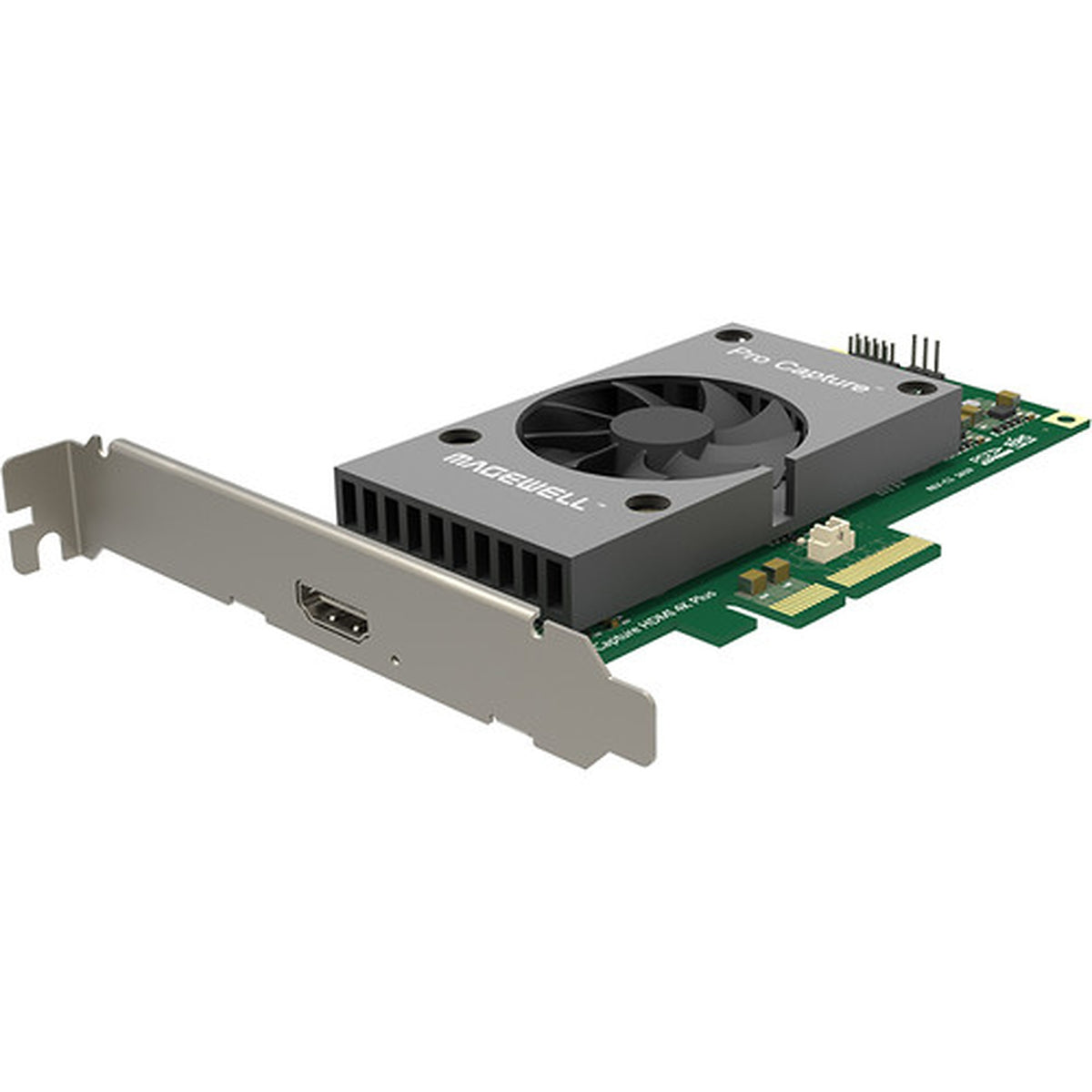

Magewell Pro Capture HDMI 4K Plus HDMI 2.0 PCIe Capture Card
- SKU:
- MAG-11150
- MPN:
- 11150
Ships in 2-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The Magewell Pro Capture HDMI 4K Plus is a one-channel HDMI 2.0 PCIe capture card for professional 4K video ingest. It accepts HDMI video with embedded audio at resolutions up to 4096×2160 60fps and connects directly to the host through PCIe Gen2 x4. Hardware video processing, HDR10 support, low-latency capture, and broad software compatibility make it well suited to broadcast, live production, streaming, recording, and AV integration.
4K60 HDMI Capture up to 4096×2160
HDMI video can be captured at resolutions up to 4096×2160 60fps. Supported high-frame-rate workflows also include 1080p capture up to 144fps. Actual capture performance depends on image resolution and available PCIe bandwidth.
HDMI 2.0 Professional Video Input
The single HDMI input supports HDMI 2.0 and DVI-D 1.0 sources. A 594 MHz HDMI receiver, adaptive equalization, and customizable EDID support professional source compatibility. Embedded HDMI audio can be captured alongside the incoming video.
PCIe Gen2 x4 Host Interface
PCIe Gen2 x4 connects the card directly to the production workstation. Magewell specifies approximately 1600 MB/s per-channel DMA bandwidth on PCIe 2.x systems. This provides a direct high-bandwidth path for demanding 4K capture workflows.
10-Bit Processing and HDR10 Support
Full 10-bit hardware processing supports scaling, cropping, deinterlacing, color conversion, aspect-ratio conversion, and frame-rate conversion. The HDMI input also supports HDR10 and compatible 8-bit, 10-bit, and 12-bit source signals.
Ultra-Low-Latency HDMI Capture
Magewell specifies an ultra-low-latency mode of 64 video lines. Partial-notification functionality is also available through the Capture SDK. This helps reduce delay in interactive production, monitoring, and custom processing applications.
Multiple Independent Capture Streams
Unlimited capture streams can be generated from the single HDMI input channel. Each stream can use independent cropping, aspect ratio, color format, resolution, frame rate, deinterlacing, and color-adjustment settings. One source can therefore serve several software requirements simultaneously.
Video Input

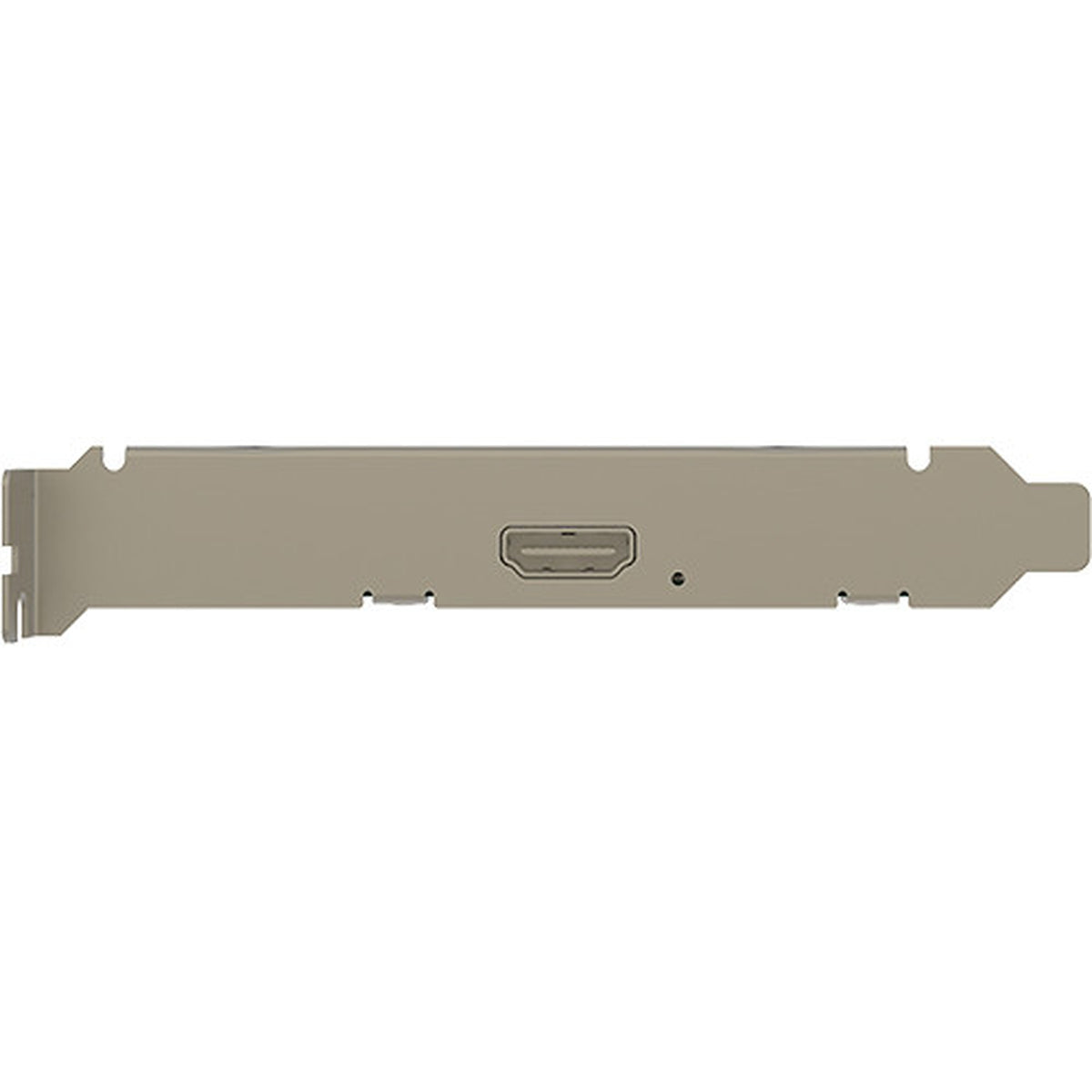

1 × HDMI · HDMI 2.0 · DVI-D 1.0
Embedded Audio
Up to 8-channel HDMI audio via SDK
Host Interface
PCIe Gen2 x4
Maximum Input
4096×2160 60fps
OBS vMix and Wirecast Compatibility
Magewell lists OBS, vMix, and Wirecast among supported applications. XSplit, VidBlaster, VLC, and VirtualDub are also supported. These applications cover live streaming, production, recording, monitoring, and general video capture workflows.
Windows Linux and macOS Support
Windows APIs include DirectShow, DirectKS, Wave API, DirectSound, and WASAPI. Linux support includes V4L2 and ALSA. macOS applications can access the card through AVCaptureSession and AudioUnit.
Magewell Capture SDK Integration
The Magewell Capture SDK provides additional device control, timing, capture-format, and low-latency functions. Hardware clock synchronization across compatible cards is also available through the SDK for custom multi-device applications.
Broadcast Engineers
Professional HDMI ingest for fixed broadcast and production workstations.
Live Production Teams
Capture cameras, switchers, and presentation sources for software-based production.
Streaming Integrators
Bring 4K HDMI sources into OBS, vMix, Wirecast, and compatible streaming software.
AV Installers
Add internal HDMI capture to presentation, conference, and AV workstations.
Post-Production Facilities
Ingest high-resolution HDMI sources with hardware scaling and color processing.
Software Developers
Build custom video applications using Magewell APIs and the Capture SDK.
Magewell Support
Magewell lists a two-year manufacturer warranty for the Pro Capture HDMI 4K Plus. Coremicro can help confirm HDMI source format, PCIe compatibility, operating-system support, software requirements, and workstation integration before deployment.
| Specification | Detail |
|---|---|
| Product | Pro Capture HDMI 4K Plus |
| Part Number | 11150 |
| SKU | 111500000 |
| Capture Channels | 1 channel |
| Input Interface | 1 × HDMI supporting DVI-D 1.0 and HDMI 2.0 |
| Host Interface | PCIe Gen2 x4 |
| Maximum Input Resolution | 4096×2160 60fps |
| Maximum Capture Resolution | 4096×2160 60fps |
| Maximum Capture Frame Rate | Up to 144fps depending on image resolution and PCIe bandwidth |
| HDMI Receiver | 594 MHz |
| HDMI Equalizer | Adaptive HDMI equalizer |
| EDID | Customizable EDID supported |
| HDMI Color Depth | 8-bit · 10-bit · 12-bit |
| HDMI Color Sampling | RGB 4:4:4 · YCbCr 4:4:4 · YCbCr 4:2:2 |
| HDR Support | HDR10 |
| HDMI Embedded Audio | Up to 8-channel IEC60958/IEC61937 audio streams via SDK |
| 4:2:0 8-Bit Capture | NV12 · I420 · YV12 |
| 4:2:2 8-Bit Capture | YUY2 · YUYV · UYVY |
| 4:4:4 8-Bit Capture | V308 · IYU2 · V408 · BGR24 · BGR32 |
| 4:4:4 10-Bit Capture | V410 · Y410 |
| Video Processing | 10-bit processing · Cropping · Scaling · Deinterlacing · Aspect-ratio conversion · Color conversion · Frame-rate conversion · OSD |
| Processing Pipelines | 2 pipelines at approximately 720 Mpixels/s each |
| Multiple Capture Streams | Unlimited streams from one input channel with independent processing settings |
| Ultra-Low Latency | 64 video lines |
| Hardware Timestamp | 100 ns high-resolution hardware clock |
| PCIe 2.x DMA Bandwidth | Approximately 1600 MB/s per channel |
| PCIe 1.x DMA Bandwidth | Approximately 800 MB/s per channel |
| Windows APIs | DirectShow · DirectKS · Wave API · DirectSound · WASAPI |
| Linux APIs | V4L2 · ALSA |
| macOS APIs | AVCaptureSession · AudioUnit |
| Supported Software | OBS · XSplit · vMix · VidBlaster · Wirecast · VLC · VirtualDub · Microsoft Media Encoder · Adobe Flash Media Encoder |
| Multiple Cards per System | Supported with onboard 16-position card-number rotary switch |
| Form Factor | Low-profile PCIe x4 add-on card |
| Dimensions | 140 × 68.88 mm without PCI bracket |
| Maximum Power Consumption | Approximately 8.08 W |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | −20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Manufacturer Warranty | 2 years |
| Included Hardware | Pro Capture HDMI 4K Plus card · Low-profile bracket |
What is the Magewell Pro Capture HDMI 4K Plus used for?
The card captures HDMI video and embedded audio directly into a PCIe workstation. It is suited to broadcast production, live streaming, recording, monitoring, AV integration, and custom video-processing applications.
What is the maximum HDMI capture resolution?
The card supports HDMI input and capture resolutions up to 4096×2160 60fps. It can also capture lower resolutions at higher frame rates, including compatible 1080p workflows up to 144fps.
Does the card support HDMI 2.0?
Yes. The HDMI input supports HDMI 2.0 as well as DVI-D 1.0 sources. It uses a 594 MHz HDMI receiver and supports customizable EDID.
Is the card compatible with OBS vMix and Wirecast?
Yes. Magewell lists OBS, vMix, Wirecast, XSplit, VidBlaster, VLC, VirtualDub, and other compatible capture applications.
Does the HDMI input support HDR10?
Yes. HDR10 is supported on compatible HDMI sources. The HDMI input also supports RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, and 8-bit, 10-bit, or 12-bit color depths.
Can one HDMI input create multiple capture streams?
Yes. Magewell specifies unlimited capture streams from the single input channel. Individual streams can use independent cropping, aspect ratio, color format, resolution, frame rate, deinterlacing, and color-adjustment settings.
What warranty does the Pro Capture HDMI 4K Plus include?
Magewell lists a two-year manufacturer warranty for the product. Deployment and compatibility requirements should be confirmed for the intended system.
Build a Professional 4K HDMI Capture Workstation
Coremicro is an authorized Magewell dealer for professional video capture equipment. Contact our team to confirm HDMI source formats, PCIe compatibility, operating-system support, software requirements, and workstation configuration for the Pro Capture HDMI 4K Plus.
