Product Highlights
- 4096x2160 HDMI 4K video capture
- PCIe Gen2 x4 host interface
- 10-bit hardware video processing
- Ultra-low-latency multi-stream capture

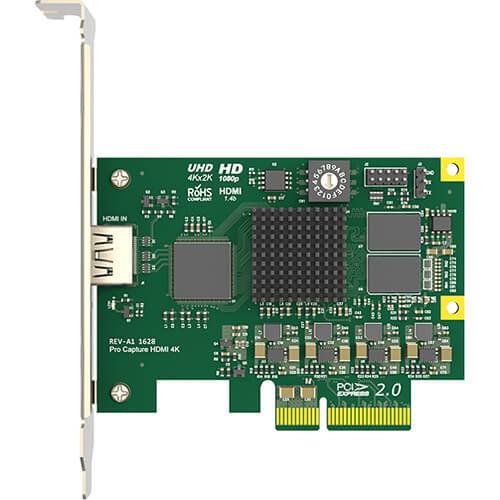

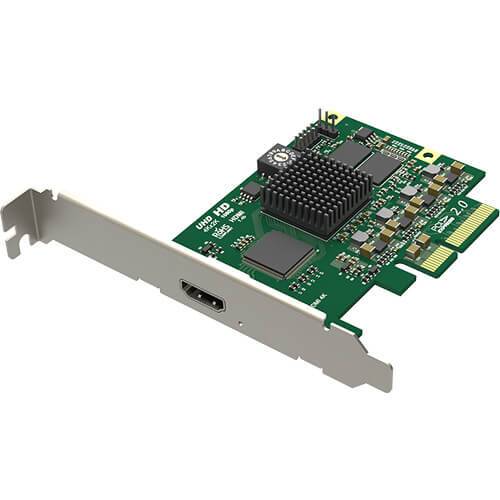

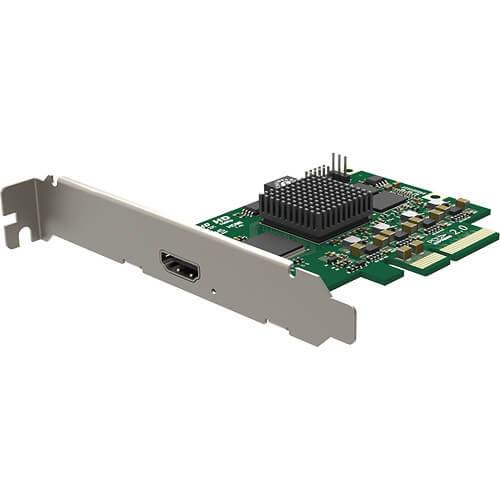

Magewell Pro Capture HDMI 4K One Channel PCIe 4K Capture Card
- SKU:
- MAG-11120
- MPN:
- 11120
Ships in 2-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
Magewell Pro Capture HDMI 4K is a one-channel professional PCIe capture card for HDMI video resolutions up to 4096 × 2160 with embedded audio. Its PCIe Gen2 x4 interface, high-bandwidth DMA engine, full 10-bit video processing, multi-stream capture, and ultra-low-latency operation support professional recording, streaming, visualization, live production, and custom video-processing workstations.
4096 × 2160 4K HDMI Capture
Capture professional HDMI sources at resolutions up to 4096 × 2160 through a dedicated HDMI input. HDMI 1.4 and compatible DVI-D 1.0 signals are supported for high-resolution cameras, computers, production systems, and visualization sources.
Embedded HDMI Audio
Digital audio embedded in the HDMI source can be captured alongside the video signal, simplifying professional recording, streaming, monitoring, and application workflows that require synchronized video and audio ingest.
Full 10-Bit Video Processing
Two onboard processing pipelines provide approximately 360 Mpixels/s each with full 10-bit processing. Hardware functions include cropping, scaling, deinterlacing, aspect-ratio conversion, color-space conversion, frame-rate conversion, color adjustment, and OSD composition.
High-Speed PCIe DMA
The PCIe Gen2 x4 host connection supports approximately 1200MB/s DMA bandwidth in PCIe 2.x systems and approximately 800MB/s in PCIe 1.x systems, providing the transfer performance required for high-resolution professional video capture.
Ultra-Low-Latency Capture
Ultra-low-latency operation is specified at 64 video lines, helping reduce delay between the incoming HDMI source and the host application. This supports monitoring, visualization, interactive production, and other latency-sensitive workflows.
Multiple Independent Capture Streams
Multiple capture streams can be generated from the single HDMI input with independent cropping, resolution, frame rate, aspect ratio, deinterlacing, color format, and color-adjustment settings for different applications.
HDMI Input and PCIe Gen2 x4
A dedicated HDMI connector accepts HDMI 1.4 and compatible DVI-D sources with resolutions up to 4096 × 2160. A 297MHz HDMI receiver supports professional high-resolution video acquisition with customizable EDID.
The PCIe Gen2 x4 host interface provides substantially more transfer bandwidth than standard x1 capture cards, supporting the higher data rates required for 4K capture and processing.
4K Production
Capture high-resolution HDMI feeds from cameras, switchers, computers, and professional video equipment.
Live Streaming
Bring professional HDMI sources into compatible streaming, switching, and encoding applications.
Recording Workstations
Capture high-resolution HDMI video and embedded audio for recording and post-production workflows.
Visualization Systems
Ingest high-resolution computer and video sources for monitoring, analysis, visualization, and display systems.
GPU Processing
Integrate high-bandwidth capture into compatible GPU-assisted processing systems using supported Magewell acceleration features.
Systems Integrators
Build custom professional capture systems using Magewell APIs and standard operating-system interfaces.
Magewell Support
Coremicro can help confirm HDMI source resolution, PCIe x4 compatibility, embedded-audio requirements, EDID configuration, host bandwidth, operating-system support, capture applications, GPU-assisted workflows, driver configuration, and Magewell Capture SDK integration for professional 4K video systems.
| Specification | Detail |
|---|---|
| Product Name | Pro Capture HDMI 4K |
| Part Number | 11120 |
| SKU | 111200000 |
| Product Type | One-Channel 4K PCIe Capture Card |
| Capture Channels | 1 |
| Host Interface | PCIe Gen2 x4 |
| Video Input | 1 × HDMI |
| Input Standards | DVI-D 1.0 · HDMI 1.4 |
| Maximum Input Resolution | Up to 4096 × 2160 |
| HDMI Receiver | 297MHz |
| Custom EDID | Supported |
| HDMI 8-Bit Input | RGB / YCbCr 4:4:4 up to 297MHz |
| HDMI 12-Bit YCbCr 4:2:2 | Up to 297MHz |
| HDMI 10 / 12-Bit 4:4:4 | RGB / YCbCr up to 170MHz |
| Embedded HDMI Audio | Supported |
| HDMI InfoFrame Extraction | Supported |
| Audio Format Information | Supported |
| HDMI Video Timing Extraction | Supported |
| HDMI 3D Information | Side-by-Side Half · Top-and-Bottom · Frame Packing |
| DSLR Time Code Extraction | Sony / Canon supported formats |
| Maximum Capture Resolution | Up to 4096 × 2160 |
| Maximum Capture Frame Rate | Up to 144fps depending on capture resolution, PCIe bandwidth, and processing requirements |
| Capture Formats | 4:2:0 8-bit · 4:2:2 8-bit · 4:4:4 8-bit · 4:4:4 10-bit |
| Video Processing | Full 10-bit processing |
| Processing Pipelines | 2 pipelines at approximately 360 Mpixels/s each |
| Hardware Processing | Cropping · Scaling · Deinterlacing · Aspect-ratio conversion · Color-space conversion · Frame-rate conversion · Color adjustment · OSD composition |
| Color-Space Conversion | RGB · YCbCr BT.601 · BT.709 · BT.2020 |
| OSD Resolution | Up to 4096 × 2160 |
| Capture Streams | Unlimited capture streams from the single input channel |
| Independent Stream Settings | Cropping · Aspect ratio · Color format · Resolution · Frame rate · Deinterlacing · Color adjustment |
| Ultra-Low Latency | 64 video lines |
| PCIe 2.x DMA Bandwidth | Approximately 1200MB/s per channel |
| PCIe 1.x DMA Bandwidth | Approximately 800MB/s per channel |
| GPU Transfer Support | AMD DirectGMA · NVIDIA GPUDirect |
| Multiple Cards per System | Supported |
| Windows Support | DirectShow · DirectKS and compatible applications |
| Linux Support | V4L2 · ALSA |
| macOS Support | AVCaptureSession · AudioUnit |
| Compatible Software | OBS · vMix · VLC · XSplit · Wirecast · VidBlaster · VirtualDub and compatible applications |
| Form Factor | Low-profile PCIe x4 add-on card |
| Card Dimensions | 92.76 × 68.88 mm without PCI bracket |
| Maximum Power Consumption | Approximately 5.44W |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Manufacturer Warranty | 2 years |
| In the Box | Pro Capture HDMI 4K × 1 · Low Profile Bracket × 1 |
Does Magewell Pro Capture HDMI 4K support true 4K capture?
Yes. It supports HDMI input and capture resolutions up to 4096 × 2160, making it suitable for professional 4K acquisition workflows.
Is this a 4K60 HDMI capture card?
No. The card uses HDMI 1.4 with a 297MHz receiver. The maximum supported frame rate depends on the selected resolution, color format, PCIe bandwidth, and processing load.
Does the card capture embedded HDMI audio?
Yes. Embedded digital audio can be captured together with the incoming HDMI video for recording, streaming, and professional application workflows.
Does Pro Capture HDMI 4K support custom EDID?
Yes. Custom EDID support allows the capture system to present appropriate display capabilities to connected HDMI source equipment.
Can one HDMI source generate multiple capture streams?
Yes. Multiple streams can be generated from the single input with independent resolution, frame rate, cropping, aspect ratio, deinterlacing, color format, and color-adjustment settings.
Does the card support GPU-assisted workflows?
Magewell lists support for AMD DirectGMA and NVIDIA GPUDirect, enabling compatible professional systems to integrate the capture pipeline with supported GPU workflows.
What is included with Pro Capture HDMI 4K?
The standard package includes one Pro Capture HDMI 4K card and one low-profile PCI bracket. The Mini Repeater 4K HDMI is an optional accessory and is not included.
