Product Highlights
- DVI HDMI VGA video capture
- PCIe Gen2 x1 host interface
- 10-bit hardware video processing
- Ultra-low-latency multi-stream capture

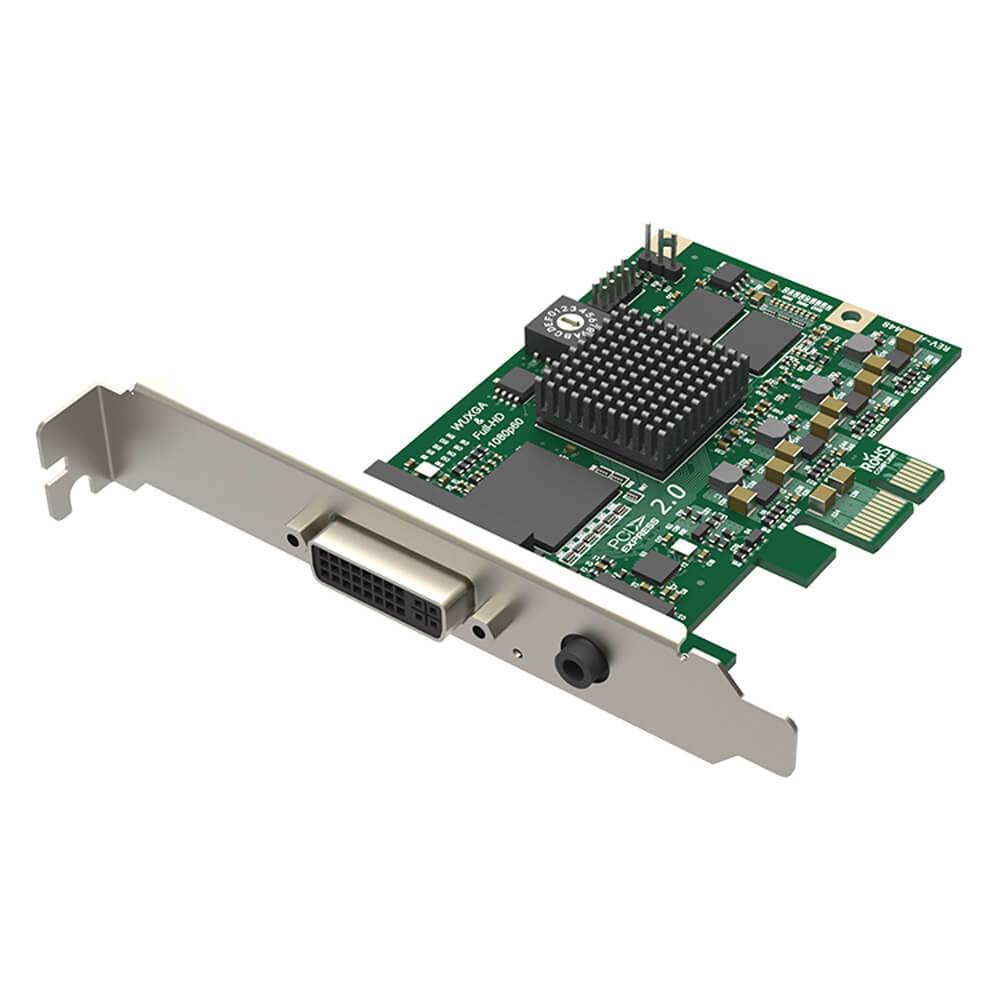

Magewell Pro Capture DVI One Channel HD PCIe Multi Format Capture Card
- SKU:
- MAG-11030
- MPN:
- 11030
Ships in 2-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
Magewell Pro Capture DVI is a one-channel HD PCIe capture card for DVI, HDMI, VGA, and Component video sources. Its DVI-I architecture combines digital and analog connectivity with embedded or analog audio, while onboard 10-bit processing handles scaling, deinterlacing, color conversion, frame-rate conversion, and multi-stream capture. The low-profile PCIe design fits professional streaming, recording, ingest, visualization, and integration workstations.
DVI-I Multi-Format Video Capture
The DVI-I input supports both digital and analog video workflows, allowing one card to capture DVI, HDMI, VGA, or Component sources. This makes Pro Capture DVI useful in systems that regularly work with different computer, camera, presentation, and AV signal types.
HDMI VGA and Component Support
HDMI 1.4a capture is available through the supplied DVI-I breakout, while VGA and Component sources are supported through the included adapters. A dedicated 3.5 mm line input provides stereo analog audio for sources that do not carry embedded digital audio.
Full 10-Bit Hardware Video Processing
Two onboard processing pipelines provide approximately 180 Mpixels/s of processing bandwidth each. Hardware functions include cropping, scaling, deinterlacing, aspect-ratio conversion, color-space conversion, frame-rate conversion, color adjustment, and OSD composition.
Ultra-Low-Latency Capture Pipeline
Ultra-low-latency operation is specified at 64 video lines, helping reduce delay between the incoming source and capture application. This is useful for interactive production, visualization, monitoring, and custom processing workflows where capture responsiveness matters.
Multiple Independent Capture Streams
Multiple capture streams can be generated from the single input channel with independent processing settings. Resolution, frame rate, cropping, aspect ratio, deinterlacing, color format, and color adjustments can be configured separately for individual capture streams.
Windows Linux and macOS Compatibility
Native operating-system capture interfaces support deployment across Windows, Linux, and macOS. The card can be used with compatible applications such as OBS, vMix, VLC, XSplit, Wirecast, VidBlaster, VirtualDub, and custom software built with Magewell capture APIs.
DVI-I Video Analog Audio and PCIe
The DVI-I connector is the primary video interface and supports DVI directly while expanding to HDMI, VGA, and Component through the supplied adapters and breakout connections.
A dedicated 3.5 mm line input accepts stereo analog audio, while the PCIe Gen2 x1 interface connects the card to the host workstation. The low-profile design supports compact professional systems as well as standard desktop capture workstations.
Live Streaming
Capture HDMI and computer video sources into OBS, vMix, Wirecast, and compatible streaming applications.
Presentation Capture
Bring DVI, HDMI, and VGA presentation systems into recording, streaming, and lecture-capture workflows.
Broadcast Production
Add reliable digital and analog computer-video ingest to professional production workstations.
Medical and Industrial
Integrate computer and video sources into specialized visualization, analysis, and recording systems.
Systems Integrators
Use Magewell APIs and native operating-system interfaces in custom capture and visualization deployments.
Multi-Card Workstations
Install multiple compatible capture cards for higher-density multi-source workstation configurations.
Magewell Support
Coremicro can help confirm DVI, HDMI, VGA, and Component source compatibility, PCIe requirements, supplied adapter connections, analog and embedded audio workflows, operating-system support, capture applications, driver configuration, and Magewell Capture SDK integration for professional video systems.
| Specification | Detail |
|---|---|
| Product Name | Pro Capture DVI |
| Part Number | 11030 |
| SKU | 110300000 |
| Product Type | One-Channel HD PCIe Capture Card |
| Capture Channels | 1 |
| Host Interface | PCIe Gen2 x1 |
| Video Input | 1 × DVI-I |
| Analog Audio Input | 1 × 3.5 mm stereo line input |
| Supported Video Sources | DVI · HDMI · VGA · Component |
| DVI Input | DVI 1.0 |
| HDMI Input | HDMI 1.4a via supplied breakout |
| HDMI Receiver | 225MHz |
| HDMI Cable Equalization | Up to 30m |
| HDMI Color Depth | 8-bit · 10-bit · 12-bit |
| HDMI Color Sampling | RGB 4:4:4 · YCbCr 4:4:4 · YCbCr 4:2:2 |
| HDMI Embedded Audio | Up to 8-channel IEC60958 / IEC61937 audio via SDK |
| HDMI EDID | Custom EDID supported |
| VGA Input | Supported through supplied DVI-to-VGA connector |
| Component Input | Supported through supplied breakout |
| Analog Video ADC | 12-bit |
| Analog Video Formats | RGB · YCbCr |
| Analog Timing Support | DMT · CEA · CVT · GTF · Custom timings |
| Maximum Input Resolution | Up to 2048 × 2160 |
| Maximum Capture Resolution | Up to 2048 × 2160 |
| Maximum Capture Frame Rate | Up to 144fps depending on resolution, PCIe bandwidth, and processing |
| 1920 × 1080 Capture | Up to approximately 80fps |
| Capture Formats | 4:2:0 8-bit · 4:2:2 8-bit · 4:4:4 8-bit · 4:4:4 10-bit |
| Video Processing | Full 10-bit processing |
| Processing Pipelines | 2 pipelines at approximately 180 Mpixels/s each |
| Hardware Processing | Cropping · Scaling · Deinterlacing · Aspect-ratio conversion · Color conversion · Frame-rate conversion · OSD |
| Multiple Capture Streams | Unlimited streams from the single input channel |
| Independent Stream Processing | Crop · Resolution · Frame rate · Aspect ratio · Deinterlacing · Color format · Color adjustment |
| Ultra-Low Latency | 64 video lines |
| Hardware Timestamp | 100ns high-resolution hardware clock |
| PCIe 2.x DMA Bandwidth | Approximately 400MB/s per channel |
| Multiple Cards per System | Supported |
| Card Identification | 16-position onboard rotary switch |
| Windows APIs | DirectShow · DirectKS · Wave API · DirectSound · WASAPI |
| Linux APIs | V4L2 · ALSA |
| macOS APIs | AVCaptureSession · AudioUnit |
| Compatible Software | OBS · vMix · VLC · XSplit · Wirecast · VidBlaster · VirtualDub and compatible applications |
| Form Factor | Low-profile PCIe x1 add-on card |
| Card Dimensions | 92.76 × 68.88 mm without PCI bracket |
| Maximum Power Consumption | Approximately 4.68W |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| In the Box | Pro Capture DVI × 1 · DVI to VGA Connector × 1 · DVI-I to HDMI + Component Breakout × 1 · Low Profile Bracket × 1 |
What video sources can Magewell Pro Capture DVI capture?
It can capture one DVI, HDMI, VGA, or Component source at a time. HDMI can include embedded audio, while the dedicated 3.5 mm input supports stereo analog audio.
Can Pro Capture DVI capture HDMI?
Yes. HDMI 1.4a sources are supported through the supplied DVI-I breakout connection, including compatible embedded audio, multiple color depths, RGB and YCbCr sampling, and custom EDID.
Does the card support VGA video?
Yes. VGA sources connect through the supplied DVI-to-VGA adapter, allowing analog computer signals to be captured through the DVI-I input.
Can Component video be captured?
Yes. Component video is supported through the supplied DVI-I breakout connection and uses the card's analog video capture circuitry.
Can one input create multiple capture streams?
Yes. Multiple streams can be generated from the single input, with independent settings for resolution, frame rate, cropping, aspect ratio, deinterlacing, color format, and color adjustment.
Which operating systems are supported?
Magewell provides capture support for Windows, Linux, and macOS through platform-native APIs and compatible third-party capture applications.
Is the optional Mini Repeater 4K HDMI included?
No. The Mini Repeater 4K HDMI is an optional accessory. The standard package includes the Pro Capture DVI card, DVI-to-VGA connector, DVI-I HDMI and Component breakout, and a low-profile bracket.
