Product Highlights
- DVI-D single and dual-link capture
- Capture up to 4096x2160
- PCIe Gen2 x4 host interface
- HDMI 1.4 input compatibility

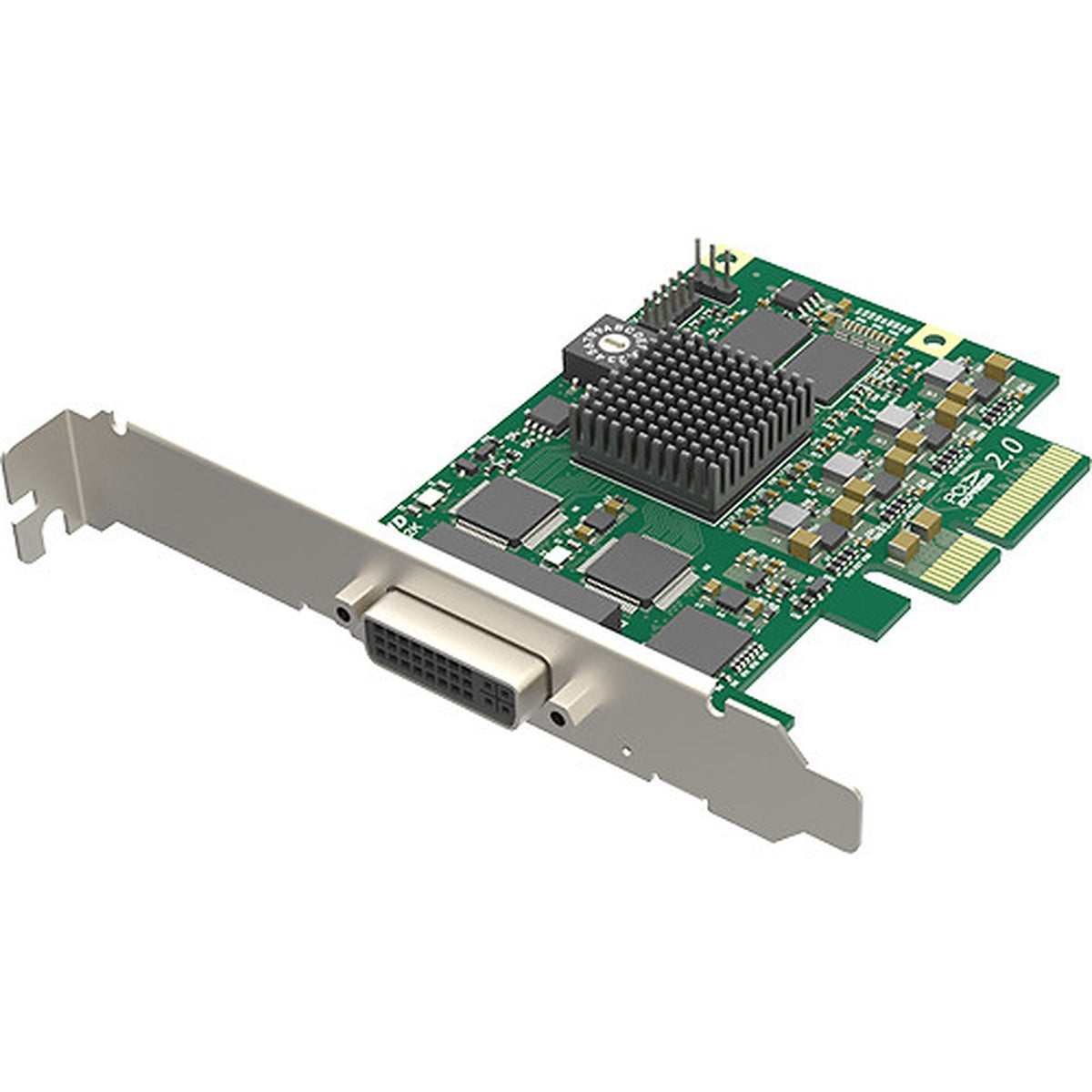

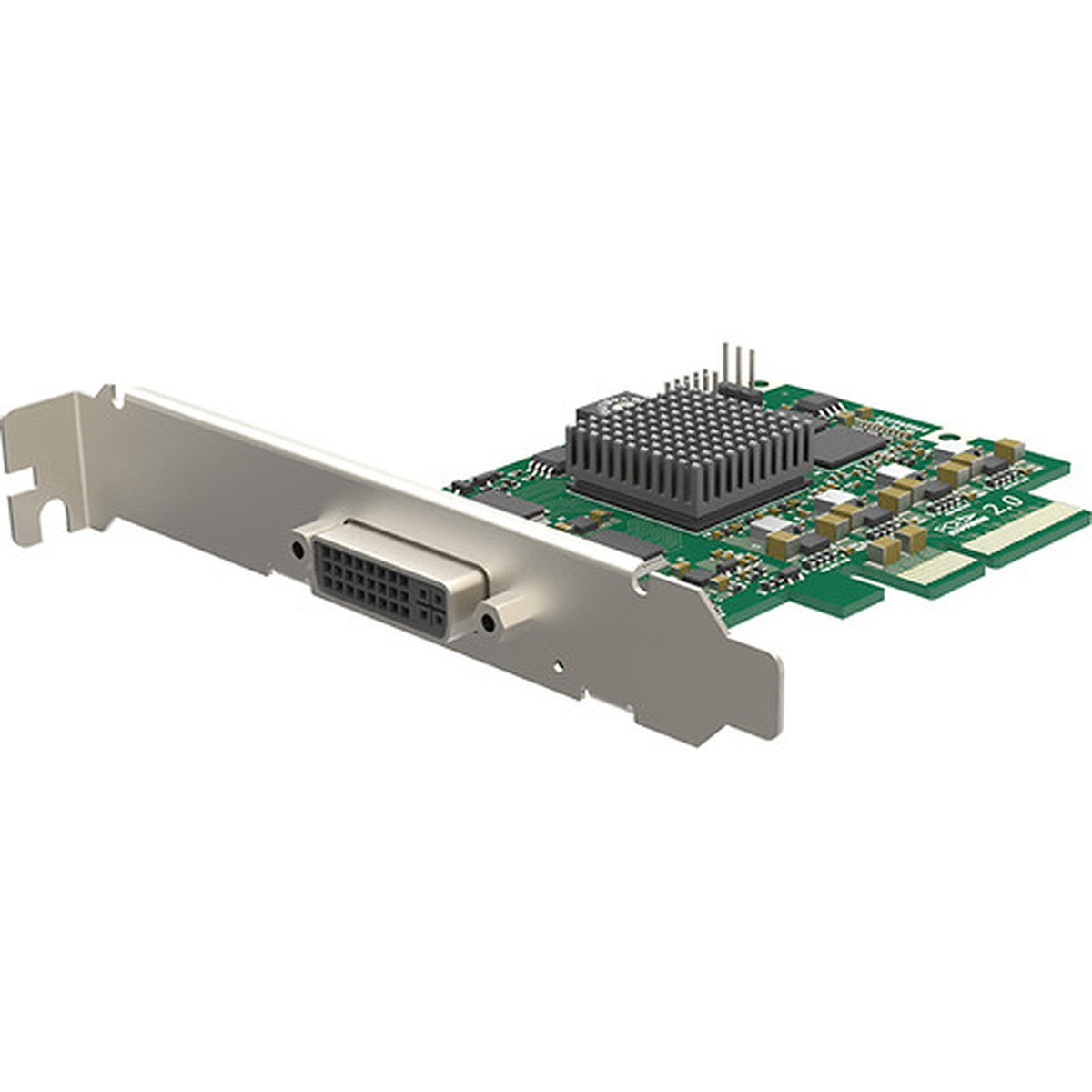

Magewell Pro Capture DVI 4K Dual-Link DVI PCIe Video Capture Card
- SKU:
- MAG-11160
- MPN:
- 11160
Ships in 2-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The Magewell Pro Capture DVI 4K is a one-channel PCIe video capture card designed for professional DVI-D and HDMI source ingest. It supports single-link and dual-link DVI-D 1.0 as well as HDMI 1.4 signals, with input and capture resolutions up to 4096×2160. PCIe Gen2 x4 connectivity, 10-bit hardware processing, multiple capture streams, and broad software compatibility make it suitable for broadcast, AV, streaming, recording, and specialized workstation applications.
4K Capture up to 4096×2160
The capture engine supports input and capture image resolutions up to 4096×2160 pixels. Capture frame rates can reach up to 144fps depending on image resolution and available PCIe bandwidth. This provides flexibility for 4K and high-frame-rate workstation workflows.
Single and Dual-Link DVI-D Support
The DVI input supports both single-link and dual-link DVI-D 1.0 signals. Single-link signals are supported at pixel rates up to 165 MHz, while dual-link DVI signals can operate at pixel rates up to 330 MHz. This makes the card useful for professional and legacy DVI source systems.
HDMI 1.4 Signal Compatibility
The input also supports HDMI 1.4 signals through the DVI interface. Dual 165 MHz HDMI receivers, adaptive equalization, and customizable EDID help improve compatibility with connected sources. HDMI signal metadata and timing information can also be detected by the capture hardware.
Full 10-Bit Hardware Processing
Full 10-bit processing supports cropping, scaling, deinterlacing, aspect-ratio conversion, color conversion, and frame-rate conversion. Hardware OSD composition and color adjustment are also supported. Processing is handled directly by the card to support flexible capture workflows.
Ultra-Low-Latency PCIe Capture
Magewell specifies an ultra-low-latency mode of 64 video lines. Partial-notification functionality is available through the Magewell Capture SDK. PCIe Gen2 x4 provides a direct high-bandwidth connection to the host workstation for responsive professional video ingest.
Multiple Independent Capture Streams
Unlimited capture streams can be generated from the single input channel. Each stream can use independent cropping, aspect ratio, color format, resolution, frame rate, deinterlacing, and color-adjustment settings. One source can therefore serve multiple software requirements simultaneously.

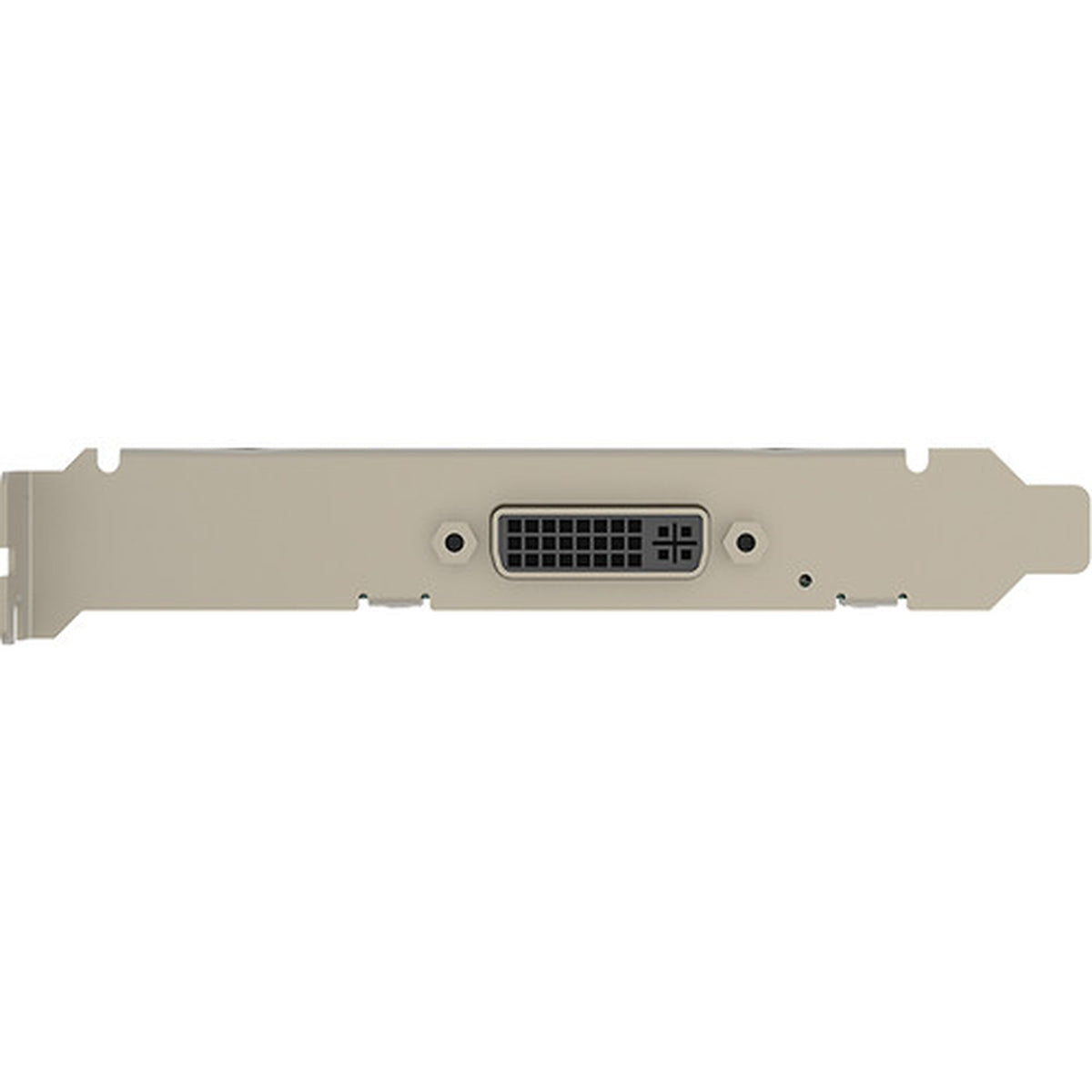

Input Connector
1 × DVI
DVI Support
DVI-D 1.0 · Single or Dual Link
HDMI Compatibility
HDMI 1.4
Host Interface
PCIe Gen2 x4
OBS vMix and Wirecast Compatibility
Magewell lists OBS, vMix, Wirecast, XSplit, VidBlaster, VLC, and VirtualDub among supported applications. The card also works with other compatible DirectShow, V4L2, and AVCaptureSession software. This supports streaming, recording, monitoring, and production workflows.
Windows Linux and macOS Support
Windows APIs include DirectShow, DirectKS, Wave API, DirectSound, and WASAPI. Linux support includes V4L2 and ALSA. macOS applications can access the card through AVCaptureSession and AudioUnit.
Capture Express and Magewell SDK
Magewell lists Capture Express as included software for the Pro Capture series. The Magewell Capture SDK provides additional device control, timing, processing, and low-latency functions. Universal drivers and updatable firmware support long-term workstation integration.
Broadcast Engineers
Integrate DVI and compatible HDMI sources into professional capture workstations.
AV Integrators
Capture presentation, computer, and professional DVI sources in fixed installations.
Live Production Teams
Bring DVI or HDMI 1.4 sources into software-based production systems.
Streaming Integrators
Add high-resolution video sources to OBS, vMix, Wirecast, and compatible software.
Legacy DVI Workflows
Preserve professional single-link and dual-link DVI sources in modern PCIe systems.
Software Developers
Build custom capture applications with Magewell APIs and the Capture SDK.
Magewell Support
Magewell provides a two-year manufacturer warranty for the Pro Capture DVI 4K. Coremicro can help confirm DVI link type, source resolution, HDMI compatibility, PCIe requirements, operating-system support, and software integration before deployment.
| Specification | Detail |
|---|---|
| Product | Pro Capture DVI 4K |
| Part Number | 11160 |
| SKU | 111600000 |
| Capture Channels | 1 channel |
| Input Interface | 1 × DVI |
| DVI Support | DVI-D 1.0 · Single-link or dual-link |
| HDMI Support | HDMI 1.4 |
| Host Interface | PCIe Gen2 x4 |
| Maximum Input Resolution | Up to 4096×2160 pixels |
| Maximum Capture Resolution | Up to 4096×2160 pixels |
| Maximum Capture Frame Rate | Up to 144fps depending on resolution and PCIe bandwidth |
| HDMI Receiver | Dual 165 MHz receiver |
| HDMI Equalizer | Adaptive HDMI equalizer |
| EDID | Customizable EDID supported |
| Single-Link Pixel Rate | Up to 165 MHz |
| Dual-Link DVI Pixel Rate | Up to 330 MHz |
| 4:2:0 8-Bit Capture | NV12 · I420 · YV12 |
| 4:2:2 8-Bit Capture | YUY2 · YUYV · UYVY |
| 4:4:4 8-Bit Capture | V308 · IYU2 · V408 · BGR24 · BGR32 |
| 4:4:4 10-Bit Capture | V410 · Y410 |
| Video Processing | 10-bit processing · Cropping · Scaling · Deinterlacing · Aspect-ratio conversion · Color conversion · Frame-rate conversion · OSD |
| Processing Pipelines | 2 pipelines at approximately 360 Mpixels/s each |
| Color Formats | RGB · YCbCr 601 · YCbCr 709 · YCbCr 2020 |
| Multiple Capture Streams | Unlimited streams from one input channel with independent processing settings |
| Ultra-Low Latency | 64 video lines |
| Hardware Timestamp | 100 ns high-resolution hardware clock |
| PCIe 2.x DMA Bandwidth | Approximately 1200 MB/s per channel |
| PCIe 1.x DMA Bandwidth | Approximately 800 MB/s per channel |
| Windows APIs | DirectShow · DirectKS · Wave API · DirectSound · WASAPI |
| Linux APIs | V4L2 · ALSA |
| macOS APIs | AVCaptureSession · AudioUnit |
| Supported Software | VLC · VirtualDub · OBS · XSplit · vMix · VidBlaster · Wirecast · Microsoft Media Encoder · Adobe Flash Media Encoder |
| Included Software | Capture Express |

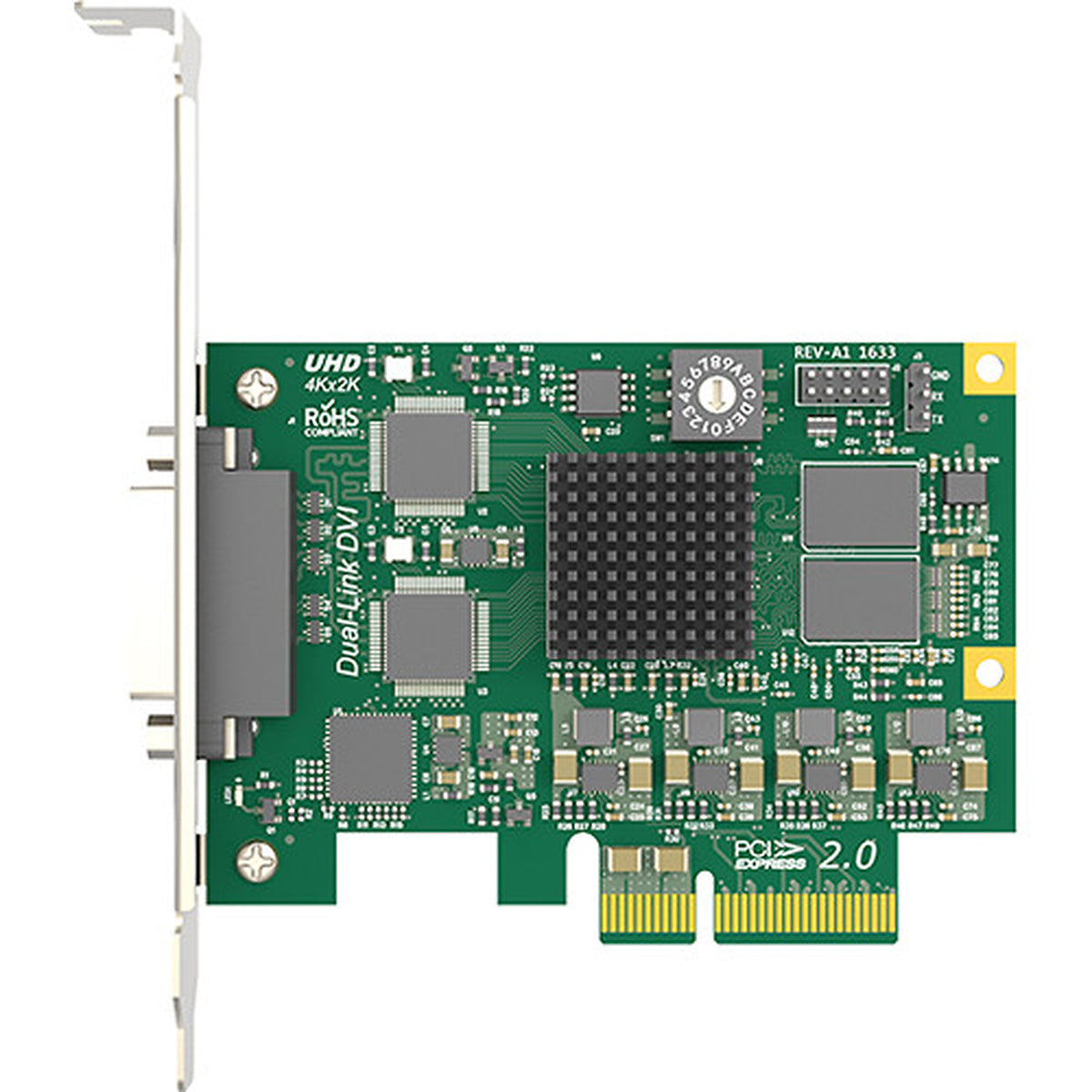

| Multiple Cards per System | Supported with onboard 16-position card-number rotary switch |
| Form Factor | Low-profile PCIe x4 add-on card |
| Dimensions | 92.76 × 68.88 mm without PCI bracket |
| Maximum Power Consumption | Approximately 7.28 W |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | −20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Manufacturer Warranty | 2 years |
| Included Hardware | Pro Capture DVI 4K card · Low-profile bracket |
What is the Magewell Pro Capture DVI 4K used for?
The card captures professional DVI-D and compatible HDMI video inside a PCIe workstation. It is suited to broadcast, AV integration, live production, streaming, recording, computer-source capture, and specialized DVI workflows.
Does the card support both single-link and dual-link DVI?
Yes. The input supports DVI-D 1.0 in both single-link and dual-link configurations. Single-link signals are supported at pixel rates up to 165 MHz, while dual-link DVI signals are supported at pixel rates up to 330 MHz.
Does the Pro Capture DVI 4K support HDMI?
Yes. The DVI input also supports HDMI 1.4 signals. Magewell specifies dual 165 MHz HDMI receivers, adaptive equalization, and customizable EDID support.
What is the maximum capture resolution?
The card supports input and capture image resolutions up to 4096×2160 pixels. Capture frame rates can reach up to 144fps depending on image resolution and available PCIe bandwidth.
Is the card compatible with OBS vMix and Wirecast?
Yes. Magewell lists OBS, vMix, Wirecast, XSplit, VidBlaster, VLC, VirtualDub, and other compatible capture applications.
Can the card create multiple capture streams?
Yes. Magewell specifies unlimited capture streams from the single input channel. Each stream can use independent resolution, frame rate, cropping, aspect ratio, deinterlacing, color format, and color-adjustment settings.
What warranty does the Pro Capture DVI 4K include?
Magewell provides a two-year manufacturer warranty for the product. Coremicro can help confirm DVI source format, PCIe, operating-system, and software compatibility for the intended deployment.
Build a Professional DVI 4K Capture Workstation
Coremicro supports professional Magewell capture workflows for broadcast, live production, streaming, recording, and AV integration. Contact our team to confirm DVI link type, HDMI compatibility, source resolution, PCIe requirements, software support, and workstation configuration.
