Product Highlights
- Dual HDMI 1.4a capture channels
- Embedded HDMI audio capture
- PCIe Gen2 x4 host interface
- 10-bit hardware video processing

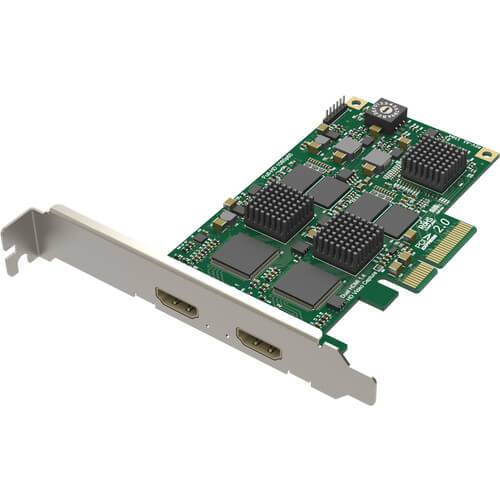

Magewell Pro Capture Dual HDMI Two Channel HD PCIe Capture Card
- SKU:
- MAG-11080
- MPN:
- 11080
Ships in 2-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
Magewell Pro Capture Dual HDMI is a two-channel HD PCIe capture card for simultaneous HDMI video and embedded audio ingest. Two independent HDMI 1.4a inputs support professional production, streaming, recording, presentation, and visualization workflows, while onboard 10-bit processing provides scaling, deinterlacing, color conversion, frame-rate conversion, and flexible multi-stream capture. A PCIe Gen2 x4 host interface provides bandwidth for dual-channel workstation deployment.
Dual HDMI 1.4a Capture Channels
Two independent HDMI Type-A inputs allow simultaneous capture of two compatible HDMI sources in one workstation. Each input supports HDMI 1.4a and compatible DVI 1.0 signals with resolutions up to 2048 × 2160.
Embedded HDMI Audio Capture
Each HDMI input supports embedded digital audio alongside video capture. Magewell SDK support enables access to compatible IEC60958 and IEC61937 audio with up to eight channels for production, recording, and custom application workflows.
Full 10-Bit Hardware Video Processing
Onboard processing provides full 10-bit video handling with hardware cropping, scaling, deinterlacing, aspect-ratio conversion, color-space conversion, frame-rate conversion, color adjustment, and OSD composition.
Ultra-Low-Latency Capture
Ultra-low-latency operation is specified at 64 video lines, helping reduce delay between the incoming HDMI source and capture application. This supports monitoring, visualization, live production, and interactive video-processing workflows.
Multiple Independent Capture Streams
Multiple capture streams can be generated from an input channel with independent settings for cropping, resolution, frame rate, aspect ratio, deinterlacing, color format, and color adjustment.
Windows Linux and macOS Support
DirectShow, DirectKS, V4L2, ALSA, AVCaptureSession, and AudioUnit support professional deployment across Windows, Linux, and macOS. Compatible applications include OBS, vMix, VLC, XSplit, Wirecast, VidBlaster, and VirtualDub.
Two HDMI Inputs and PCIe Gen2 x4
Two HDMI Type-A connectors provide independent video and embedded-audio capture channels, allowing two sources to be brought into the same workstation without external switching.
The PCIe Gen2 x4 host interface provides the bandwidth required for dual-channel capture and onboard processing. The low-profile card design also supports space-conscious professional systems.
Live Production
Capture two HDMI cameras, switcher feeds, or production sources into workstation-based video systems.
Dual-Source Streaming
Bring two independent HDMI sources into compatible streaming, switching, and encoding applications.
Presentation Capture
Record two presentation computers or AV sources for lectures, events, training, and corporate video.
Recording Workstations
Ingest two HDMI sources simultaneously for recording, monitoring, or post-production workflows.
Visualization Systems
Integrate multiple computer or video feeds into analysis, monitoring, and visualization applications.
Systems Integrators
Build custom dual-channel capture systems using Magewell APIs and native operating-system interfaces.
Magewell Support
Coremicro can help confirm HDMI source compatibility, input resolutions, embedded-audio requirements, PCIe bandwidth, operating-system support, driver configuration, capture applications, EDID requirements, and Magewell Capture SDK integration for professional dual-channel HDMI systems.
| Specification | Detail |
|---|---|
| Product Name | Pro Capture Dual HDMI |
| Part Number | 11080 |
| SKU | 110800000 |
| Product Type | Two-Channel HD PCIe Capture Card |
| Capture Channels | 2 |
| Host Interface | PCIe Gen2 x4 |
| Video Inputs | 2 × HDMI Type-A |
| Input Standards | DVI 1.0 · HDMI 1.4a |
| Maximum Input Resolution | Up to 2048 × 2160 |
| HDMI Receiver | 225MHz |
| HDMI Cable Equalization | Up to approximately 30m |
| Custom EDID | Supported |
| HDMI Input Color Depth | 8-bit · 10-bit · 12-bit |
| HDMI Color Sampling | RGB 4:4:4 · YCbCr 4:4:4 · YCbCr 4:2:2 |
| Embedded HDMI Audio | Up to 8-channel IEC60958 / IEC61937 audio via SDK |
| HDMI 3D Information | Side-by-Side Half · Top-and-Bottom · Frame Packing |
| DSLR Time Code Extraction | Sony / Canon supported formats |
| Maximum Capture Resolution | Up to 2048 × 2160 |
| Maximum Capture Frame Rate | Up to 144fps depending on resolution, PCIe bandwidth, and processing requirements |
| 1920 × 1080 Capture | Up to approximately 80fps |
| Capture Formats | 4:2:0 8-bit · 4:2:2 8-bit · 4:4:4 8-bit · 4:4:4 10-bit |
| Video Processing | Full 10-bit processing |
| Processing Pipelines | 2 pipelines at approximately 180 Mpixels/s each |
| Hardware Processing | Cropping · Scaling · Deinterlacing · Aspect-ratio conversion · Color-space conversion · Frame-rate conversion · Color adjustment · OSD composition |
| Capture Streams | Unlimited capture streams for any one input channel |
| Independent Stream Settings | Cropping · Aspect ratio · Color format · Resolution · Frame rate · Deinterlacing · Color adjustment |
| Ultra-Low Latency | 64 video lines |
| PCIe 2.0 DMA Bandwidth | Approximately 400MB/s per channel |
| Multiple Cards per System | Supported |
| Windows Support | DirectShow · DirectKS and compatible applications |
| Linux Support | V4L2 · ALSA |
| macOS Support | AVCaptureSession · AudioUnit |
| Compatible Software | OBS · vMix · VLC · XSplit · Wirecast · VidBlaster · VirtualDub and compatible applications |
| Form Factor | Low-profile PCIe x4 add-on card |
| Card Dimensions | 115.99 × 68.88 mm without PCI bracket |
| Maximum Power High Performance Firmware | Approximately 9.09W |
| Maximum Power Low Power Firmware | Approximately 8.13W |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Manufacturer Warranty | 2 years |
| In the Box | Pro Capture Dual HDMI × 1 · Low Profile Bracket × 1 |
Can Pro Capture Dual HDMI capture two sources simultaneously?
Yes. Two independent HDMI Type-A inputs allow two compatible HDMI sources to be captured simultaneously in one workstation.
Does each HDMI input capture embedded audio?
Yes. Compatible HDMI embedded audio can be captured alongside video on each channel, with Magewell SDK support for up to eight audio channels.
Is Pro Capture Dual HDMI a 4K UHD capture card?
No. The documented maximum input and capture resolution is 2048 × 2160. It should not be treated as a 3840 × 2160 UHD capture card.
Does the card support custom HDMI EDID?
Yes. Custom EDID support allows the host to present appropriate display capabilities to connected HDMI sources when required by the workflow.
Can one HDMI input generate multiple capture streams?
Yes. Multiple streams can be generated from an input channel with independent resolution, frame rate, cropping, aspect ratio, deinterlacing, color format, and color-adjustment settings.
Which operating systems are supported?
Magewell supports Windows, Linux, and macOS through native platform capture APIs and compatible third-party applications.
What is included with Pro Capture Dual HDMI?
The standard package includes one Pro Capture Dual HDMI card and one low-profile PCI bracket. The Mini Repeater 4K HDMI is an optional accessory and is not included.
