Product Highlights
- Dual DVI-I video capture channels
- HDMI VGA Component input support
- PCIe Gen2 x4 host interface
- 10-bit hardware video processing

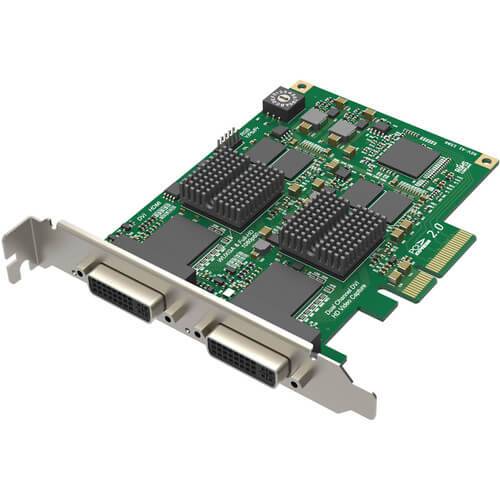

Magewell Pro Capture Dual DVI Two Channel HD PCIe Capture Card
- SKU:
- MAG-11070
- MPN:
- 11070
Ships in 2-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
Magewell Pro Capture Dual DVI is a two-channel HD PCIe capture card designed for simultaneous professional video ingest from DVI, HDMI, VGA, and Component sources. Two independent DVI-I inputs provide flexible digital and analog connectivity, while onboard 10-bit processing handles scaling, deinterlacing, color conversion, frame-rate conversion, and multi-stream capture. The PCIe Gen2 x4 interface provides the host bandwidth required for dual-channel production, streaming, recording, visualization, and integration workflows.
Dual DVI-I Capture Channels
Two independent DVI-I inputs allow two compatible video sources to be captured simultaneously in one workstation. Each channel supports digital DVI directly while also accommodating HDMI, VGA, and Component video through the supplied adapters and breakout connections.
HDMI VGA and Component Support
HDMI 1.4a sources connect through the supplied DVI-I breakout, while VGA sources use the included DVI-to-VGA adapters. Component video is also supported through the breakout, allowing mixed digital and analog computer-video sources to share the same dual-channel capture platform.
Full 10-Bit Hardware Video Processing
Onboard processing supports full 10-bit video handling with hardware cropping, scaling, deinterlacing, aspect-ratio conversion, color-space conversion, frame-rate conversion, color adjustment, and OSD composition for application-specific capture formats.
Ultra-Low-Latency Capture
Ultra-low-latency operation is specified at 64 video lines, helping reduce delay between the incoming source and capture application. This supports monitoring, visualization, live production, and other workflows where capture responsiveness is important.
Multiple Independent Capture Streams
Multiple capture streams can be generated from an input channel with independent settings for cropping, resolution, frame rate, aspect ratio, deinterlacing, color format, and color adjustment, allowing different applications to use differently processed versions of the same source.
Windows Linux and macOS Support
Support for DirectShow, DirectKS, V4L2, ALSA, AVCaptureSession, and AudioUnit enables integration across Windows, Linux, and macOS environments. Compatible applications include OBS, vMix, VLC, XSplit, Wirecast, VidBlaster, VirtualDub, and other supported capture software.
Two DVI-I Inputs and PCIe Gen2 x4
Two DVI-I connectors provide the card's independent video inputs. DVI connects directly, while the supplied adapters and breakout cables expand each channel for compatible HDMI, VGA, and Component sources.
The PCIe Gen2 x4 host interface provides increased bandwidth for dual-channel capture and onboard processing in professional production and integration workstations.
Dual-Source Streaming
Capture two compatible HDMI or DVI sources into workstation-based streaming and production applications.
Presentation Capture
Bring two computer or presentation feeds into recording, streaming, and lecture-capture systems.
Live Production
Capture multiple digital video sources for switching, graphics, recording, and monitoring workflows.
Visualization Systems
Integrate high-resolution computer video into visualization, analysis, and monitoring applications.
Systems Integrators
Use Magewell APIs and native operating-system interfaces in custom dual-channel capture deployments.
Multi-Card Workstations
Install multiple compatible cards when higher-density multi-source capture is required.
Magewell Support
Coremicro can help confirm DVI, HDMI, VGA, and Component source compatibility, PCIe bandwidth requirements, adapter and breakout connections, embedded HDMI audio, operating-system support, capture applications, driver configuration, and Magewell Capture SDK integration for professional dual-channel video systems.
| Specification | Detail |
|---|---|
| Product Name | Pro Capture Dual DVI |
| Part Number | 11070 |
| SKU | 110700000 |
| Product Type | Two-Channel HD PCIe Capture Card |
| Capture Channels | 2 |
| Host Interface | PCIe Gen2 x4 |
| Video Inputs | 2 × DVI-I |
| Supported Input Types | DVI · HDMI · VGA · Component |
| DVI Standard | DVI 1.0 |
| HDMI Standard | HDMI 1.4a via supplied breakout |
| HDMI Receiver | 225MHz |
| HDMI Cable Equalization | Up to 30m |
| HDMI EDID | Custom EDID supported |
| HDMI Color Depth | 8-bit · 10-bit · 12-bit |
| HDMI Color Sampling | RGB 4:4:4 · YCbCr 4:4:4 · YCbCr 4:2:2 |
| HDMI Embedded Audio | Up to 8-channel IEC60958 / IEC61937 audio via SDK |
| VGA Input | Supported via supplied DVI-to-VGA connectors |
| Component Input | Supported via supplied DVI-I breakout cables |
| Analog Video ADC | 12-bit |
| Analog Color Formats | RGB · YCbCr |
| Analog Timing Support | DMT · CEA · CVT · GTF · Custom timings |
| Maximum Input Resolution | Up to 2048 × 2160 |
| Maximum Capture Resolution | Up to 2048 × 2160 |
| Maximum Capture Frame Rate | Up to 144fps depending on resolution, PCIe bandwidth, and processing requirements |
| 1920 × 1080 Capture | Up to approximately 80fps |
| Capture Formats | 4:2:0 8-bit · 4:2:2 8-bit · 4:4:4 8-bit · 4:4:4 10-bit |
| Video Processing | Full 10-bit processing |
| Processing Pipelines | 2 pipelines at approximately 180 Mpixels/s each |
| Hardware Processing | Cropping · Scaling · Deinterlacing · Aspect-ratio conversion · Color-space conversion · Frame-rate conversion · Color adjustment · OSD composition |
| Capture Streams | Unlimited capture streams for any one input channel |
| Independent Stream Settings | Cropping · Aspect ratio · Color format · Resolution · Frame rate · Deinterlacing · Color adjustment |
| Ultra-Low Latency | 64 video lines |
| PCIe 2.0 DMA Bandwidth | Approximately 400MB/s per channel |
| Multiple Cards per System | Supported |
| Windows Support | DirectShow · DirectKS and compatible applications |
| Linux Support | V4L2 · ALSA |
| macOS Support | AVCaptureSession · AudioUnit |
| Compatible Software | OBS · vMix · VLC · XSplit · Wirecast · VidBlaster · VirtualDub and compatible applications |
| Form Factor | Normal-profile PCIe x4 add-on card |
| Card Dimensions | 115.9 × 91.29 mm without PCI bracket |
| Maximum Power Consumption | Approximately 11.4W |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Manufacturer Warranty | 2 years |
| In the Box | Pro Capture Dual DVI × 1 · DVI to VGA Connector × 2 · DVI-I to HDMI + Component Breakout × 2 |
Can Pro Capture Dual DVI capture two sources simultaneously?
Yes. The card provides two independent DVI-I capture channels, allowing two compatible video sources to be captured in the same workstation.
Can each channel capture HDMI?
Yes. HDMI 1.4a is supported through the supplied DVI-I to HDMI breakout connection, including compatible embedded audio.
Does the card support VGA?
Yes. Two DVI-to-VGA connectors are included, allowing compatible VGA sources to be connected to the DVI-I inputs.
Can Component video be captured?
Yes. Component video is supported through the supplied DVI-I breakout connections with analog video processing on the card.
Can one input generate multiple capture streams?
Yes. Multiple streams can be generated from an input channel with independent resolution, frame rate, cropping, aspect ratio, deinterlacing, color format, and color-adjustment settings.
Which operating systems are supported?
Magewell supports Windows, Linux, and macOS through native platform APIs and compatible third-party capture applications.
What is included with Pro Capture Dual DVI?
The standard package includes one Pro Capture Dual DVI card, two DVI-to-VGA connectors, and two DVI-I to HDMI plus Component breakout assemblies.
