Product Highlights
- Multi-format SDI HDMI video capture
- PCIe Gen2 x1 host interface
- 10-bit hardware video processing
- Ultra-low-latency multi-stream capture

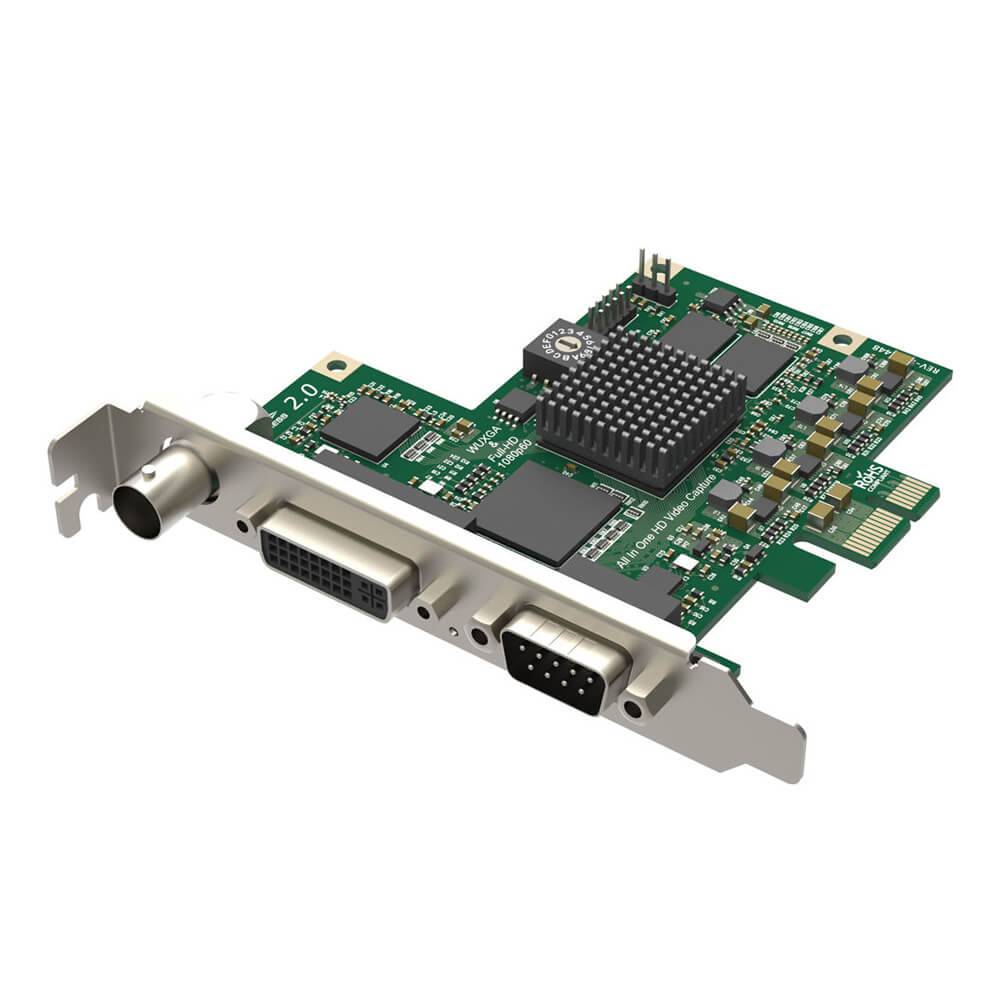

Magewell Pro Capture AIO All-In-One 1-Channel HD PCIe Capture Card
- SKU:
- MAG-11020
- MPN:
- 11020
Ships in 2-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
Magewell Pro Capture AIO is a one-channel HD PCIe capture card designed to bring a wide range of digital and analog video sources into professional production, streaming, recording, and integration systems. It supports SD/HD/3G-SDI, HDMI, DVI, VGA, Component, Composite, and S-Video sources with embedded or analog audio. Hardware-based scaling, deinterlacing, color conversion, multi-stream capture, and ultra-low-latency operation provide flexible signal handling in a single PCIe card.
All-In-One Multi-Format Video Input
Capture one source from a broad selection of professional and legacy formats. Supported inputs include SDI, HDMI, DVI, VGA, Component, Composite, and S-Video, reducing the need for separate capture cards when working with mixed video equipment.
SDI and HDMI HD Capture
The BNC input supports SD-SDI, HD-SDI, and 3G-SDI signals, including 2K modes and embedded audio. HDMI 1.4a sources connect through the supplied breakout cable with support for RGB and YCbCr video plus embedded digital audio.
Full 10-Bit Hardware Video Processing
Two onboard video-processing pipelines provide approximately 180 Mpixels/s of processing bandwidth each. Hardware functions include scaling, cropping, deinterlacing, aspect-ratio conversion, color-space conversion, frame-rate conversion, color adjustment, timestamping, and OSD composition.
Ultra-Low-Latency Capture Pipeline
Ultra-low-latency operation is specified at 64 video lines, helping reduce delay between the incoming source and capture application. Partial-notification support through the Magewell Capture SDK enables optimized workflows for latency-sensitive production and processing systems.
Multiple Independent Capture Streams
Generate multiple capture streams from the single input channel with independent processing parameters. Cropping, resolution, frame rate, color format, aspect ratio, deinterlacing, and color adjustments can be configured separately for individual streams.
Windows Linux and macOS Support
Compatibility with DirectShow, DirectKS, V4L2, ALSA, AVCaptureSession, and AudioUnit supports integration across Windows, Linux, and macOS systems. Common applications include OBS, vMix, VLC, XSplit, Wirecast, VidBlaster, and other compatible capture or streaming software.
SDI DVI-I DB9 and PCIe Connectivity
A dedicated BNC connector accepts SD, HD, and 3G-SDI signals. The DVI-I interface supports DVI directly and expands to HDMI, VGA, and Component through the supplied adapters and breakout connections.
The DB9 connection provides Composite, S-Video, Component, and stereo analog audio connectivity through the included breakout cable. The card connects to the host workstation through a PCIe Gen2 x1 interface.
Broadcast Production
Capture SDI, HDMI, and legacy video sources into professional production and ingest workstations.
Live Streaming
Bring cameras, switcher feeds, computers, and other sources into OBS, vMix, Wirecast, and compatible applications.
Video Archiving
Digitize professional and legacy video sources using one multi-format capture platform.
Medical and Industrial
Integrate diverse digital and analog video signals into specialized visualization and recording systems.
Systems Integrators
Use Magewell Capture SDK and standard operating-system APIs for custom software and hardware deployments.
Multi-Card Workstations
Install multiple Pro Capture cards in one system for higher-density ingest and capture configurations.
Magewell Support
Coremicro can help confirm source-format compatibility, PCIe requirements, breakout-cable connections, supported operating systems, capture applications, driver configuration, and Magewell Capture SDK integration for broadcast, streaming, recording, archiving, industrial, and custom video workflows.
| Specification | Detail |
|---|---|
| Product Name | Pro Capture AIO |
| Part Number | 11020 |
| SKU | 110200000 |
| Product Type | One-Channel HD PCIe Capture Card |
| Capture Channels | 1 |
| Host Interface | PCIe Gen2 x1 |
| Input Interfaces | 1 × DVI-I · 1 × DB9 · 1 × BNC SDI |
| Supported Video Inputs | SDI · HDMI · DVI · VGA · Component · Composite · S-Video |
| DVI Input | DVI 1.0 |
| HDMI Input | HDMI 1.4a via supplied breakout cable |
| VGA Input | Via supplied DVI-to-VGA connector |
| Component Input | Via supplied breakout connections |
| Composite Input | Via DB9 breakout |
| S-Video Input | YC via DB9 breakout |
| Analog Audio | Stereo L/R via DB9 breakout |
| SDI Input | SD-SDI · HD-SDI · 3G-SDI |
| SDI Standards | SD · HD · 3Ga · 3Gb · 3Gb-DL · 3Gb-DS |
| SDI 2K Support | Up to 2048 × 1080 |
| SDI Embedded Audio | Up to 8 channels at 48kHz |
| Maximum SDI Cable Length | Up to 330m SD-SDI · 190m HD-SDI · 150m 3G-SDI |
| HDMI Receiver | 225MHz |
| HDMI Color Depth | 8-bit · 10-bit · 12-bit |
| HDMI Color Sampling | RGB 4:4:4 · YCbCr 4:4:4 · YCbCr 4:2:2 |
| HDMI Audio | Up to 8-channel IEC60958 / IEC61937 audio via SDK |
| HDMI EDID | Custom EDID supported |
| VGA / Component ADC | 12-bit |
| Composite / S-Video Standards | NTSC · PAL · SECAM |
| Maximum Capture Resolution | Up to 2048 × 2048 |
| Maximum Capture Frame Rate | Up to 144fps depending on resolution and PCIe bandwidth |
| 1920 × 1080 Capture | Up to approximately 80fps |
| Capture Formats | 4:2:0 8-bit · 4:2:2 8-bit · 4:4:4 8-bit · 4:4:4 10-bit |
| Video Processing | Full 10-bit processing |
| Processing Pipelines | 2 pipelines at approximately 180 Mpixels/s each |
| Hardware Processing | Cropping · Scaling · Deinterlacing · Aspect-ratio conversion · Color conversion · Frame-rate conversion · OSD |
| Multiple Capture Streams | Unlimited streams from the single input channel |
| Stream Processing | Independent crop · Aspect ratio · Color format · Resolution · Frame rate · Deinterlacing · Color adjustment |
| Ultra-Low Latency | 64 video lines |
| Hardware Timestamp | 100ns high-resolution hardware clock |
| PCIe 2.x DMA Bandwidth | Approximately 400MB/s per channel |
| Multiple Cards per System | Supported |
| Card Identification | 16-position onboard rotary switch |
| Windows APIs | DirectShow · DirectKS · Wave API · DirectSound · WASAPI |
| Linux APIs | V4L2 · ALSA |
| macOS APIs | AVCaptureSession · AudioUnit |
| Compatible Software | OBS · vMix · VLC · XSplit · Wirecast · VidBlaster · VirtualDub and compatible capture applications |
| Form Factor | Normal-profile PCIe x1 add-on card |
| Card Dimensions | 92.76 × 96.24 mm without PCI bracket |
| Maximum Power Consumption | Approximately 5.03W |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| In the Box | Pro Capture AIO × 1 · DVI to VGA Connector × 1 · DB9 to YC + Composite + Analog Audio + Component Breakout × 1 · DVI-I to HDMI + Component Breakout × 1 |
What video sources can Magewell Pro Capture AIO capture?
The card can capture one SDI, HDMI, DVI, VGA, Component, Composite, or S-Video source at a time. Embedded digital audio and stereo analog audio are supported according to the selected input configuration.
Does Pro Capture AIO support 3G-SDI?
Yes. The BNC input supports SD-SDI, HD-SDI, and 3G-SDI, including supported 2K modes and up to eight embedded audio channels at 48kHz.
Can the card capture HDMI directly?
HDMI 1.4a input is supported through the supplied DVI-I to HDMI breakout connection. The HDMI receiver supports RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, multiple color depths, embedded audio, and custom EDID.
Does the card support analog video?
Yes. VGA, Component, Composite, and S-Video sources are supported through the appropriate DVI-I, DB9, and supplied breakout connections.
Can one input generate multiple capture streams?
Yes. Multiple capture streams can be generated from the single input channel, with independent settings for resolution, frame rate, cropping, deinterlacing, aspect ratio, color format, and color adjustment.
Which operating systems and applications are supported?
Magewell provides support for Windows, Linux, and macOS with platform-native capture APIs. Compatible applications include OBS, vMix, VLC, XSplit, Wirecast, VidBlaster, VirtualDub, and other supported capture or streaming software.
Is the optional Mini Repeater 4K HDMI included?
No. Magewell lists the Mini Repeater 4K HDMI separately as an optional accessory. The standard package includes the card plus the DVI-to-VGA adapter and two supplied breakout assemblies.
Build a Flexible Multi-Format Capture Workstation
Coremicro is an authorized Magewell dealer supporting professional PCIe capture, broadcast ingest, live streaming, recording, archiving, industrial video, and custom integration systems. Contact our team to confirm source formats, workstation compatibility, software requirements, breakout connections, and multi-card system configurations.
