Product Highlights
- Capture one 4K video source
- HDMI 2.0 and 6G-SDI inputs
- PCIe Gen2 x4 host interface
- OBS vMix Wirecast compatible

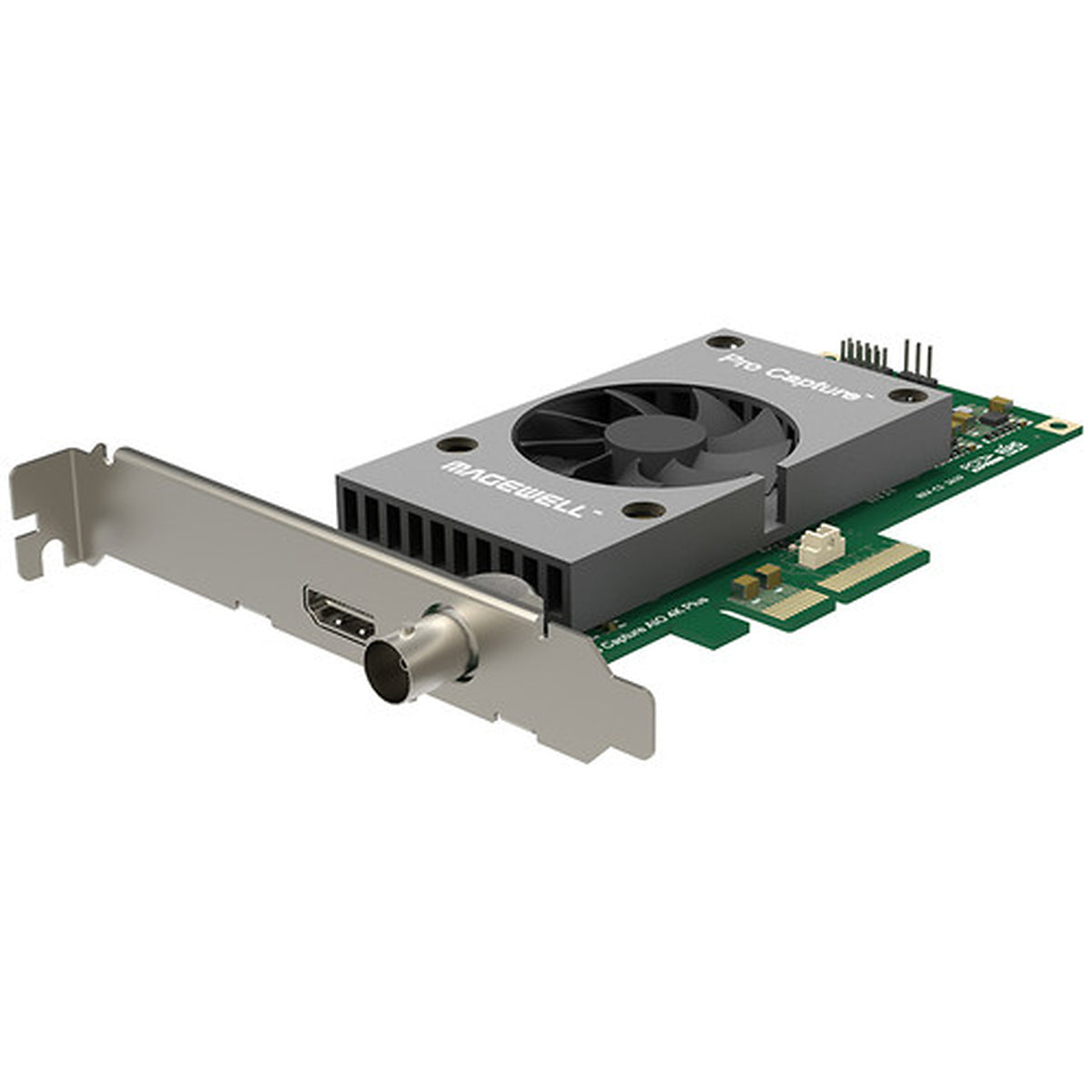

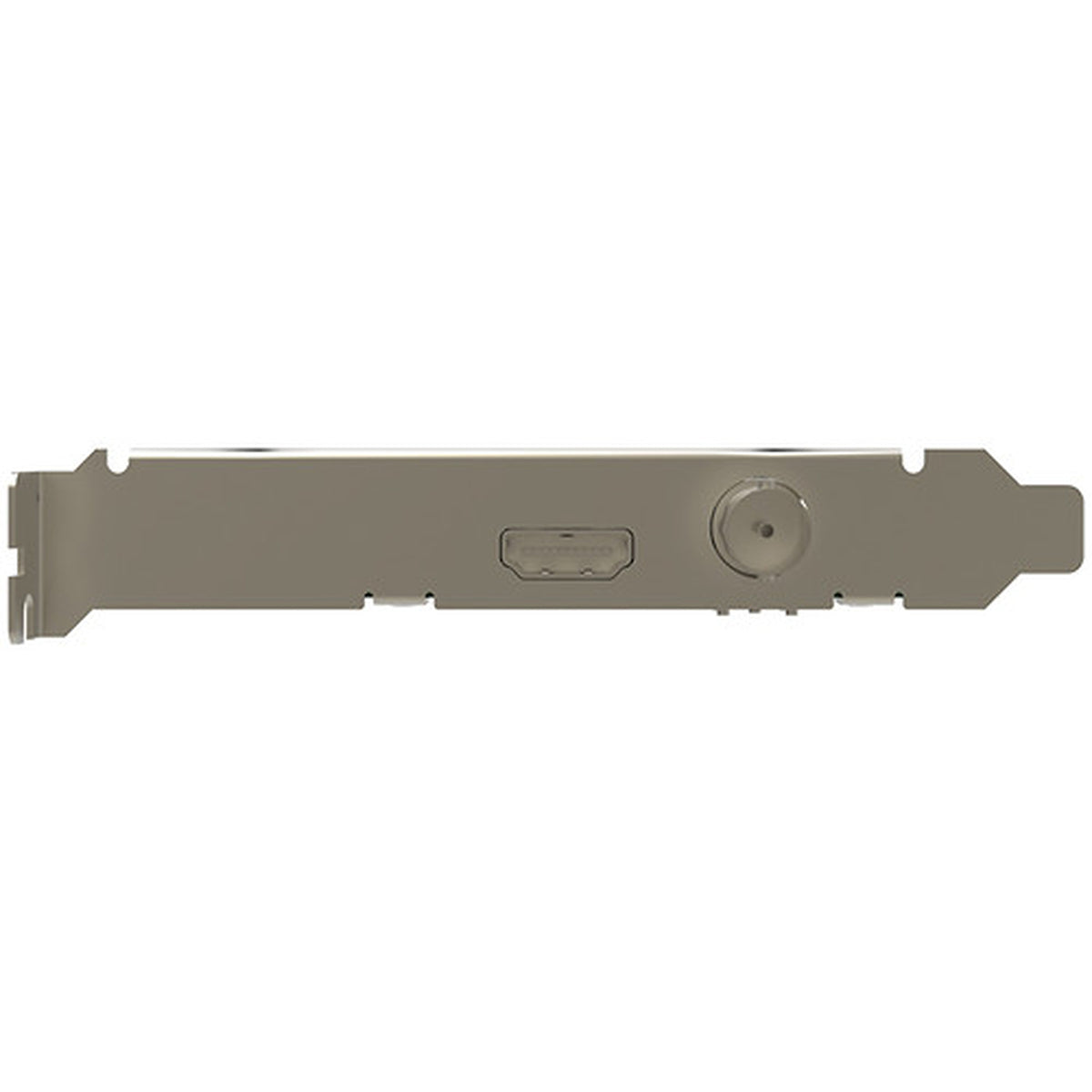

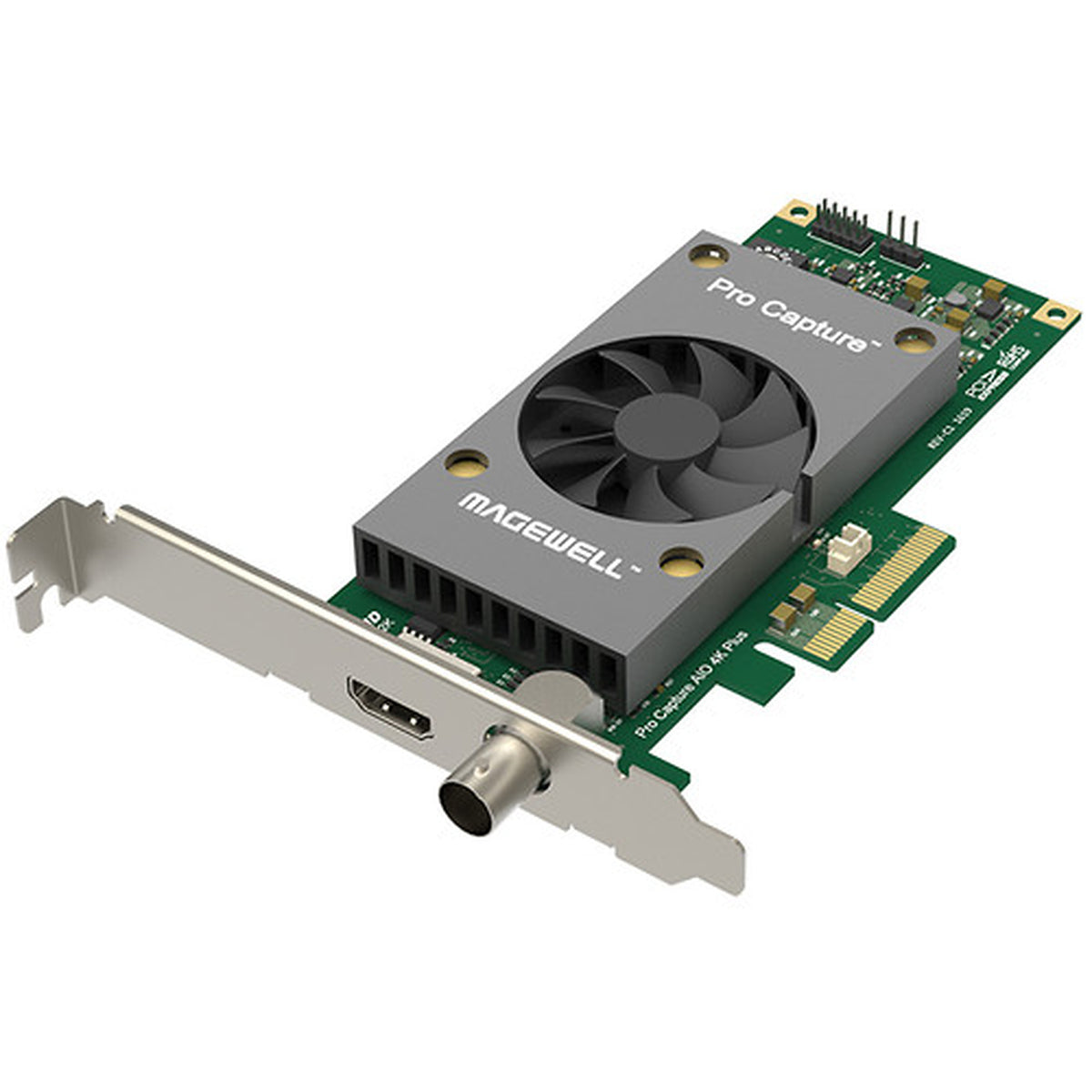

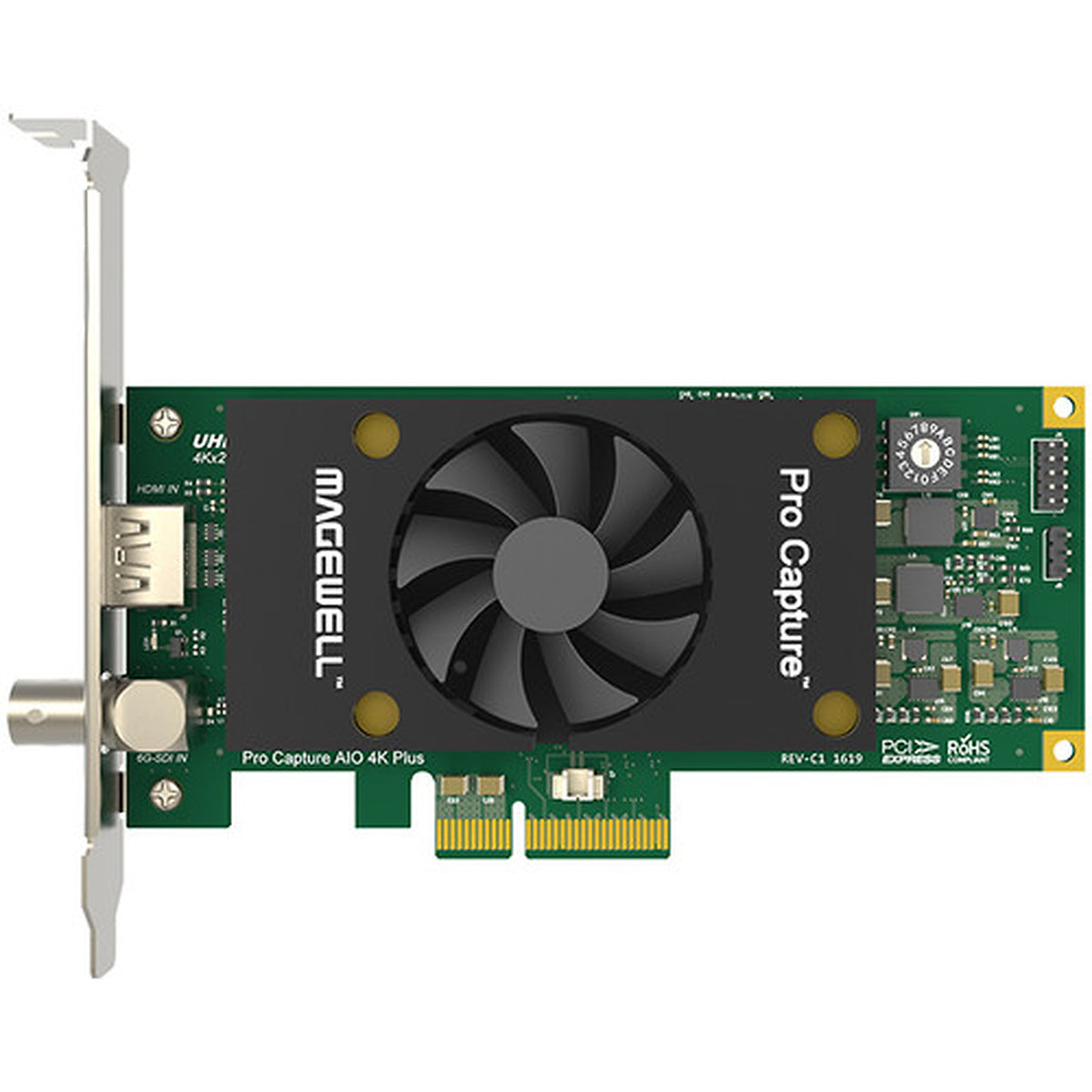

Magewell Pro Capture AIO 4K Plus PCIe HDMI 6G-SDI Capture Card
- SKU:
- MAG-11140
- MPN:
- 11140
Ships in 2-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The Magewell Pro Capture AIO 4K Plus is a one-channel 4K PCIe capture card for professional HDMI and SDI video ingest. It accepts either HDMI 2.0 or SD, HD, 3G, and 6G-SDI sources with embedded audio and supports input resolutions up to 4096×2160. PCIe Gen2 x4 connectivity, hardware processing, HDR10 support, and broad software compatibility make it suitable for broadcast, live production, streaming, recording, and AV integration.
4K Capture up to 4096×2160
The capture engine supports image resolutions up to 4096×2160 pixels. It handles UHD and DCI 4K source workflows inside a PCIe workstation. Capture frame rate can reach up to 144 fps depending on resolution and PCIe bandwidth.
HDMI 2.0 and 6G-SDI Capture
The card provides one HDMI input and one BNC SDI input. HDMI supports HDMI 2.0 and DVI-D 1.0, while SDI supports SD, HD, 3G, and 6G formats. One selected source is captured at a time with compatible embedded audio.
PCIe Gen2 x4 Host Interface
PCIe Gen2 x4 connects the capture card directly to the host workstation. The interface provides bandwidth for high-resolution professional video ingest. It fits broadcast, streaming, recording, and live production workstations.
Full 10-Bit Video Processing
Full 10-bit hardware processing handles scaling, cropping, deinterlacing, aspect-ratio conversion, color conversion, and frame-rate conversion. OSD composition and color adjustment are also supported.
Ultra-Low-Latency Video Capture
Magewell specifies an ultra-low-latency mode of 64 video lines. Partial-notification functionality is available through the Magewell Capture SDK. This supports workflows where responsive video ingest is important.
Multiple Independent Capture Streams
Multiple streams can be generated from the single input channel. Each stream can use independent resolution, frame rate, cropping, aspect ratio, deinterlacing, color format, and color-adjustment settings.
HDMI Input
HDMI 2.0 · DVI-D 1.0 · Embedded Audio
SDI Input
SD-SDI · HD-SDI · 3G-SDI · 6G-SDI
Host Interface
PCIe Gen2 x4
Maximum Resolution
Up to 4096×2160
OBS vMix and Wirecast Compatibility
Magewell lists OBS, vMix, and Wirecast among supported applications. XSplit, VidBlaster, VLC, and VirtualDub are also included in the compatibility list. These options support streaming, production, recording, and monitoring workflows.
Windows Linux and macOS Support
Windows support includes DirectShow, DirectKS, Wave API, DirectSound, and WASAPI. Linux support includes V4L2 and ALSA. macOS applications can access the device through AVCaptureSession and AudioUnit.
Magewell Capture SDK Integration
The Magewell Capture SDK provides access to device controls, timing functions, additional capture formats, and low-latency functionality. It supports custom professional video capture and processing applications.
Broadcast Engineers
Professional HDMI and SDI ingest for broadcast production workstations.
Live Production Teams
Capture cameras and switcher feeds for software-based live production.
Streaming Integrators
Add professional video sources to OBS, vMix, Wirecast, and compatible software.
AV Installers
Integrate HDMI or SDI capture into fixed AV and presentation workstations.
Post-Production Facilities
Ingest high-resolution video with configurable scaling and color processing.
Software Developers
Build custom capture applications with the Magewell Capture SDK.
Magewell Support
Magewell lists a two-year manufacturer warranty for the Pro Capture AIO 4K Plus. Coremicro can help confirm source format, workstation, PCIe, and software compatibility before the card is deployed in a production system.
| Specification | Detail |
|---|---|
| Product | Pro Capture AIO 4K Plus |
| Part Number | 11140 |
| SKU | 111400000 |
| Capture Channels | 1 channel |
| HDMI Input | 1 × HDMI supporting DVI-D 1.0 and HDMI 2.0 |
| SDI Input | 1 × BNC supporting SD/HD/3G/6G-SDI |
| Host Interface | PCIe Gen2 x4 |
| Maximum Input Resolution | 4096×2160 pixels |
| Maximum Capture Resolution | 4096×2160 pixels |
| Maximum Capture Frame Rate | Up to 144 fps depending on resolution and PCIe bandwidth |
| HDMI Receiver | 594 MHz |
| HDMI Color Depth | 8-bit · 10-bit · 12-bit |
| HDMI Color Sampling | RGB 4:4:4 · YCbCr 4:4:4 · YCbCr 4:2:2 |
| HDR Support | HDR10 |
| SDI Standards | SD · HD · 3Ga · 3Gb · 3Gb-DL · 3Gb-DS · 6G-SDI including SMPTE 2081 |
| 4:2:0 8-Bit Capture | NV12 · I420 · YV12 |
| 4:2:2 8-Bit Capture | YUY2 · YUYV · UYVY |
| 4:4:4 8-Bit Capture | V308 · IYU2 · V408 · BGR24 · BGR32 |
| 4:4:4 10-Bit Capture | V410 · Y410 |
| SDI Embedded Audio | Up to 8 mono channels at 48 kHz |
| Video Processing | 10-bit processing · Cropping · Scaling · Deinterlacing · Aspect-ratio conversion · Color conversion · Frame-rate conversion · OSD |
| Processing Pipelines | 2 pipelines at approximately 720 Mpixels/s each |
| Multiple Capture Streams | Unlimited streams from one input channel with independent processing settings |
| Ultra-Low Latency | 64 video lines |
| PCIe 2.x DMA Bandwidth | Approximately 1600 MB/s per channel |
| Windows APIs | DirectShow · DirectKS · Wave API · DirectSound · WASAPI |
| Linux APIs | V4L2 · ALSA |
| macOS APIs | AVCaptureSession · AudioUnit |
| Supported Software | OBS · XSplit · vMix · VidBlaster · Wirecast · VLC · VirtualDub |
| Multiple Cards per System | Supported with onboard 16-position card-number rotary switch |
| Manufacturer Warranty | 2 years |
What is the Magewell Pro Capture AIO 4K Plus used for?
The card is used to ingest professional HDMI or SDI video into a PCIe workstation. It is suitable for broadcast capture, live production, streaming, recording, AV installation, and software-based video processing.
What video inputs does the card support?
It provides one HDMI input supporting HDMI 2.0 and DVI-D 1.0 and one BNC input supporting SD, HD, 3G, and 6G-SDI. One selected video source is captured at a time.
What is the maximum capture resolution?
The card supports capture image resolutions up to 4096×2160 pixels. Capture frame rates can reach up to 144 fps depending on resolution and PCIe bandwidth.
Is the card compatible with OBS vMix and Wirecast?
Yes. Magewell lists OBS, vMix, Wirecast, XSplit, VLC, VidBlaster, VirtualDub, and other compatible capture applications.
Does the HDMI input support HDR10?
Yes. The HDMI input supports HDR10 together with RGB 4:4:4, YCbCr 4:4:4, and YCbCr 4:2:2 sampling on compatible sources.
Can the card create multiple capture streams?
Yes. Magewell specifies unlimited capture streams from the single input channel. Each stream can use independent resolution, frame rate, cropping, aspect ratio, deinterlacing, color format, and color-adjustment settings.
What warranty does the Pro Capture AIO 4K Plus include?
Magewell lists a two-year manufacturer warranty for the product. Warranty terms should be confirmed for the intended deployment.
Ready to Add Professional 4K Capture to Your Workstation?
Coremicro is an authorized Magewell dealer supporting professional capture workflows for broadcast, live production, streaming, recording, and AV integration. Contact our team to confirm HDMI, SDI, PCIe, operating-system, and software compatibility.
Talk to a Specialist
