Product Highlights
- HDMI 1.4 or 6G-SDI capture
- Capture up to 4096x2160
- PCIe Gen2 x4 interface
- 10-bit hardware video processing

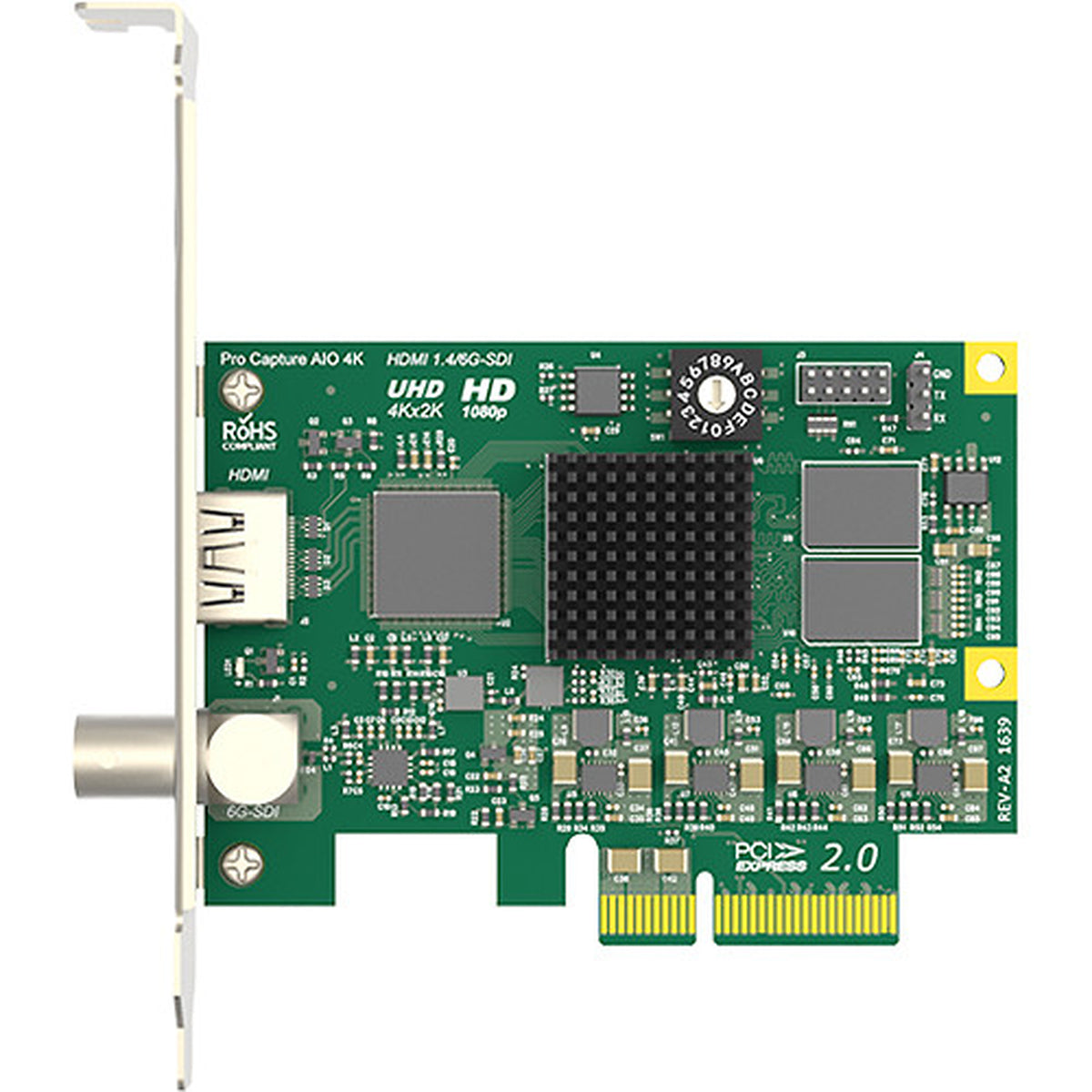

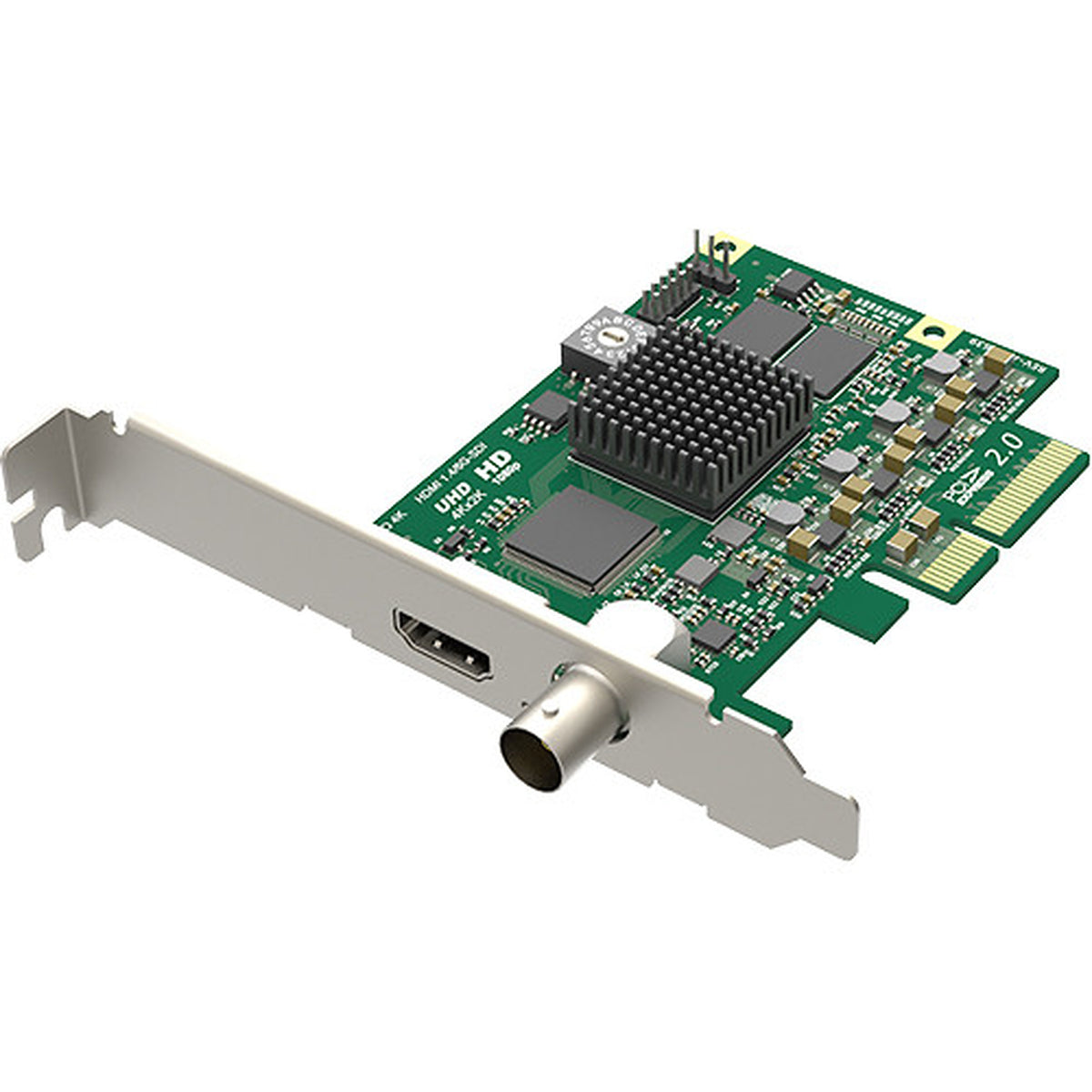

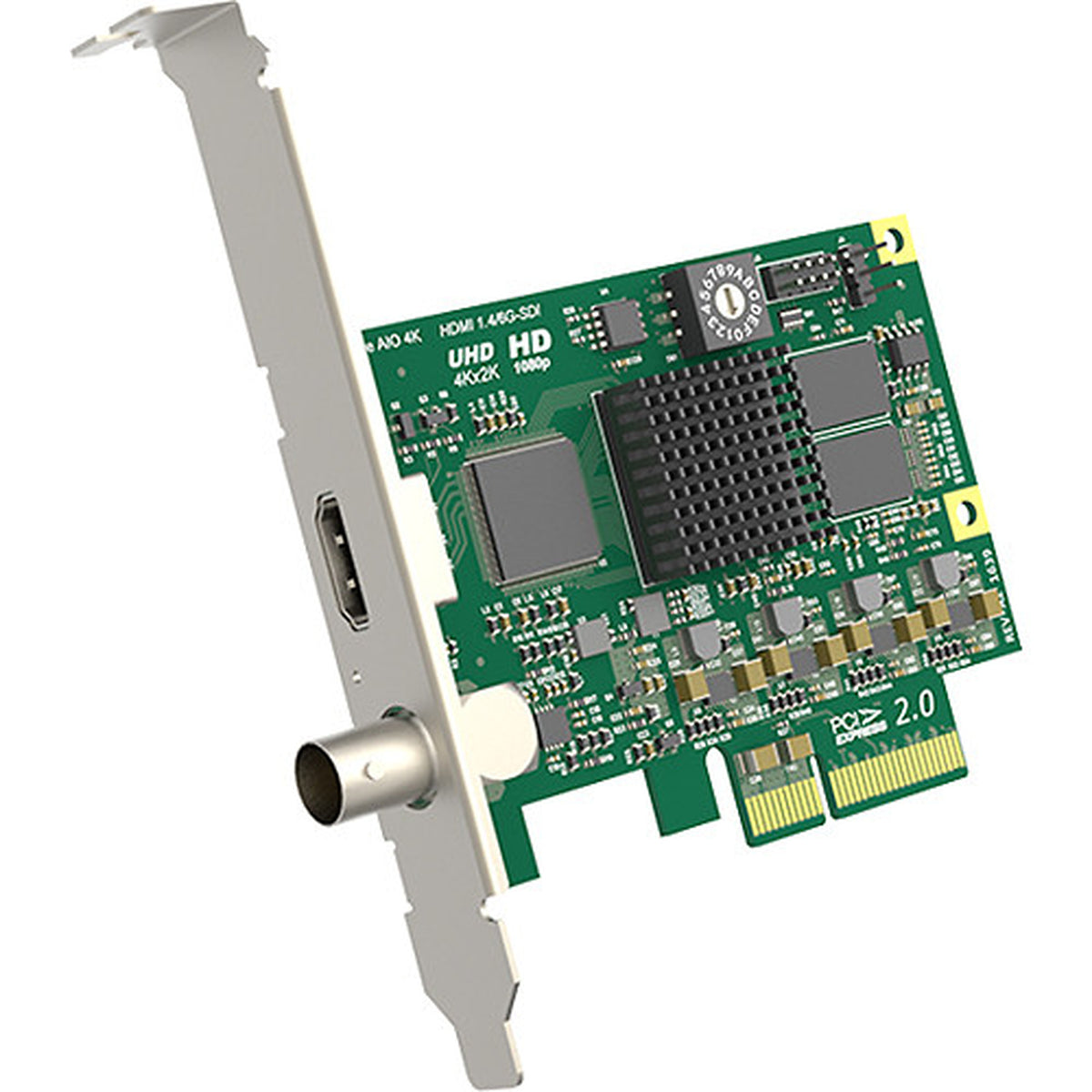

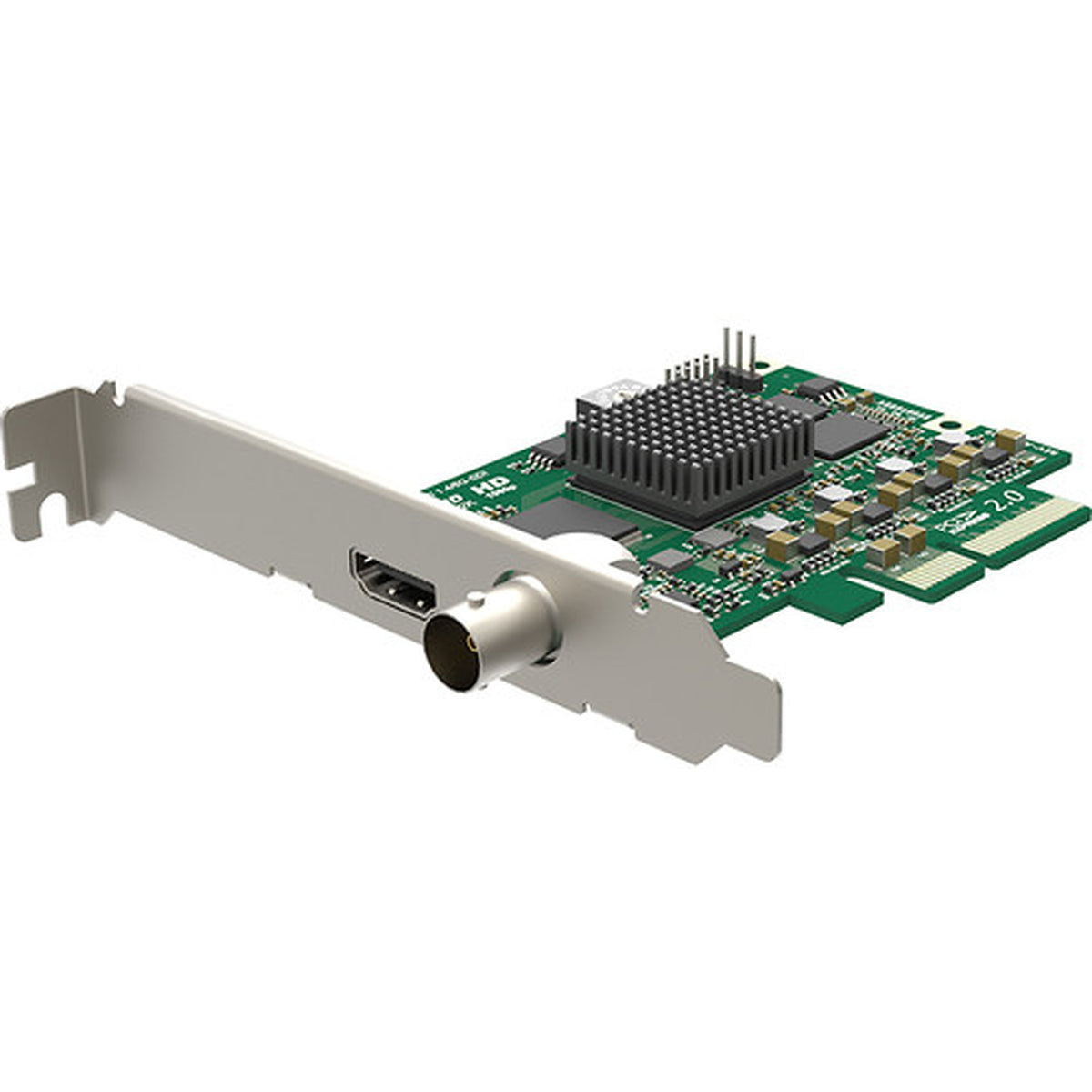

Magewell Pro Capture AIO 4K HDMI 6G-SDI PCIe Capture Card
- SKU:
- MAG-11170
- MPN:
- 11170
Ships in 2-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The Magewell Pro Capture AIO 4K is a one-channel PCIe capture card for professional HDMI and SDI video ingest. It captures either HDMI with embedded audio or SD, HD, 3G, and 6G-SDI with embedded audio at resolutions up to 4096×2160. PCIe Gen2 x4 connectivity, 10-bit hardware processing, low-latency operation, and multiple capture streams make it suitable for broadcast, live production, streaming, recording, and AV integration.
4K Capture up to 4096×2160
The capture engine supports input and capture resolutions up to 4096×2160 pixels. Capture frame rates can reach up to 144fps depending on image resolution and available PCIe bandwidth. This provides flexibility for 4K and high-frame-rate professional video workflows.
HDMI 1.4 and 6G-SDI Input

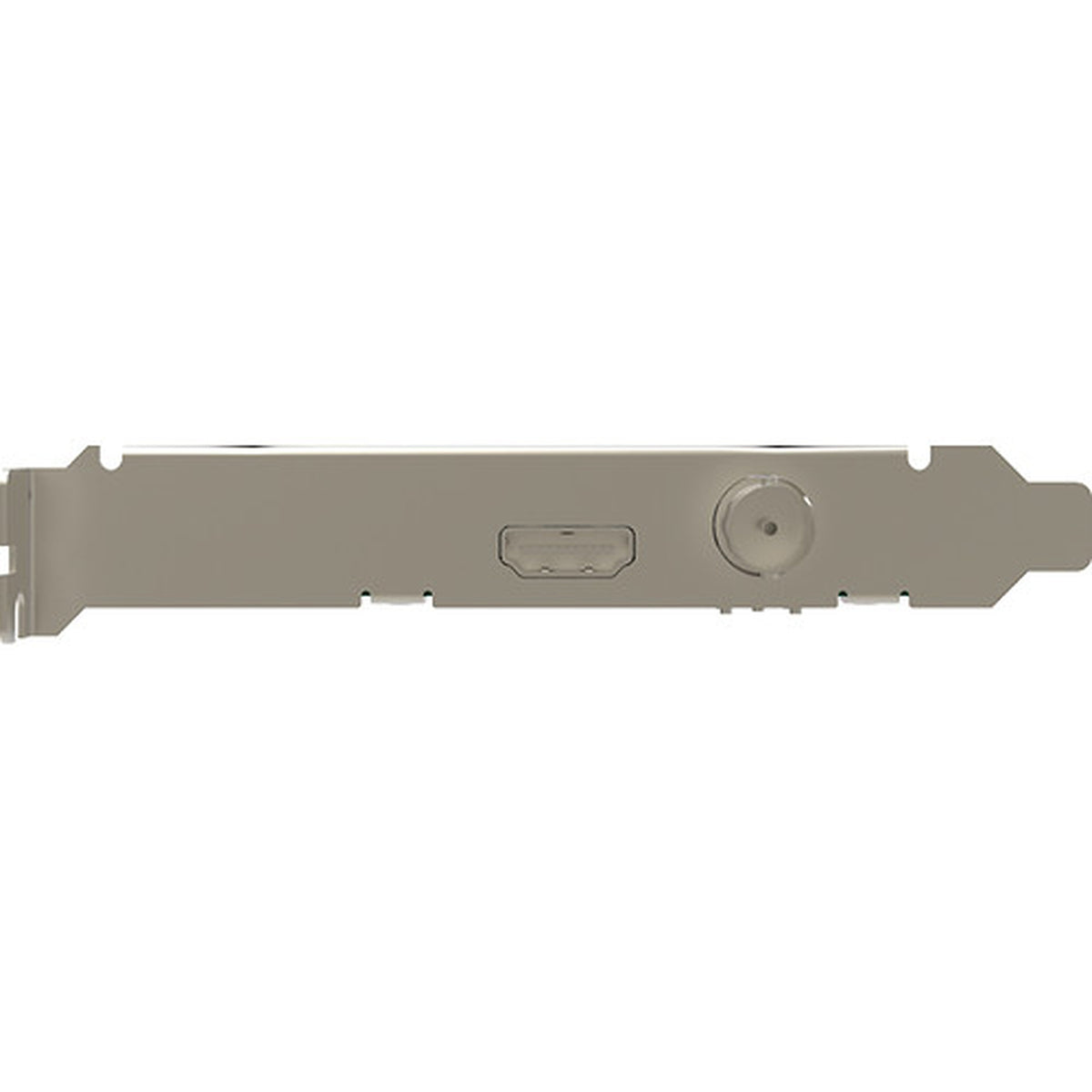

One HDMI input supports HDMI 1.4 and DVI-D 1.0 signals, while the BNC input supports SD, HD, 3G, and 6G-SDI. The card captures one selected input source at a time. Embedded audio can be captured together with the selected video signal.
Full 10-Bit Hardware Video Processing
Full 10-bit processing supports cropping, scaling, deinterlacing, aspect-ratio conversion, color conversion, and frame-rate conversion. Hardware OSD composition and color adjustment are also supported. Processing is handled directly on the capture card.
Ultra-Low-Latency PCIe Capture
Magewell specifies an ultra-low-latency mode of 64 video lines. Partial-notification functionality is available through the Magewell Capture SDK. PCIe Gen2 x4 provides a direct high-bandwidth connection to the host workstation.
Multiple Independent Capture Streams
Unlimited capture streams can be generated from the single active input channel. Each stream can use independent resolution, frame rate, cropping, aspect ratio, deinterlacing, color format, and color-adjustment settings. This allows one source to serve multiple application requirements.
Professional Embedded Audio Capture
Embedded audio can follow the selected HDMI or SDI source into the workstation. SDI supports extraction of up to eight mono audio channels at 48 kHz. Hardware timestamps help maintain audio and video synchronization in professional capture workflows.
HDMI Input
1 × HDMI · HDMI 1.4 · DVI-D 1.0
SDI Input
1 × BNC · SD · HD · 3G · 6G-SDI
Host Interface
PCIe Gen2 x4
Maximum Resolution
Up to 4096×2160
OBS vMix and Wirecast Compatibility
Magewell lists OBS, vMix, Wirecast, XSplit, VidBlaster, VLC, and VirtualDub among supported applications. The card can also work with other compatible capture and streaming software. This supports live production, streaming, recording, and monitoring workflows.
Windows Linux and macOS Support
Windows applications can use DirectShow, DirectKS, Wave API, DirectSound, and WASAPI. Linux support includes V4L2 and ALSA. macOS applications can access the card through AVCaptureSession and AudioUnit.
Capture Express and Magewell SDK
Magewell includes Capture Express software with the Pro Capture platform. The Magewell Capture SDK provides additional access to device control, capture formats, timing, synchronization, and low-latency functions. Universal drivers and updatable firmware support workstation integration.
Broadcast Engineers
Capture professional HDMI or SDI sources inside broadcast production workstations.
Live Production Teams
Bring cameras, switchers, and presentation sources into software-based production.
Streaming Integrators
Add HDMI or SDI video to OBS, vMix, Wirecast, and compatible streaming software.
AV Integrators
Use one PCIe card for flexible HDMI and SDI ingest in fixed AV systems.
Post-Production Facilities
Ingest high-resolution sources with hardware scaling and color processing.
Software Developers
Build custom capture applications using Magewell APIs and the Capture SDK.
Magewell Support
Magewell provides a two-year manufacturer warranty for the Pro Capture AIO 4K. Coremicro can help confirm HDMI or SDI source format, PCIe compatibility, operating-system support, software requirements, and workstation integration before deployment.
| Specification | Detail |
|---|---|
| Product | Pro Capture AIO 4K |
| Part Number | 11170 |
| SKU | 111700000 |
| Capture Channels | 1 channel |
| HDMI Input | 1 × HDMI supporting DVI-D 1.0 and HDMI 1.4 |
| SDI Input | 1 × BNC supporting SD/HD/3G/6G-SDI |
| Source Selection | Captures either HDMI + embedded audio or SDI + embedded audio |
| Host Interface | PCIe Gen2 x4 |
| Maximum Input Resolution | Up to 4096×2160 pixels |
| Maximum Capture Resolution | Up to 4096×2160 pixels |
| Maximum Capture Frame Rate | Up to 144fps depending on resolution and PCIe bandwidth |
| HDMI Receiver | 297 MHz |
| HDMI Equalizer | Adaptive HDMI equalizer |
| EDID | Customizable EDID supported |
| HDMI Color Sampling | RGB / YUV 4:4:4 · YUV 4:2:2 |
| HDMI Color Depth | 8-bit · 10-bit · 12-bit depending on source format |
| SDI Standards | SD · HD · 3Ga · 3Gb · 3Gb-DL · 3Gb-DS · 6G-SDI including SMPTE 2081 |
| SDI Color Sampling | RGB 4:4:4 · YCbCr 4:4:4 · YCbCr 4:2:2 |
| SDI Color Depth | 10-bit · 12-bit |
| SDI Embedded Audio | Up to 8 mono channels at 48 kHz |
| 4:2:0 8-Bit Capture | NV12 · I420 · YV12 |
| 4:2:2 8-Bit Capture | YUY2 · YUYV · UYVY |
| 4:4:4 8-Bit Capture | V308 · IYU2 · V408 · BGR24 · BGR32 |
| 4:4:4 10-Bit Capture | V410 · Y410 |
| Video Processing | 10-bit processing · Cropping · Scaling · Deinterlacing · Aspect-ratio conversion · Color conversion · Frame-rate conversion · OSD |
| Processing Pipelines | 2 pipelines at approximately 360 Mpixels/s each |
| Color Formats | RGB · YCbCr 601 · YCbCr 709 · YCbCr 2020 |
| Multiple Capture Streams | Unlimited streams from one active input channel with independent processing settings |
| Ultra-Low Latency | 64 video lines |
| Hardware Timestamp | 100 ns high-resolution hardware clock |
| PCIe 2.x DMA Bandwidth | Approximately 1200 MB/s per channel |
| PCIe 1.x DMA Bandwidth | Approximately 800 MB/s per channel |
| Windows APIs | DirectShow · DirectKS · Wave API · DirectSound · WASAPI |
| Linux APIs | V4L2 · ALSA |
| macOS APIs | AVCaptureSession · AudioUnit |
| Supported Software | VLC · VirtualDub · OBS · XSplit · vMix · VidBlaster · Wirecast · Microsoft Media Encoder · Adobe Flash Media Encoder |
| Included Software | Capture Express |
| Driver and Firmware | Universal driver · Updatable firmware |
| Multiple Cards per System | Supported with onboard 16-position card-number rotary switch |
| Form Factor | Low-profile PCIe x4 add-on card |
| Dimensions | 92.79 × 68.43 mm without PCI bracket |
| Maximum Power Consumption | Approximately 5.29 W |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | −20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Manufacturer Warranty | 2 years |
| Included Hardware | Pro Capture AIO 4K card · Low-profile bracket |
What is the Magewell Pro Capture AIO 4K used for?
The card captures either HDMI or professional SDI video with embedded audio inside a PCIe workstation. It is suitable for broadcast, live production, streaming, recording, AV integration, and custom video-processing systems.
Can the card capture HDMI and SDI simultaneously?
No. It is a one-channel capture card that captures one selected source at a time. The source can be either HDMI with embedded audio or SDI with embedded audio.
What HDMI and SDI formats are supported?
The HDMI input supports HDMI 1.4 and DVI-D 1.0. The BNC input supports SD, HD, 3G, and 6G-SDI including supported SMPTE 2081 formats.
What is the maximum capture resolution?
The card supports input and capture image resolutions up to 4096×2160 pixels. Capture frame rates can reach up to 144fps depending on resolution and available PCIe bandwidth.
Is the card compatible with OBS vMix and Wirecast?
Yes. Magewell lists OBS, vMix, Wirecast, XSplit, VidBlaster, VLC, VirtualDub, and other compatible capture applications.
Can one input generate multiple capture streams?
Yes. Magewell specifies unlimited capture streams from the active input channel. Individual streams can use independent resolution, frame rate, cropping, aspect ratio, deinterlacing, color format, and color-adjustment settings.
What warranty does the Pro Capture AIO 4K include?
Magewell provides a two-year manufacturer warranty for the product. Coremicro can help confirm HDMI or SDI source compatibility, PCIe requirements, operating-system support, and software integration before deployment.
Build a Flexible HDMI and SDI 4K Capture Workstation
Coremicro is an authorized Magewell dealer supporting professional PCIe capture for broadcast, live production, streaming, recording, and AV integration. Contact our team to confirm HDMI or SDI formats, PCIe compatibility, operating-system support, and workstation configuration for the Pro Capture AIO 4K.
