Product Highlights
- Single-channel 4K HDMI capture
- Compact M.2 2280 design
- JST SHD 20-pin input
- Capture up to 4096x2160
Magewell Eco Capture HDMI 4K M.2 11520 Single-Channel Capture Card
- SKU:
- MAG-11520
- MPN:
- 11520
Expected availability: 2-4 Weeks
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The Magewell Eco Capture HDMI 4K M.2 is a compact single-channel 4K HDMI capture card designed for embedded, OEM, and space-constrained professional video systems. This 11520 version uses a JST SHD 20-pin input connection for HDMI 1.4 and DVI-D 1.0 sources, while its M.2 2280 Type M interface operates over PCIe Gen2 x4. With input resolutions up to 4096×2160, hardware video processing, SG-DMA, and multiple replicated capture streams, it provides flexible HDMI ingest for streaming, recording, production, and custom integration.
Single-Channel 4K HDMI Capture
A dedicated HDMI capture channel brings professional video and embedded audio into a compact computing platform. Magewell specifies input support up to 4096×2160 at 30fps on the product overview. The card automatically detects compatible incoming video signal formats.

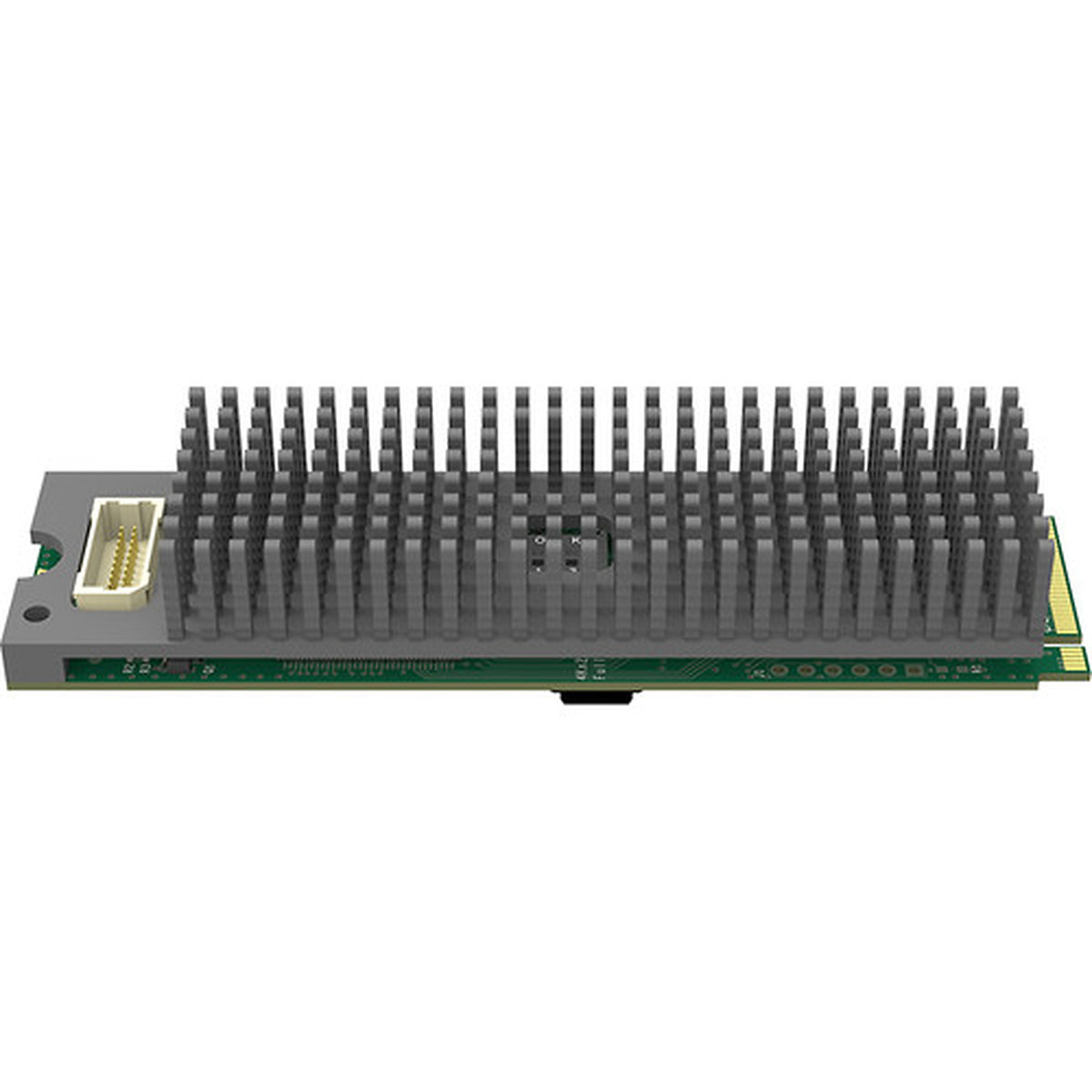

JST SHD Connectivity for 11520
Part number 11520 uses a JST SHD 20-pin input socket. Magewell supplies an SHD-to-HDMI Type A breakout cable for connection to standard HDMI sources. The input supports both HDMI 1.4 and DVI-D 1.0 signaling.

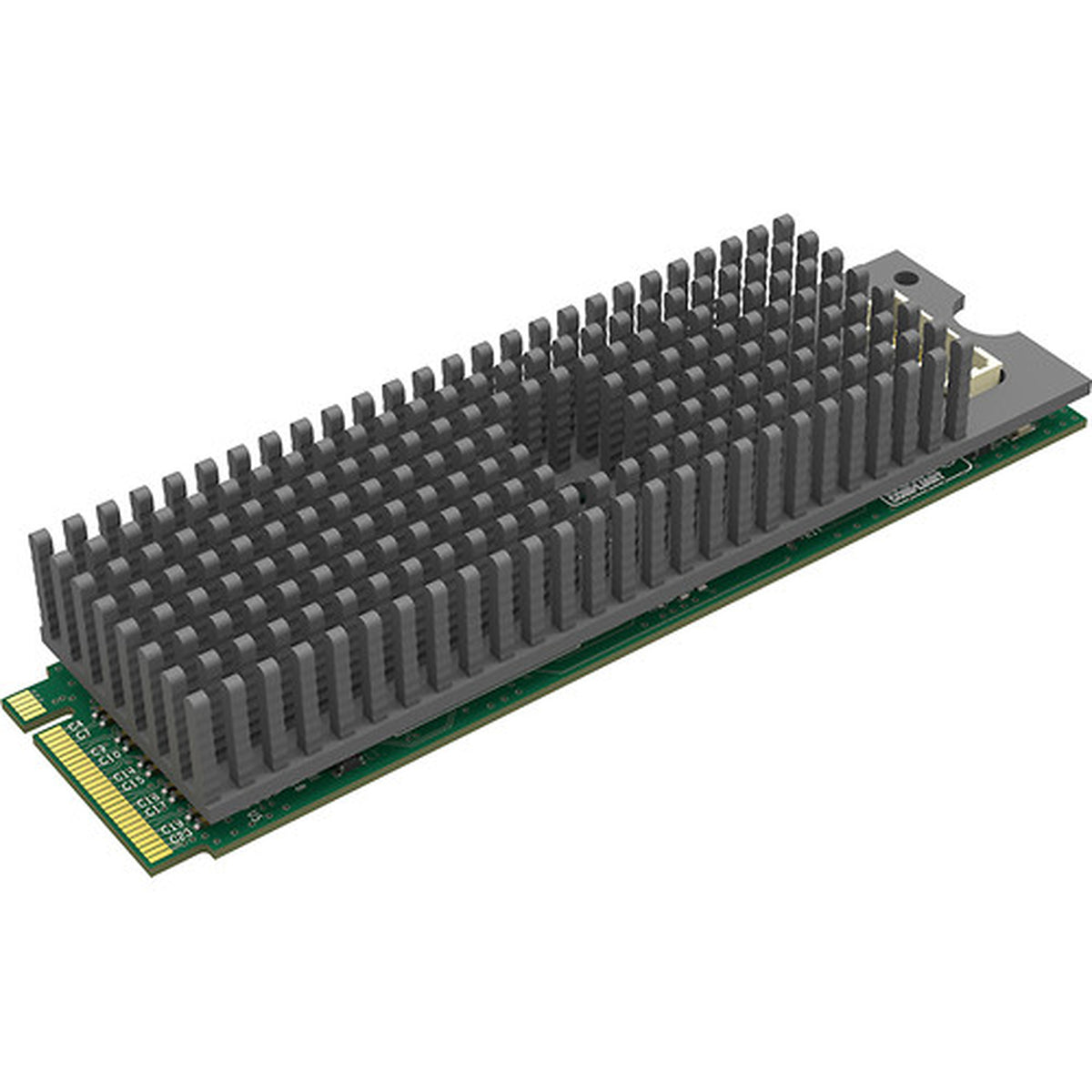

Compact M.2 2280 Type M Design
The capture card follows the M.2 2280 standard form factor and uses a Type M host interface. PCIe Gen2 x4 provides high-bandwidth connectivity to the host system. The compact format suits embedded, portable, and high-density video platforms.
360 Mpixels/s Hardware Processing
The onboard video-processing pipeline provides approximately 360 Mpixels/s of processing bandwidth. Hardware functions include 8-bit 4:4:4 processing, scaling, deinterlacing, color-format conversion, and frame-rate conversion.
High-Bandwidth PCIe SG-DMA
The M.2 host interface operates over PCIe Gen2 x4 with SG-DMA support. Magewell specifies approximately 1200 MB/s DMA bandwidth per channel in PCIe 2.x systems. GPU transfer support includes Intel tiled surfaces, AMD DirectGMA, and NVIDIA GPUDirect.
Multiple Replicated Capture Streams
Unlimited replicated capture streams can be created from the input channel. Magewell specifies that replicated streams use the same capture format. This enables compatible applications to access the same source in multi-application capture workflows.
Capture Input
1 × HDMI + Embedded Audio
11520 Connector
JST SHD 20-Pin
Supported Inputs
HDMI 1.4 · DVI-D 1.0
Host Interface
M.2 2280 Type M · PCIe Gen2 x4
OBS vMix and Wirecast Compatibility
Magewell lists OBS, vMix, Wirecast, XSplit, VidBlaster, VLC, and VirtualDub among supported applications. Other compatible DirectShow and V4L2 encoding or streaming software can also access the capture device.
Windows and Linux Support
Windows support includes DirectShow, DirectKS, Wave API, DirectSound, and WASAPI. Linux applications can access video and audio through V4L2 and ALSA. Magewell also provides Capture SDK integration for both platforms.
Magewell Capture Tools
The Eco Capture platform is compatible with Capture Express, Magewell Bridge for NDI, and Plugin for Premiere. Magewell also provides an SDK for custom capture applications. User-upgradable firmware supports ongoing system maintenance.
Embedded System Designers
Add 4K HDMI ingest to compact M.2-based computing platforms.
OEM Developers
Integrate professional HDMI capture into purpose-built video appliances.
Streaming Integrators
Bring HDMI sources into OBS, vMix, Wirecast, and compatible applications.
AV Integrators
Deploy compact HDMI capture inside professional integrated AV systems.
Production Systems
Capture compatible cameras, presentations, and other HDMI video sources.
Software Developers
Build custom Windows or Linux capture applications with the Magewell SDK.
Magewell Support
Magewell provides a two-year manufacturer warranty for the Eco Capture HDMI 4K M.2. Coremicro can help confirm the 11520 JST SHD connectivity, M.2 slot requirements, HDMI source formats, operating-system support, and capture-software compatibility before deployment.
| Specification | Detail |
|---|---|
| Product | Eco Capture HDMI 4K M.2 |
| Listing Part Number | 11520 |
| SKU | 115200000 |
| Alternative Connectivity Version | Part number 11524 with FPC 20-pin input socket |
| Capture Channels | 1 channel |
| Video and Audio Input | HDMI with embedded audio |
| 11520 Input Connector | JST SHD 20-pin socket |
| Supported Input Interfaces | DVI-D 1.0 · HDMI 1.4 |
| Host Interface | M.2 2280 Type M · PCIe Gen2 x4 |
| Maximum Input Resolution | Up to 4096×2160 pixels |
| 4K Input Timing | Product overview specifies input up to 4096×2160 at 30fps |
| Maximum Capture Resolution | Up to 4096×2160 pixels |
| Maximum Capture Frame Rate | Up to 144fps depending on PCIe bandwidth and image resolution |
| HDMI Receiver | 297 MHz |
| HDMI Equalizer | Adaptive HDMI equalizer |
| EDID | Customizable EDID supported |
| RGB / YCbCr 4:4:4 | 8-bit up to 297 MHz pixel frequency |
| YCbCr 4:2:2 | 12-bit up to 297 MHz pixel frequency |
| RGB / YCbCr 4:4:4 High Bit Depth | 10-bit / 12-bit up to 170 MHz pixel frequency |
| Embedded HDMI Audio | Up to 8-channel IEC60958 / IEC61937 audio streams via SDK |
| HDMI Metadata | AVI · Audio · SPD · MS · VS · ACP · ISRC1 · ISRC2 · Gamut InfoFrames |
| 3D HDMI Modes | Side-by-Side Half · Top-and-Bottom · Frame Packing |
| DSLR Time Code Extraction | Sony and Canon DSLR time code |
| 4:2:0 8-Bit Capture | NV12 · I420 · YV12 |
| 4:2:2 8-Bit Capture | YUY2 · YUYV · UYVY |
| 4:4:4 8-Bit Capture | V308 · IYU2 · V408 · BGR24 · BGR32 |
| Additional Capture Formats | Additional formats available through the Magewell Capture SDK |
| Video Processing | 8-bit 4:4:4 processing · Scaling · Deinterlacing · Color-format conversion · Frame-rate conversion |
| Processing Bandwidth | Approximately 360 Mpixels/s |
| Processing Color Formats | RGB · YCbCr 601 · YCbCr 709 · YCbCr 2020 |
| Quantization Range | Limited · Full |
| Saturation Range | Limited · Full · Extended gamut |
| Multiple Replicated Streams | Unlimited streams from the input channel using the same capture format |
| Hardware Timestamp | 100 ns high-resolution hardware clock |
| A/V Synchronization | Audio and video frames stamped with the hardware clock |
| Cross-Card Clock Synchronization | Supported through the Magewell Capture SDK |
| PCIe 2.x DMA Bandwidth | Approximately 1200 MB/s per channel |
| PCIe 1.x DMA Bandwidth | Approximately 800 MB/s per channel |
| GPU Transfer Support | Intel tiled GPU surfaces · AMD DirectGMA · NVIDIA GPUDirect |
| Windows APIs | DirectShow · DirectKS · Wave API · DirectSound · WASAPI |
| Linux APIs | V4L2 · ALSA |
| Supported Software | VLC · VirtualDub · OBS · XSplit · vMix · VidBlaster · Wirecast · Microsoft Media Encoder · Adobe Flash Media Encoder |
| Magewell Software | Capture Express · Magewell Bridge for NDI · Plugin for Premiere |
| SDK | Magewell Capture SDK for Windows and Linux |
| Firmware | User-upgradable firmware |

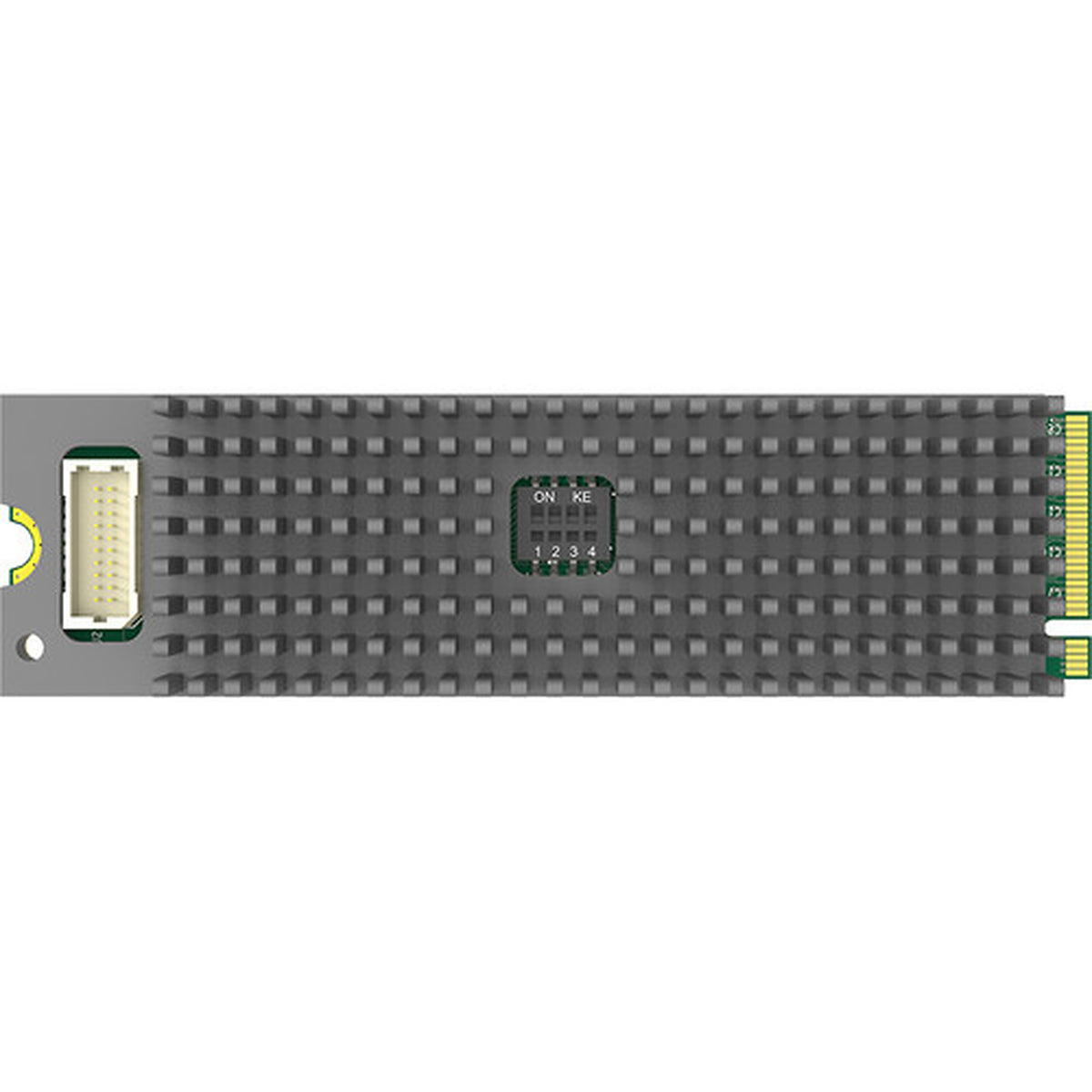

| Multiple Cards per System | Supported with onboard 16-position card-number DIP switch |
| Status Indicator | LED indicates input lock and device status |
| Form Factor | M.2 2280 standard size |
| Maximum Current | Approximately 1.12 A at 3.3 V |
| Maximum Power Consumption | Approximately 3.75 W |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | −20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Manufacturer Warranty | 2 years |
| Included Hardware — 11520 | Eco Capture HDMI 4K M.2 card · SHD-to-HDMI Type A breakout cable, 31 cm |
What is the Magewell Eco Capture HDMI 4K M.2 used for?
The card captures one HDMI video source with embedded audio inside a compact M.2-based computer or embedded platform. It is designed for streaming, recording, OEM systems, professional AV integration, and other space-constrained video applications.
What connector does part number 11520 use?
Part number 11520 uses a JST SHD 20-pin input socket. Magewell supplies an SHD-to-HDMI Type A breakout cable for connecting a standard HDMI source to the card.
What is the difference between part numbers 11520 and 11524?
Both versions belong to the Eco Capture HDMI 4K M.2 family but use different physical input connections. Part 11520 uses a JST SHD 20-pin socket, while part 11524 uses an FPC 20-pin socket.
What is the maximum HDMI input resolution?
Magewell supports input video resolutions up to 4096×2160 pixels. The product overview specifically lists input support up to 4096×2160 at 30fps.
Is the card compatible with OBS vMix and Wirecast?
Yes. Magewell lists OBS, vMix, Wirecast, XSplit, VidBlaster, VLC, VirtualDub, and other compatible DirectShow or V4L2 capture and streaming applications.
Can the HDMI input provide multiple capture streams?
Yes. Magewell specifies unlimited replicated capture streams from the input channel. The replicated streams use the same capture format.
What warranty does the Eco Capture HDMI 4K M.2 include?
Magewell provides a two-year manufacturer warranty. Coremicro can help confirm JST SHD connectivity, HDMI source formats, M.2 host compatibility, and software requirements before deployment.
Build a Compact 4K HDMI Capture System
Coremicro is an authorized Magewell dealer supporting embedded video capture, professional streaming, recording, OEM systems, and AV integration. Contact our team to confirm 11520 JST SHD connectivity, HDMI source compatibility, M.2 2280 Type M requirements, and software configuration for your deployment.
