Product Highlights
- Dual-channel 3G-SDI capture
- Compact M.2 2280 design
- PCIe Gen2 x2 interface
- Capture up to 2048x1080

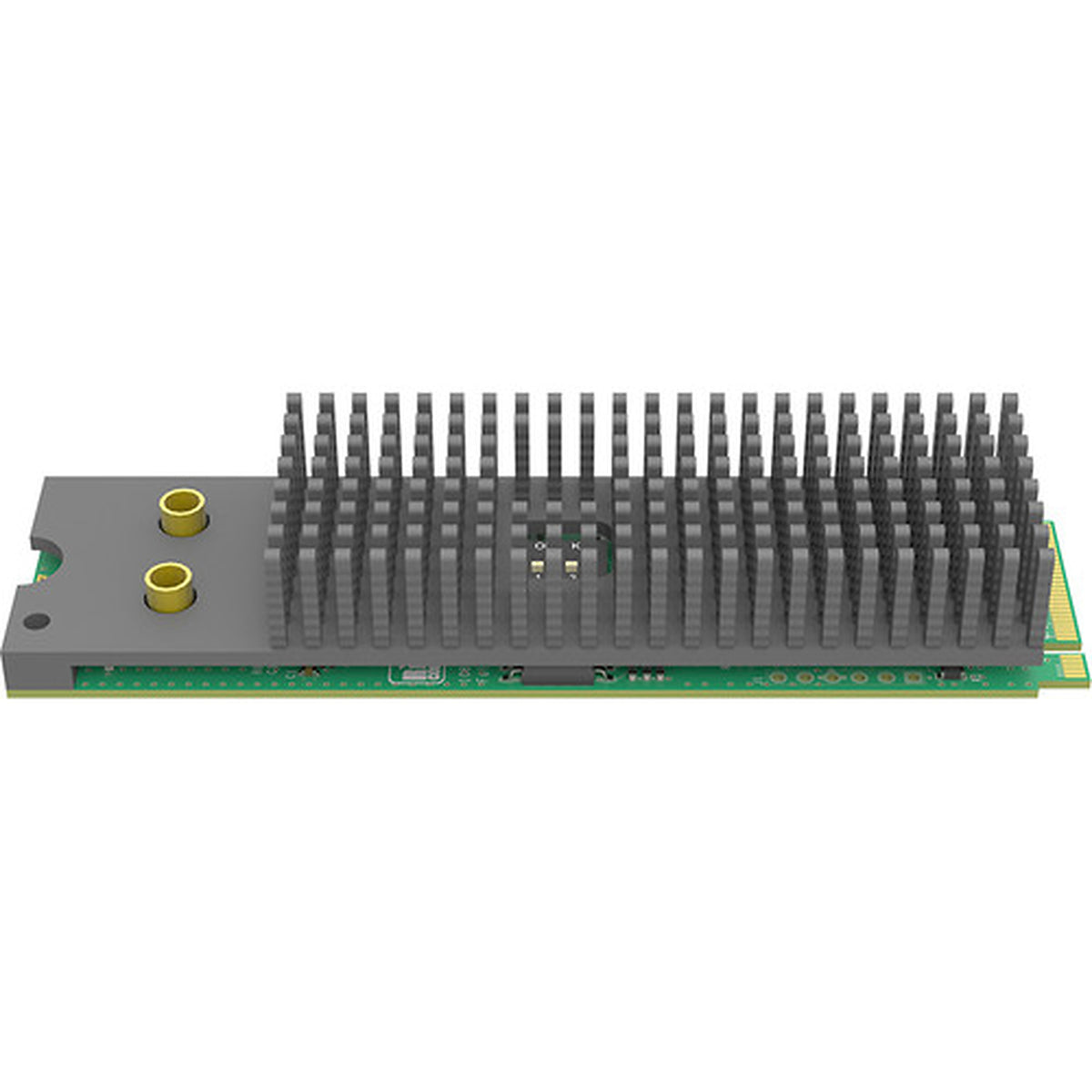

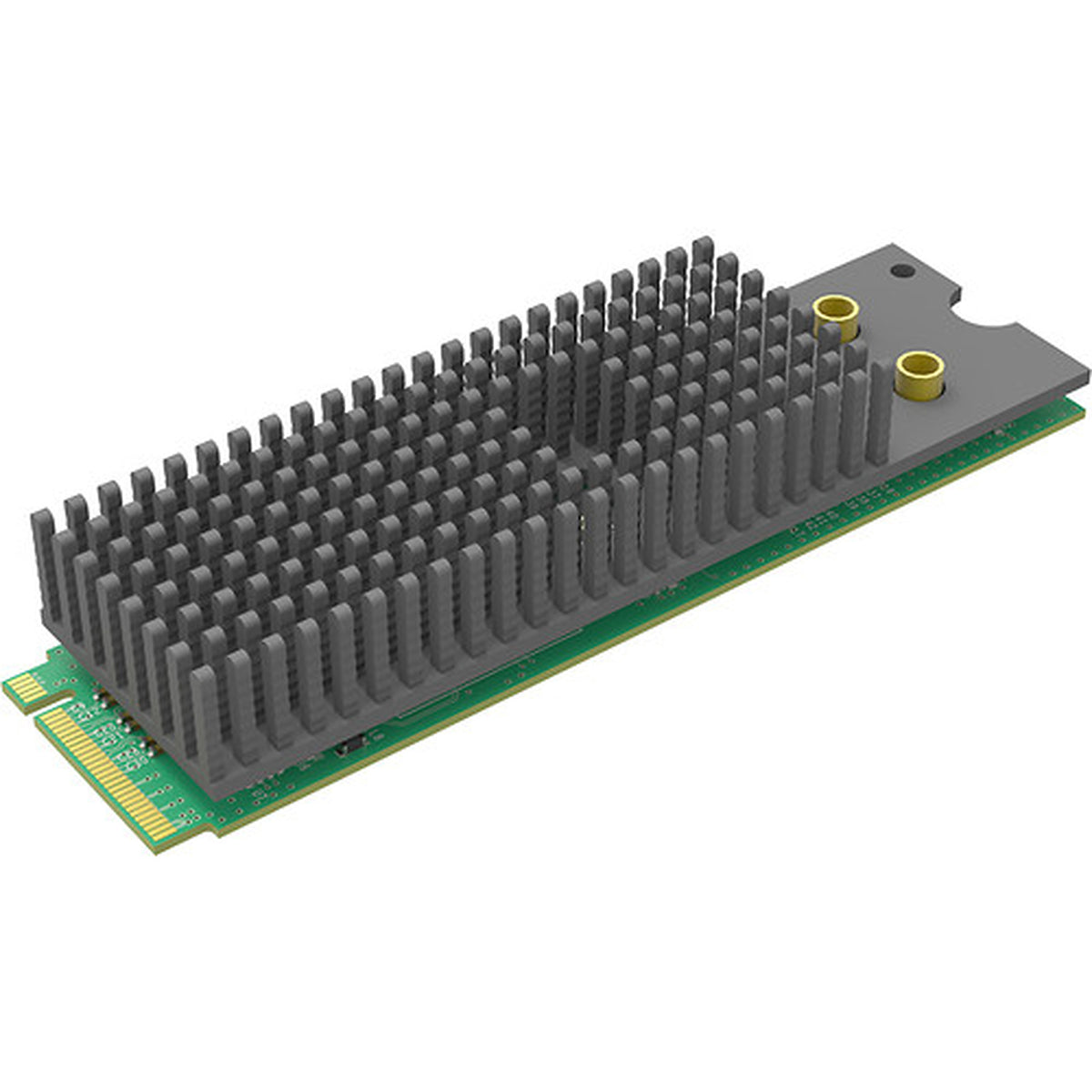

Magewell Eco Capture Dual SDI M.2 Two-Channel 2K Capture Card
- SKU:
- MAG-11530
- MPN:
- 11530
Ships in 3-7 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The Magewell Eco Capture Dual SDI M.2 is a compact two-channel 2K SDI capture card designed for embedded, OEM, and space-constrained professional video systems. Two MMCX inputs capture SD, HD, 3G, and 2K SDI signals with embedded audio, while the M.2 2280 Type M interface connects through PCIe Gen2 x2. Hardware video processing, SG-DMA, and replicated capture streams make it a versatile solution for broadcast, streaming, recording, and custom integration.
Dual-Channel 2K SDI Capture
Two independent SDI inputs allow simultaneous capture from two professional video sources. Input and capture resolutions are supported up to 2048×1080 pixels. This gives compact systems two-channel professional SDI ingest from a single internal capture device.
SD HD 3G and 2K SDI Support
Each MMCX input supports SD-SDI, HD-SDI, 3G-SDI, and 2K SDI sources. Supported standards include 3G Level A and multiple Level B formats. Automatic input signal detection simplifies integration with professional cameras, routers, switchers, and other SDI equipment.
Compact M.2 2280 Type M Design
The capture card uses the compact M.2 2280 standard form factor. Its Type M host connection operates through PCIe Gen2 x2. This design makes dual-channel SDI capture practical in embedded, portable, and high-density professional video systems.
10-Bit Hardware Video Processing
The onboard processing pipeline provides approximately 180 Mpixels/s of processing bandwidth with 10-bit 4:4:4 video processing. Hardware functions include scaling, deinterlacing, color conversion, and frame-rate conversion for flexible capture workflows.
PCIe SG-DMA and GPU Transfer
SG-DMA transfers captured video efficiently through the PCIe interface. Magewell specifies approximately 400 MB/s DMA bandwidth per channel on PCIe 2.x systems. GPU transfer support includes Intel tiled surfaces, AMD DirectGMA, and NVIDIA GPUDirect.
Multiple Replicated Capture Streams
Unlimited replicated capture streams can be created for any one input channel. Replicated streams from that channel use the same capture format. This allows compatible software applications to access the same SDI source simultaneously in multi-application workflows.
Capture Inputs
2 × MMCX
Supported SDI
SD · HD · 3G · 2K SDI
Capture Channels
2 Independent Channels
Host Interface
M.2 2280 Type M · PCIe Gen2 x2
OBS vMix and Wirecast Compatibility
Magewell lists OBS, vMix, Wirecast, XSplit, VidBlaster, VLC, and VirtualDub among supported applications. Other compatible DirectShow and V4L2 applications can also access the capture device for recording and streaming workflows.
Windows and Linux Support
Windows applications can access the device through DirectShow, DirectKS, Wave API, DirectSound, and WASAPI. Linux support includes V4L2 and ALSA. Magewell also provides SDK options for deeper software integration.
Magewell Capture Tools
The Eco Capture platform supports Capture Express, Magewell Bridge for NDI, and Plugin for Premiere. Magewell Capture SDK tools support custom Windows and Linux applications. User-upgradable firmware supports ongoing device maintenance.
Embedded System Designers
Add two professional SDI capture channels to compact M.2-based platforms.
Broadcast Integrators
Capture SD, HD, 3G, and 2K SDI sources in compact broadcast systems.
Streaming Integrators
Bring two SDI sources into OBS, vMix, Wirecast, and compatible applications.
AV Integrators
Deploy compact dual-channel SDI ingest inside professional AV systems.
OEM Developers
Integrate professional SDI capture into specialized video appliances.
Software Developers
Build custom Windows or Linux capture applications with Magewell SDK tools.
Magewell Support
Magewell provides a two-year manufacturer warranty for the Eco Capture Dual SDI M.2. Coremicro can help confirm SDI source standards, MMCX-to-BNC connectivity, M.2 slot requirements, operating-system support, and capture software compatibility before deployment.
| Specification | Detail |
|---|---|
| Product | Eco Capture Dual SDI M.2 |
| Part Number | 11530 |
| SKU | 115300000 |
| Capture Channels | 2 channels |
| Input Interfaces | 2 × MMCX |
| Supported Input Signals | SD-SDI · HD-SDI · 3G-SDI · 2K SDI |
| Host Interface | M.2 2280 Type M · PCIe Gen2 x2 |
| Maximum Input Resolution | Up to 2048×1080 pixels |
| Maximum Capture Resolution | Up to 2048×1080 pixels |
| Maximum Capture Frame Rate | Up to 144fps depending on resolution, PCIe bandwidth, and processing limits |
| 1920×1080 Capture | Up to approximately 80fps |
| SDI Standards | SD · HD · 3Ga · 3Gb · 3Gb-DL · 3Gb-DS |
| 2K Mode | 2048×1080 |
| SDI Color Sampling | RGB 4:4:4 · YCbCr 4:4:4 · YCbCr 4:2:2 |
| SDI Color Depth | 10-bit · 12-bit |
| Embedded Audio | Up to 8 mono channels at 48 kHz |
| SD-SDI Cable Length | Up to approximately 330 m |
| HD-SDI Cable Length | Up to approximately 190 m |
| 3G-SDI Cable Length | Up to approximately 150 m |
| Closed Caption | Supported through Magewell Capture SDK |
| 4:2:0 8-Bit Capture | NV12 · I420 · YV12 |
| 4:2:2 8-Bit Capture | YUY2 · YUYV · UYVY |
| 4:4:4 8-Bit Capture | V308 · IYU2 · V408 · BGR24 · BGR32 |
| Video Processing | 10-bit 4:4:4 processing · Scaling · Deinterlacing · Color-format conversion · Frame-rate conversion |
| Processing Bandwidth | Approximately 180 Mpixels/s |
| Processing Color Formats | RGB · YCbCr 601 · YCbCr 709 · YCbCr 2020 |
| Quantization Range | Limited · Full |
| Saturation Range | Limited · Full · Extended gamut |
| Multiple Replicated Streams | Unlimited streams for any one input channel using the same capture format |
| Hardware Timestamp | 100 ns high-resolution hardware clock |
| A/V Synchronization | Audio and video frames are stamped with the hardware clock |
| Cross-Card Clock Synchronization | Supported through Magewell Capture SDK |
| PCIe 2.x DMA Bandwidth | Approximately 400 MB/s per channel |
| PCIe 1.x DMA Bandwidth | Approximately 200 MB/s per channel |
| GPU Transfer Support | Intel tiled GPU surfaces · AMD DirectGMA · NVIDIA GPUDirect |
| Windows APIs | DirectShow · DirectKS · Wave API · DirectSound · WASAPI |
| Linux APIs | V4L2 · ALSA |
| Supported Software | VLC · VirtualDub · OBS · XSplit · vMix · VidBlaster · Wirecast · Microsoft Media Encoder · Adobe Flash Media Encoder |
| Magewell Software | Capture Express · Magewell Bridge for NDI · Plugin for Premiere |
| SDK | Magewell Capture SDK for Windows and Linux integration |
| Firmware | User-upgradable firmware |

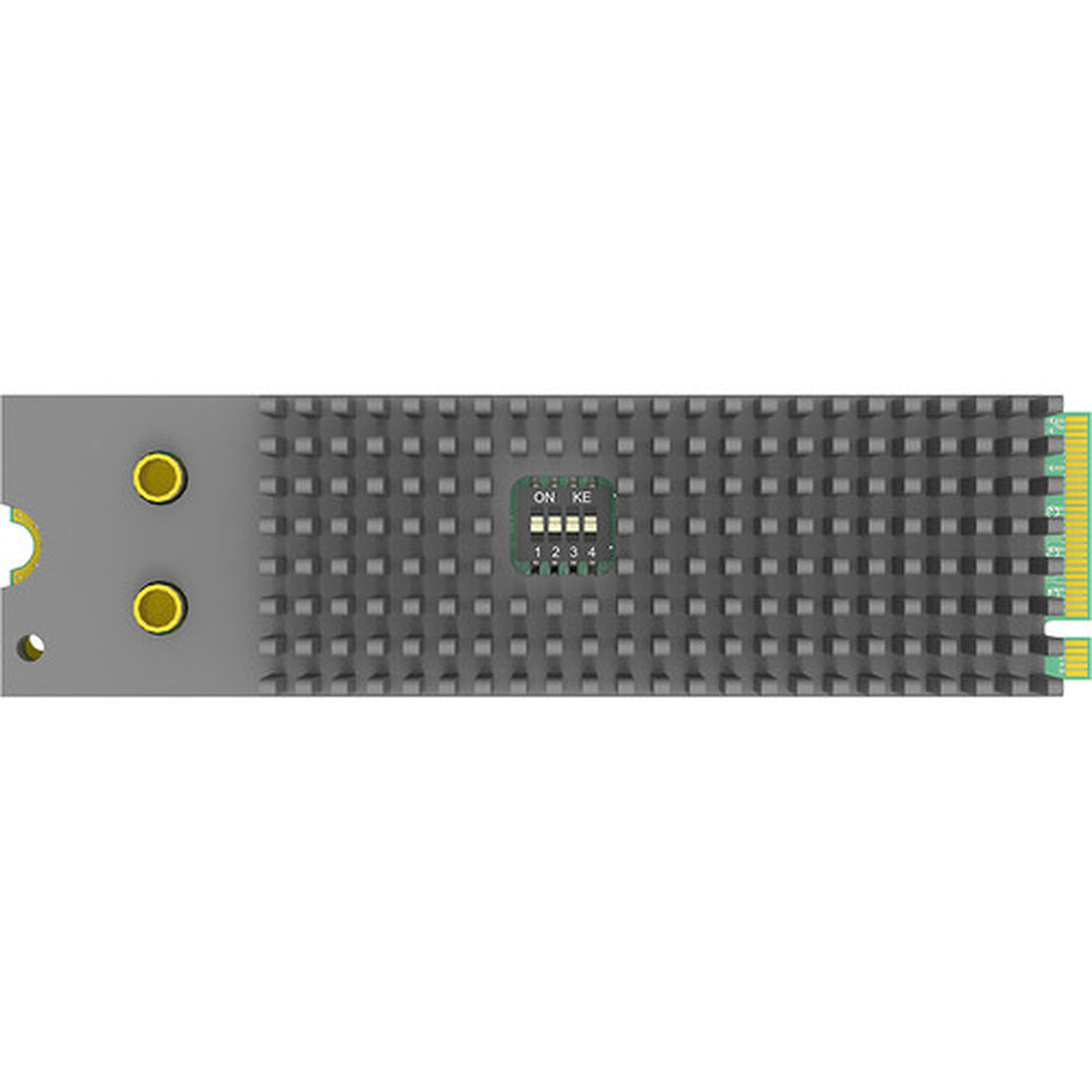

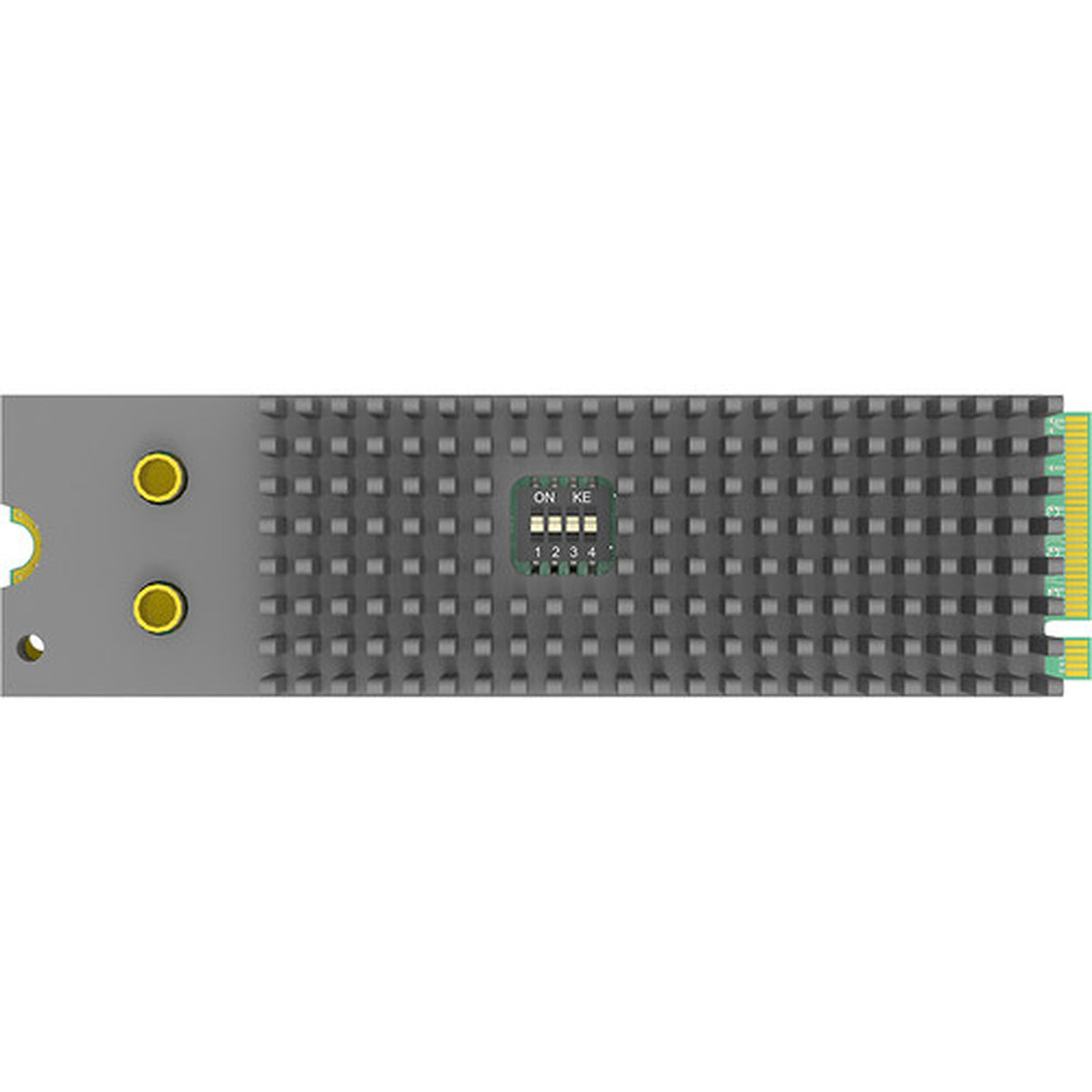

| Multiple Cards per System | Supported with onboard 16-position card-number DIP switch |
| Status Indicators | Per-channel LED status indication |
| Form Factor | M.2 2280 standard size |
| Maximum Current | Approximately 1.00 A at 3.3 V |
| Maximum Power Consumption | Approximately 3.38 W |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | −20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Manufacturer Warranty | 2 years |
| Included Hardware | Eco Capture Dual SDI M.2 card · 2 × MMCX-to-BNC cables, 32 cm |
What is the Magewell Eco Capture Dual SDI M.2 used for?
The card captures two professional SDI video sources with embedded audio inside a compact M.2-based computer or embedded system. It is suited to broadcast, streaming, recording, OEM products, professional AV integration, and other space-constrained video applications.
How many SDI sources can the card capture?
The Eco Capture Dual SDI M.2 provides two independent SDI capture channels. Each input supports SD, HD, 3G, and 2K SDI signals at resolutions up to 2048×1080 pixels.
What physical connectors does the card use?
The card provides two MMCX input connectors. Magewell includes two 32 cm MMCX-to-BNC cables so standard professional BNC-based SDI equipment can be connected to the card.
Which SDI standards are supported?
The card supports SD-SDI, HD-SDI, 3G-SDI, and 2K SDI sources, including 3G Level A and supported Level B formats. It also supports 10-bit and 12-bit SDI input color depths.
Is the card compatible with OBS vMix and Wirecast?
Yes. Magewell lists OBS, vMix, Wirecast, XSplit, VidBlaster, VLC, VirtualDub, and other compatible DirectShow or V4L2 capture and streaming applications.
Can each SDI input provide multiple capture streams?
Yes. Magewell specifies unlimited replicated capture streams for any one input channel. Replicated streams from that input use the same capture format.
What warranty does the Eco Capture Dual SDI M.2 include?
Magewell provides a two-year manufacturer warranty. Coremicro can help confirm SDI standards, MMCX-to-BNC connectivity, M.2 host compatibility, and software requirements before deployment.
Build a Compact Dual-Channel SDI Capture System
Coremicro is an authorized Magewell dealer supporting embedded video capture, broadcast, professional streaming, recording, OEM systems, and AV integration. Contact our team to confirm SDI source compatibility, MMCX-to-BNC connectivity, M.2 2280 Type M requirements, and software configuration for your deployment.
