Product Highlights
- Dual-channel HDMI capture
- Compact M.2 2280 design
- PCIe Gen2 x4 interface
- Capture up to 2048x2160

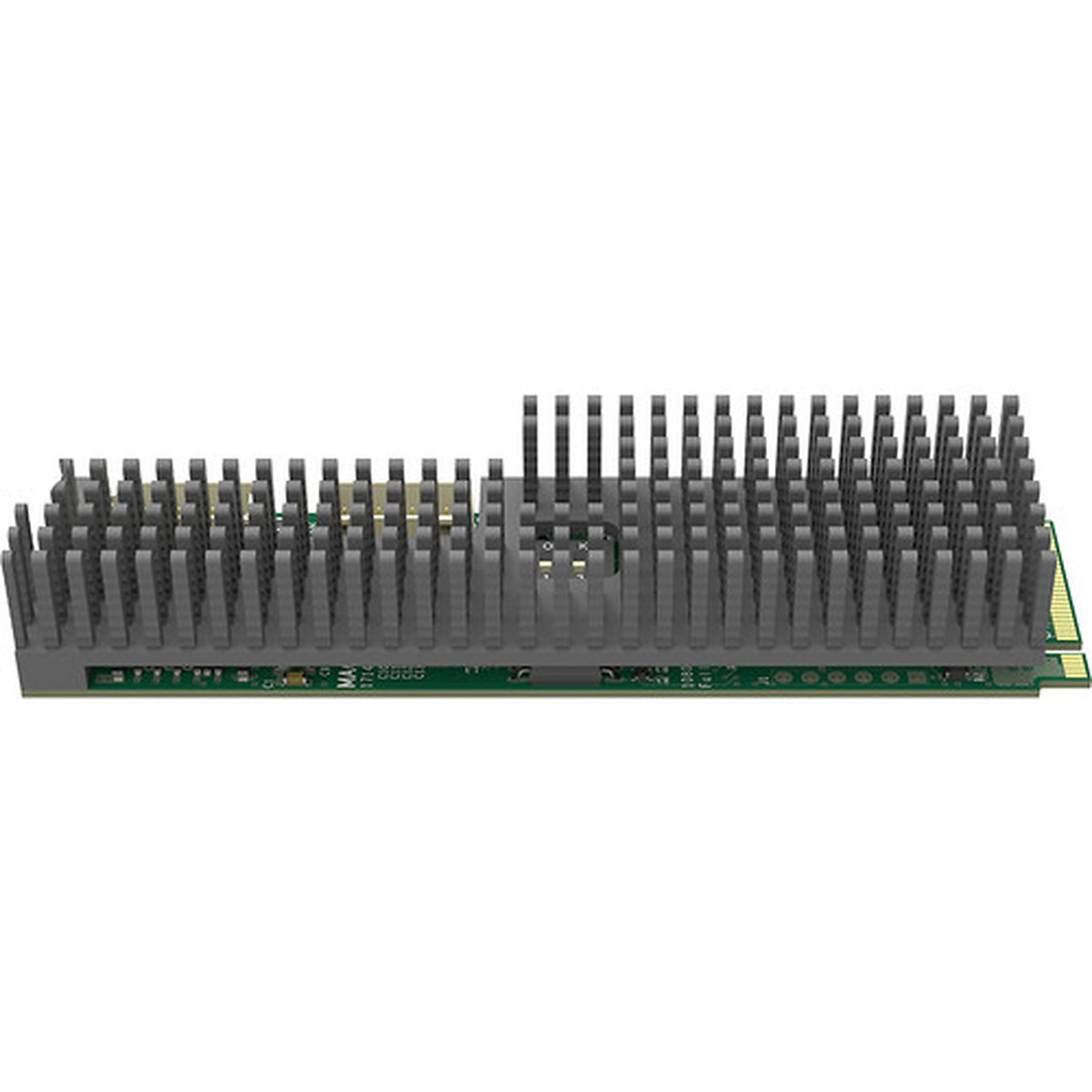

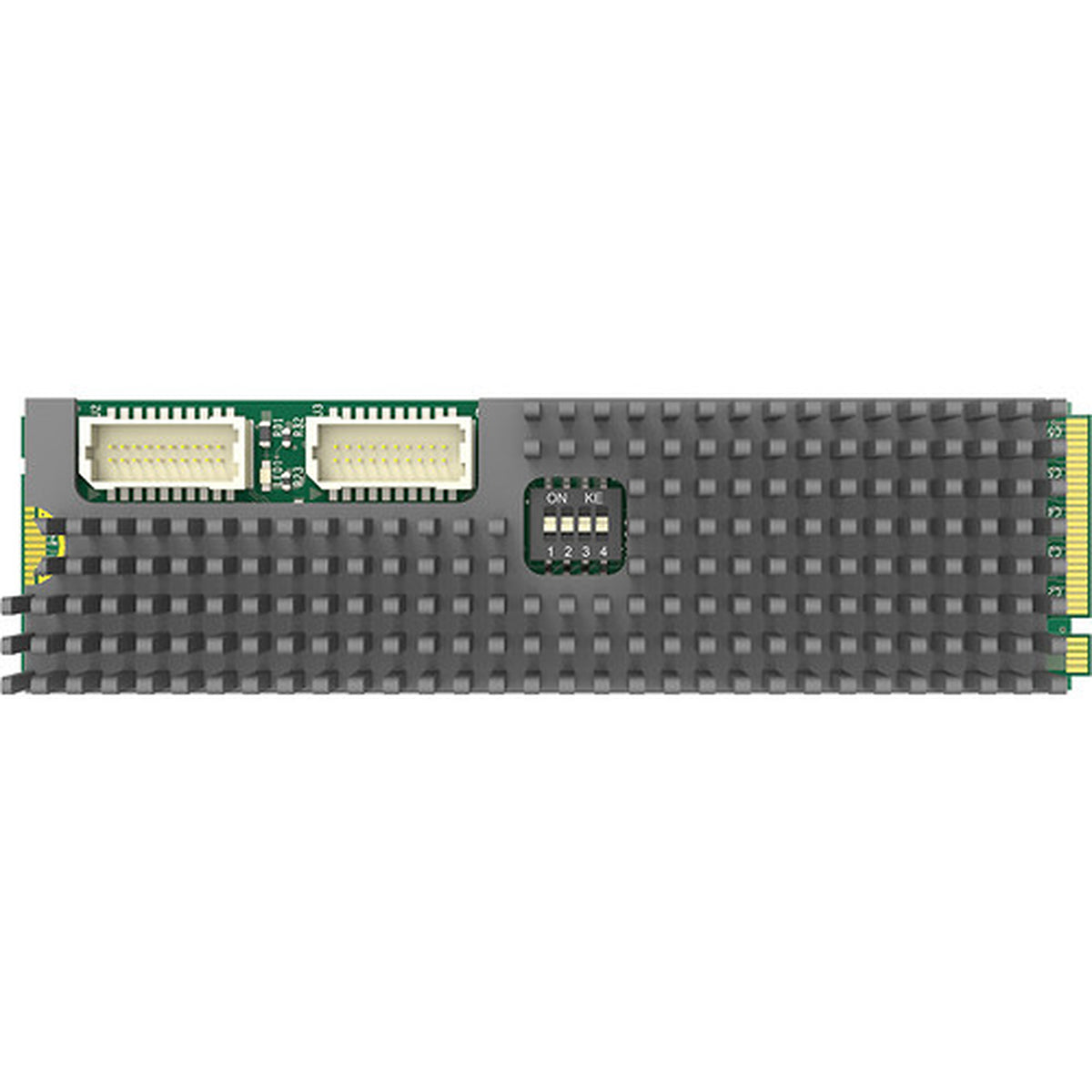

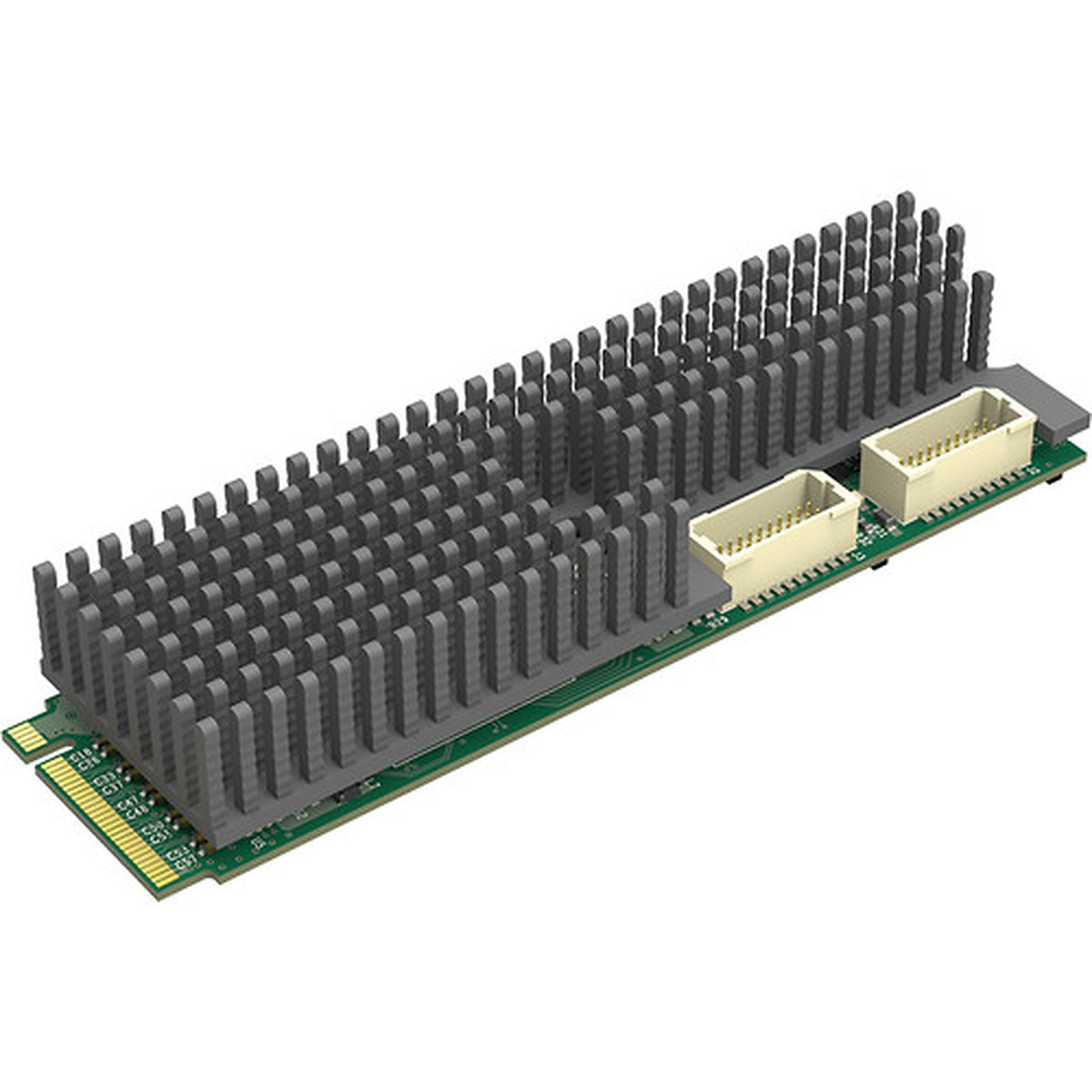

Magewell Eco Capture Dual HDMI M.2 Two-Channel Capture Card
- SKU:
- MAG-11510
- MPN:
- 11510
Ships in 2-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The Magewell Eco Capture Dual HDMI M.2 is a compact two-channel HDMI capture card designed for embedded and space-constrained professional video systems. The 11510 version provides two JST SHD input connections for HDMI 1.4a and DVI 1.0 sources through supplied HDMI breakout cables, while its M.2 2280 Type M interface uses PCIe Gen2 x4. With capture resolutions up to 2048×2160, hardware video processing, and multiple replicated streams, it fits streaming, recording, integration, and embedded capture workflows.
Dual-Channel HDMI Capture
Two independent input channels enable simultaneous capture from two HDMI video sources. Each channel supports embedded HDMI audio along with the incoming video signal. This gives compact systems multi-source ingest capability without requiring multiple capture devices.
Compact M.2 2280 Form Factor
The card uses the M.2 2280 standard size with a Type M host connection. Its compact format is designed for systems where a traditional full-size PCIe capture card is impractical. This makes it particularly useful for embedded, portable, and high-density video platforms.
Capture up to 2048×2160
Input and capture image resolutions are supported up to 2048×2160 pixels. Capture frame rates can reach up to 144fps when permitted by resolution, PCIe bandwidth, and onboard processing limits. At 1920×1080, Magewell specifies capture rates up to approximately 80fps.
Hardware Video Processing
The onboard video engine provides approximately 180 Mpixels/s of processing bandwidth with 8-bit 4:4:4 processing. Hardware functions include scaling, deinterlacing, color-format conversion, and frame-rate conversion.
PCIe Gen2 x4 SG-DMA
The M.2 host interface operates through PCIe Gen2 x4. Magewell specifies approximately 700 MB/s DMA bandwidth per channel in PCIe 2.x systems. SG-DMA support helps move captured video efficiently into professional software and GPU-assisted workflows.
Multiple Replicated Capture Streams
Unlimited replicated capture streams can be created for any one input channel. Replicated streams from that input operate in the same capture format. This allows one HDMI source to be accessed by compatible software workflows simultaneously.
Input Channels
2 × HDMI + Embedded Audio
11510 Connectors
2 × JST SHD 20-Pin
Supported Inputs
HDMI 1.4a · DVI 1.0
Host Interface
M.2 2280 Type M · PCIe Gen2 x4
OBS vMix and Wirecast Compatibility
Magewell lists OBS, vMix, Wirecast, XSplit, VidBlaster, VLC, and VirtualDub among supported applications. Other compatible DirectShow and V4L2 capture or streaming software can also access the device.
Windows and Linux Support
Windows support includes DirectShow, DirectKS, Wave API, DirectSound, and WASAPI. Linux applications can use V4L2 and ALSA interfaces. Magewell also provides its Capture SDK for custom integration on supported platforms.
Magewell Capture Tools
Magewell lists compatibility with Capture Express, Magewell Bridge for NDI, and its Plugin for Premiere. Firmware can be upgraded to support ongoing device maintenance. The Magewell Capture SDK provides deeper access for custom applications.
Embedded System Designers
Add two HDMI capture channels to compact M.2-based computing platforms.
Streaming Integrators
Bring two HDMI sources into OBS, vMix, Wirecast, and compatible applications.
AV Integrators
Deploy compact dual-source capture inside custom professional AV systems.
OEM Developers
Integrate dual-channel HDMI ingest into specialized video appliances.
Live Production Systems
Capture cameras, presentations, and other compatible HDMI sources simultaneously.
Software Developers
Build customized video applications using Magewell APIs and Capture SDK tools.
Magewell Support
Magewell provides a two-year manufacturer warranty for the Eco Capture Dual HDMI M.2. Coremicro can help confirm the correct 11510 connectivity option, M.2 slot compatibility, HDMI source formats, operating-system requirements, and software integration before deployment.
| Specification | Detail |
|---|---|
| Product | Eco Capture Dual HDMI M.2 |
| Listing Part Number | 11510 |
| SKU | 115100000 |
| Alternative Connectivity Version | Part number 11514 with 2 × FPC 20-pin sockets |
| Capture Channels | 2 channels |
| Video and Audio Inputs | 2 × HDMI sources with embedded audio |
| 11510 Input Connectors | 2 × JST SHD 20-pin sockets |
| Supported Input Interfaces | DVI 1.0 · HDMI 1.4a |
| Host Interface | M.2 2280 Type M · PCIe Gen2 x4 |
| Maximum Input Resolution | Up to 2048×2160 pixels |
| Maximum Capture Resolution | Up to 2048×2160 pixels |
| Maximum Capture Frame Rate | Up to 144fps depending on resolution, PCIe bandwidth, and processing limits |
| 1920×1080 Capture | Up to approximately 80fps |
| HDMI Receiver | 165 MHz |
| HDMI Equalizer | Adaptive HDMI equalizer |
| HDMI Transmission Distance | Up to approximately 30 m under supported conditions |
| EDID | Customizable EDID supported |
| Input Color Depth | 8-bit · 10-bit · 12-bit |
| Input Color Sampling | RGB 4:4:4 · YCbCr 4:4:4 · YCbCr 4:2:2 |
| Embedded HDMI Audio | Up to 8-channel IEC60958 / IEC61937 audio streams via SDK |
| 3D HDMI Modes | Side-by-Side Half · Top-and-Bottom · Frame Packing |
| 4:2:0 8-Bit Capture | NV12 · I420 · YV12 |
| 4:2:2 8-Bit Capture | YUY2 · YUYV · UYVY |
| 4:4:4 8-Bit Capture | V308 · IYU2 · V408 · BGR24 · BGR32 |
| Video Processing | 8-bit 4:4:4 processing · Scaling · Deinterlacing · Color-format conversion · Frame-rate conversion |
| Video Processing Bandwidth | Approximately 180 Mpixels/s |
| Processing Color Formats | RGB · YCbCr 601 · YCbCr 709 · YCbCr 2020 |
| Multiple Replicated Streams | Unlimited streams for any one input channel in the same capture format |
| Hardware Timestamp | 100 ns high-resolution hardware clock |
| PCIe 2.x DMA Bandwidth | Approximately 700 MB/s per channel |
| PCIe 1.x DMA Bandwidth | Approximately 400 MB/s per channel |
| GPU Transfer Support | Intel tiled GPU surfaces · AMD DirectGMA · NVIDIA GPUDirect |
| Windows APIs | DirectShow · DirectKS · Wave API · DirectSound · WASAPI |
| Linux APIs | V4L2 · ALSA |
| Supported Software | VLC · VirtualDub · OBS · XSplit · vMix · VidBlaster · Wirecast · Microsoft Media Encoder · Adobe Flash Media Encoder |
| Magewell Software | Capture Express · Magewell Bridge for NDI · Plugin for Premiere |
| SDK | Magewell Capture SDK for Windows and Linux integration |
| Firmware | User-upgradable firmware |
| Multiple Devices per System | Supported with onboard 16-position card-number DIP switch |
| Status Indicator | Per-channel LED status indication |
| Form Factor | M.2 2280 standard size |
| Maximum Current | Approximately 1.25 A at 3.3 V |
| Maximum Power Consumption | Approximately 4.17 W |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | −20 to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Manufacturer Warranty | 2 years |
| Included Hardware — 11510 | Eco Capture Dual HDMI M.2 card · 2 × SHD to HDMI Type A breakout cables, 31 cm |
What is the Magewell Eco Capture Dual HDMI M.2 used for?
The card captures two HDMI video sources with embedded audio inside a compact M.2-based system. It is designed for embedded video, streaming, recording, professional AV integration, and other space-constrained capture applications.
How many HDMI sources can the card capture?
Eco Capture Dual HDMI M.2 provides two independent capture channels. Both channels support HDMI 1.4a and DVI 1.0 source signals at resolutions up to 2048×2160 pixels.
What connector does part number 11510 use?
Part number 11510 uses two JST SHD 20-pin input sockets. Magewell supplies two SHD-to-HDMI Type A breakout cables for connecting standard HDMI sources to this version.
What is the difference between part numbers 11510 and 11514?
Both versions provide the same two-channel Eco Capture Dual HDMI M.2 functionality but use different physical input connections. Part 11510 uses JST SHD 20-pin sockets, while part 11514 uses FPC 20-pin sockets.
Is the card compatible with OBS vMix and Wirecast?
Yes. Magewell lists OBS, vMix, Wirecast, XSplit, VidBlaster, VLC, VirtualDub, and other compatible DirectShow or V4L2 capture and streaming applications.
Can one HDMI input provide multiple capture streams?
Yes. Magewell specifies unlimited replicated capture streams for any one input channel. Replicated streams from that input must use the same capture format.
What warranty does the Eco Capture Dual HDMI M.2 include?
Magewell provides a two-year manufacturer warranty for the product. Coremicro can help confirm the correct connector version, M.2 host compatibility, source formats, and software requirements.
Build a Compact Dual-Channel HDMI Capture System
Coremicro is an authorized Magewell dealer supporting professional embedded capture, streaming, recording, OEM video, and AV integration. Contact our team to confirm the correct 11510 connectivity option, HDMI source format, M.2 2280 Type M compatibility, and software requirements for your Eco Capture Dual HDMI M.2 deployment.
