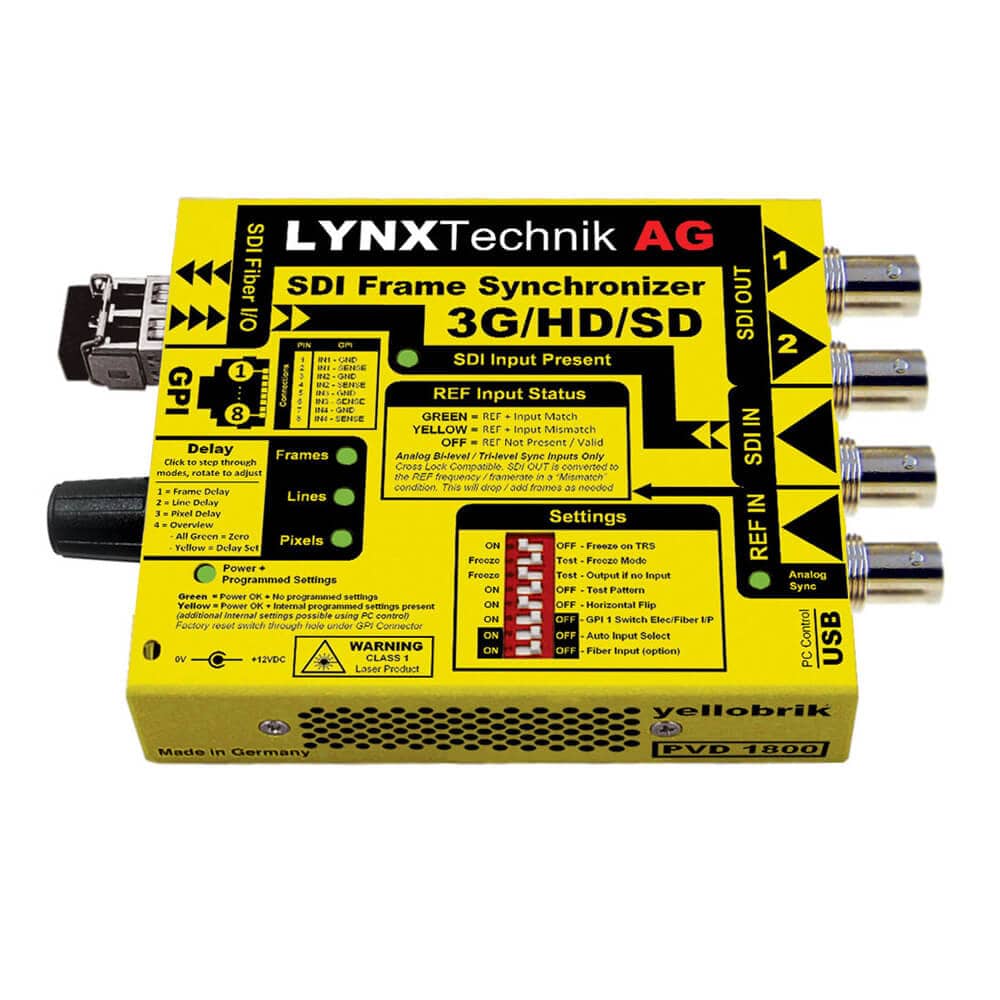

Lynx Technik yellobrik PVD-1800 3G-SDI Frame Synchronizer

The Lynx Technik yellobrik PVD-1800 3G-SDI Frame Synchronizer is a broadcast-quality compact SDI frame synchronizer with a high-quality Up/Down/Cross converter and scaler for professional applications in the broadcast, post-production, and professional audiovisual industries. The frame synchronizer employs powerful "flywheel" algorithms that can handle a wide range of low-quality asynchronous SDI sources. All embedded audio is automatically extracted and delayed to match the video processing delay. In addition, the module offers up to 30 frames of programmed output delay, which is customizable in frames, lines, and pixels.

The Up/Down/Cross converter can convert between 3G/HD/SD video standards and features a quick scale option (10 lines delay) that can be selected. Furthermore, the converter has a strong ROI scaler that allows the user to extract a specific portion of the incoming video and output it as a full format SDI output.

PVD-1800 Features:

• Supports SDI 3G (level A+B)/HD/SD formats (auto-detect)
• Up/Down/Cross Converter with selectable fast scale mode
• Converter automated by AFD, WSS or VI mode
• Region of Interest scaler
• Converts between 3G Level A and B Dual Link or vice versa
• Optional fiber I/O
• Auto changeover or GPI switch between electrical and optical input
• Robust “flywheel” synchronization for problematic sources
• “Cross lock” compatible reference input
• All 16 channels of audio de-embedded from SDI input
• Audio delayed to match video processing delay and re-embedded
• Integrated test pattern generator
• Up to 30 frames of programmable delay (for timing)
