Product Highlights
- Supports 12G, 6G, 3G, and 1.5G SDI video standards
- 3Gbit Level A and Level B (support for all formats)
- Auto reclocking 1.5Gbit/3Gbit /6Gbit/12Gbit
- Error-free optical transmission
- Two reclocked SDI outputs
- Fiber ST connectors
- Singlemode fiber connection
- Input range 1260nm to 1620nm

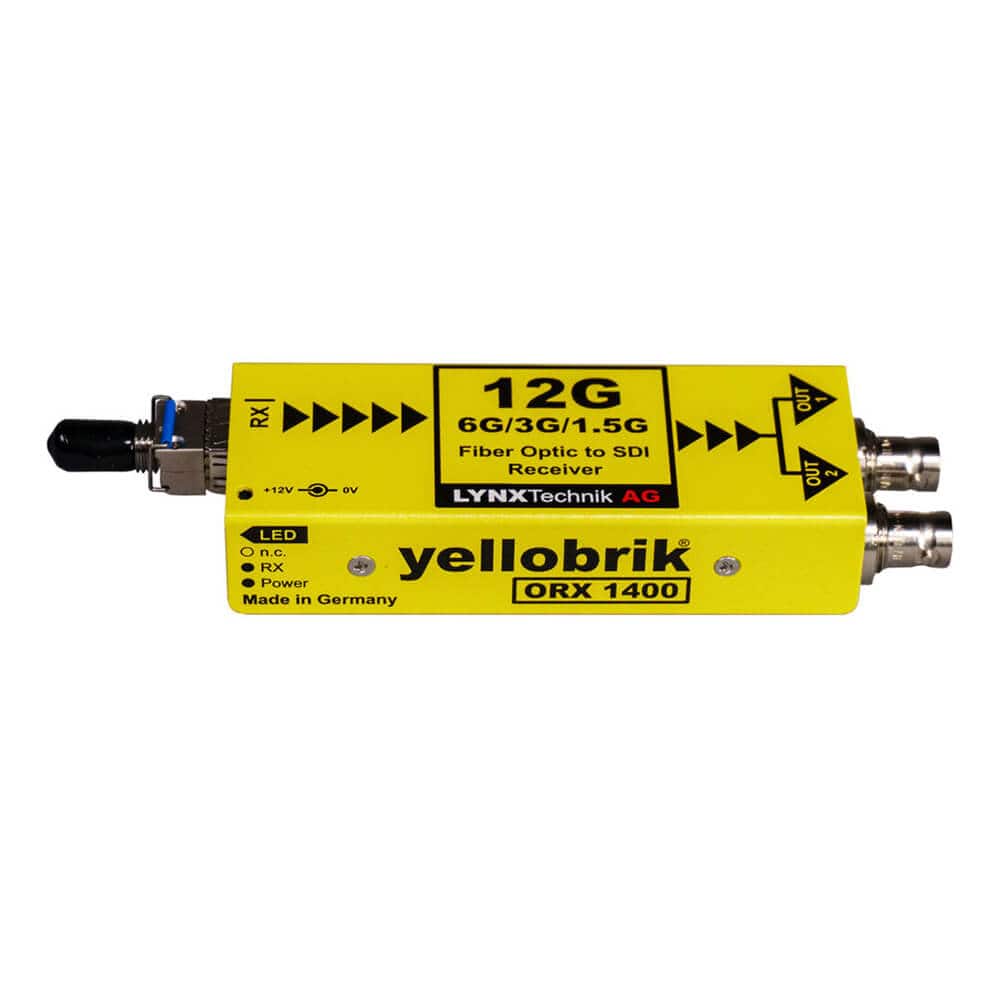

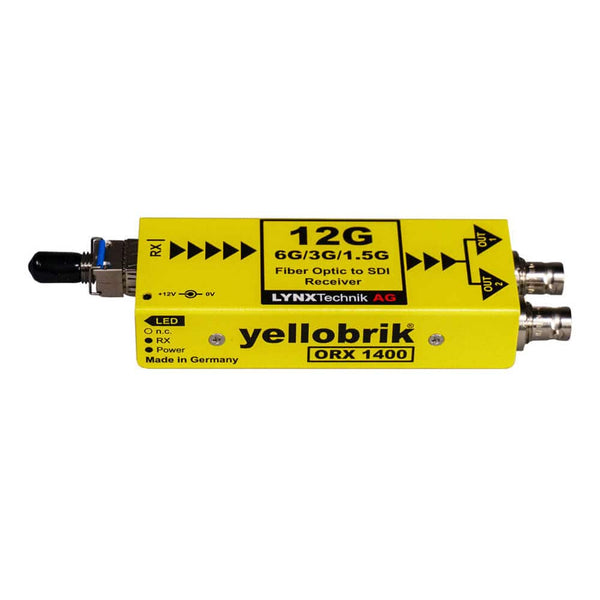

Lynx Technik yellobrik ORX-1400-ST Optical Receiver with Fiber ST
- SKU:
- LNX-O RX 1400 ST
- MPN:
- O RX 1400 ST
Ships in 2-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The Lynx Technik yellobrik ORX-1400-ST Optical Receiver with Fiber ST is a small SDI to fiber optic receiver designed to overcome the challenges of distributing uncompressed, high bandwidth, broadcast quality video signals over long distances. When combined with a fiber optic to SDI transmitter (for example, the yellobrik OTX 1410), you have a very cost-effective optical transmission/receiver system for signals up to 12Gbit/s (40962160 @ 60Hz), while retaining full uncompressed quality.
The ORX 1400 operates entirely automatically. The SDI video format is detected, reclocked, and provided on two SDI output connections automatically. The ORX 1400 supports SDI video standards of 12G, 6G, 3G, and 1.5G.
Specifications
Lynx Technik yellobrik ORX-1400-ST Optical Receiver with Fiber ST Specifications
Reviews
What's included
Included on Lynx Technik yellobrik ORX-1400-ST Optical Receiver with Fiber ST
Recommended Products
| Physical / Environmental Specifications | |
|---|---|
Dimension |
|
