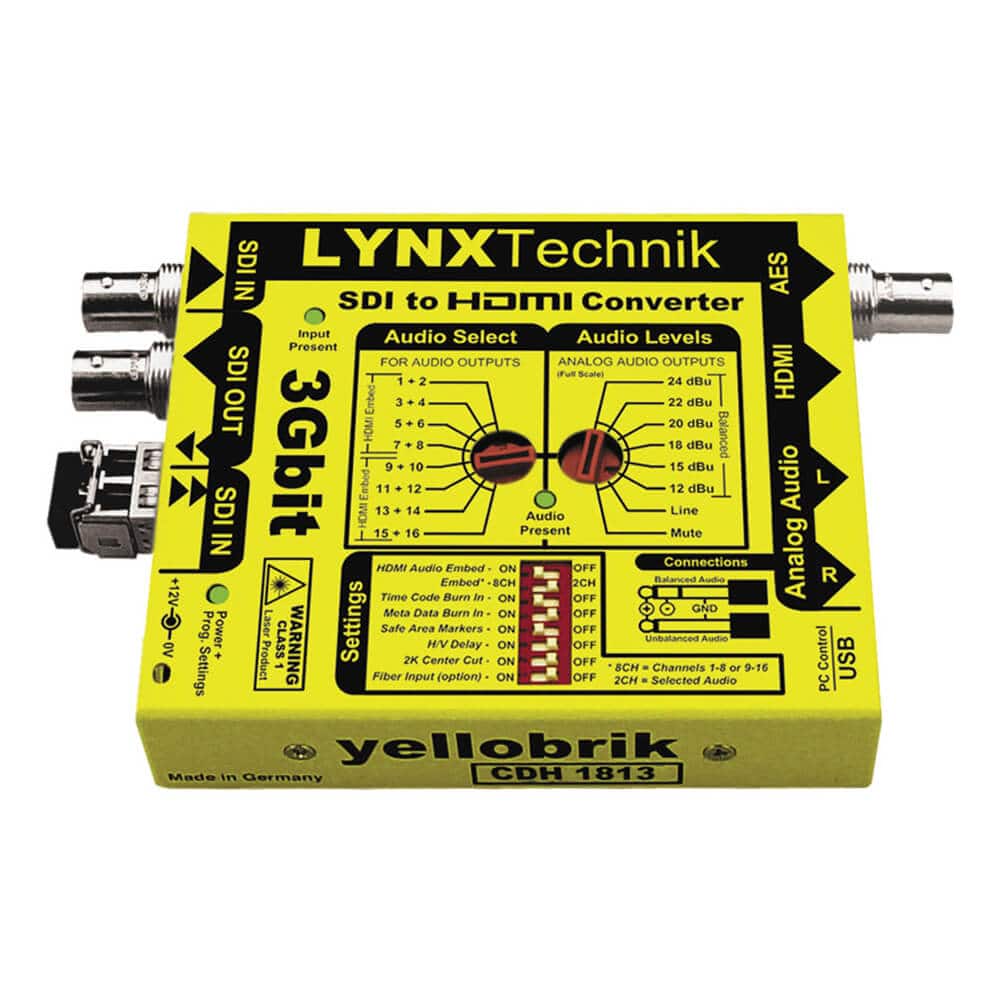

Lynx Technik yellobrik CDH 1813 3G-SDI to HDMI Converter with 3D Support

The Lynx Technik yellobrik CDH 1813 3G-SDI to HDMI Converter with 3D Support is a versatile, compact SDI to HDMI converter designed to address a wide range of monitoring and display applications in the broadcast, post-production, and professional A/V markets. Any SDI video signal, including 3D forms, can be converted into an HDMI signal for monitoring and display. Using the inbuilt fiber SFP socket, fiber connectivity options include SDI fiber transmission and/or SDI fiber reception.

Two audio channels can be de-embedded to provide digital AES and analog audio outputs. Full-scale range presets are selectable on analog audio outputs. The two audio channels of choice can likewise be incorporated into the HDMI output. Furthermore, eight channels from the input signal (channels 1-8 or 9-16) can be incorporated into the HDMI output. The CDH1813 is a true monitoring tool thanks to its various burn-in functions. On-screen monitoring features include timecode burn-in, 16-channel audio metering, safe area markers, and Metadata display. The yelloGUI program supports a slew of additional settings and capabilities that can be accessible via a PC and the module's USB connector.

Key Features:

• Support for SDI video inputs up to 3Gbit/s (1080P)
• 3G SDI Level A and Level B support
• Supports HDR and WCG indication at the HDMI output
• Automated detection of input signal color range via VPID information
• Support for single link 3D formats
• Automatic input standard and format detection
• Fiber input and output options
• HDMI video output with embedded audio
• Analog and AES audio outputs
• Selectable timecode burn-in
• Metadata burn-in
• 16 channel on-screen audio meters
• H/V delay and safe area markers
• yelloGUI compatible: Gain access to additional features
