Product Highlights
- 1 x Input & 7 x Outputs
- Support up to 12Gbit/s (4K/UHD)
- SD, HD-SDI, 3G-SDI, 6G-SDI & 12G SDI
- Support Reclocking
- Auto-detect input format
- Input present LED indication

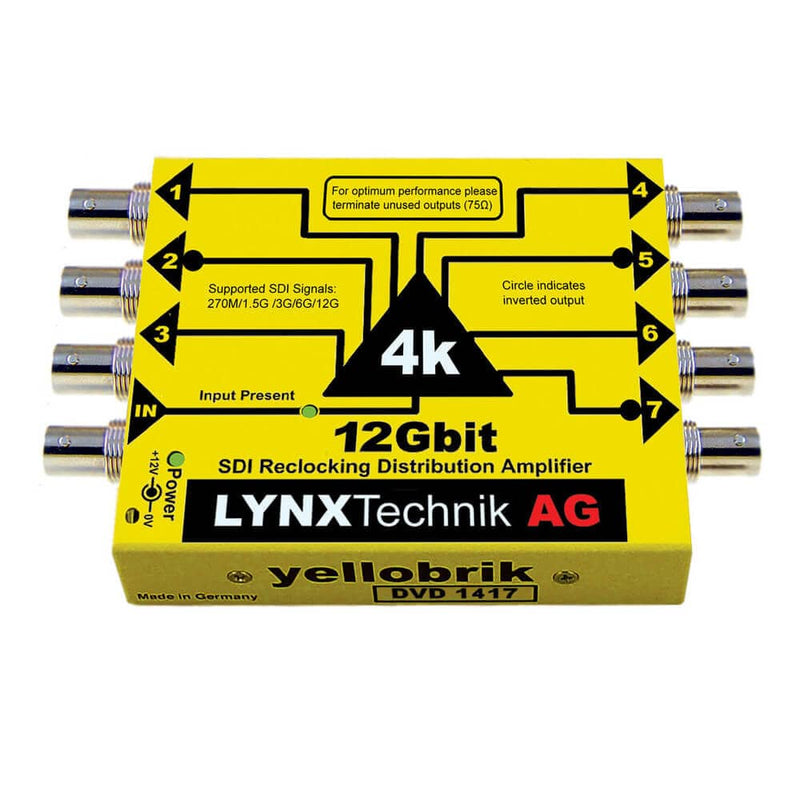

Lynx Technik yellobrik 1x7 12G-SDI UHD 4K Distribution Amplifier
- SKU:
- LNX-D VD 1417
- MPN:
- D VD 1417
Special Order
Regular price
$679.25
Ships in 2-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
30
Product Inquiry Form
Description
Product Overview
The Lynx Technik yellobrik DVD 1417 1x7 12G-SDI UHD 4K Distribution Amplifier is a small SDI distribution amplifier that can handle SDI signals ranging from 270Mbit/s to 4K UHD (12 Gbit/s). The SDI input format is detected automatically, and all outputs are reclocked. Standards supported include SMPTE 259M (270Mbit/s), SMPTE 292M (1.5Gbit/s), SMPTE 424M (3Gbit/s), SMPTE 2081 (6GBit/S), and SMPTE 2082 (12GBit/s).
Specifications
Lynx Technik yellobrik 1x7 12G-SDI UHD 4K Distribution Amplifier Specifications
Reviews
What's included
Included on Lynx Technik yellobrik 1x7 12G-SDI UHD 4K Distribution Amplifier
