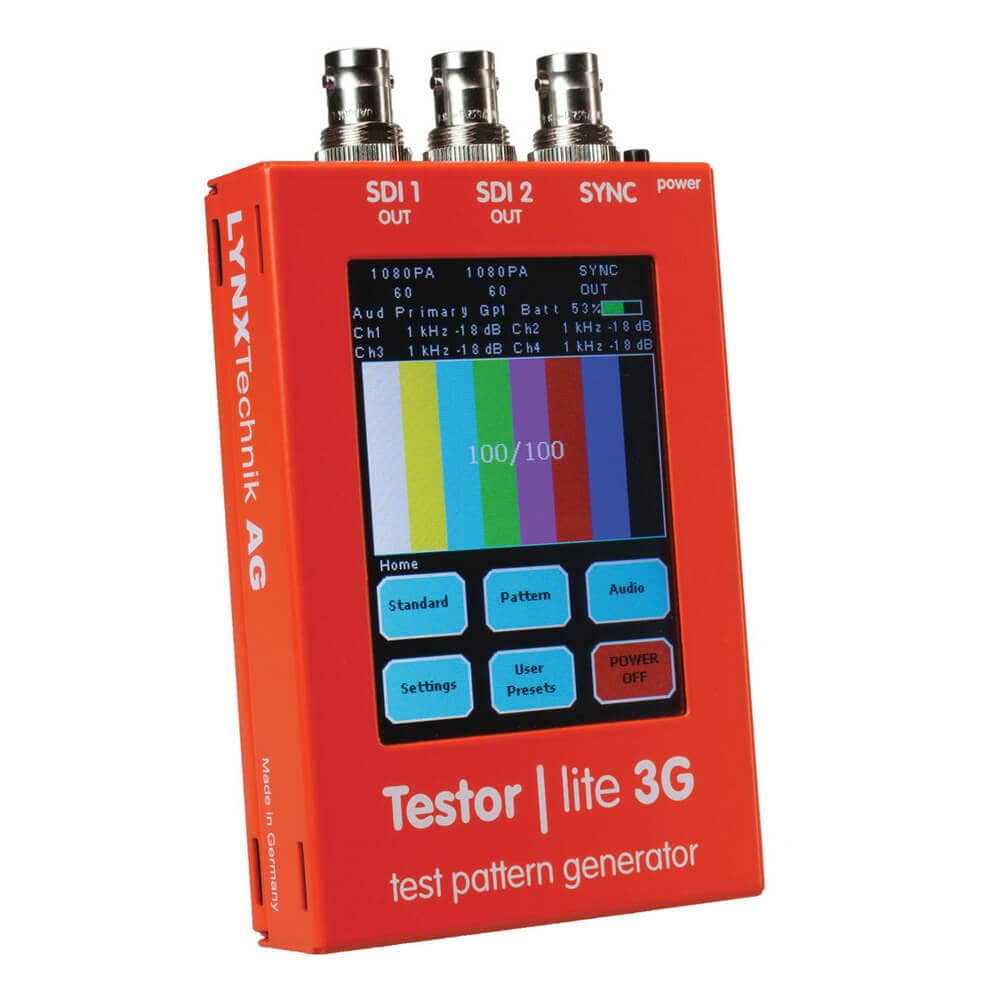

Lynx Technik lite 3G-SDI Test Pattern Generator

The Lynx Technik light 3G-SDI Test Pattern Generator is a portable SDI video and audio test generator that may be used to meet a variety of test and verification requirements in current digital infrastructures. The integrated rechargeable battery will give up to 4 hours of continuous operation, and the huge color touch-screen provides a simple, intuitive user interface.

PTG 1802 Features:

• 2 x SDI video on 75 Ohm BNC connectors (Each output is the same format and frequency, but can have different patterns)
• SMPTE 424M, SMPTE 292M, SMPTE 259
• Multiple 3G Streaming Modes (SMPTE 425, SMPTE 372, SMPTE 425 and more)
• Embedded Audio Generator with 4 independent audio channels (2 Stereo pairs) each with adjustable level and frequency
• Preset frequency selections: 50, 100, 200, 250, 400, 500, 800, 1k, 2k, 4k, 8k, 16kHz
• Level adjustments: 0 to -79dBFS in 1dB steps
• All 4 channels available to both SDI output embedders, which can embed 8 channels into any two groups (selectable). Each SDI Embedder can be configured independently with different groups and channel assignments.
• 1 x analog sync output, BNC connector 75 Ohm
• Large selection of Static Patterns, Dynamic Patterns, and 3D Patterns
• Multiple, selectable overlays
