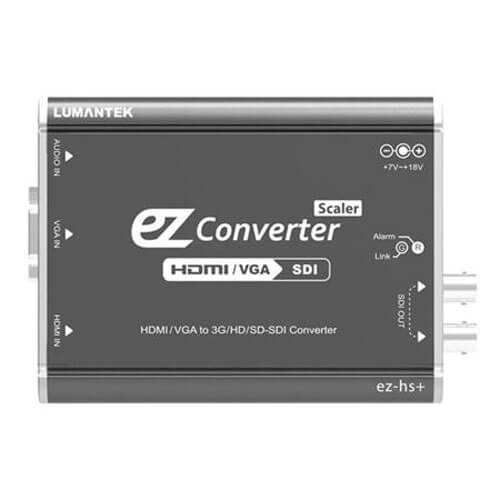

Lumantek HDMI/VGA to SDI EZ-Converter with Scaler

The Lumantek Scaler ez-Converter [ez-hs+] is a compact HDMI/VGA to SDI converter with a built-in scaler for flexible live production workflows. It supports resolutions from 480i to 1080p60 and lets you control aspect ratio output between 16:9 and 4:3.

Key Features

• Scalable Resolutions – Convert video from 480i to 1080p60 using the DIP switch controls
• Screen Ratio Control – Select 16:9 or 4:3 output to match display needs
• Low Power Consumption – Uses less than 3 watts with 5–18V DC input range
• Global Power Adaptor – Includes AC/DC adaptor with 3 interchangeable plugs
• Designed for HDMI and VGA sources with stereo audio input

Connections

Input:
1 x HDMI
1 x VGA
1 x 3.5mm Stereo Jack

Output:
2 x SDI
