Lumantek ez-Pro VS10 10-Input Video Switcher with Scaler, Touchscreen & PTZ Control

Designed for live production, the Lumantek ez-Pro VS10 is a 10-input video switcher. It offers event producers, houses of worship, and broadcasters the ability to effortlessly produce professional live video with its intuitive touchscreen interface, built-in scalers, and advanced features.

Flexible Input Options

The Lumantek ez-Pro VS10 features 8 SDI inputs and 2 HDMI inputs, each with built-in scalers. This ensures smooth signal conversion from mixed sources, whether cameras, computers, or external media devices.

Customizable Multiview

Design your own multiview layout using Lumantek’s utility software for Windows or macOS. Save layouts to a USB drive and instantly load them into the switcher. You can name, move, and assign sources freely for a workflow tailored to your production.

Live Graphics Integration

Pair the ez-Pro VS10 with the Lumantek ez-CGER mini for live titling and graphics. With Fill & Key capability available on all inputs, you can bring professional graphics overlays and live text into your production seamlessly.

Advanced Switching Features

This switcher includes two Picture-in-Picture (PIP) windows, two still image stores, and Luma/Chroma keyers. You can mix features, such as using PIP with a keyed hand-language interpreter overlay, giving you broadcast-level flexibility.

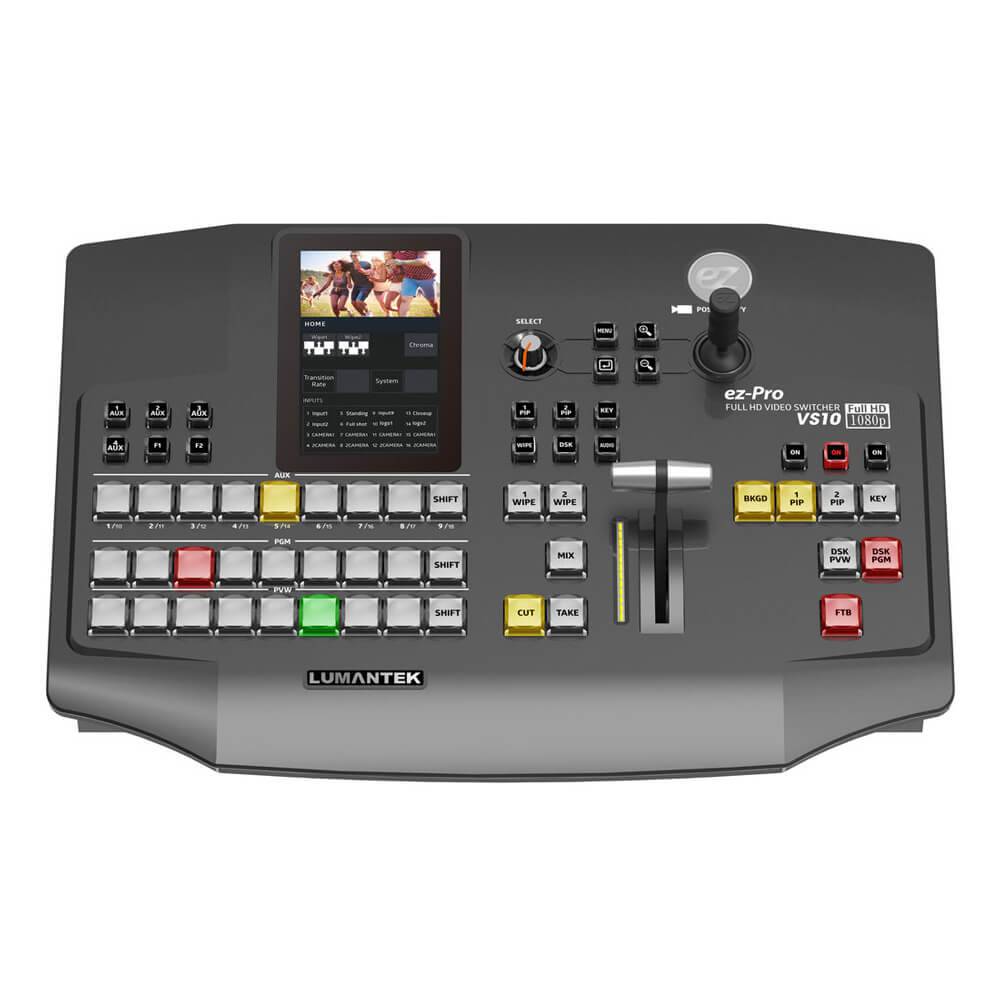

Intuitive Operation

Control menus directly from the LCD touchscreen, or use the rotary knob and joystick for quick navigation. The joystick also facilitates smooth PTZ camera control, making it easy to manage live multi-camera shoots.

Outputs and Monitoring

The ez-Pro VS10 provides 4 SDI AUX outputs, 2 SDI program outputs, 1 HDMI program output, and 1 HDMI multiview output, giving you flexible routing options. The internal LCD screen can also display both program and multiview with a simple tap.

Smart Design for Live Use

A quiet fan system ensures comfortable operation in studios or event spaces. Settings, media, and firmware updates are easily transferred via USB disk.

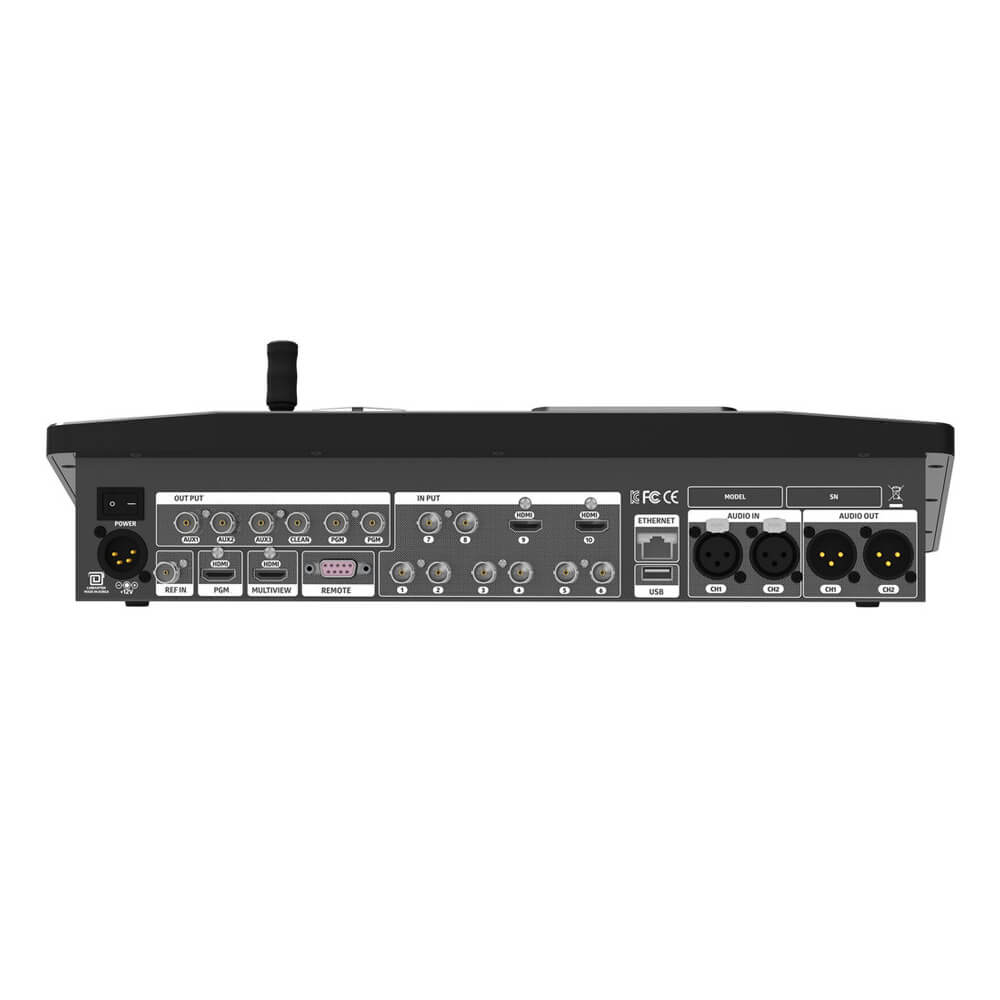

Inputs and Outputs Overview

• Inputs: 8 × SDI (video), 2 × HDMI (video), 1 pair XLR (audio)
• Outputs: 4 × SDI AUX, 2 × SDI program, 1 × HDMI program, 1 × HDMI multiview, 1 pair XLR (audio)

Real-World Applications

• Live concerts and events
• House of worship streaming
• Broadcast studios and OB vans
• Corporate presentations
• Education and training

The Lumantek ez-Pro VS10 delivers professional features in a compact, user-friendly design, making it a smart choice for anyone who needs powerful switching and graphics integration at an affordable price.
